CV Axle Set for Honda Pioneer 700 4x4 2015-2022

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
HO-124/HO-224/HO-370/HO-370

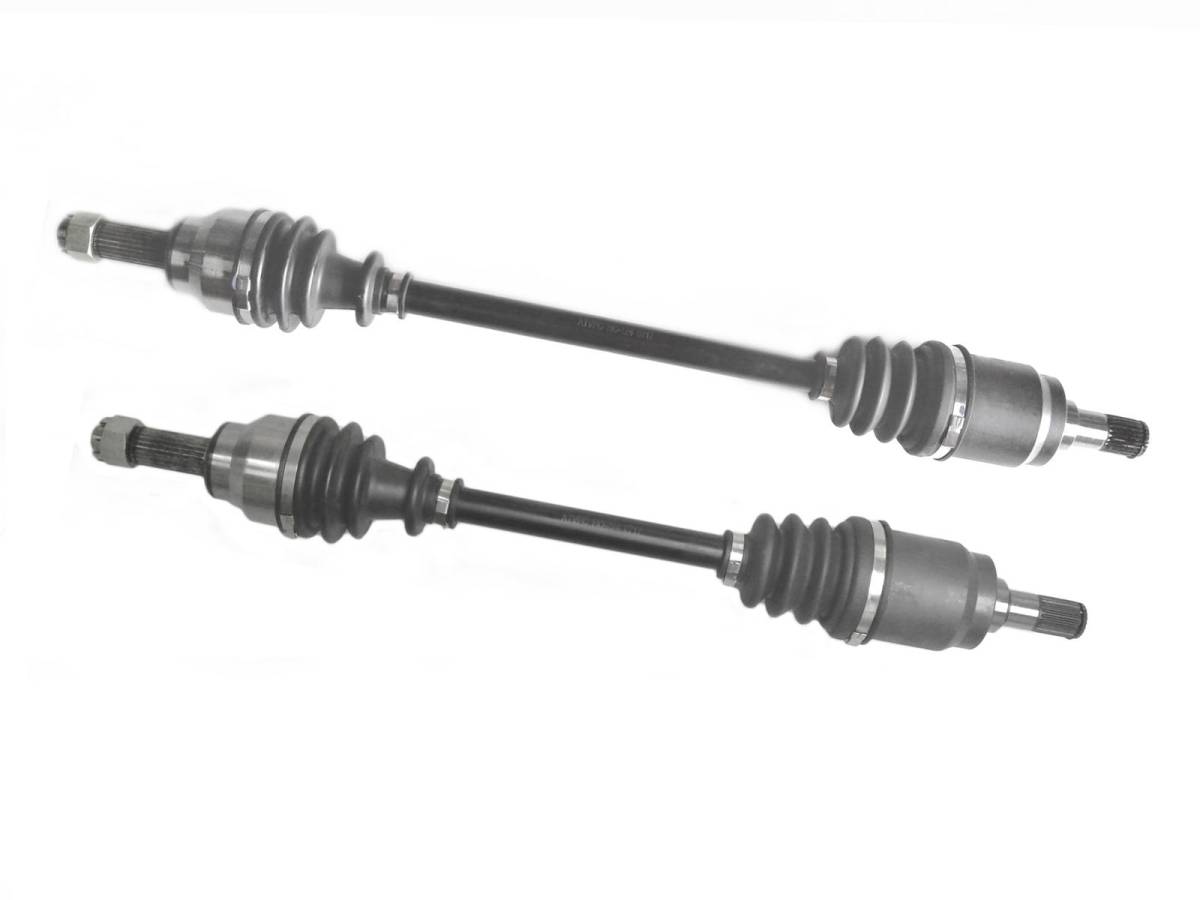

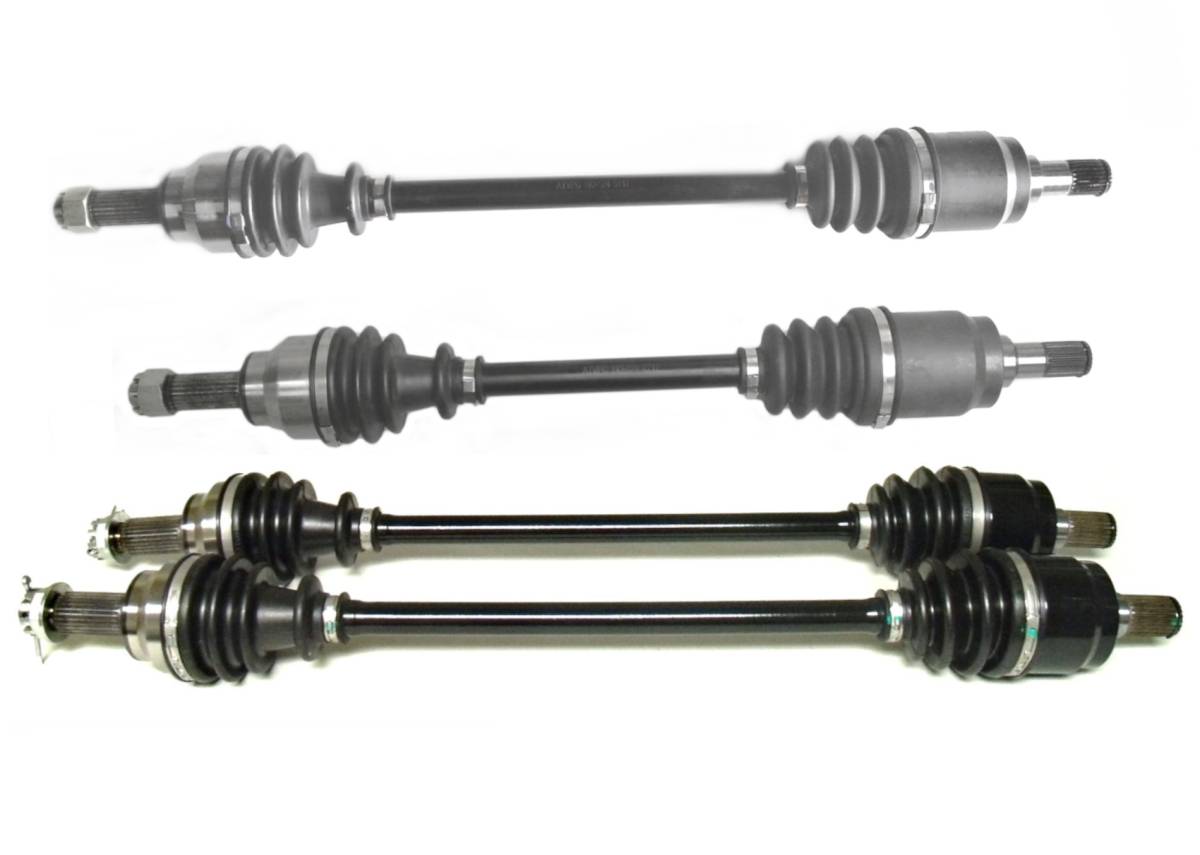

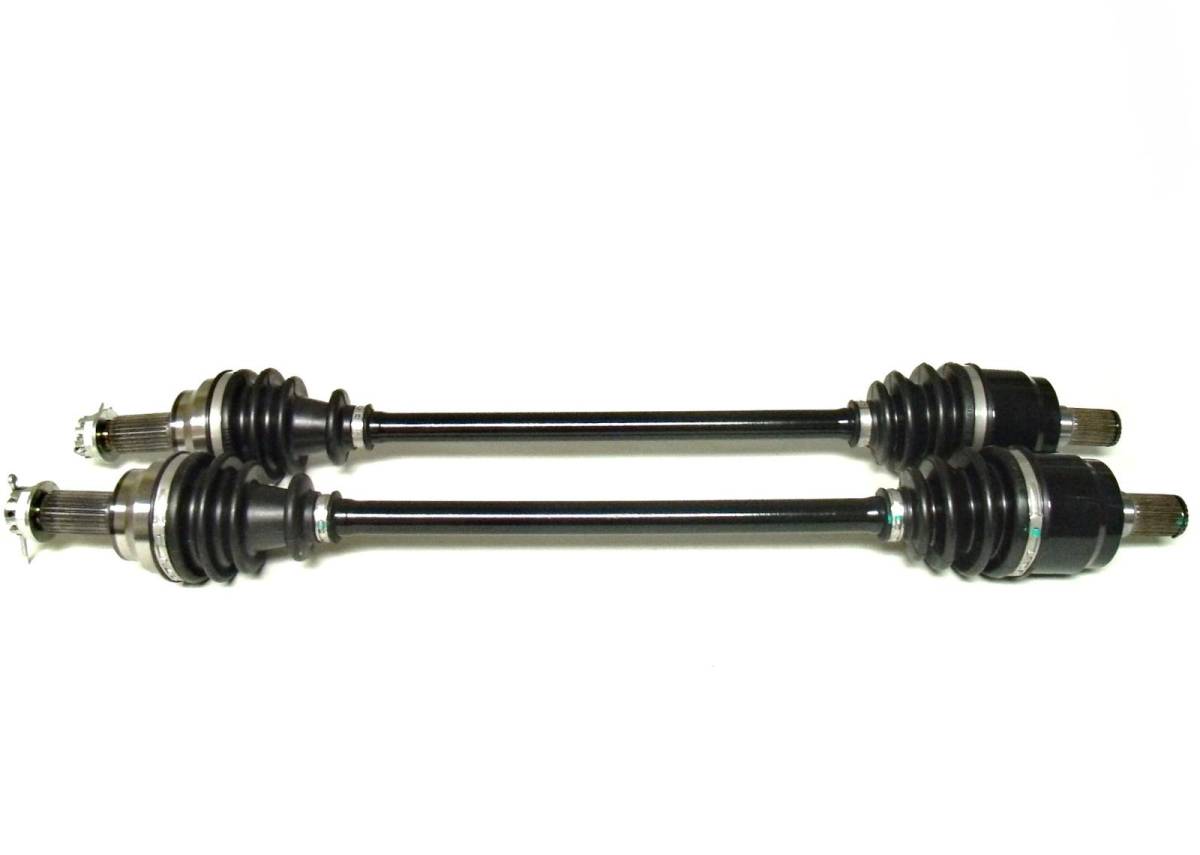

This is a set of complete CV axles for a Honda UTV.

They fit the following models:

2015-2022 Pioneer 700

2015-2022 Pioneer 700-4

*made as an OEM replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Fronts- 23, Rears- 25
  • Outboard CV joint spline count: Fronts - 24, Rears - 26
  • Compressed overall axle length (mm): FL 705.5, FR 601.5, RL 691, RR 691
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $299.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022HondaPioneer 700SXS700M2
2022HondaPioneer 700SXS700M2D Deluxe
2021HondaPioneer 700SXS700M2
2021HondaPioneer 700SXS700M2D Deluxe
2020HondaPioneer 700SXS700M2
2020HondaPioneer 700SXS700M2D Deluxe
2019HondaPioneer 700SXS700M2
2019HondaPioneer 700SXS700M2D Deluxe
2018HondaPioneer 700SXS700M2
2018HondaPioneer 700SXS700M2D Deluxe
2017HondaPioneer 700SXS700M2
2017HondaPioneer 700SXS700M2D Deluxe
2016HondaPioneer 700SXS700M2
2015HondaPioneer 700SXS700M2
2022HondaPioneer 700-4SXS700M4
2022HondaPioneer 700-4SXS700M4D Deluxe
2021HondaPioneer 700-4SXS700M4
2021HondaPioneer 700-4SXS700M4D Deluxe
2020HondaPioneer 700-4SXS700M4
2020HondaPioneer 700-4SXS700M4D Deluxe
2019HondaPioneer 700-4SXS700M4
2019HondaPioneer 700-4SXS700M4D Deluxe
2018HondaPioneer 700-4SXS700M4
2018HondaPioneer 700-4SXS700M4D Deluxe
2017HondaPioneer 700-4SXS700M4
2017HondaPioneer 700-4SXS700M4D Deluxe
2016HondaPioneer 700-4SXS700M4
2015HondaPioneer 700-4SXS700M4

Product Notes

  • Fits the following Honda UTV models: 2015-2022 Pioneer 700, 2015-2022 Pioneer 700-4.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 44350-HL3-A02, 44220-HL3-A01, 44220-HL3-A01, 44250-HL3-A02. Inner spline count: Fronts - 23, Rears - 25, Outer spline count: Fronts - 24, Rears - 26, Compressed axle length (mm): FL- 705.5, FR- 601.5, RL- 691, RR- 691.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • HO-124/HO-224/HO-370/HO-370
    • HO-124/HO-224/HO-370/HO-370
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 48.0 lbs.
    • W12.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
