CV Axle Set for Polaris Ranger EV Electric Vehicle 2015-2022, 1333238 1333069

Location on vehicle: Front,Rear,Left,Right

PO-331/PO-331/PO-343/PO-343

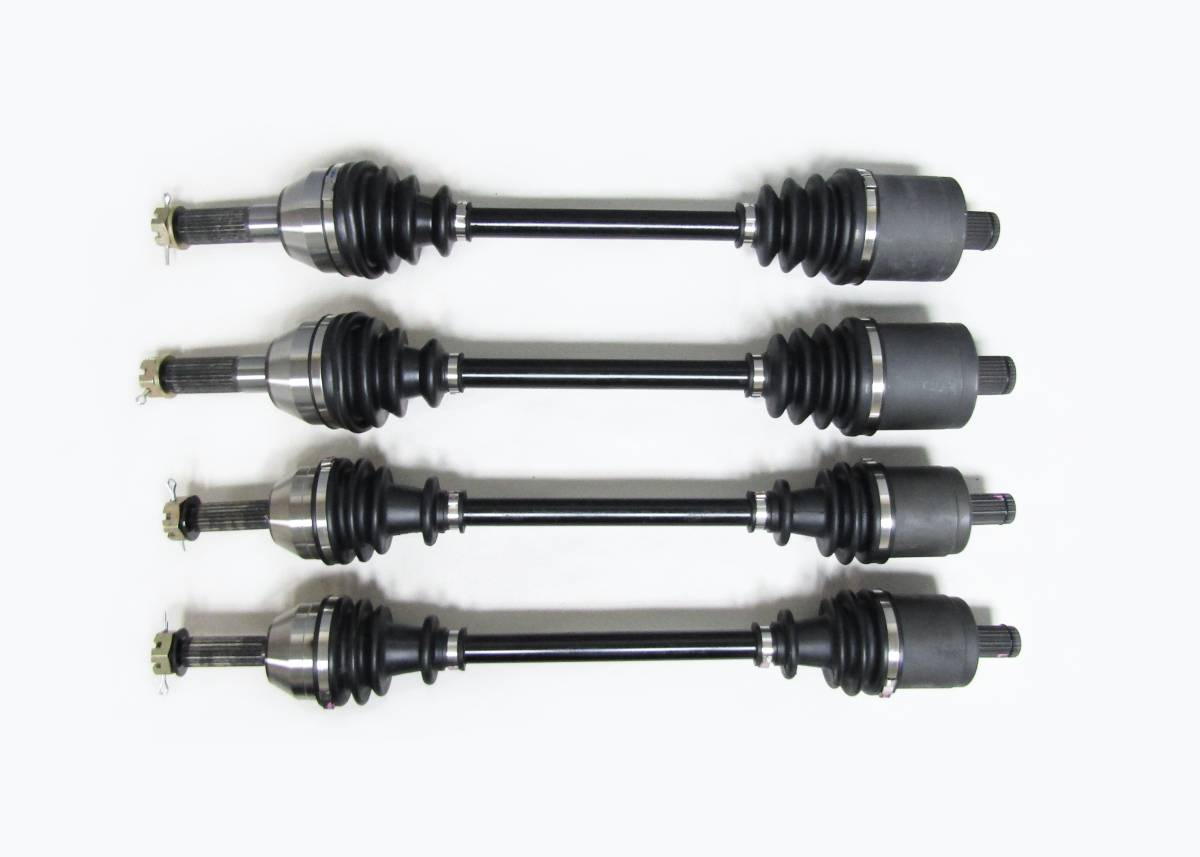

This is a set of 4 new CV axles for a Polaris UTV.

They will fit the following models:

2015-2022 Ranger EV (including LSV, LEV, Mid Size, & Li-Ion)

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts - 22, Rears - 28
  • Outboard CV joint spline count: Fronts - 20, Rears - 26
  • Compressed axle length: Fronts - 619 mm, Rears - 641.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $274.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022PolarisRanger EV--
2021PolarisRanger EV--
2020PolarisRanger EV--
2019PolarisRanger EV--
2018PolarisRanger EV--
2018PolarisRanger EVLi-Ion
2017PolarisRanger EV--
2017PolarisRanger EVLi-Ion Pursuit Camo
2017PolarisRanger EVLimited Edition
2017PolarisRanger EVPursuit Camo
2016PolarisRanger EV--
2016PolarisRanger EVLi-Ion
2016PolarisRanger EVPursuit Camo
2015PolarisRanger EV--

Product Notes

  • Fits the following Polaris models: 2015-2022 Ranger EV (including LSV, LEV, Mid Size, & Li-Ion). Set includes 4 fully-assembled axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: Fronts - 619 mm, Rears - 641.5 mm, Inboard Spline Count: Fronts - 22, Rears - 28, Outboard Spline Count: Fronts - 20, Rears - 26.
  • Replaces OEM # (fronts) 1333238, 1333742, (rears) 1333069, 1333628.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Warranty

    1 year factory defect limited warranty

    Details

    • PO-331/PO-331/PO-343/PO-343
    • PO-331/PO-331/PO-343/PO-343
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 53.0 lbs.
    • W10.0000” x H10.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
