Rear Axle U-Joint Set for Kawasaki Mule 2510 2520 3000 3010 3020 4000 4010

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
ATV704/ATV704/ATV704/ATV704

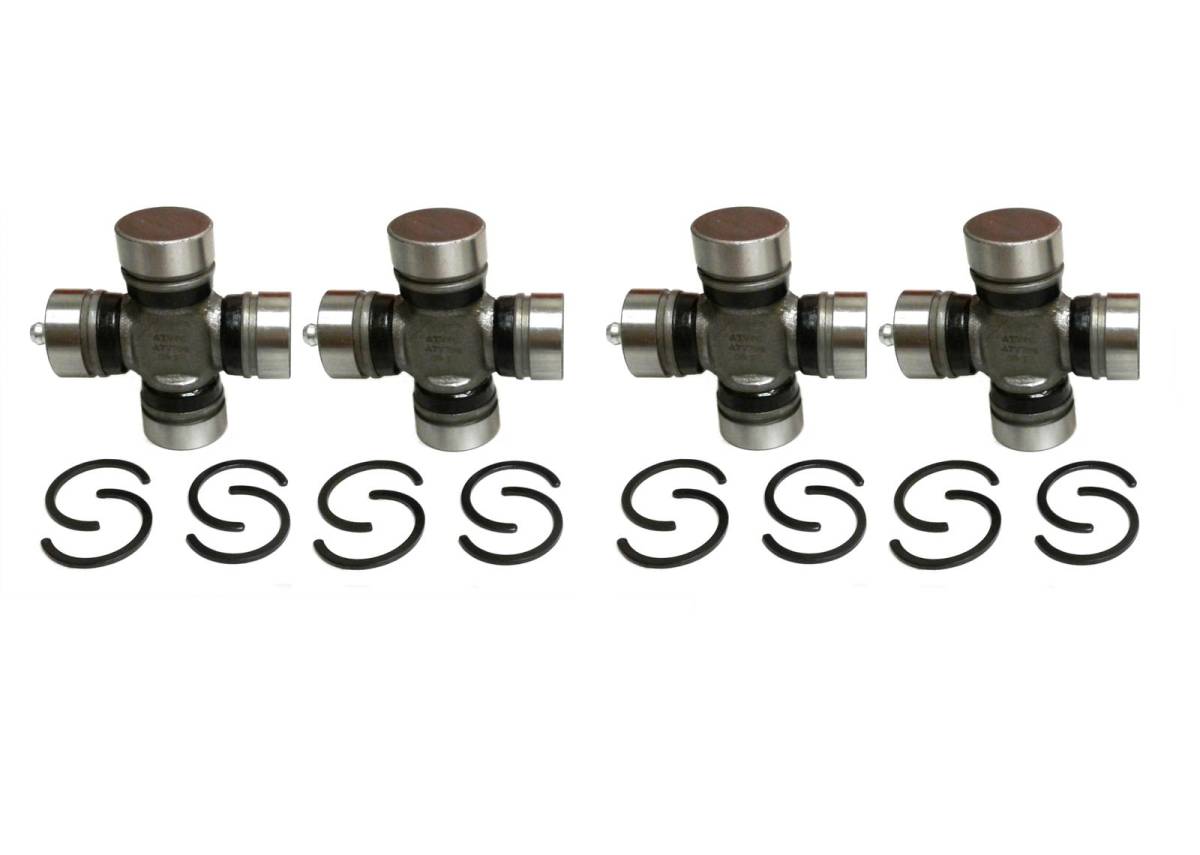

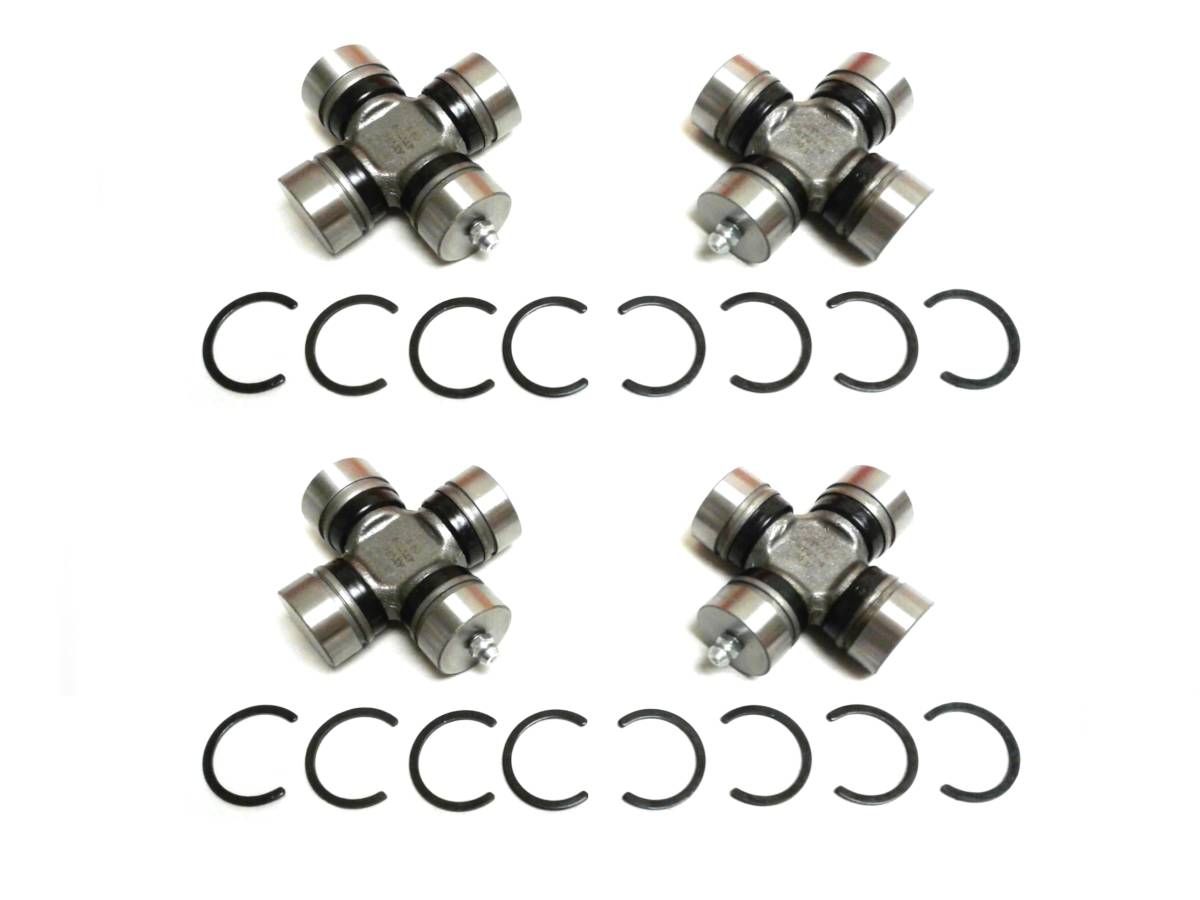

This is a set of 4 rear axle U-joints for a Kawasaki Mule.

They fit INNER & OUTER (as pictured) on the following models:

1994-2000 Mule 2500, 1993-2002 Mule 2510, 1993-2000 Mule 2520, 2001-2008 Mule 3000, 2001-2008 Mule 3010, 2001-2003 Mule 3020, 2009-2012 Mule 4000, 2009-2012 Mule 4010

Product features:

  • Bearing Diameter : 0.985 inches
  • Stack-Up Dimension : 1.728 inches
  • Style of Snap Rings : Inside Snap Rings
  • Snap Ring Thickness : 0.058 inches
  • Cross Span : 2.253 inches
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $49.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2000KawasakiMule 2510KAF620A 4x4
2000KawasakiMule 2510KAF950A 4x4 Diesel
2008KawasakiMule 3000KAF620G
2007KawasakiMule 3000KAF620G
2006KawasakiMule 3000KAF620G
2005KawasakiMule 3000KAF620G
2004KawasakiMule 3000KAF620G
2004KawasakiMule 3000KAF620H 4x4
2008KawasakiMule 3010KAF620E 4x4
2008KawasakiMule 3010KAF620H 4x4
2008KawasakiMule 3010KAF620J 4x4 Trans
2008KawasakiMule 3010KAF620K 4x4 Trans
2008KawasakiMule 3010KAF950D 4x4 Diesel
2008KawasakiMule 3010KAF950E 4x4 Trans Diesel
2007KawasakiMule 3010KAF620E 4x4
2007KawasakiMule 3010KAF620H 4x4
2007KawasakiMule 3010KAF620J 4x4 Trans
2007KawasakiMule 3010KAF620K 4x4 Trans
2007KawasakiMule 3010KAF950B 4x4 Diesel
2007KawasakiMule 3010KAF950C 4x4 Trans Diesel
2006KawasakiMule 3010KAF620E 4x4
2006KawasakiMule 3010KAF620H 4x4
2006KawasakiMule 3010KAF620J 4x4 Trans
2006KawasakiMule 3010KAF620K 4x4 Trans
2006KawasakiMule 3010KAF950B 4x4 Diesel
2005KawasakiMule 3010KAF620E 4x4
2005KawasakiMule 3010KAF620H 4x4
2005KawasakiMule 3010KAF620J 4x4 Trans
2005KawasakiMule 3010KAF620K 4x4 Trans
2005KawasakiMule 3010KAF950B 4x4 Diesel
2004KawasakiMule 3010KAF620E 4x4
2004KawasakiMule 3010KAF950B 4x4 Diesel
2003KawasakiMule 3010KAF620E 4x4
2003KawasakiMule 3010KAF620H 4x4
2003KawasakiMule 3010KAF950B 4x4 Diesel
2002KawasakiMule 3010KAF620E 4x4
2001KawasakiMule 3010KAF620E 4x4
2012KawasakiMule 4000KAF620P
2011KawasakiMule 4000KAF620P
2010KawasakiMule 4000KAF620P
2009KawasakiMule 4000KAF620P
2012KawasakiMule 4010KAF620M 4x4
2012KawasakiMule 4010KAF620R 4x4 Trans
2012KawasakiMule 4010KAF620S 4x4 Trans
2012KawasakiMule 4010KAF950F 4x4 Diesel
2012KawasakiMule 4010KAF950G 4x4 Trans Diesel
2011KawasakiMule 4010KAF620M 4x4
2011KawasakiMule 4010KAF620R 4x4 Trans
2011KawasakiMule 4010KAF620S 4x4 Trans
2011KawasakiMule 4010KAF950F 4x4 Diesel
2011KawasakiMule 4010KAF950G 4x4 Trans Diesel
2010KawasakiMule 4010KAF620M 4x4
2010KawasakiMule 4010KAF620R 4x4 Trans
2010KawasakiMule 4010KAF620S 4x4 Trans
2010KawasakiMule 4010KAF950F 4x4 Diesel
2010KawasakiMule 4010KAF950G 4x4 Trans Diesel
2010KawasakiMule 4010KAF950H 4x4 Trans Diesel
2009KawasakiMule 4010KAF620M 4x4
2009KawasakiMule 4010KAF620N 4x4
2009KawasakiMule 4010KAF620R 4x4 Trans
2009KawasakiMule 4010KAF620S 4x4 Trans
2009KawasakiMule 4010KAF950F 4x4 Diesel
2009KawasakiMule 4010KAF950G 4x4 Trans Diesel

Product Notes

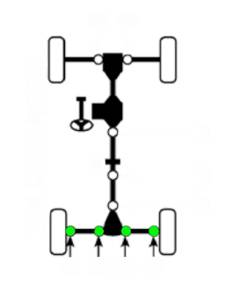

  • Replaces the INNER & OUTER positions of the rear axle (as pictured). Set includes 4 u-joints.
  • Fits the following Kawasaki UTV models: 1994-2000 Mule 2500, 1993-2002 Mule 2510, 1993-2000 Mule 2520, 2001-2008 Mule 3000, 2001-2008 Mule 3010, 2001-2003 Mule 3020, 2009-2012 Mule 4000, 2009-2012 Mule 4010.
  • Bearing Diameter: 0.985 in, Stack-Up Dimension: 1.728 in, Style of Snap Rings: Inside Snap Rings, Snap Ring Thickness: 0.058 in, Cross Span: 2.253 in.
  • Replaces OEM # 49050-1060, 49050-0023, 49050-0034.
  • Comes with a 1 year warranty. Please note parts are designed as an OEM replacement and use on lifted/modified vehicles will void warranty.

    • What's In The Box

  • 4 universal joints

    • Warranty

    1 year factory defect warranty

    Details

    • ATV704/ATV704/ATV704/ATV704
    • ATV704/ATV704/ATV704/ATV704
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 3.0 lbs.
    • W5.0000” x H8.0000” x L5.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
