Front Axle Pair with Bearings for Kubota RTV 500 2008-2018, K7311-15303

Location on vehicle: Front,Left,Right

KU-303/KU-303/WB-1424/WB-1424

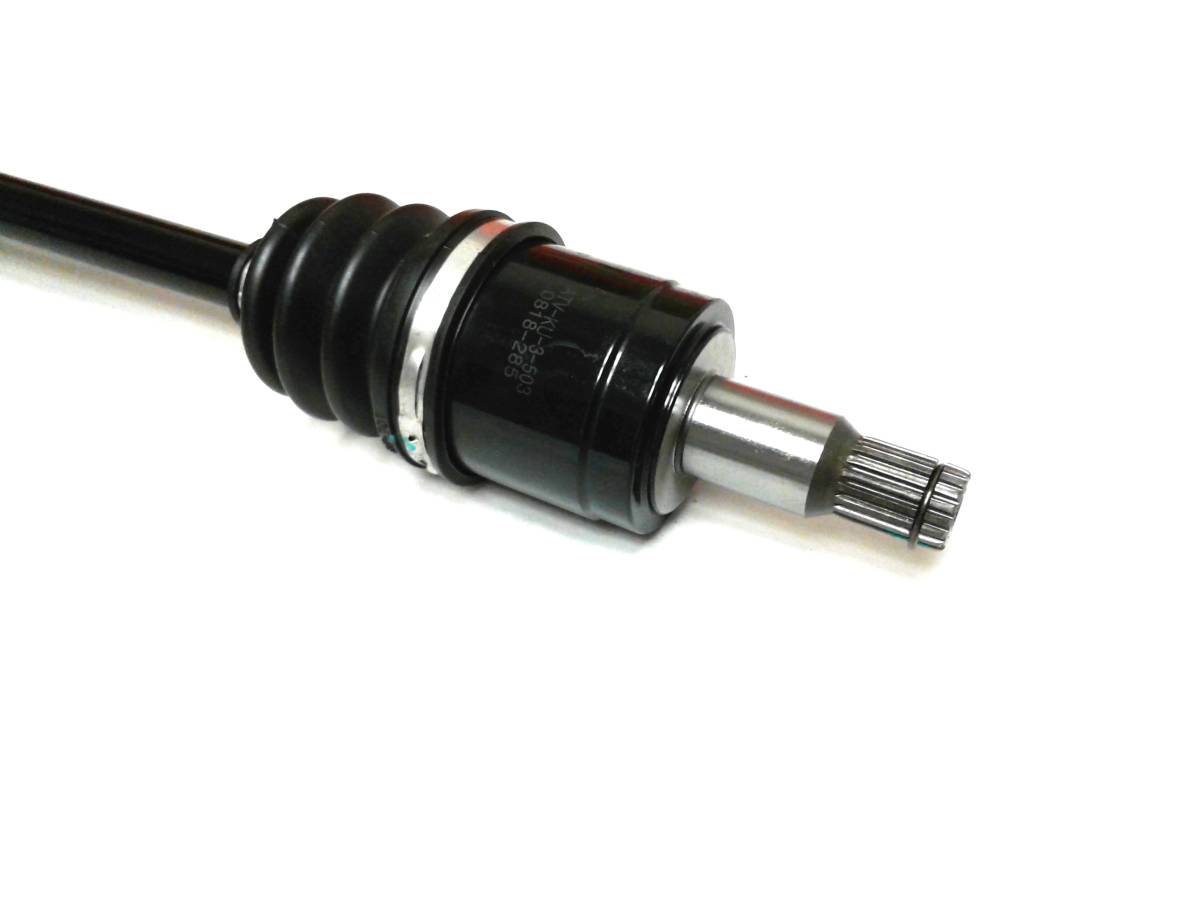

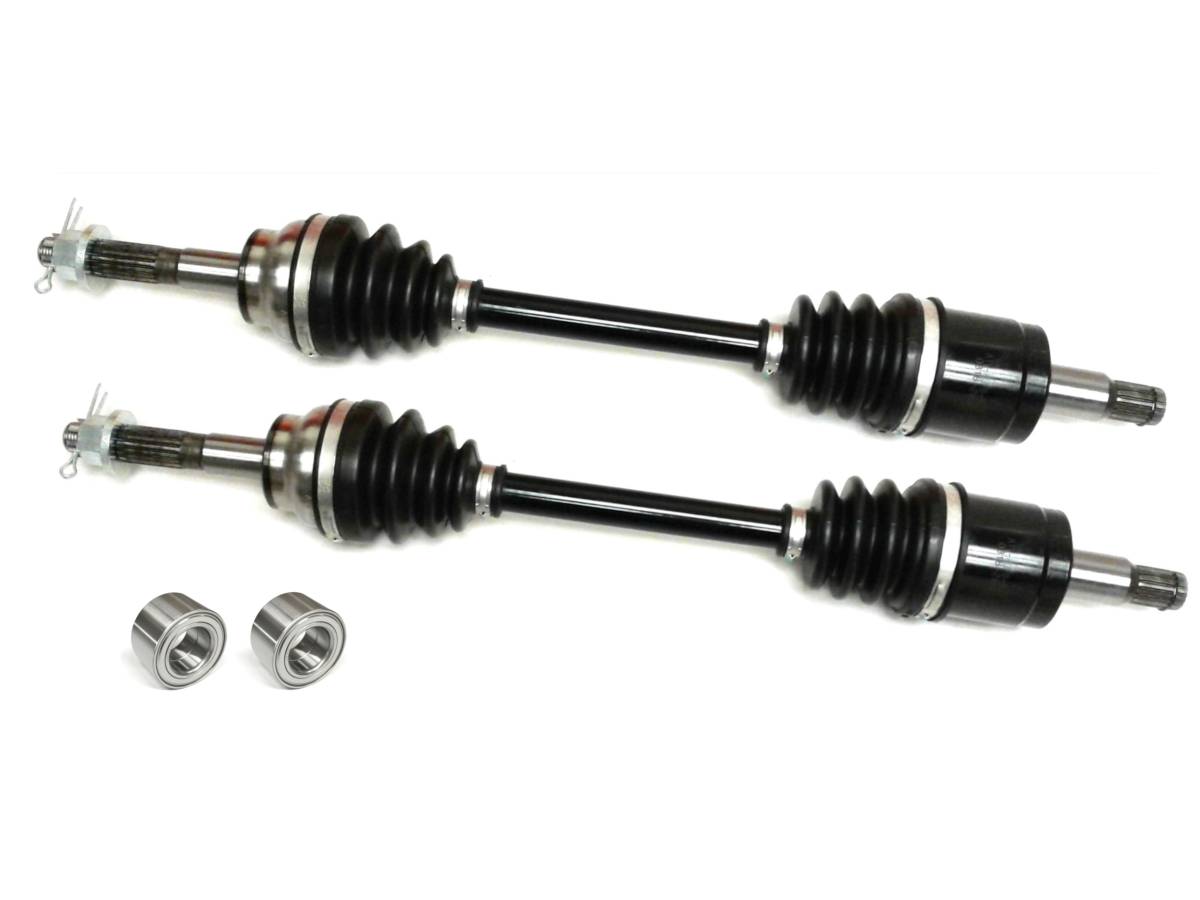

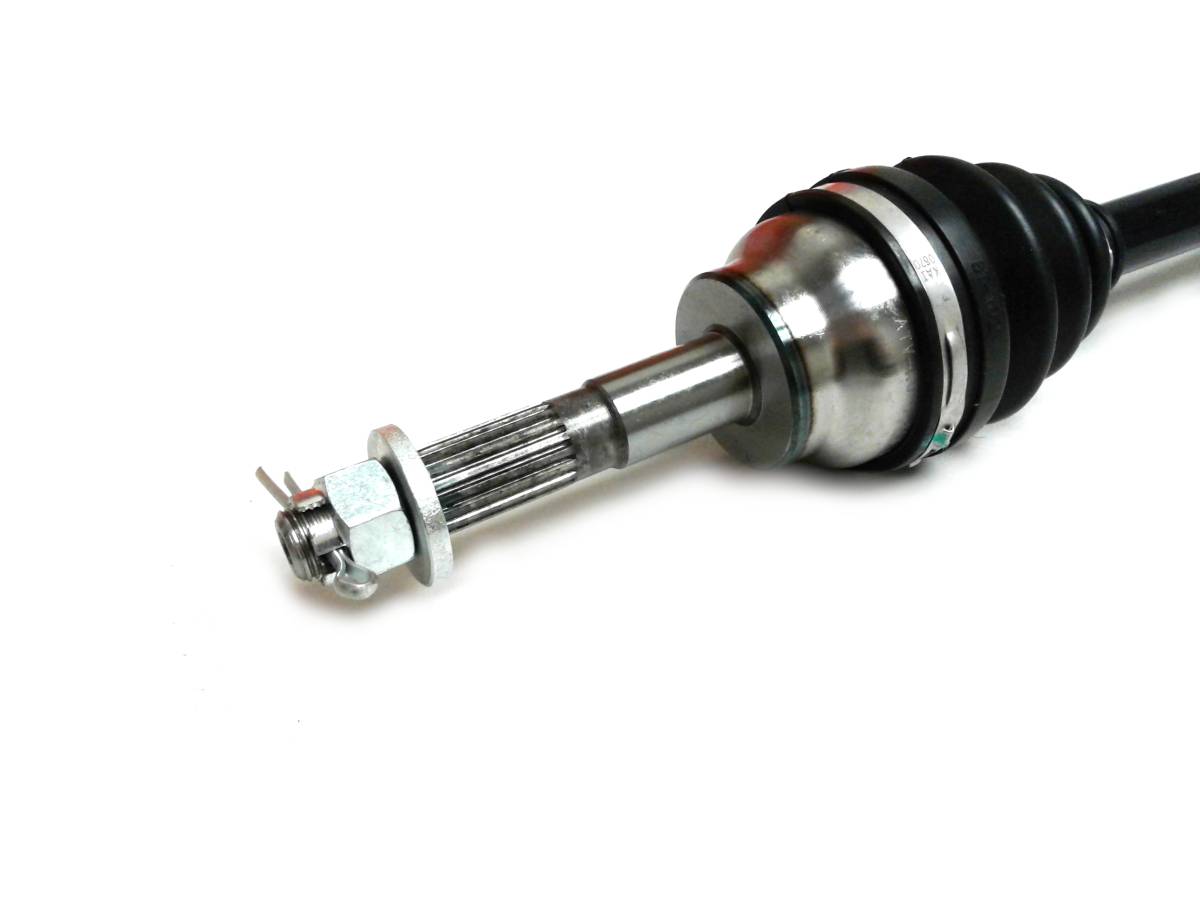

This is a pair of new Front CV axles and wheel bearings for a Kubota UTV.

They fit the following 4x4 models:

2008-2018 ... RTV 500

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 18 (both)
  • Outboard CV joint spline count: 18 (both)
  • Compressed overall axle length: 528 mm (both)
  • Replaces Kubota OEM # K7311-15303, K7311-18820
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $145.00
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits all Kubota RTV 500 models from 2008-2018.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Inner joint spline count: 18 (both), Outer joint spline count: 18 (both), Compressed axle length: 528 mm (both). Replaces Kubota OEM # K7311-15303, K7311-18820.
  • Comes with a 1 year warranty (excluding lifted vehicles & torn boots).

  • What's In The Box

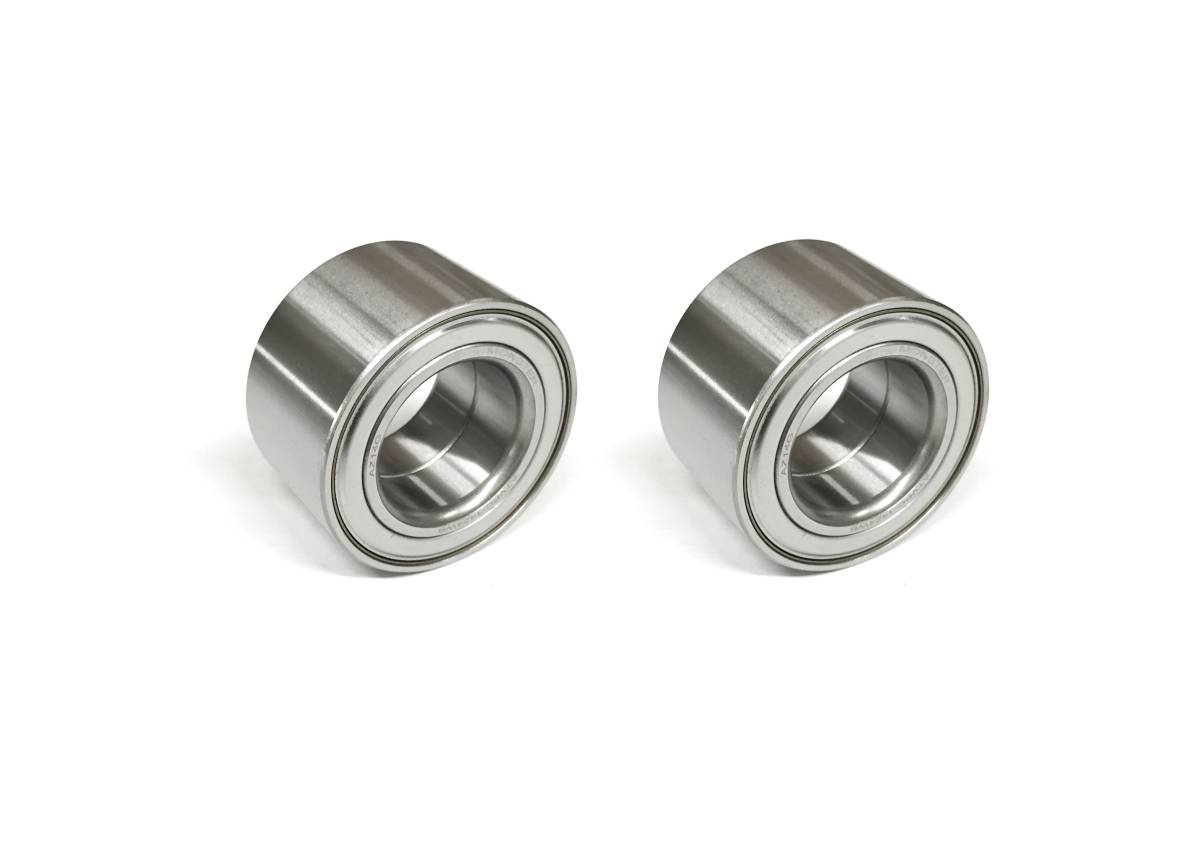

  • 2 axles & 2 wheel bearings
  • Application List

    YearMakeModelSubmodelNotes
    2018KubotaRTV500Orange
    2018KubotaRTV500Realtree Hardwoods Camouflage
    2017KubotaRTV500Orange
    2017KubotaRTV500Realtree Hardwoods Camouflage
    2016KubotaRTV500Orange
    2016KubotaRTV500Realtree Hardwoods Camouflage
    2015KubotaRTV500Orange
    2015KubotaRTV500Realtree Hardwoods Camouflage
    2014KubotaRTV5004X4
    2013KubotaRTV5004X4
    2012KubotaRTV5004X4
    2011KubotaRTV5004X4
    2010KubotaRTV5004X4
    2009KubotaRTV5004X4
    2008KubotaRTV5004X4

    Details

    • KU-303/KU-303/WB-1424/WB-1424
    • KU-303/KU-303/WB-1424/WB-1424
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 15.0 lbs.
    • W10.0000” x H5.0000” x L28.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
