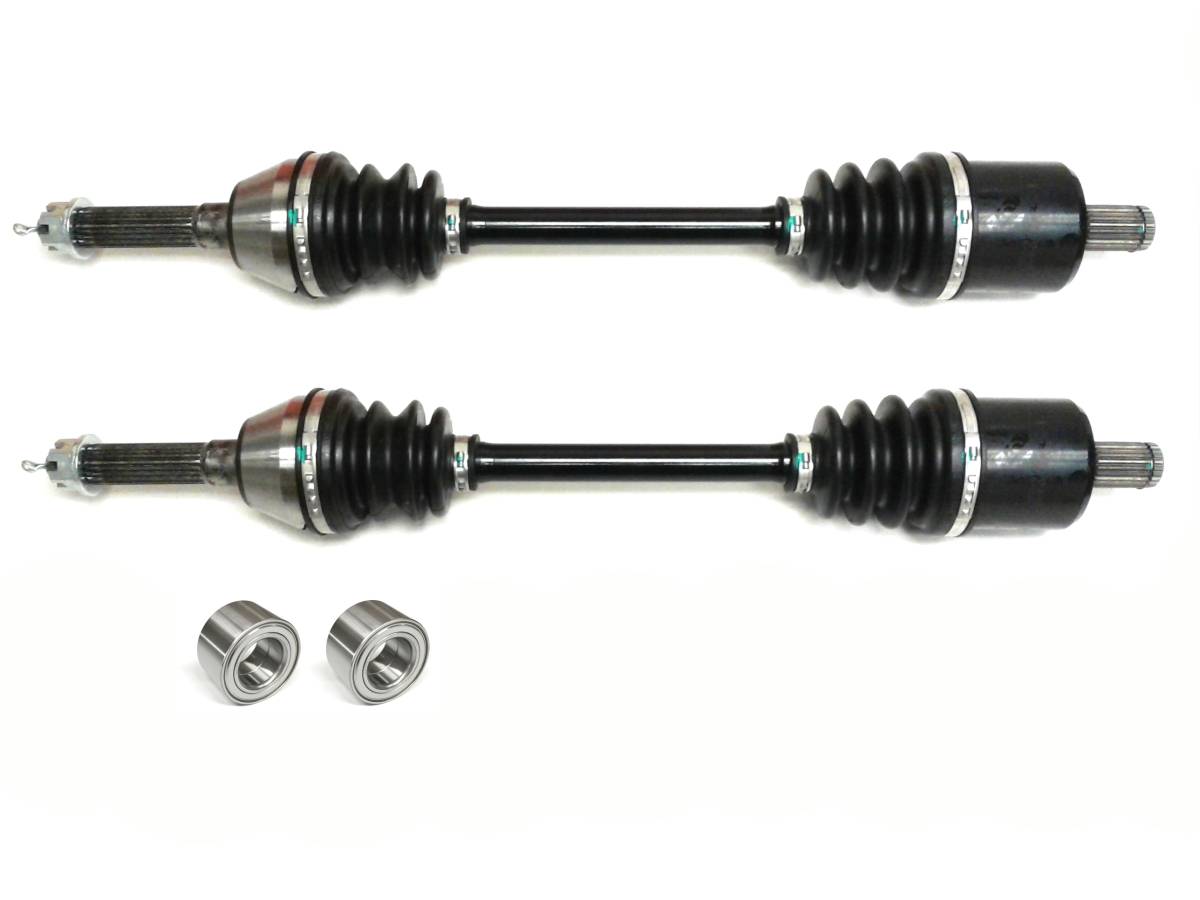

Front CV Axles & Bearings for Polaris ACE 325 500 570 900, 1333246, Left & Right, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Left,Right

PO-379/PO-379/WB-1424/WB-1424
This is a pair of new front CV axles & wheel bearings for a Polaris ATV.

They fit the following 4x4 models:

2015-2016 ... ACE 325

2017-2019 ... ACE 500

2015-2018 ... ACE 570

2016 ... ACE 900

front, left & right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Joints fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 22 (both)
  • outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: 549 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $164.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2016PolarisACE--325 cc models
2019PolarisACE 500--
2018PolarisACE 500--
2018PolarisACE 570EPSdoes not fit submodel A18DAE57B2 (OEM #1333675)
2017PolarisACE 570--does NOT fit SP submodels
2016PolarisACE 570--
2016PolarisACE 570SP
2016PolarisACE 900SP
2015PolarisSportsman ACE--325 cc models

Product Notes

  • Fits front, left and right on the following Polaris ATV models: 2015-2016 ACE 325, 2017-2019 ACE 500, 2015-2018 ACE 570, & 2016 ACE 900.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 1333246, 3514342, 3514634. Compressed length - 549 mm (both), Inboard spline count - 22 (both), Outboard spline count - 20 (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

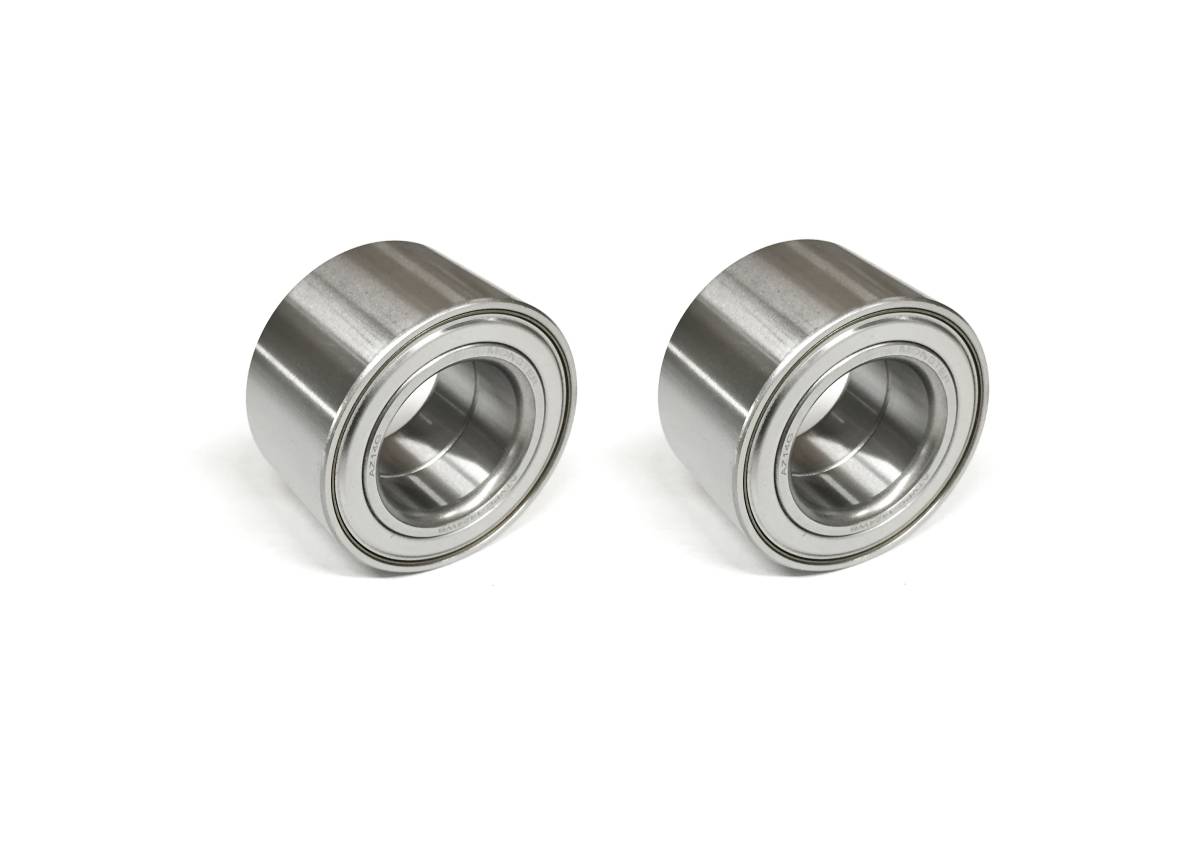

  • 2 axles, 2 wheel bearings
  • Warranty

    Limited 2 year, one-time warranty

    Details

    • PO-379/PO-379/WB-1424/WB-1424
    • PO-379/PO-379/WB-1424/WB-1424
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 20.2 lbs.
    • W10.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
