Front CV Axle Pair with Wheel Bearings for Yamaha Grizzly 700 2014-2015

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review

SKU: WB-1496/WB-1496/YA-316/YA-316

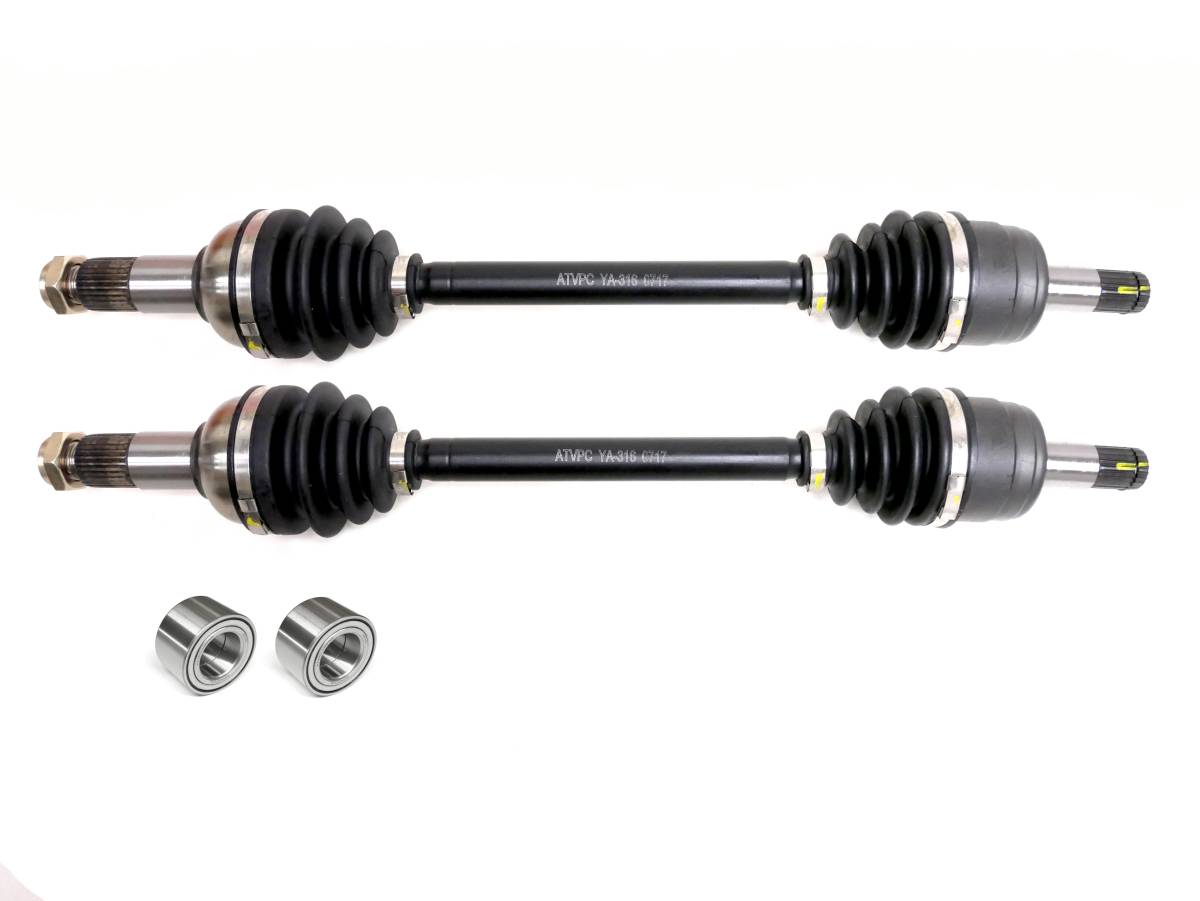

This is a pair of new Front CV axles & wheel bearings for a Yamaha ATV.

They fit the following 4x4 applications:

2014-2015 ..... Grizzly 700

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly forged steel axle bars
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance

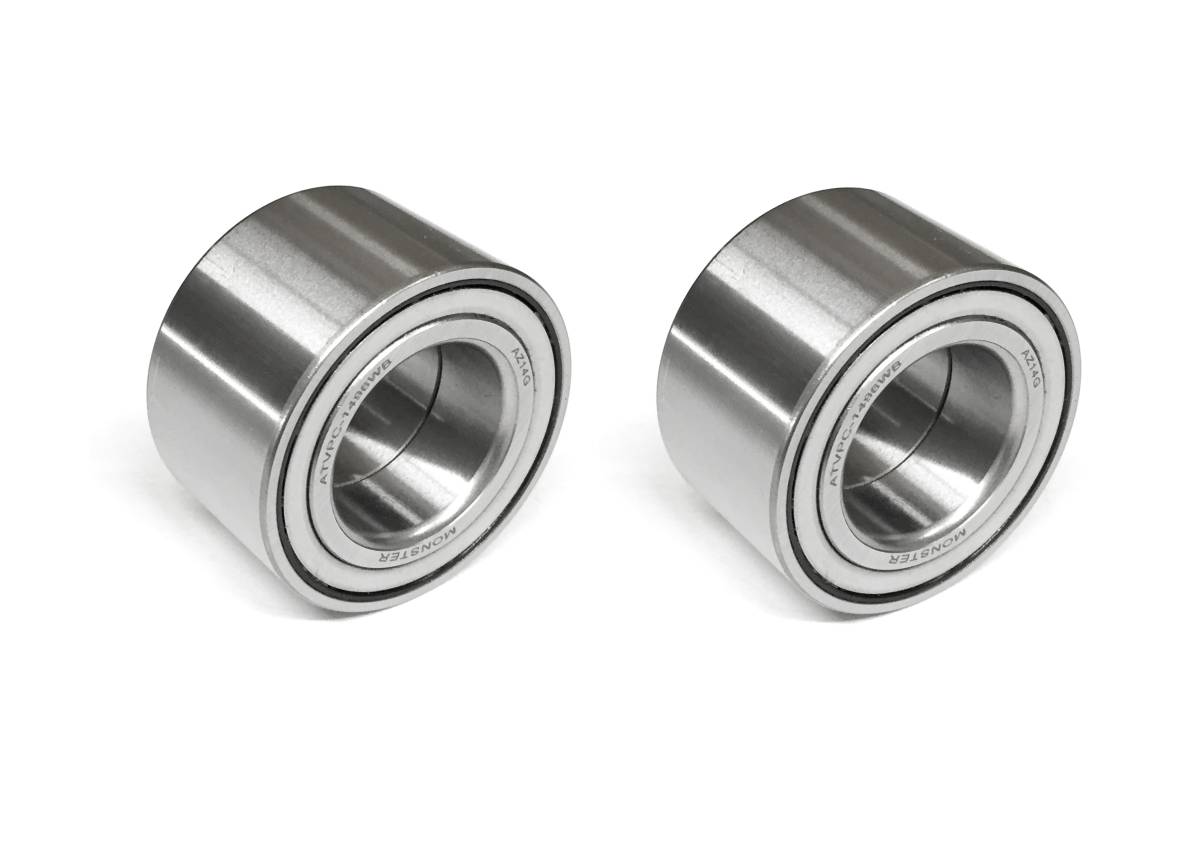

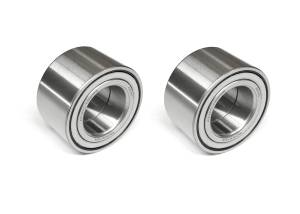

High speed bearings manufactured for long life
Double lip seals made to keep grease in and dirt out

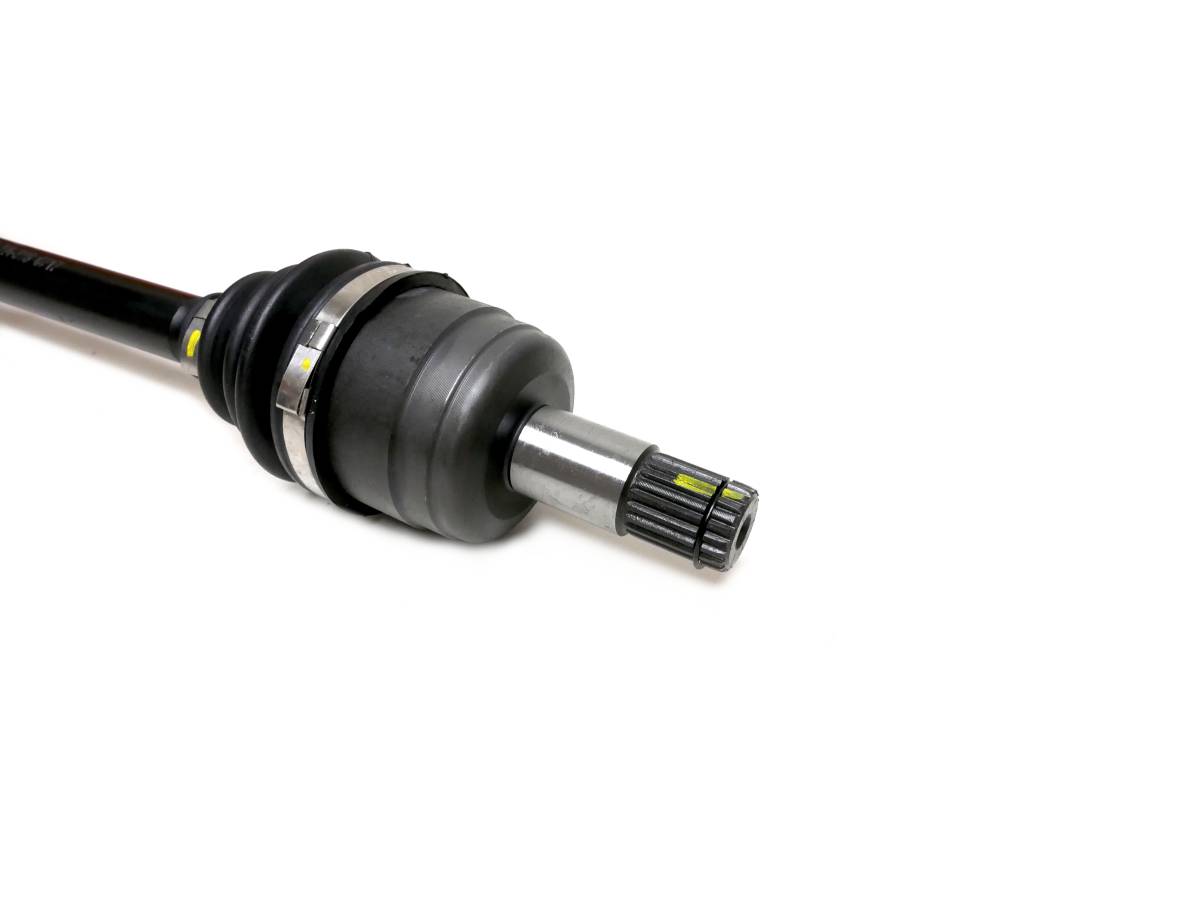

Inboard CV joint spline count: 21 (both)

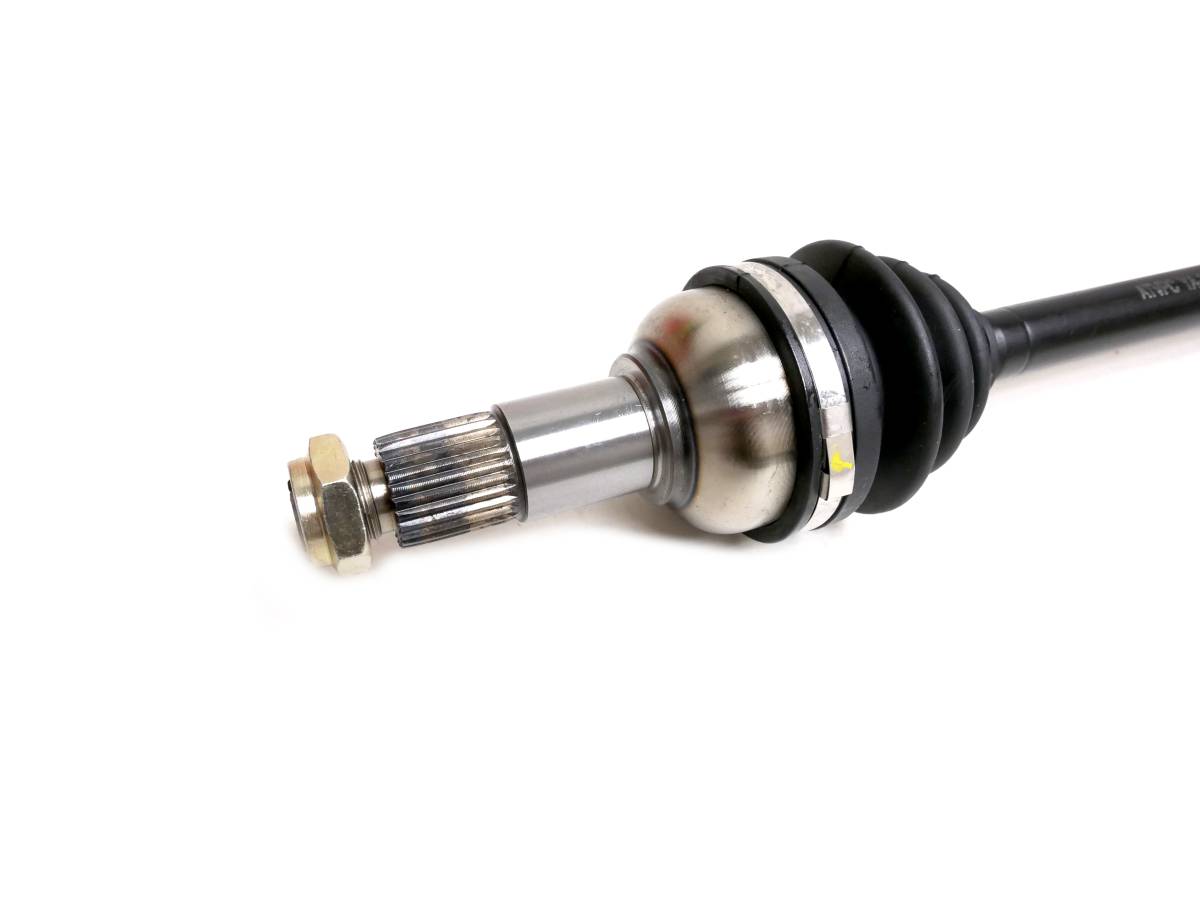

Outboard CV joint spline count: 27 (both)
Compressed overall axle length: 536 mm (both)

Limited Supply: only 5 remaining

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $139.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2015	Yamaha	Grizzly 700	YFM700D 4x4 FI
2015	Yamaha	Grizzly 700	YFM700DHH 4x4 Hunter Edition FI
2015	Yamaha	Grizzly 700	YFM700FGP 4x4 FI EPS
2015	Yamaha	Grizzly 700	YFM700FGPSE 4x4 Special Edition FI EPS
2015	Yamaha	Grizzly 700	YFM700PHFH 4x4 Hunter Edition FI EPS
2014	Yamaha	Grizzly 700	YFM700D 4x4 FI
2014	Yamaha	Grizzly 700	YFM700DHH 4x4 Hunter Edition FI
2014	Yamaha	Grizzly 700	YFM700P 4x4 FI EPS
2014	Yamaha	Grizzly 700	YFM700PHH 4x4 Hunter Edition FI EPS
2014	Yamaha	Grizzly 700	YFM700PSE 4x4 Special Edition FI EPS

Product Notes

Fits FRONT, LEFT & RIGHT on all Grizzly 700 models from 2014-2015.

Features stronger than OEM chromoly hardened steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.

Compressed Length - 536 mm (both), Inner Spline Count - 21 (both), Outer Spline Count - 27 (both) * Replaces Yamaha OEM # 5FU-F510F-00-00, 5GH-2510J-00-00, 93305-00601-00, 93305-00602-00.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles).
