Front CV Axle with Wheel Bearing for Yamaha Grizzly 700 4x4 2014-2015

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
WB-1496/YA-316
This is a new Front CV axle & wheel bearing for a Yamaha ATV.

They fit the following 4x4 applications:

2014-2015 ..... Grizzly 700

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 536 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $74.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT or RIGHT on all Grizzly 700 models from 2014-2015.
  • Features a stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Compressed Length - 536 mm, Inner Spline Count - 21, Outer Spline Count - 27 * Replaces Yamaha OEM # 5FU-F510F-00-00, 5GH-2510J-00-00, 93305-00601-00, 93305-00602-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles).

    • What's In The Box

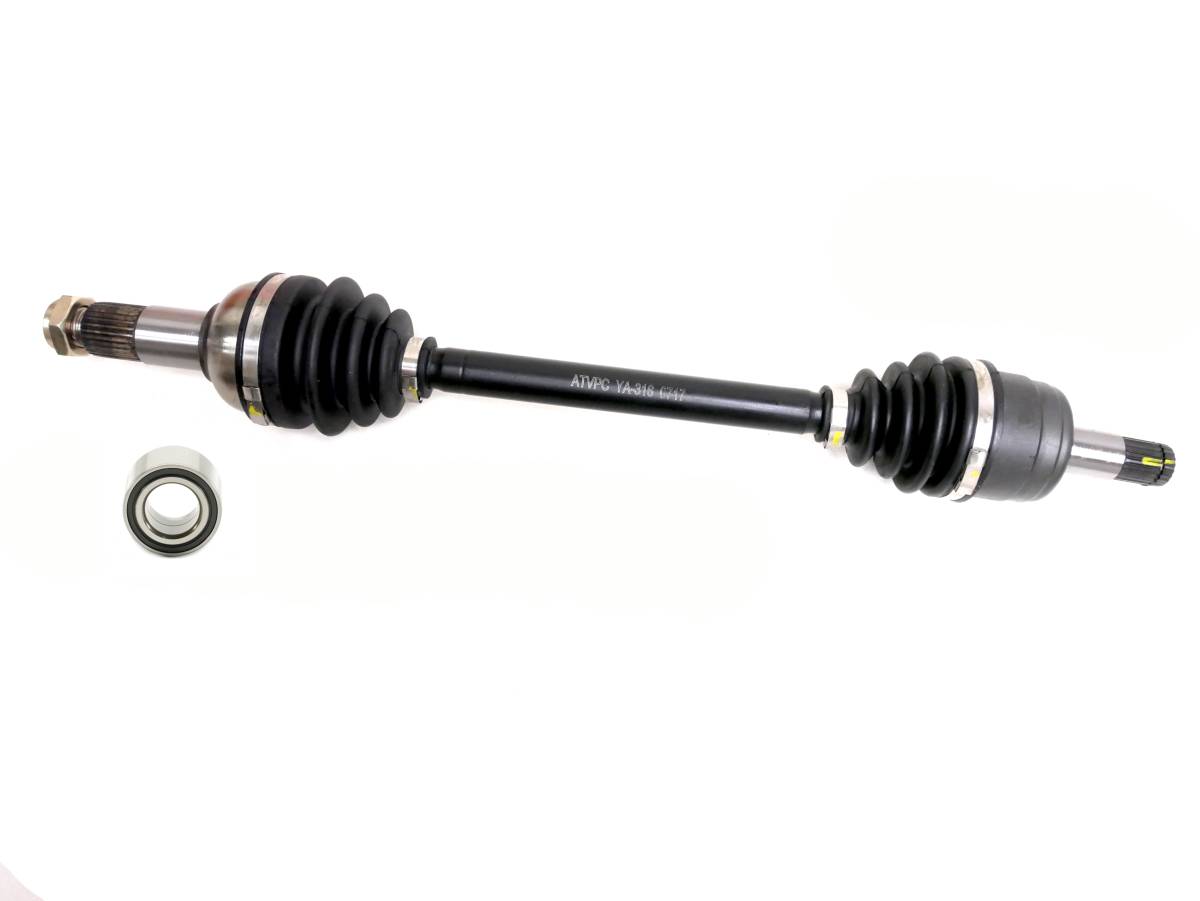

  • 1 axle & 1 wheel bearing

    • Application List

    YearMakeModelSubmodelNotes
    2015YamahaGrizzly 700YFM700D 4x4 FI
    2015YamahaGrizzly 700YFM700DHH 4x4 Hunter Edition FI
    2015YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2015YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2015YamahaGrizzly 700YFM700PHFH 4x4 Hunter Edition FI EPS
    2014YamahaGrizzly 700YFM700D 4x4 FI
    2014YamahaGrizzly 700YFM700DHH 4x4 Hunter Edition FI
    2014YamahaGrizzly 700YFM700P 4x4 FI EPS
    2014YamahaGrizzly 700YFM700PHH 4x4 Hunter Edition FI EPS
    2014YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS

    Details

    • WB-1496/YA-316
    • WB-1496/YA-316
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 8.9 lbs.
    • W5.0000” x H5.0000” x L25.0000”
