Front CV Axle with Wheel Bearing for Yamaha Grizzly 700 4x4 2016-2019

Location on vehicle: Front,Left,Right

WB-1496/YA-356

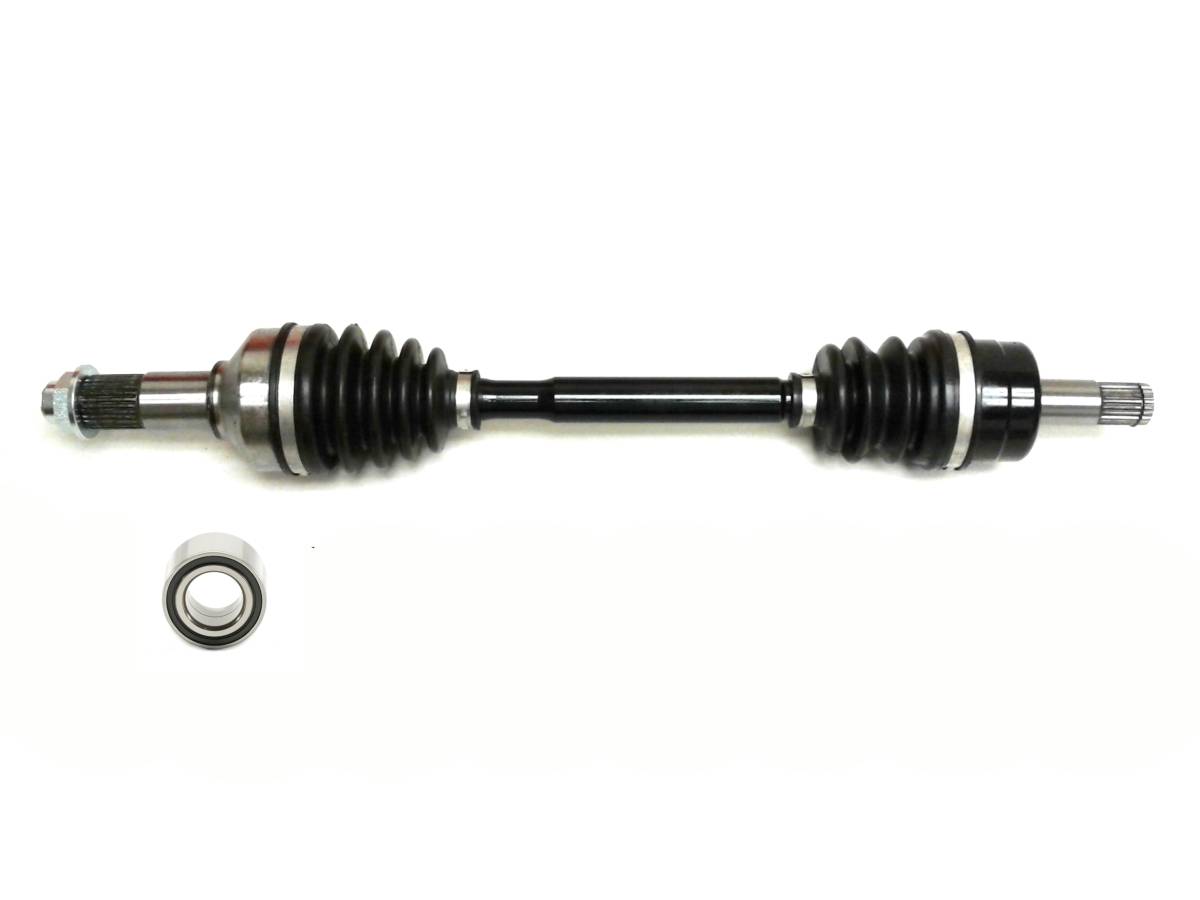

This is a new front CV axle & wheel bearing for a Yamaha ATV.

They fit the following 4x4 models:

2016-2019 ... Grizzly 700 / 700 EPS

front, left or right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out

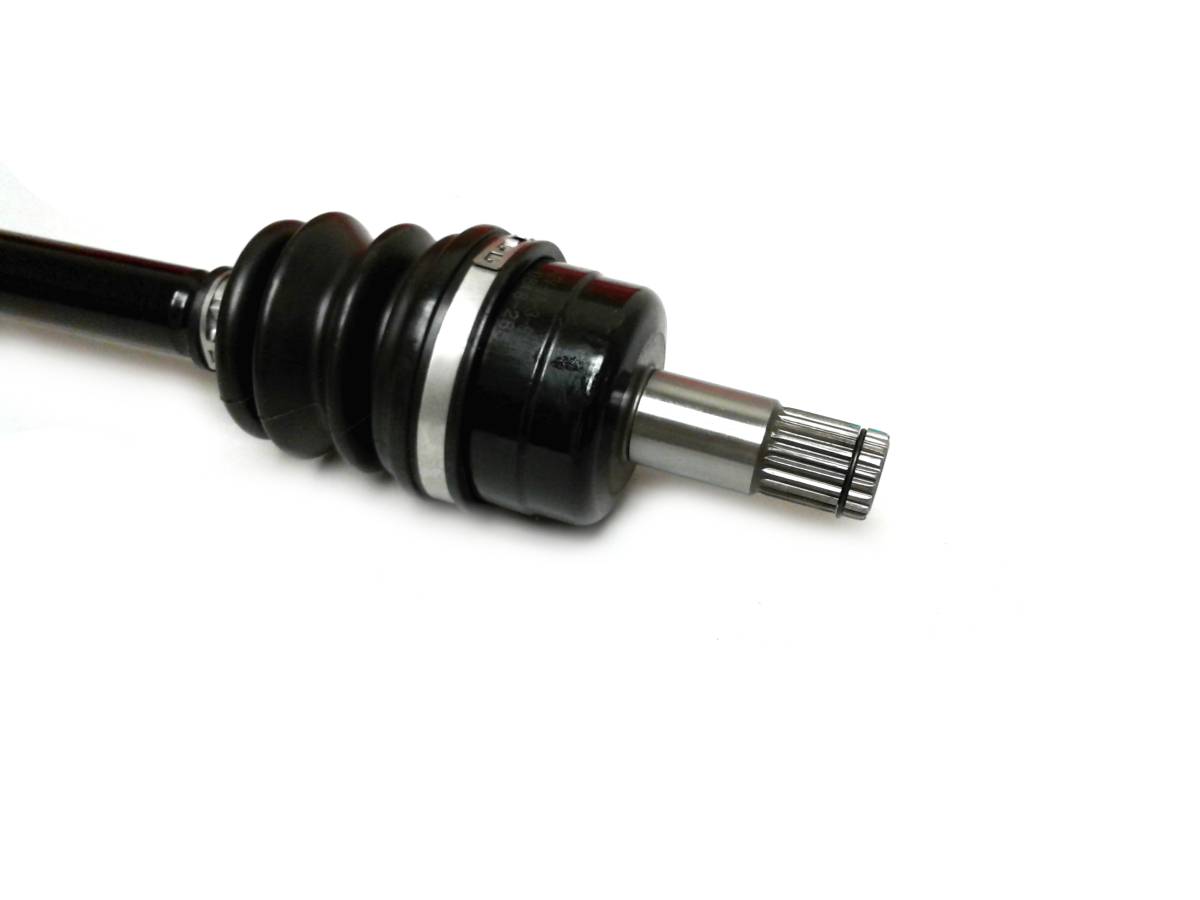

  • inobard CV joint spline count: 21

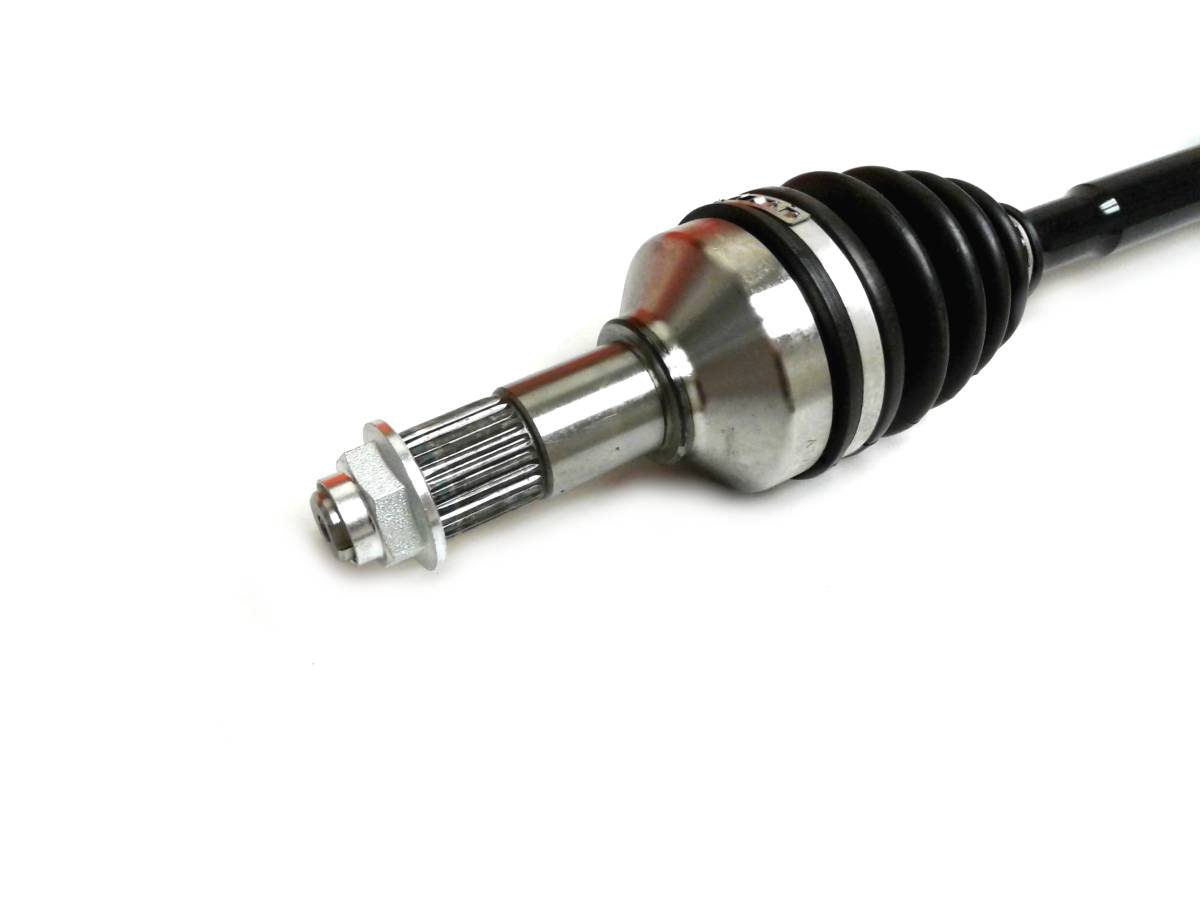

  • outboard CV joint spline count: 27
  • Compressed overall axle length: 536 mm
  • Replaces OE # 2UD-2518F-00-00, 2UD-2510J-00-00, 2UD-2518E-00-00, 2UD-2510F-00-00, 93305-00601-00, 93305-00602-00
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $94.99

Application List

YearMakeModelSubmodelNotes
2019YamahaGrizzly 700YFM700P 4x4 FI EPS
2019YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
2018YamahaGrizzly 700YFM700P 4x4 FI EPS
2018YamahaGrizzly 700YFM700PLE 4x4 Limited Edition FI EPS
2018YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
2017YamahaGrizzly 700YFM700P 4x4 FI EPS
2017YamahaGrizzly 700YFM700PLE 4x4 Limited Edition FI EPS
2017YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
2016YamahaGrizzly 700YFM700D 4x4 FI
2016YamahaGrizzly 700YFM700P 4x4 FI EPS
2016YamahaGrizzly 700YFM700PLE 4x4 Limited Edition FI EPS
2016YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS

Product Notes

  • Fits front, left or right on the following Yamaha ATV models: 2016-2019 Grizzly 700/700 EPS.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 2UD-2518F-00-00, 2UD-2510J-00-00, 2UD-2518E-00-00, 2UD-2510F-00-00, 93305-00601-00. Compressed overall axle length: 536 mm, Inboard splines: 21, Outboard splines: 27.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 1 axle, 1 wheel bearing
  • Warranty

    1 year factory defect limited warranty

    Details

    • WB-1496/YA-356
    • WB-1496/YA-356
    • ATV Parts Connection
    • Temporarily Not Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 9.3 lbs.
    • W5.0000” x H5.0000” x L24.0000”
