Front CV Axle Pair with Bearings for Can-Am Commander 800 1000 & Max 2017-2020

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-131/CA-132/WB-1516/WB-1516

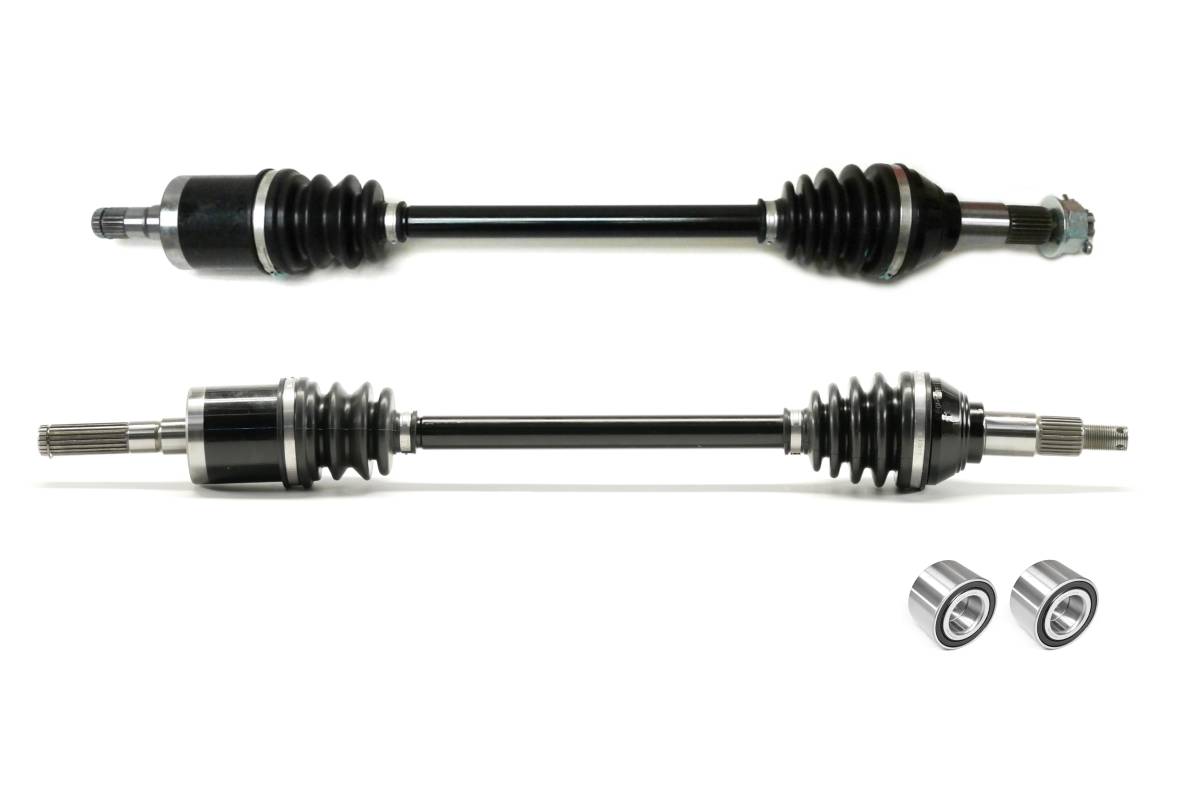

This is a pair of new front CV axles & wheel bearings for a Can-Am UTV.

They fit the following 4x4 models:

2017-2020 ... Commander 800 / Max 800

2017-2020 ... Commander 1000 / Max 1000

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out

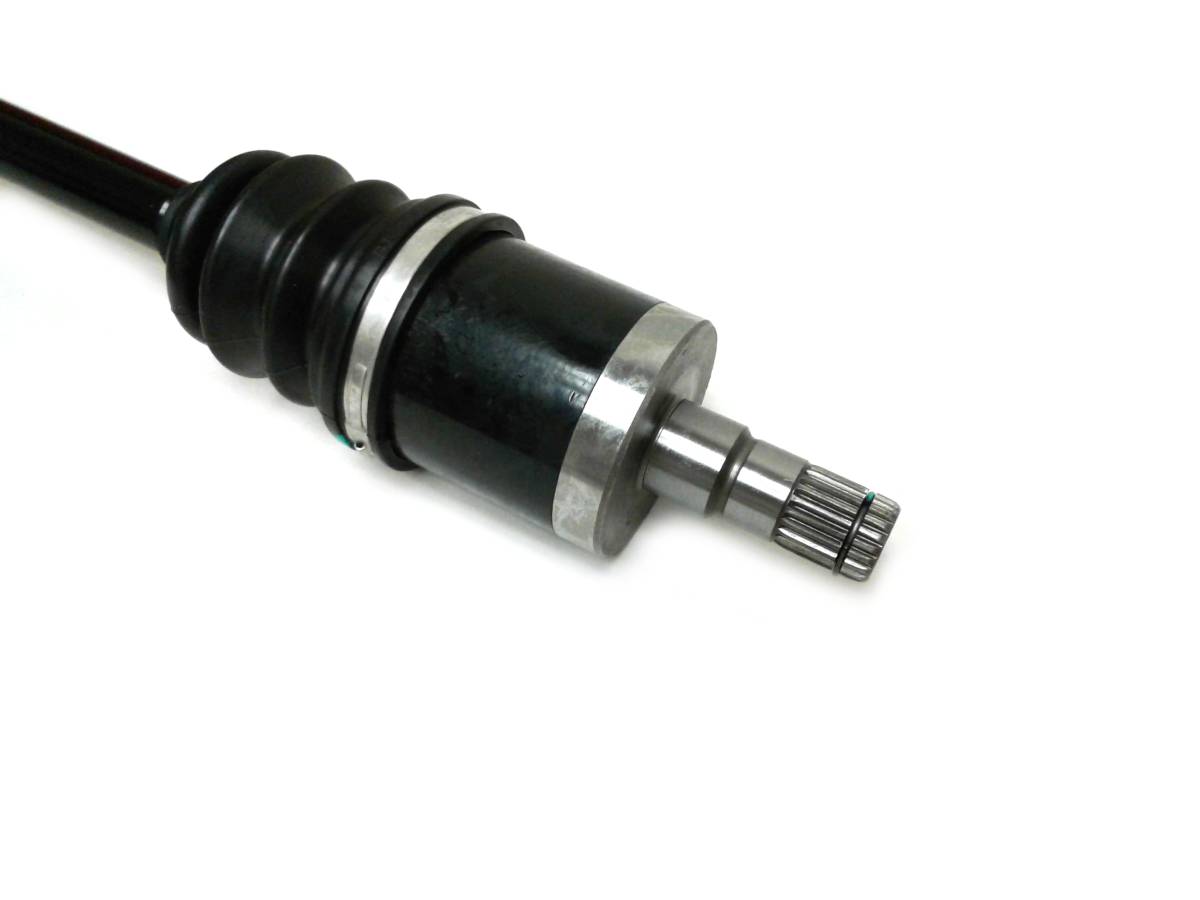

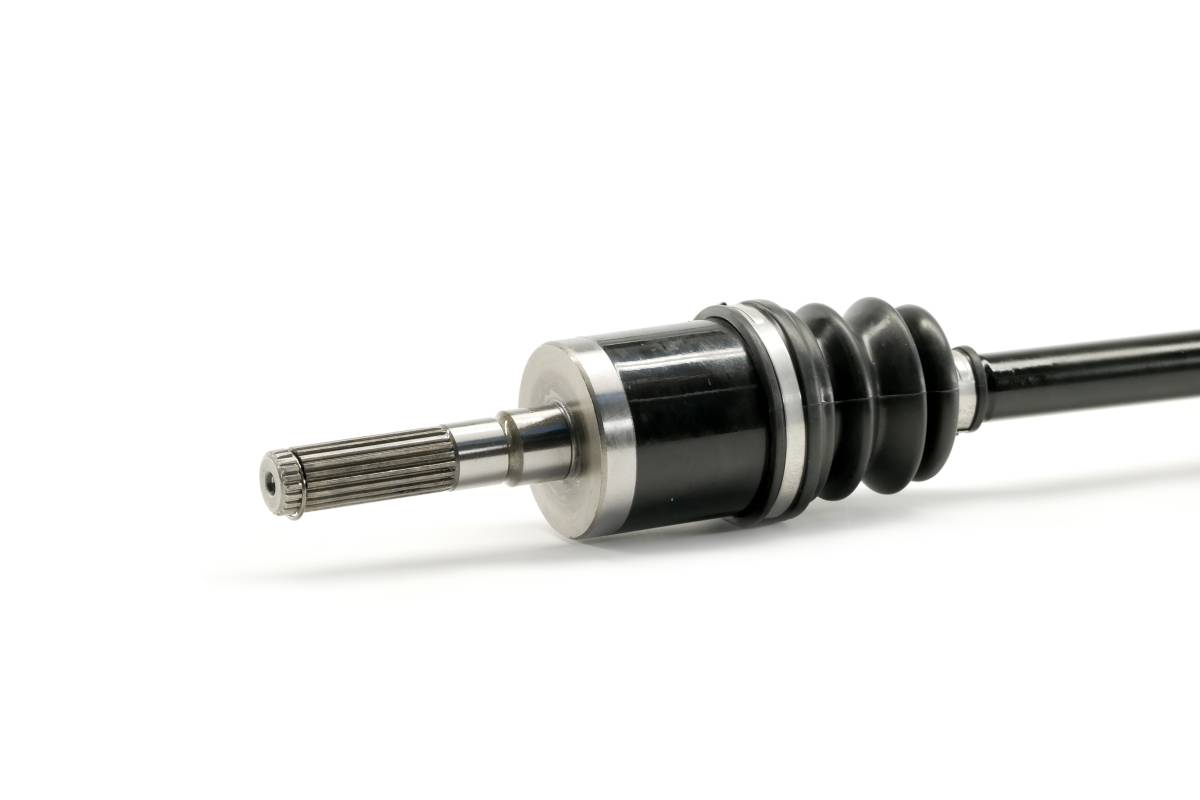

  • inobard CV joint spline count: 21 (both)

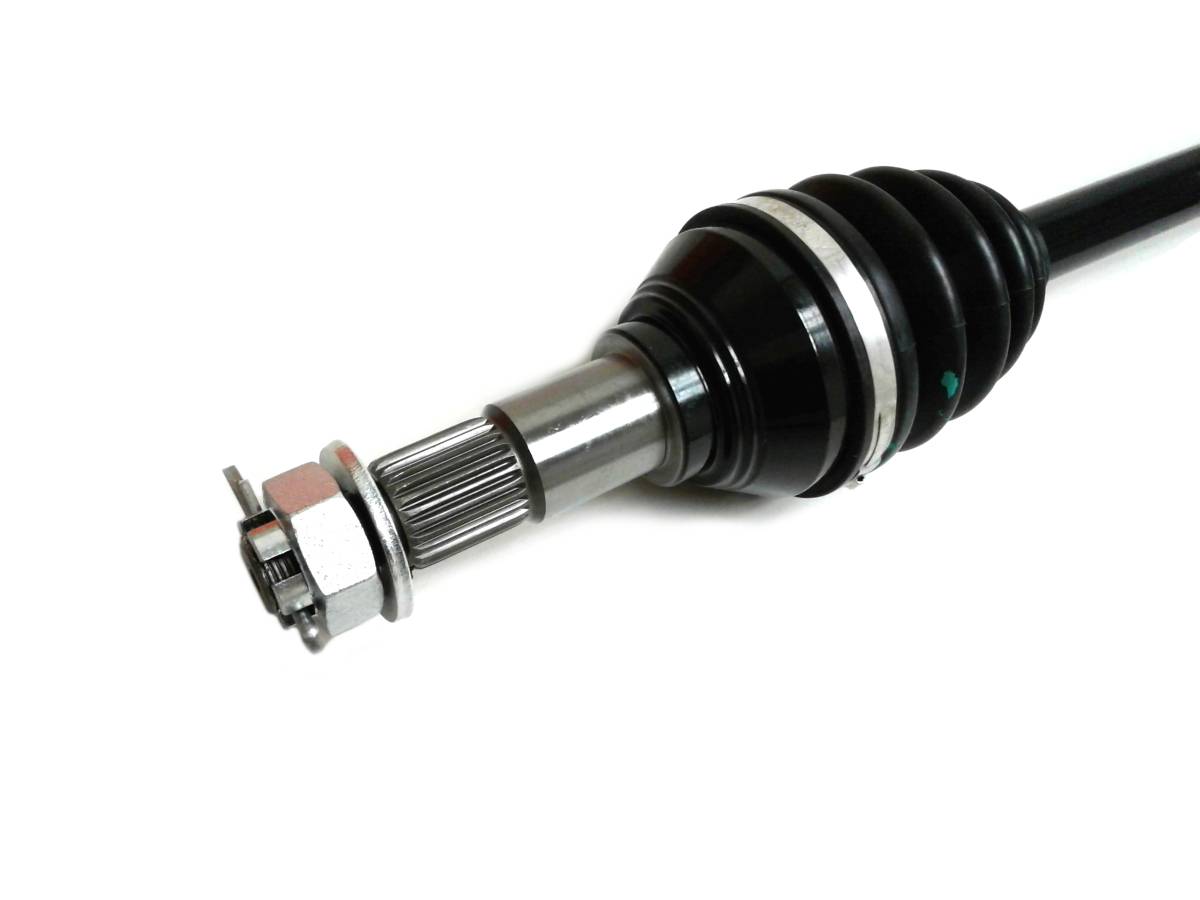

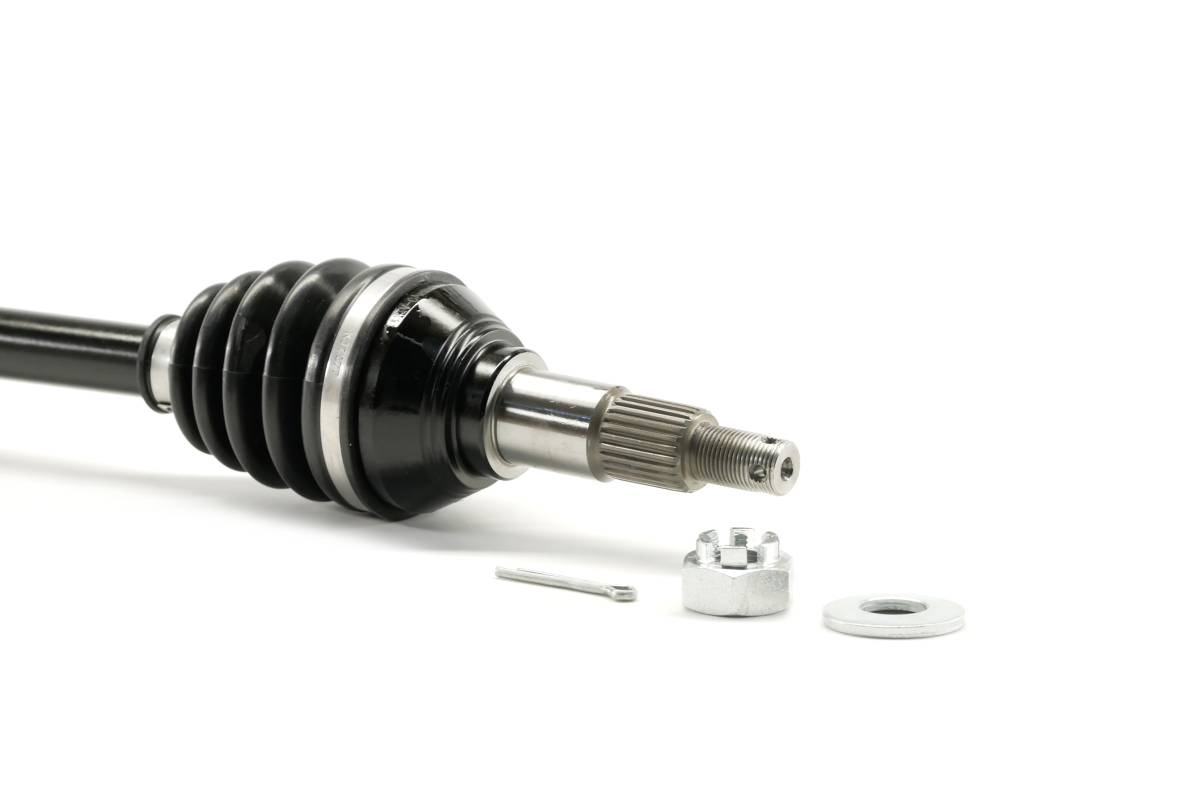

  • outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: left - 649.5 mm, right - 692.5 mm
Limited Supply: only 9 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $162.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2017Can-AmCommander 10004x4 DPS
2017Can-AmCommander 10004x4 Limited DPS
2017Can-AmCommander 10004x4 Mossy Oak Hunting Edition DPS
2017Can-AmCommander 10004x4 XT DPS
2017Can-AmCommander 10004x4 XT-P DPS
2019Can-AmCommander 1000R4x4 DPS
2019Can-AmCommander 1000R4x4 Limited DPS
2019Can-AmCommander 1000R4x4 XT DPS
2018Can-AmCommander 1000R4x4 DPS
2018Can-AmCommander 1000R4x4 Limited DPS
2018Can-AmCommander 1000R4x4 Mossy Oak Hunting Edition DPS
2018Can-AmCommander 1000R4x4 XT DPS
2019Can-AmCommander 800R4X4
2019Can-AmCommander 800R4x4 DPS
2019Can-AmCommander 800R4x4 XT DPS
2018Can-AmCommander 800R4X4
2018Can-AmCommander 800R4x4 DPS
2018Can-AmCommander 800R4x4 XT DPS
2017Can-AmCommander 800R4X4
2017Can-AmCommander 800R4x4 DPS
2017Can-AmCommander 800R4x4 XT DPS
2017Can-AmCommander Max 10004x4 DPS
2017Can-AmCommander Max 10004x4 Limited DPS
2017Can-AmCommander Max 10004x4 XT DPS
2019Can-AmCommander Max 1000R4x4 Limited DPS
2019Can-AmCommander Max 1000R4x4 XT DPS
2018Can-AmCommander Max 1000R4x4 DPS
2018Can-AmCommander Max 1000R4x4 Limited DPS
2018Can-AmCommander Max 1000R4x4 XT DPS
2019Can-AmCommander Max 800R4x4 DPS
2018Can-AmCommander Max 800R4x4 DPS
2017Can-AmCommander Max 800R4x4 DPS

Product Notes

  • Fits front, left and right on the following Can-Am UTV models: 2017-2020 Commander 800/MAX 800, 2017-2020 Commander 1000/MAX 1000 4x4.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 705401871, 705401872, 705401105, 705401106, (bearings) 293350118, 293350040. Compressed length: left - 649.5 mm, right - 692.5 mm, Inboard spline count - 21 (both), Outboard spline count - 26 (both)
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 axles & 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-131/CA-132/WB-1516/WB-1516
    • CA-131/CA-132/WB-1516/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 21.0 lbs.
    • W10.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
