Precision Front CV Axles & Bearings for Can-Am 705402030, 705402031, Left & Right, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-233/CA-234

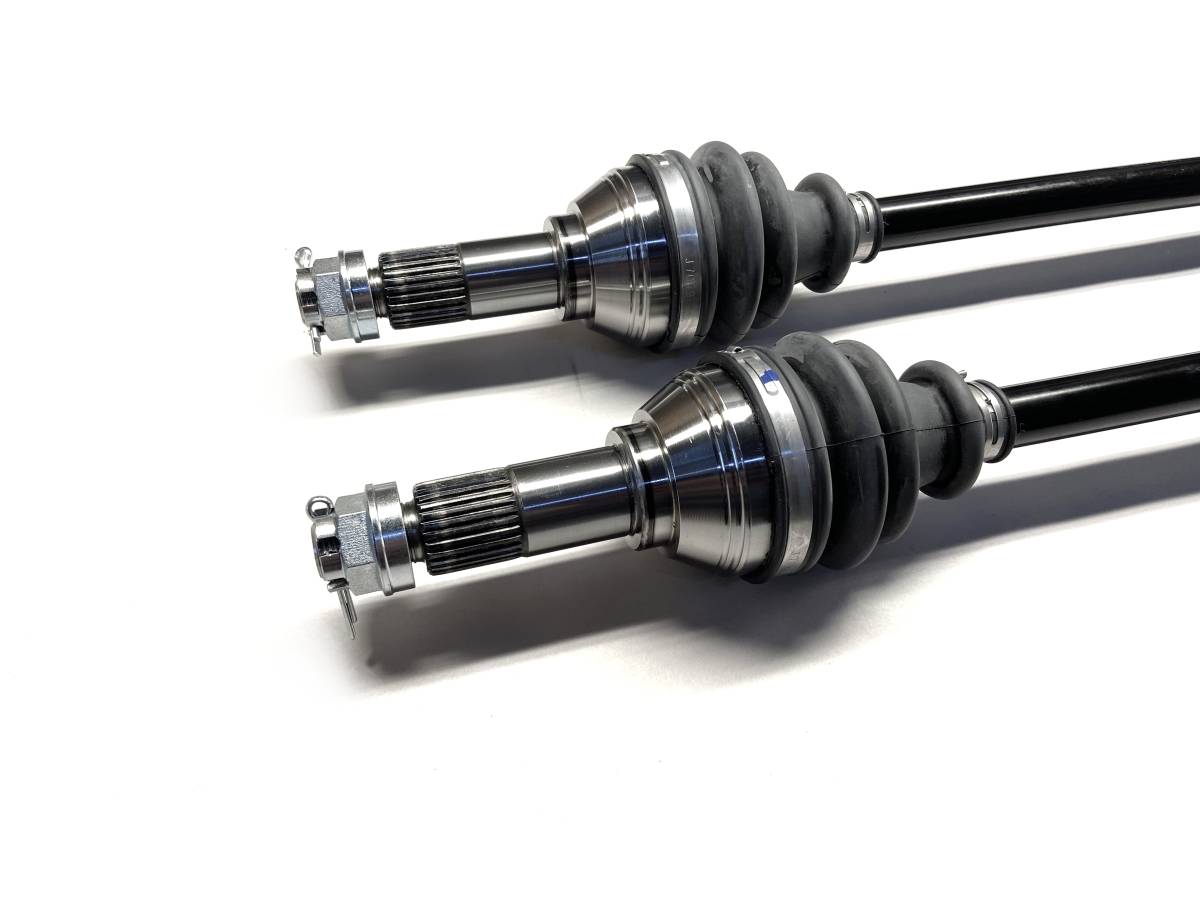

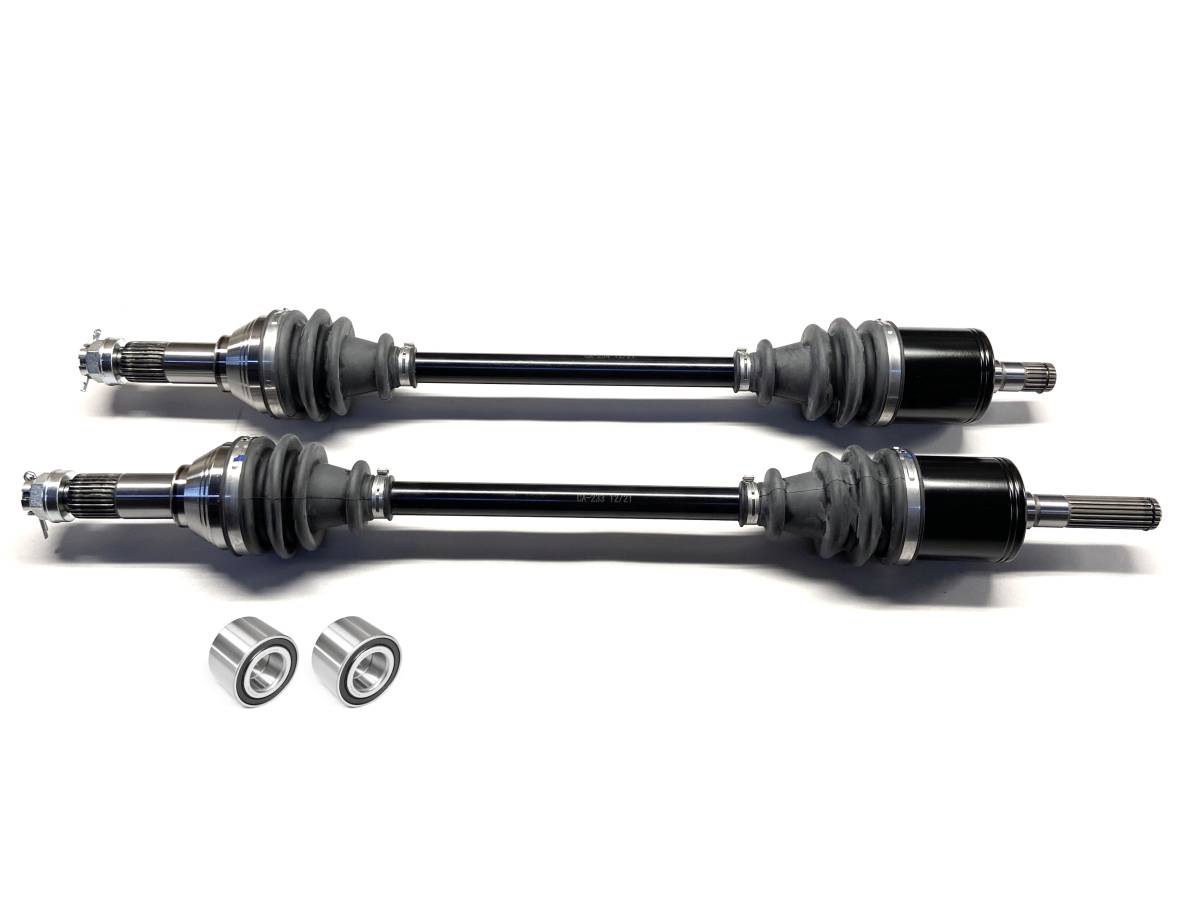

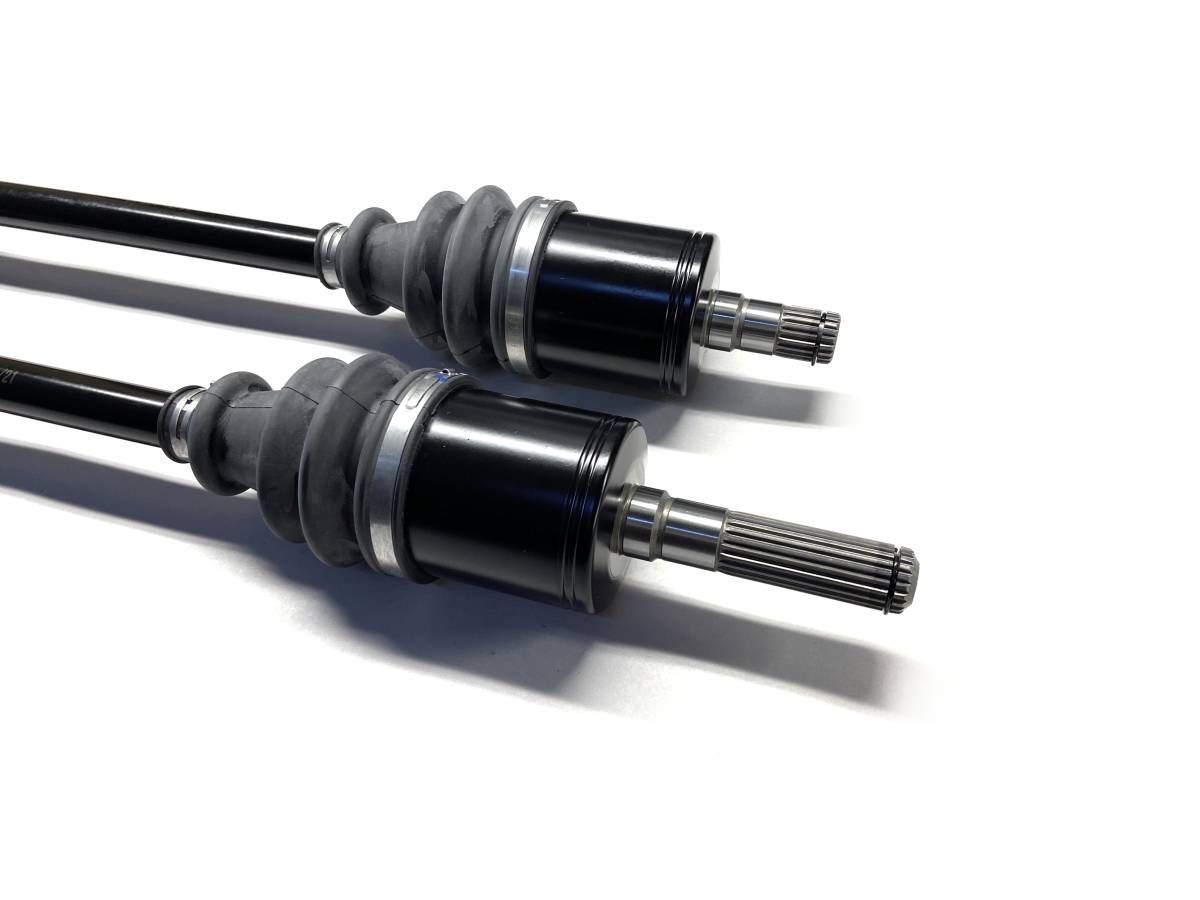

This is a pair of CV axles & wheel bearings for a Can-Am UTV/SXS.

They fit front, left & right on the following models:

2021-2023 Commander 1000 STD/DPS (excluding XT, XTP, XMR)

2021-2023 Commander MAX 1000 STD/DPS (excluding XT, XTP, XMR)

2019-2023 Maverick Sport 1000 STD/DPS (excluding XMR, XXC, XRC)

2019-2023 Maverick Sport MAX 1000 STD/DPS (excluding XMR, XXC, XRC)

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • 4140 chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 21 (both)
  • outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: left - 703 mm, right - 662 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021-2023Can-AmCommander 1000R4x4 DPS 2021-2023Can-AmCommander Max 1000R4x4 DPS 2022Can-AmCommander Max 1000R4x4 Limited DPS 2019-2022Can-AmMaverick Sport 1000 2019-2023Can-AmMaverick Sport 1000R4x4 DPS

Product Notes

  • Fits front, left & right on the following Can-Am models: 2021-2023 Commander 1000 STD/DPS & MAX 1000 STD/DPS (excluding XT, XTP, XMR) & 2019-2023 Maverick Sport 1000 STD/DPS & MAX 1000 STD/DPS (excluding XMR, XRC, XXC).
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (left) 705402718, 705402031, (right) 705402030, (bearings) 293350040, 705400088, 293350118. Inboard CV joint spline count: 21 (both). Outboard CV joint spline count: 29 (both). Compressed overall axle length: left - 703 mm, right - 662 mm.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

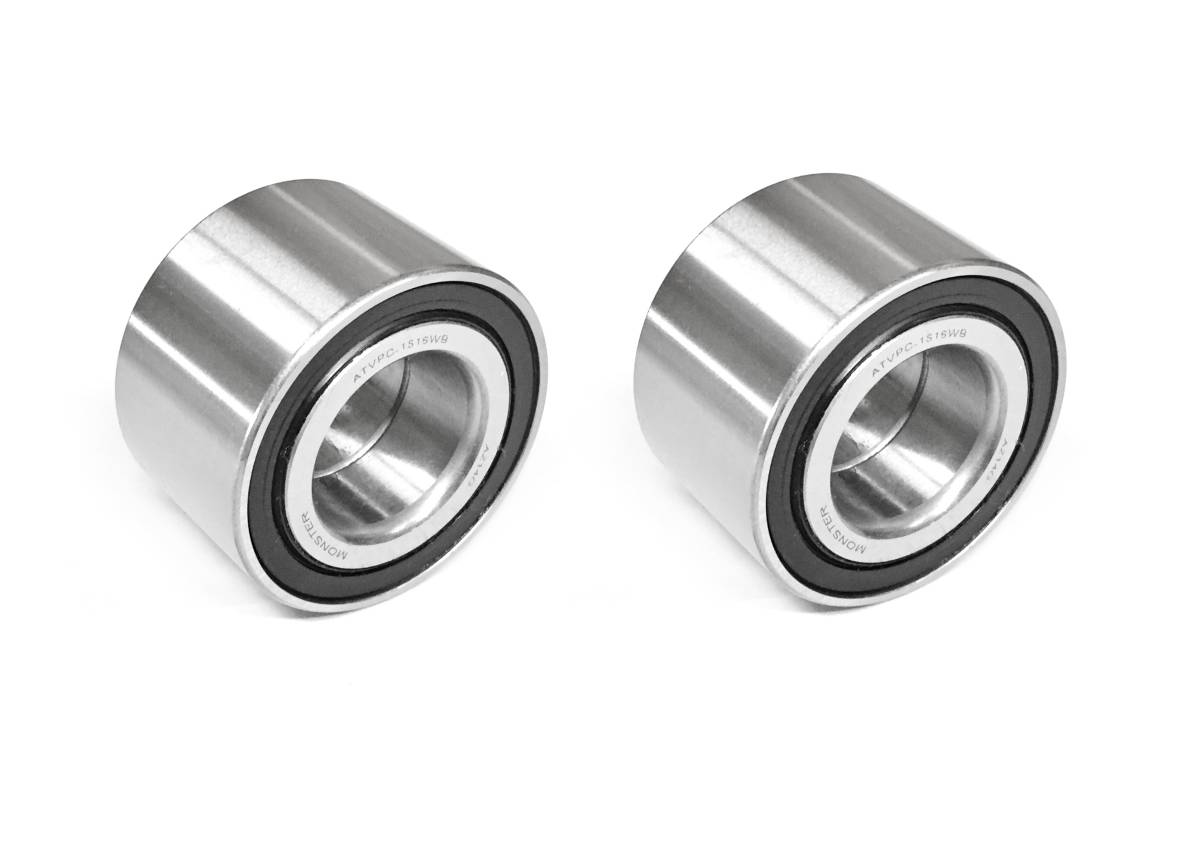

  • 2 axles, 2 wheel bearings

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • CA-233/CA-234
    • CA-233/CA-234
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 24.5 lbs.
    • W11.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
