Front Axles & Bearings for Can-Am Maverick Sport & Commander 705402030 705402031

Location on vehicle: Front,Left,Right

CA-233/CA-234

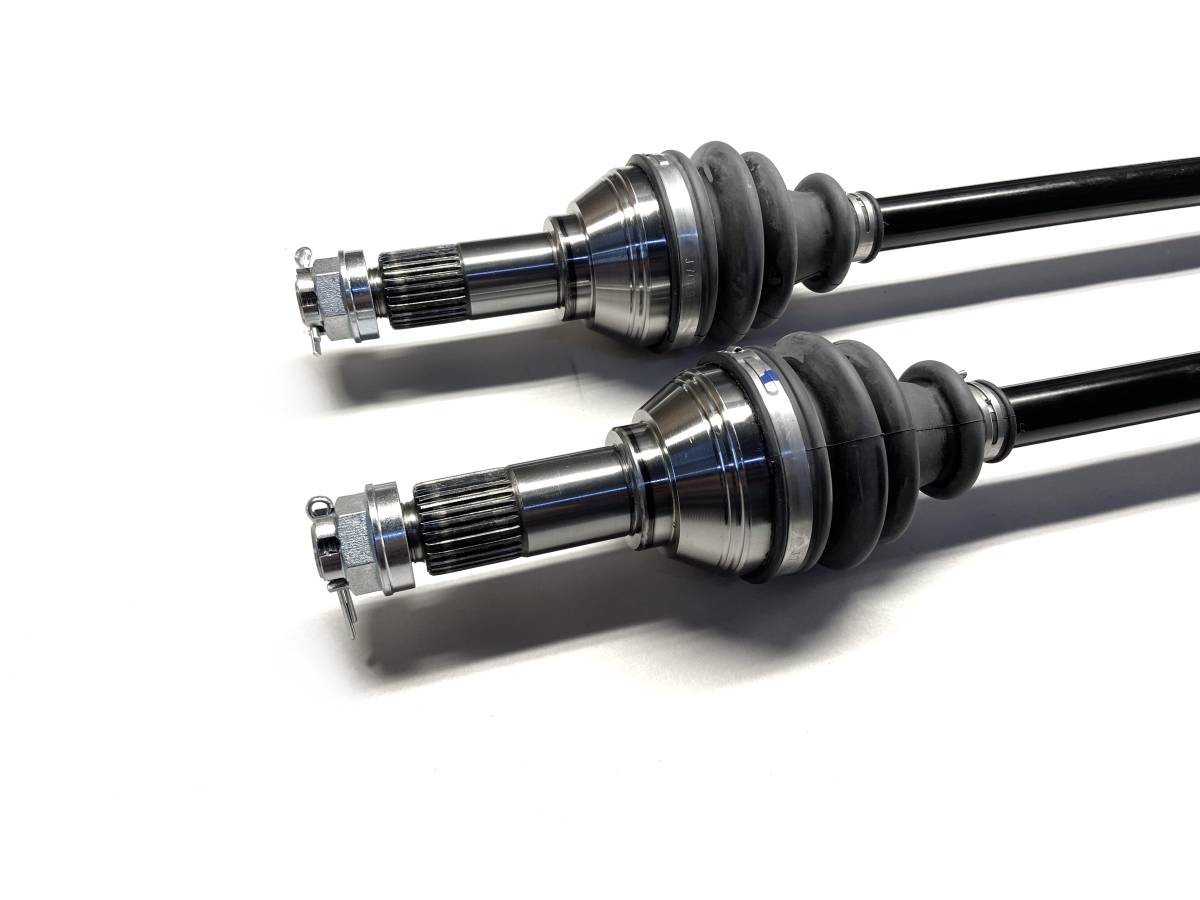

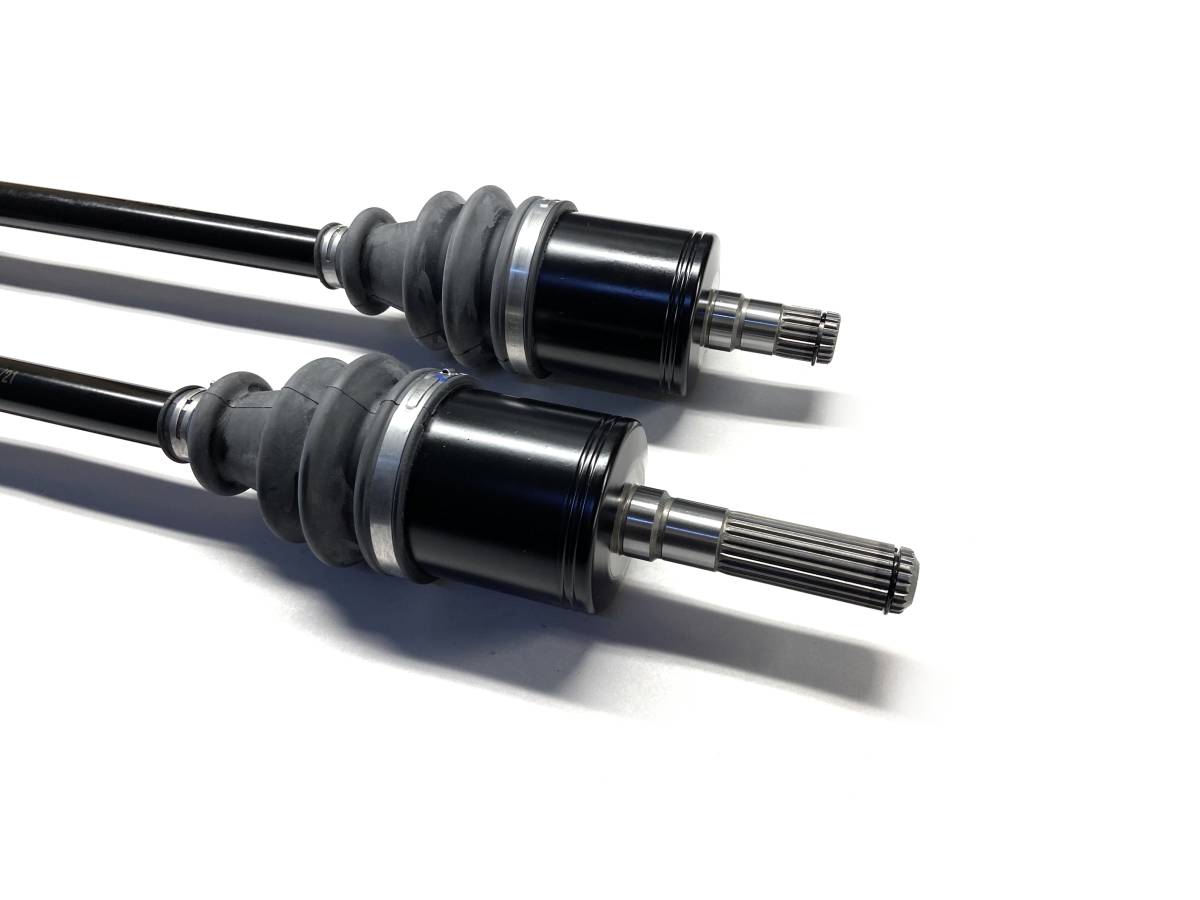

This is a pair of CV axles & wheel bearings for a Can-Am UTV/SXS.

They fit front, left & right on the following models:

2021-2023 Commander 1000 STD/DPS (excluding XT, XTP, XMR)

2021-2023 Commander MAX 1000 STD/DPS (excluding XT, XTP, XMR)

2019-2023 Maverick Sport 1000 STD/DPS (excluding XMR, XXC, XRC)

2019-2023 Maverick Sport MAX 1000 STD/DPS (excluding XMR, XXC, XRC)

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

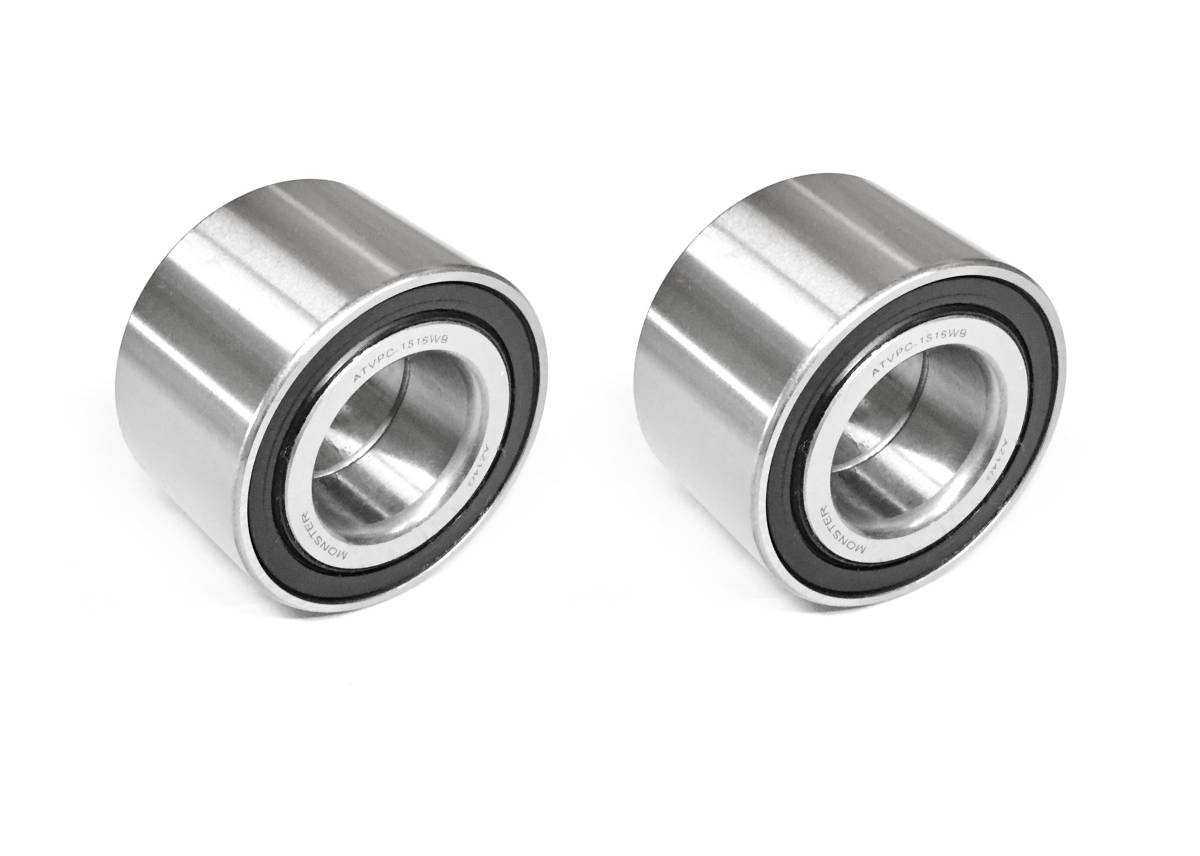

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 21 (both)
  • outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: left - 703 mm, right - 662 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021-2023Can-AmCommander 1000R4x4 DPS 2021-2023Can-AmCommander Max 1000R4x4 DPS 2022Can-AmCommander Max 1000R4x4 Limited DPS 2019-2022Can-AmMaverick Sport 1000 2019-2023Can-AmMaverick Sport 1000R4x4 DPS

Product Notes

  • Fits front, left & right on the following Can-Am models: 2021-2023 Commander 1000 STD/DPS & MAX 1000 STD/DPS (excluding XT, XTP, XMR) & 2019-2023 Maverick Sport 1000 STD/DPS & MAX 1000 STD/DPS (excluding XMR, XRC, XXC).
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (left) 705402718, 705402031, (right) 705402030, (bearings) 293350040, 705400088, 293350118. Inboard CV joint spline count: 21 (both). Outboard CV joint spline count: 29 (both). Compressed overall axle length: left - 703 mm, right - 662 mm.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

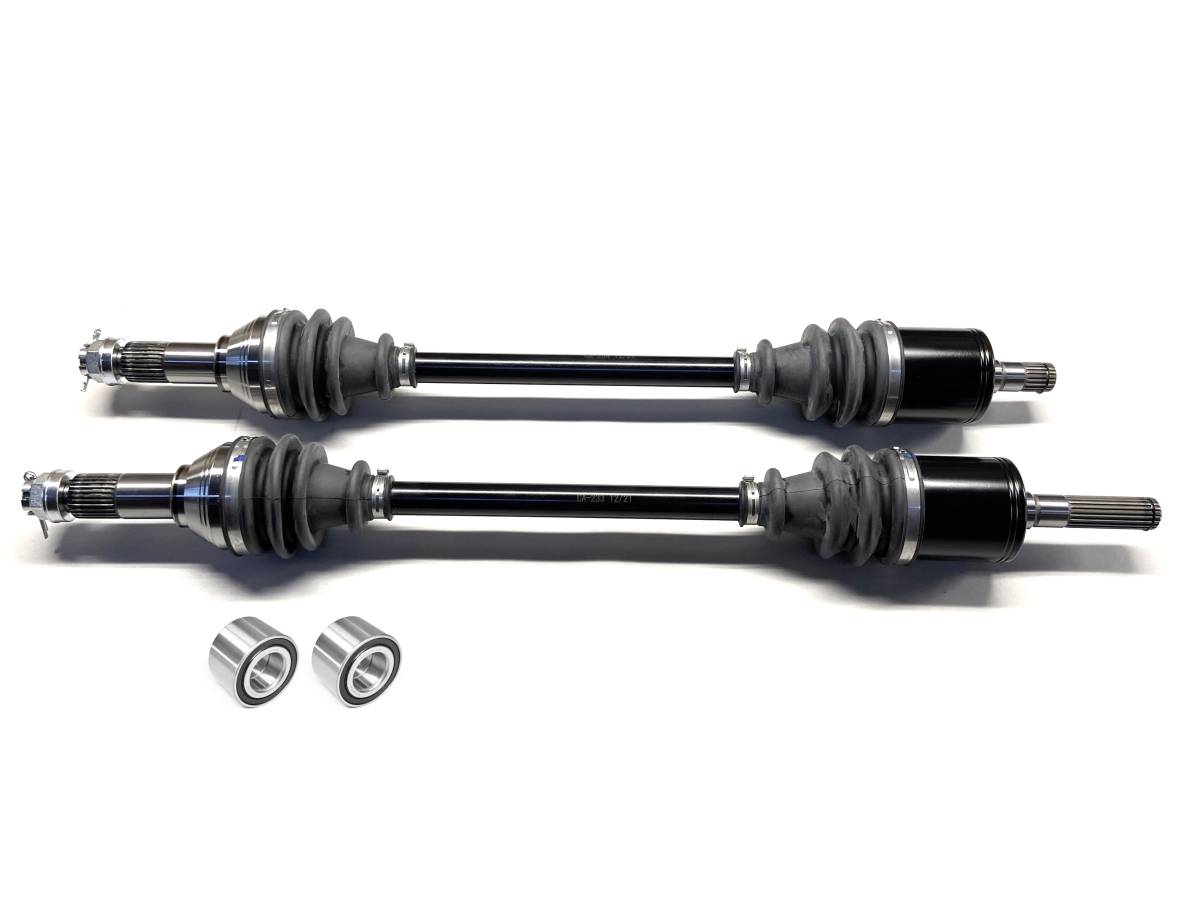

  • What's In The Box

  • 2 axles & 2 wheel bearings
  • Warranty

    1 year factory defect limited warranty

    Details

    • CA-233/CA-234
    • CA-233/CA-234
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 24.5 lbs.
    • W11.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
