Additional Images

Front CV Axles & Bearings for Can-Am Defender HD10 2020-2023, 705402407, 705402408, Left & Right, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Left,Right

CA-133/CA-134/WB-1516/WB-1516

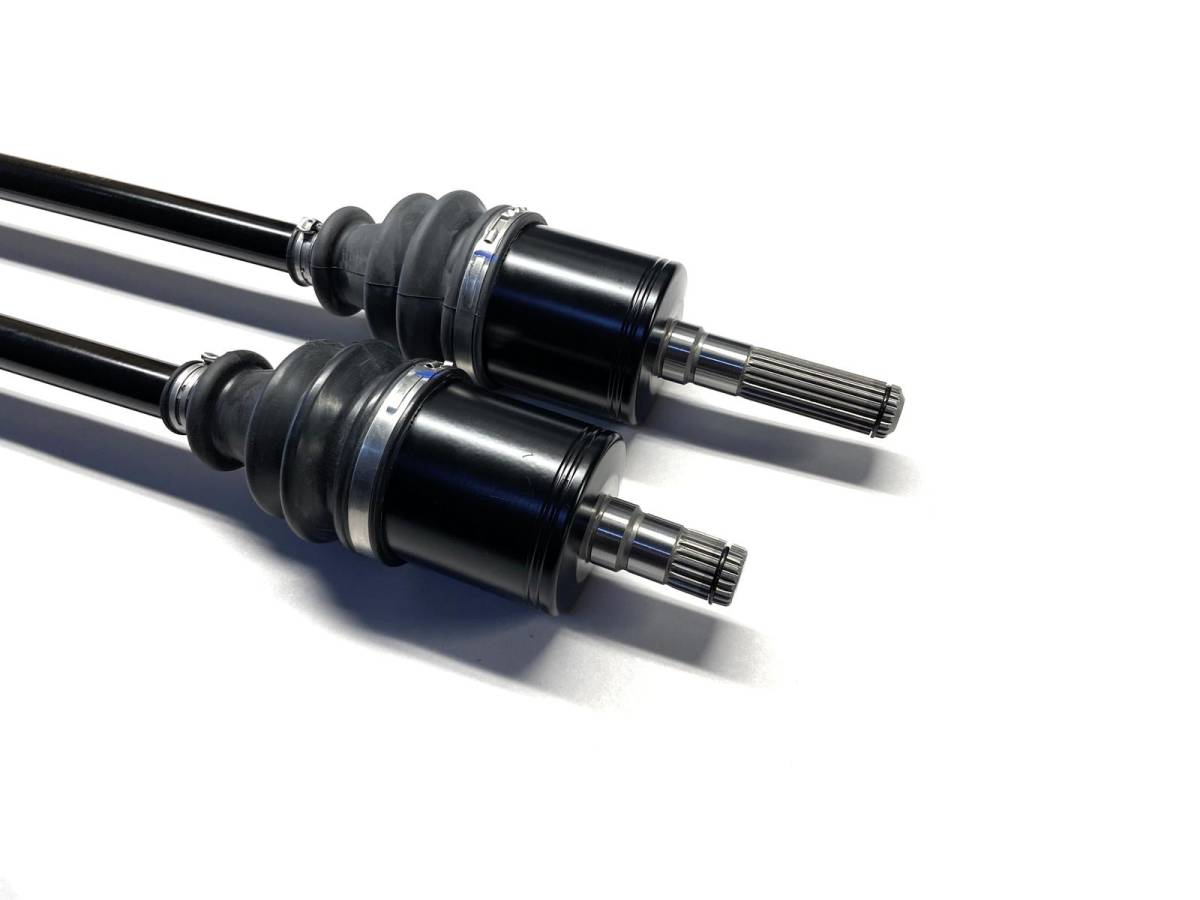

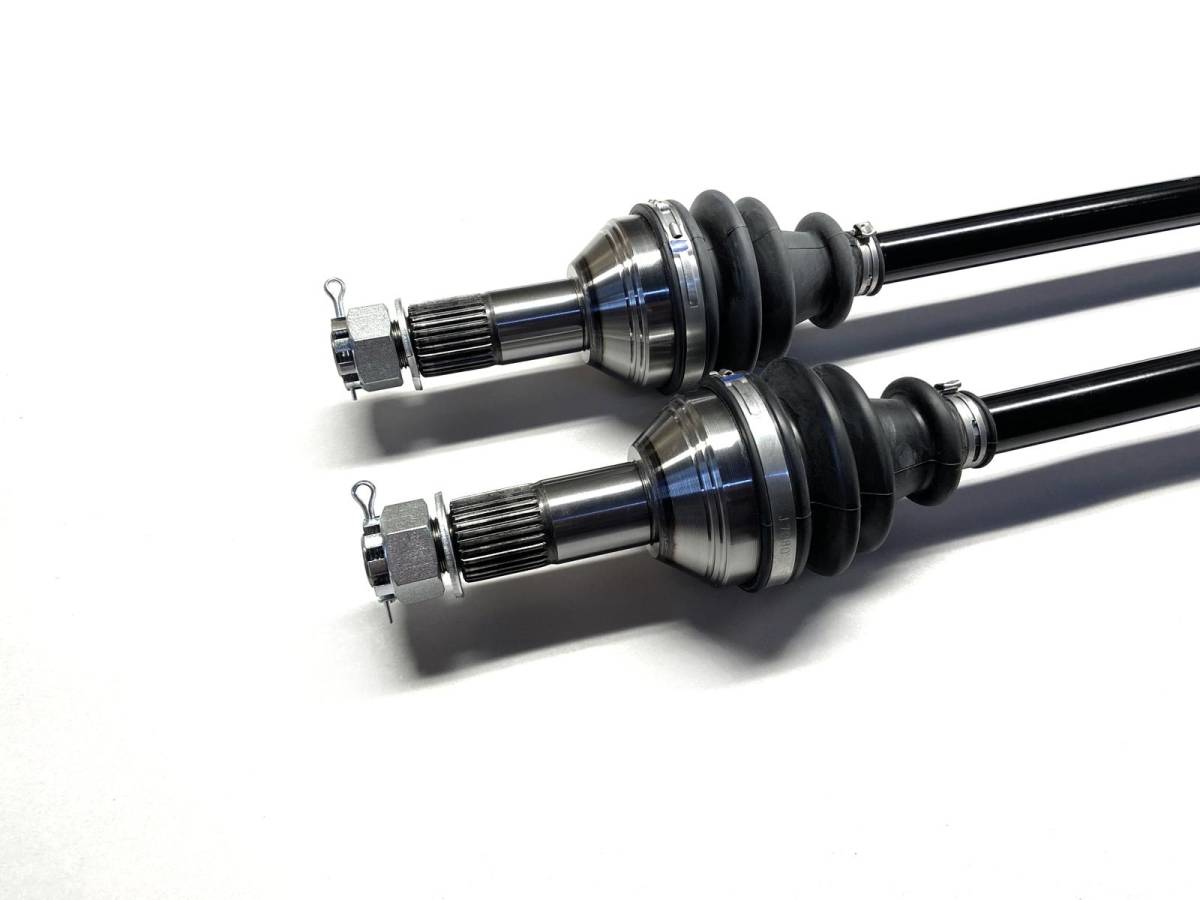

This is a set of new CV axles & wheel bearings for a Can-Am UTV.

They fit front, left & right on the following models:

2020-2023 Defender HD10 (Base, DPS, XT)

2020-2023 Defender MAX HD10 (Base, DPS, XT)

*Please note these will not fit XMR, LTD, CAB, or Lone Star models

*Made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • 4140 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out.
  • inobard CV joint spline count: 21 (both)
  • outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: left - 751 mm, right - 709 mm
  • Replaces OEM # (axles) 705402407, 705402408, (bearings) 293350040, 705400088, 293350118
Limited Supply: only 4 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $219.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2023Can-AmDefender HD104x4 DPS
2023Can-AmDefender HD104x4 XT DPS
2023Can-AmDefender HD106x6 DPS
2023Can-AmDefender HD106x6 XT
2022Can-AmDefender HD104x4 DPS
2022Can-AmDefender HD104x4 XT DPS
2022Can-AmDefender HD106x6 DPS
2021Can-AmDefender HD104x4 DPS
2021Can-AmDefender HD104x4 XT DPS
2021Can-AmDefender HD106x6 DPS
2020Can-AmDefender HD104x4 DPS
2020Can-AmDefender HD104x4 XT DPS
2020Can-AmDefender HD104x4 XTP
2020Can-AmDefender HD106x6 DPS
2023Can-AmDefender Max HD104x4 DPS
2023Can-AmDefender Max HD104x4 XT DPS
2022Can-AmDefender Max HD104x4 DPS
2022Can-AmDefender Max HD104x4 XT DPS
2021Can-AmDefender Max HD104x4 DPS
2021Can-AmDefender Max HD104x4 XT DPS
2020Can-AmDefender Max HD104x4 DPS
2020Can-AmDefender Max HD104x4 XT DPS

Product Notes

  • Fits front, left and right on the following Can-Am UTV models: 2020-2023 Defender HD10/MAX HD10 (Base, DPS & XT). Please note these will not fit any XMR, LTD, CAB or Lone Star models.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Inboard CV joint splines: 21 (both). Outboard CV joint splines: 29 (both). Compressed axle length: left - 751 mm, right - 709 mm.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

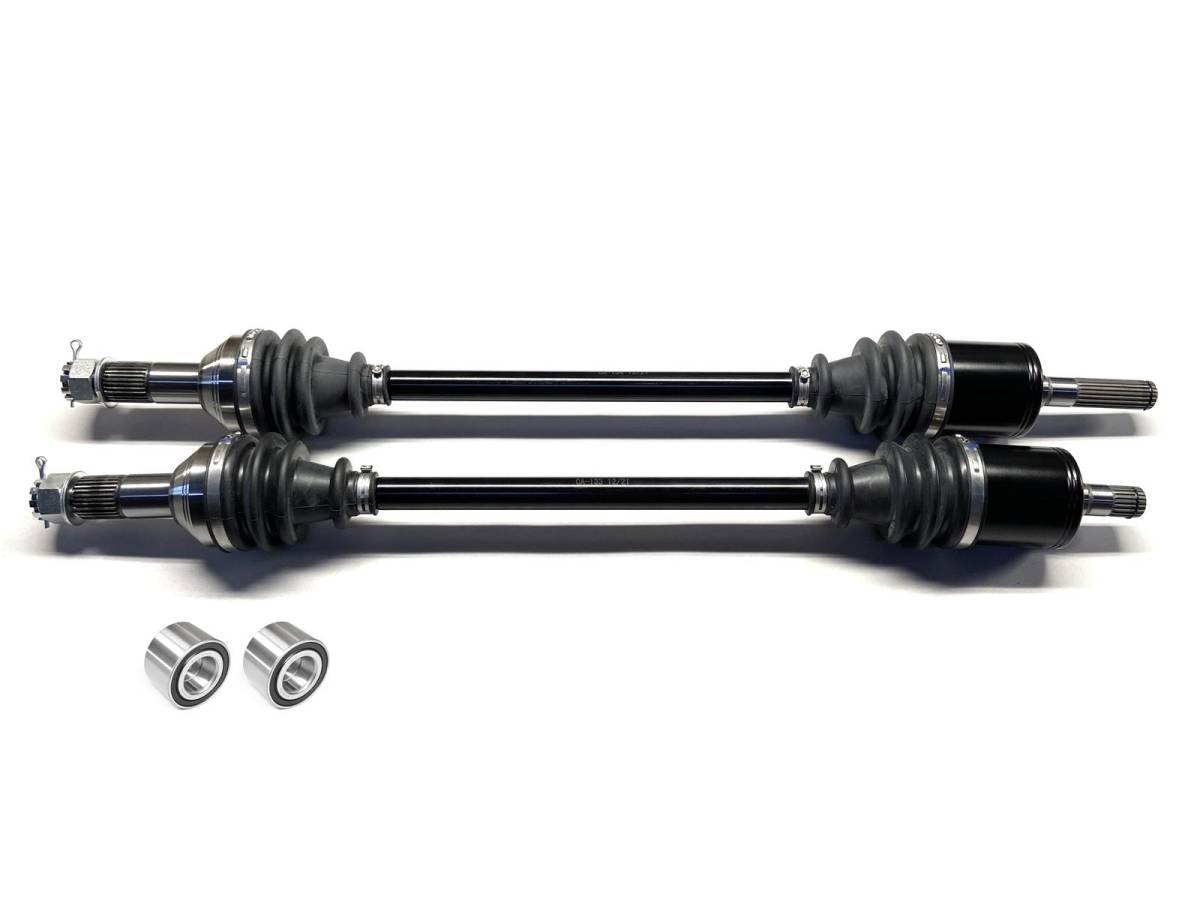

  • What's In The Box

  • 2 axles, 2 wheel bearings
  • Warranty

    Limited 2 year, one-time warranty

    Details

    • CA-133/CA-134/WB-1516/WB-1516
    • CA-133/CA-134/WB-1516/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 24.6 lbs.
    • W11.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
