Front Right Axle with Bearing Kit for Kawasaki Prairie 650 700 & Brute Force 650

Location on vehicle: Front,Right

KW-205/WB-1497

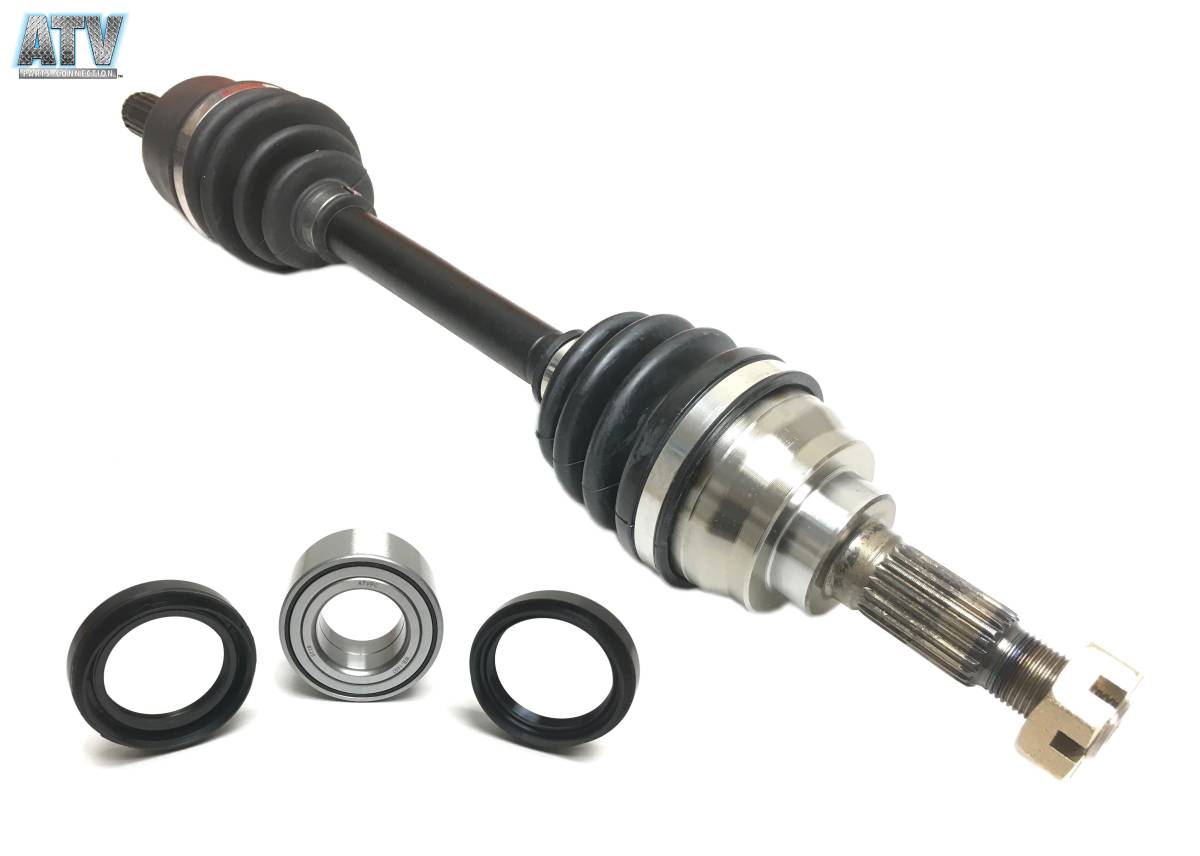

This is a new Front, Right CV axle & wheel bearing kit for a Kawasaki ATV.

They fit the following 4x4 applications:

2005-2013 ... Brute Force 650

2003-2013 ... Prairie 360

2002-2003 ... Prairie 650

2004-2006 ... Prairie 700

Front, Right / Passenger Side

*Not intended for use in lifted vehicles

Product features:

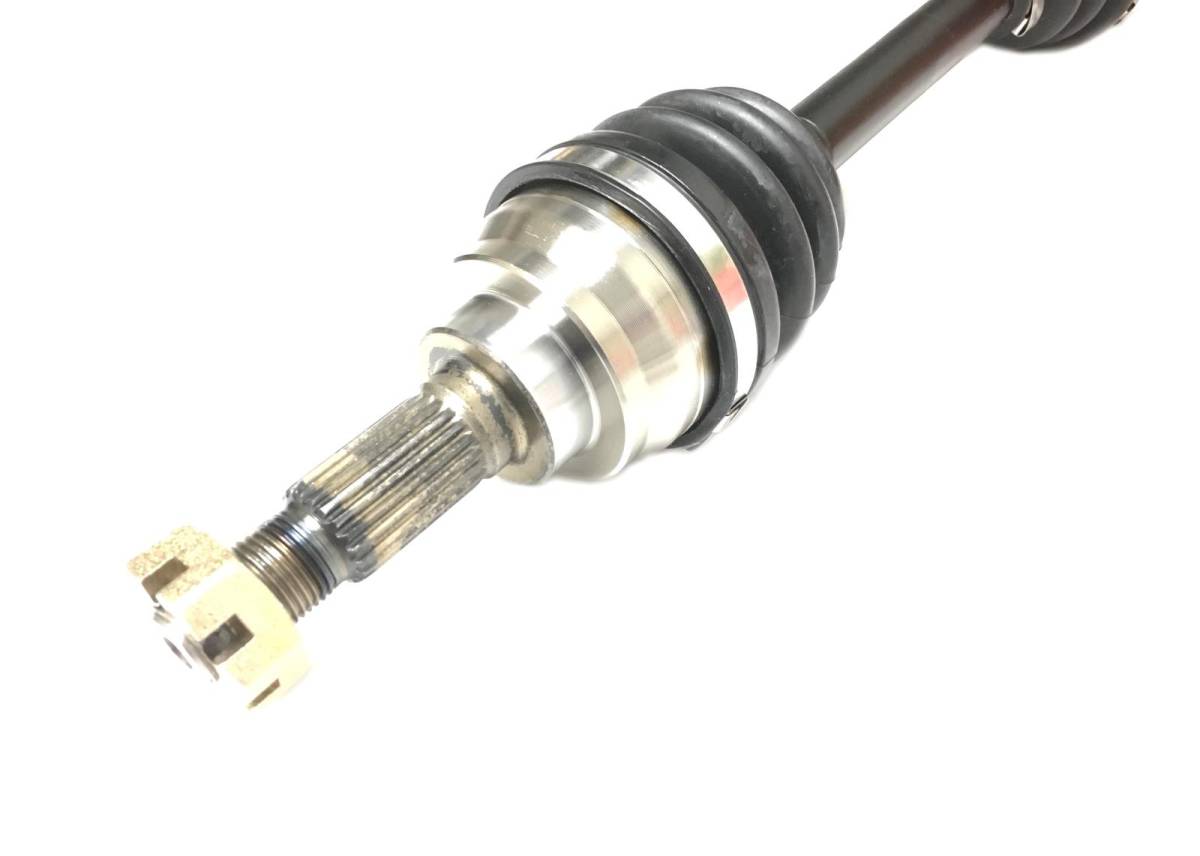

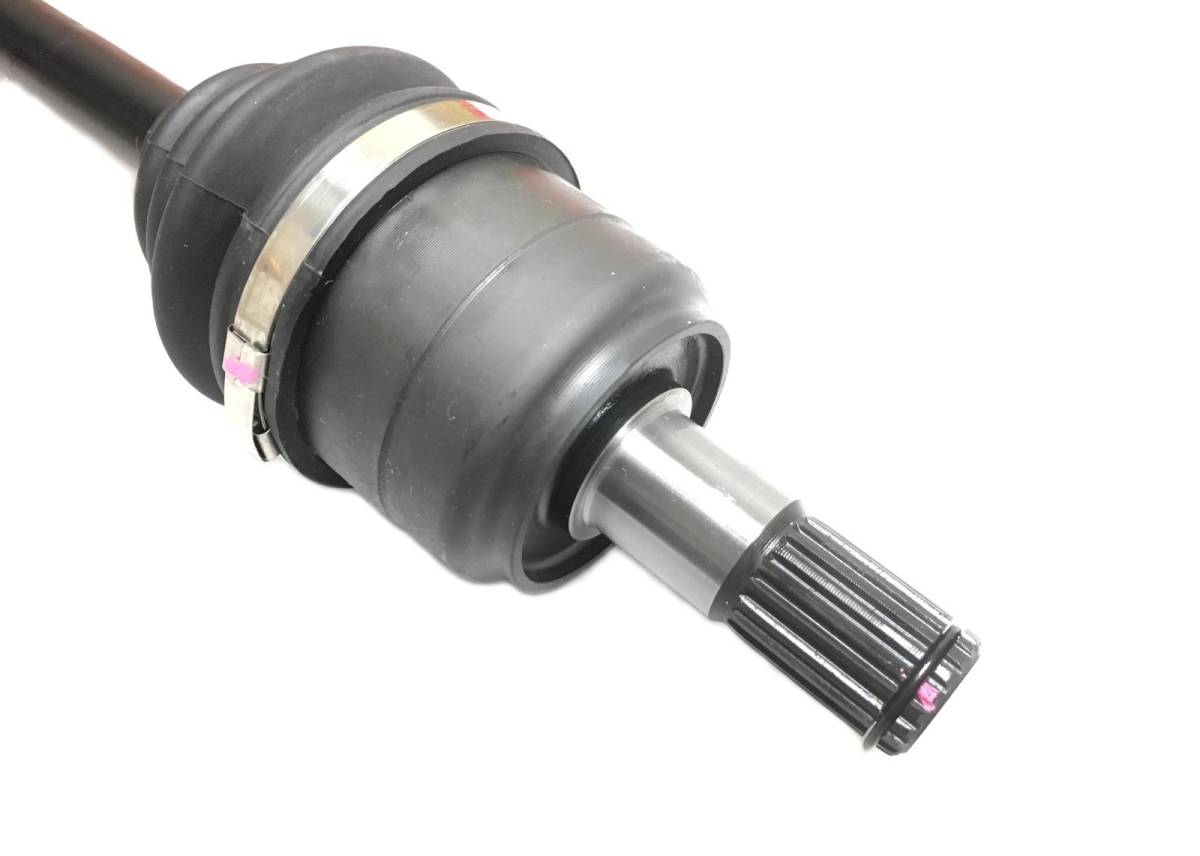

  • Stronger than OEM, chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 20
  • Outboard CV joint spline count: 21
  • Compressed overall axle length: 450.5
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front right (passenger side) on: 2005-2013 Brute Force 650, 2003-2013 Prairie 360, 2002-2003 Prairie 650, 2004-2006 Prairie 700.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Inboard spline count: 20, Outboard spline count: 21, Compressed overall axle length: 450.5 * Replaces Kawasaki OEM # (axle) 59266-1136, 59266-0031 (bearing kit) 92045-1395, 92045-1448, 92045-0095.
  • 1 year warranty (excluding torn boots & use on lifted vehicles).

  • What's In The Box

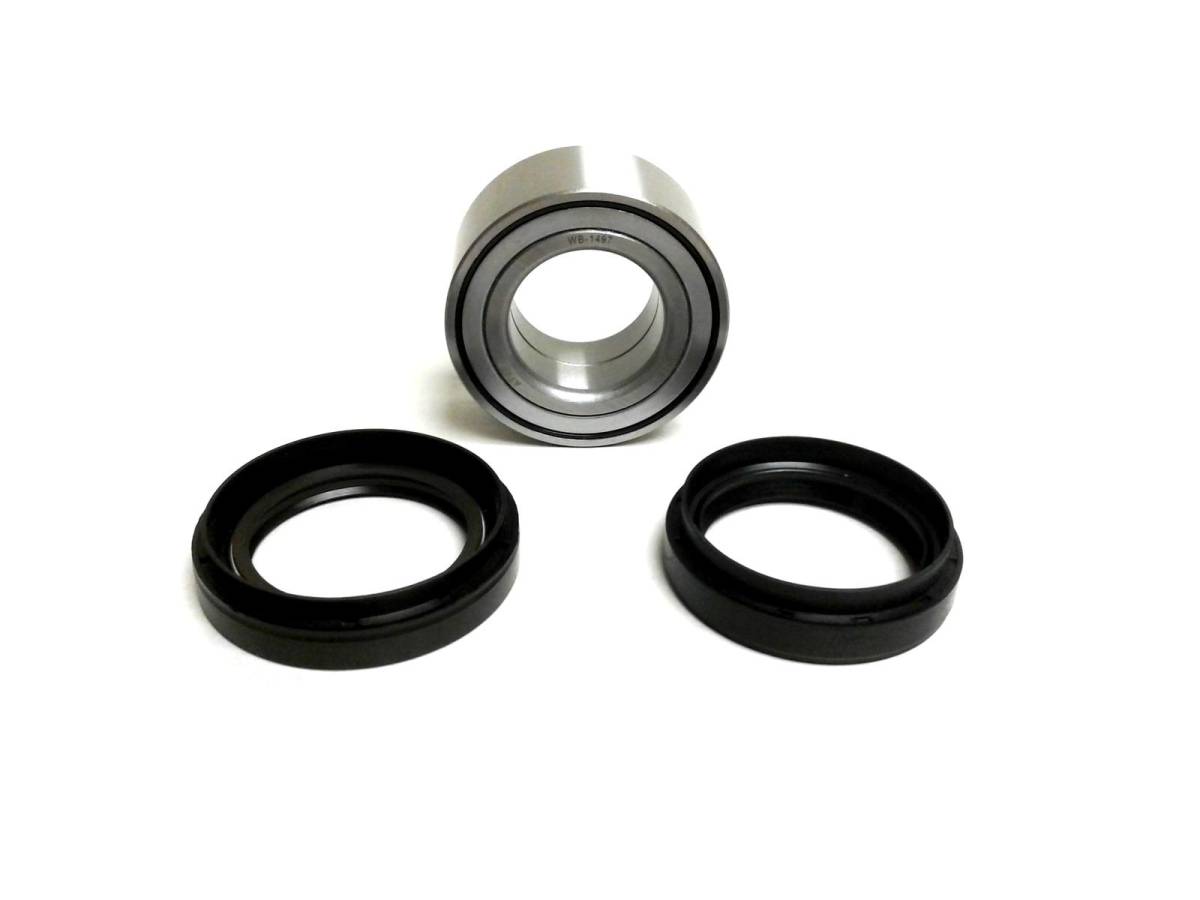

  • 1 axle & 1 wheel bearing kit
  • Application List

    YearMakeModelSubmodelNotes
    2013KawasakiBrute Force 650KVF650D 4x4
    2012KawasakiBrute Force 650KVF650D 4x4
    2011KawasakiBrute Force 650KVF650D 4x4
    2010KawasakiBrute Force 650KVF650D 4x4
    2009KawasakiBrute Force 650KVF650D 4x4
    2009KawasakiBrute Force 650KVF650E 4x4
    2008KawasakiBrute Force 650KVF650D 4x4
    2007KawasakiBrute Force 650KVF650D 4x4
    2007KawasakiBrute Force 650KVF650E 4x4
    2006KawasakiBrute Force 650KVF650D 4x4
    2006KawasakiBrute Force 650KVF650E 4x4
    2005KawasakiBrute Force 650KVF650D 4x4
    2005KawasakiBrute Force 650KVF650E 4x4
    2013KawasakiPrairie 360KVF360A 4x4
    2012KawasakiPrairie 360KVF360A 4x4
    2011KawasakiPrairie 360KVF360A 4x4
    2011KawasakiPrairie 360KVF360C 4x4
    2010KawasakiPrairie 360KVF360A 4x4
    2010KawasakiPrairie 360KVF360C 4x4
    2009KawasakiPrairie 360KVF360A 4x4
    2009KawasakiPrairie 360KVF360B
    2009KawasakiPrairie 360KVF360C 4x4
    2008KawasakiPrairie 360KVF360A 4x4
    2008KawasakiPrairie 360KVF360B
    2008KawasakiPrairie 360KVF360C 4x4
    2007KawasakiPrairie 360KVF360A 4x4
    2007KawasakiPrairie 360KVF360B
    2007KawasakiPrairie 360KVF360C 4x4
    2006KawasakiPrairie 360KVF360A 4x4
    2006KawasakiPrairie 360KVF360B
    2006KawasakiPrairie 360KVF360C 4x4
    2005KawasakiPrairie 360KVF360A 4x4
    2005KawasakiPrairie 360KVF360B
    2005KawasakiPrairie 360KVF360C 4x4
    2004KawasakiPrairie 360KVF360A 4x4
    2004KawasakiPrairie 360KVF360B
    2004KawasakiPrairie 360KVF360C 4x4
    2003KawasakiPrairie 360KVF360A 4x4
    2003KawasakiPrairie 360KVF360B
    2003KawasakiPrairie 360KVF360C 4x4
    2003KawasakiPrairie 650KVF650A 4x4
    2003KawasakiPrairie 650KVF650B
    2002KawasakiPrairie 650KVF650A 4x4
    2006KawasakiPrairie 700KVF700A 4x4
    2006KawasakiPrairie 700KVF700D 4x4 Team Green
    2005KawasakiPrairie 700KVF700A 4x4
    2005KawasakiPrairie 700KVF700B 4x4
    2005KawasakiPrairie 700KVF700D 4x4 Team Green
    2004KawasakiPrairie 700KVF700A 4x4
    2004KawasakiPrairie 700KVF700B 4x4

    Details

    • KW-205/WB-1497
    • KW-205/WB-1497
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 7.5 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
