Front Left Axle & Bearing for Can-Am Commander 1000 21-23 & Maverick Sport 19-23

Location on vehicle: Front,Left

CA-233/WB-1516

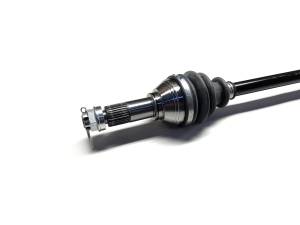

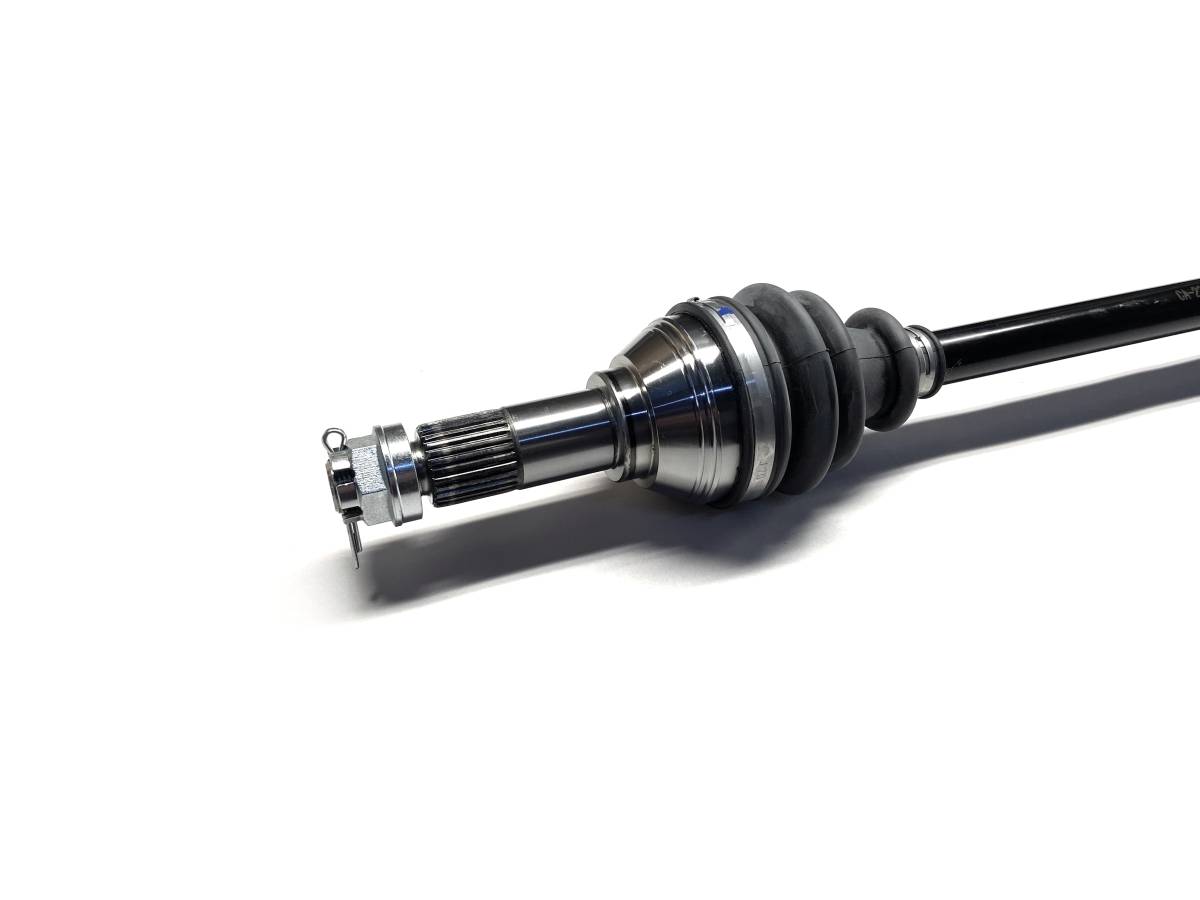

This is a front left CV axle & wheel bearing for a Can-Am UTV/SXS.

They fit FRONT, LEFT (driver side) on the following 4x4 models:

2021-2023 Commander 1000 STD/DPS (excluding XT, XTP, XMR)

2021-2023 Commander MAX 1000 STD/DPS (excluding XT, XTP, XMR)

2019-2023 Maverick Sport 1000 STD/DPS (excluding XMR, XXC, XRC)

2019-2023 Maverick Sport MAX 1000 STD/DPS (excluding XMR, XXC, XRC)

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

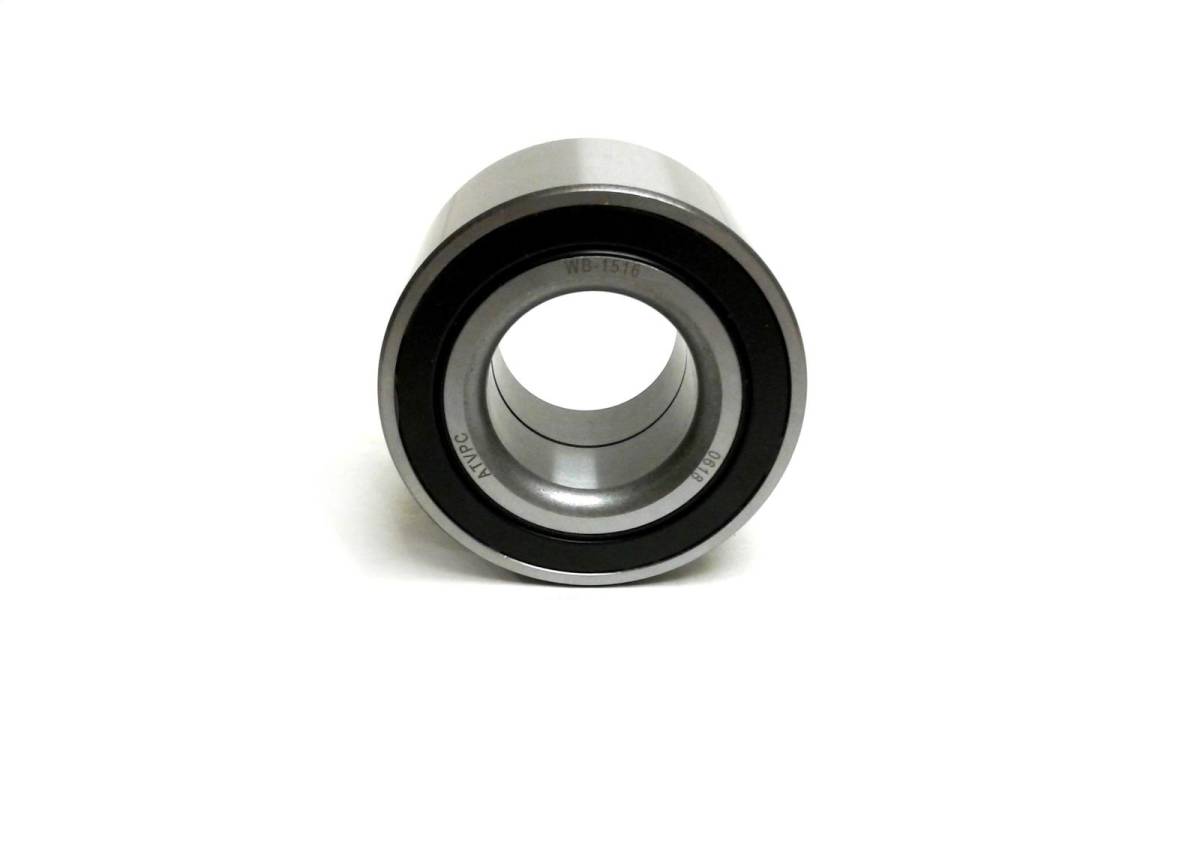

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 29
  • Compressed overall axle length: 703 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $91.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2023Can-AmCommander 1000R4x4 DPS
2022Can-AmCommander 1000R4x4 DPS
2021Can-AmCommander 1000R4x4 DPS
2023Can-AmCommander Max 1000R4x4 DPS
2022Can-AmCommander Max 1000R4x4 DPS
2022Can-AmCommander Max 1000R4x4 Limited DPS
2021Can-AmCommander Max 1000R4x4 DPS
2022Can-AmMaverick Sport 10004X4
2021Can-AmMaverick Sport 10004X4
2021Can-AmMaverick Sport 10004x4 DPS
2020Can-AmMaverick Sport 10004X4
2020Can-AmMaverick Sport 10004x4 DPS
2019Can-AmMaverick Sport 10004X4
2019Can-AmMaverick Sport 10004x4 DPS
2023Can-AmMaverick Sport 1000R4x4 DPS
2022Can-AmMaverick Sport 1000R4x4 DPS
2021Can-AmMaverick Sport 1000R4x4 DPS
2020Can-AmMaverick Sport 1000R4x4 DPS
2019Can-AmMaverick Sport 1000R4x4 DPS

Product Notes

  • Fits FRONT, LEFT (driver side) on the following Can-Am models: 2021-2023 Commander 1000 STD/DPS & MAX 1000 STD/DPS (excluding XT, XTP, XMR) & 2019-2023 Maverick Sport 1000 STD/DPS & MAX 1000 STD/DPS (excluding XMR, XRC, XXC).
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out. Set includes 1 axle & 1 wheel bearing.
  • Replaces OEM # (axle) 705402718, 705402031 (bearing) 293350040, 705400088, 293350118. Inboard CV joint spline count: 21, Outboard CV joint spline count: 29, Compressed overall axle length: 703 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

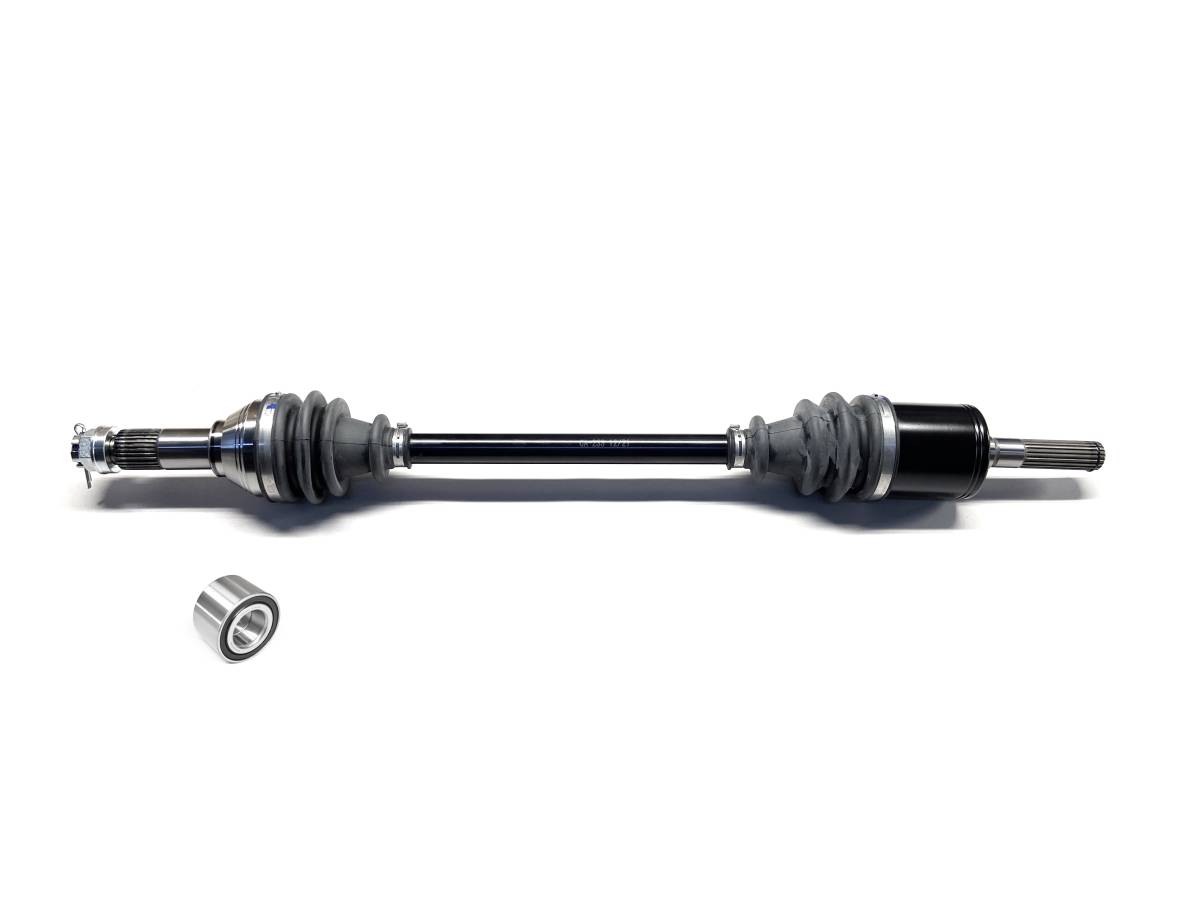

  • 1 axle & 1 wheel bearing
  • Warranty

    1 year factory defect limited warranty

    Details

    • CA-233/WB-1516
    • CA-233/WB-1516
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 12.3 lbs.
    • W5.0000” x H5.0000” x L32.0000”
