Front Right Axle & Bearing for Can-Am Outlander & Renegade 650, 850 & 1000 19-22

Location on vehicle: Front,Right

(0) Reviews: Write first review
CA-231/WB-1516

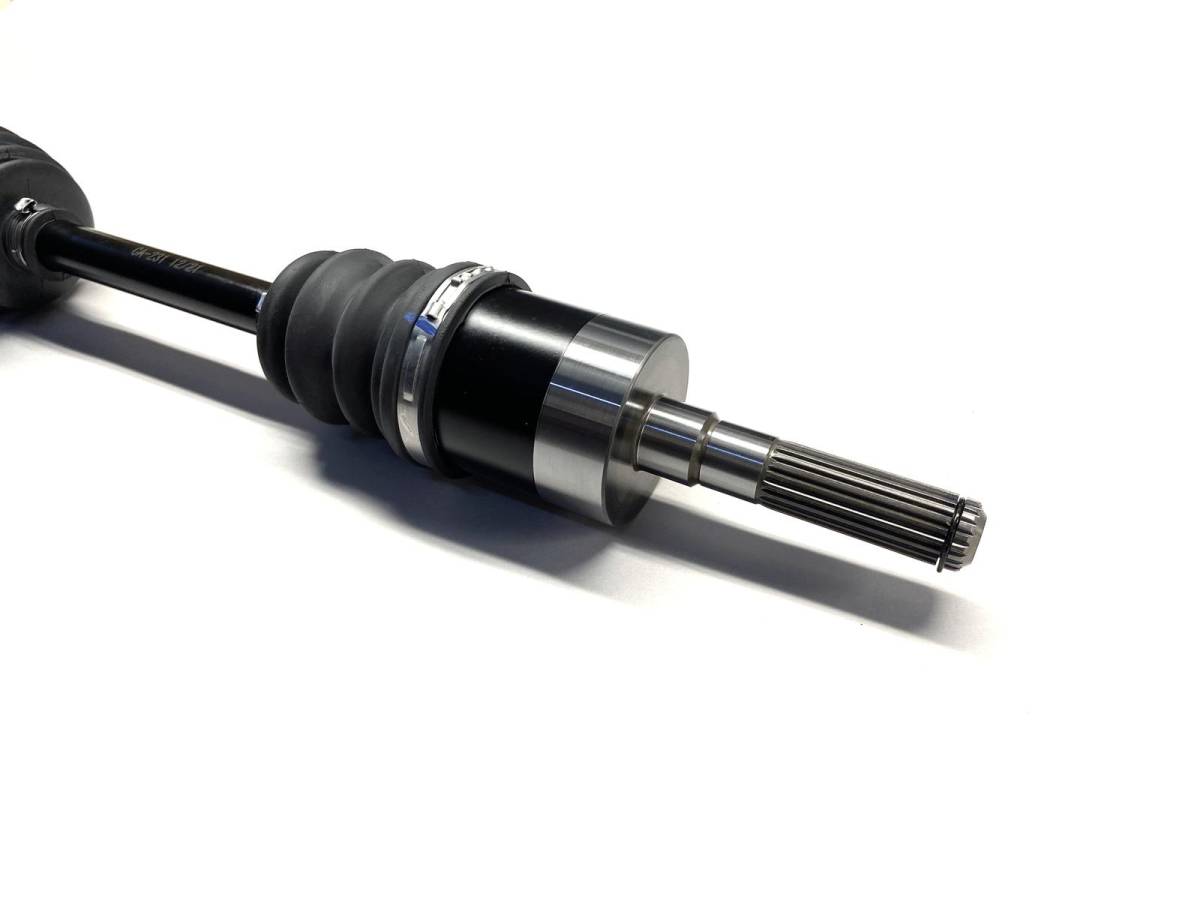

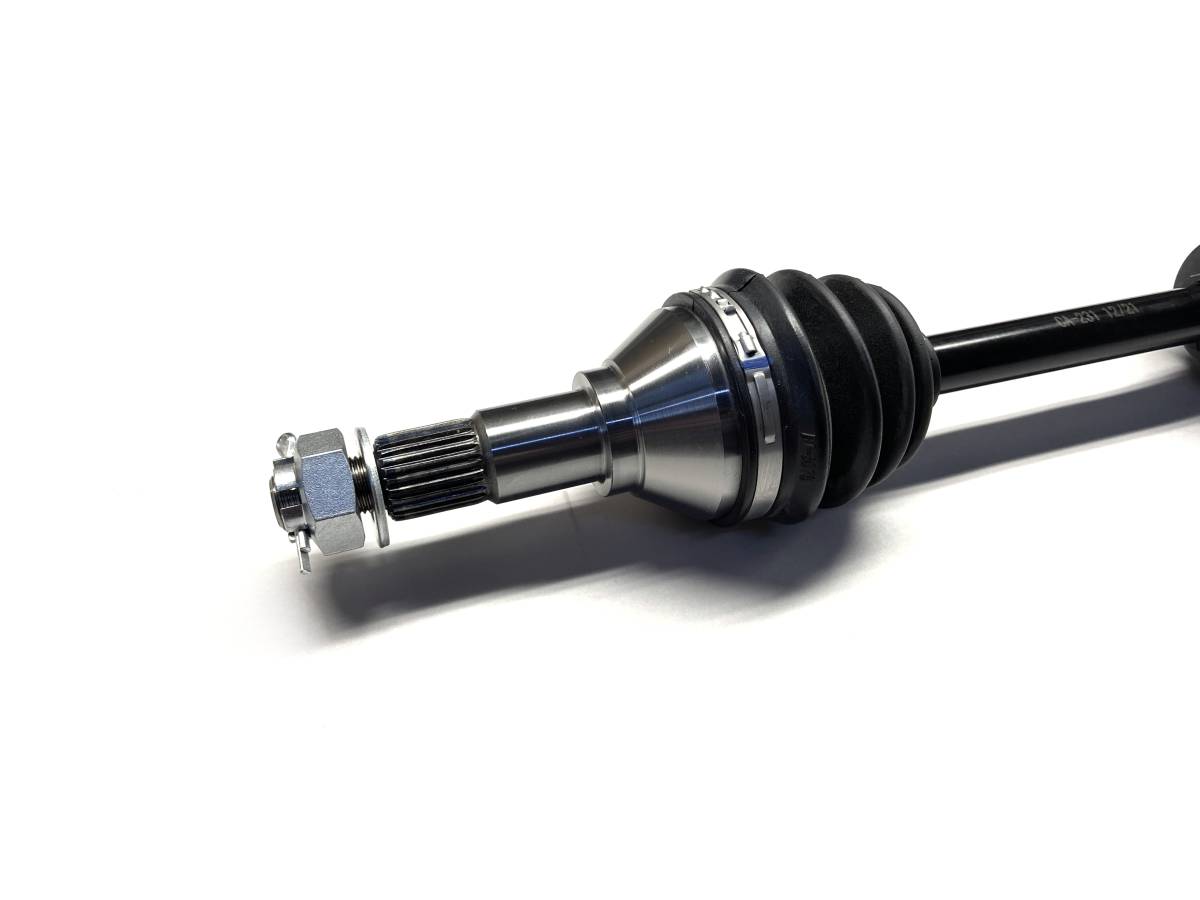

This is a new CV axle & wheel bearing for a Can-Am ATV.

They fit FRONT, RIGHT on the following (excluding any XMR models):

2019-2022 Outlander 650/Max 650 4x4 and 6x6

2019-2022 Outlander 850/Max 850

2019-2022 Outlander 1000/Max 1000 4x4 and 6x6

2019-2022 Renegade 570

2019-2022 Renegade 850

2019-2022 Renegade 1000

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

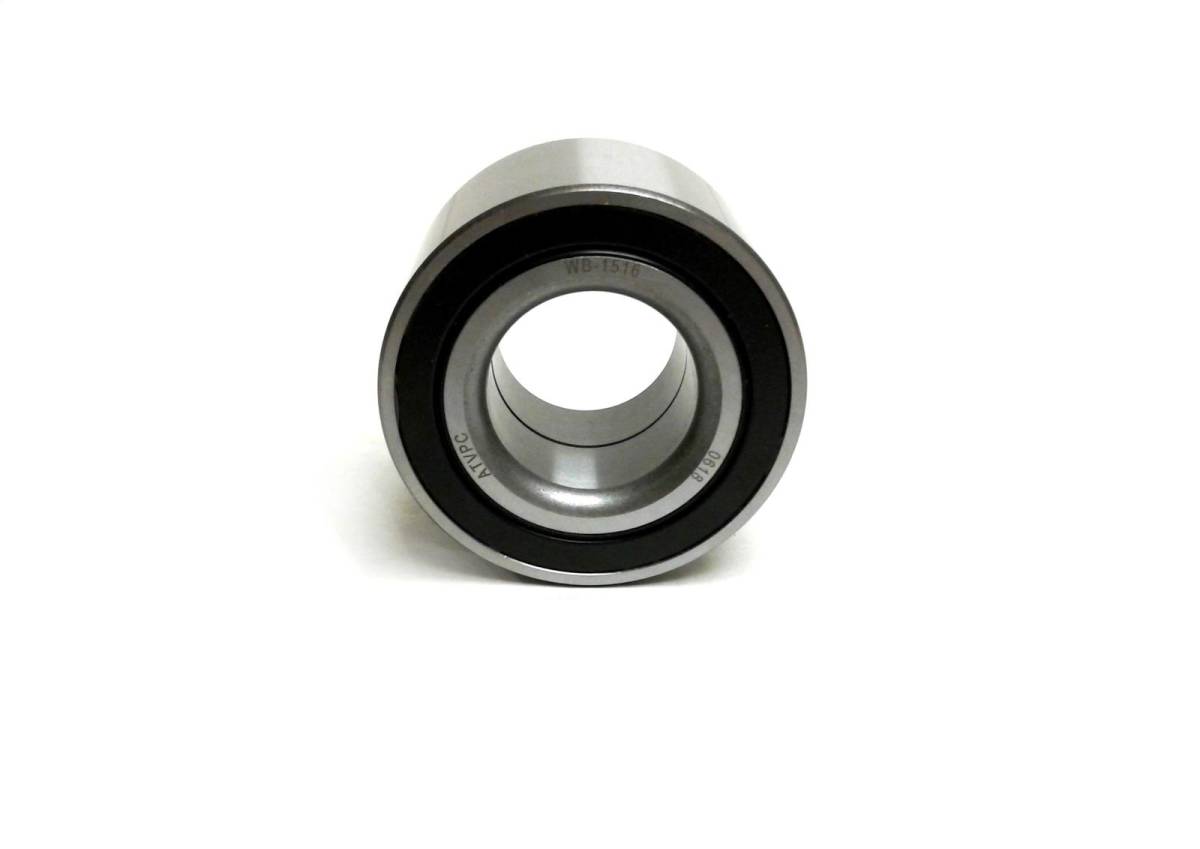

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 573 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $99.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, RIGHT (excluding any XMR models) on the following Can-Am models: 2019-2022 Outlander 650/Max 650 4x4 & 6x6, 2019-2022 Outlander 850/Max 850, 2019-2022 Outlander 1000/Max 1000 4x4 & 6x6, 2019-2022 Renegade 570/850, & 2019-2022 Renegade 1000.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Inboard CV joint spline count: 21, Outboard CV joint spline count: 26, Compressed overall axle length: 573 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

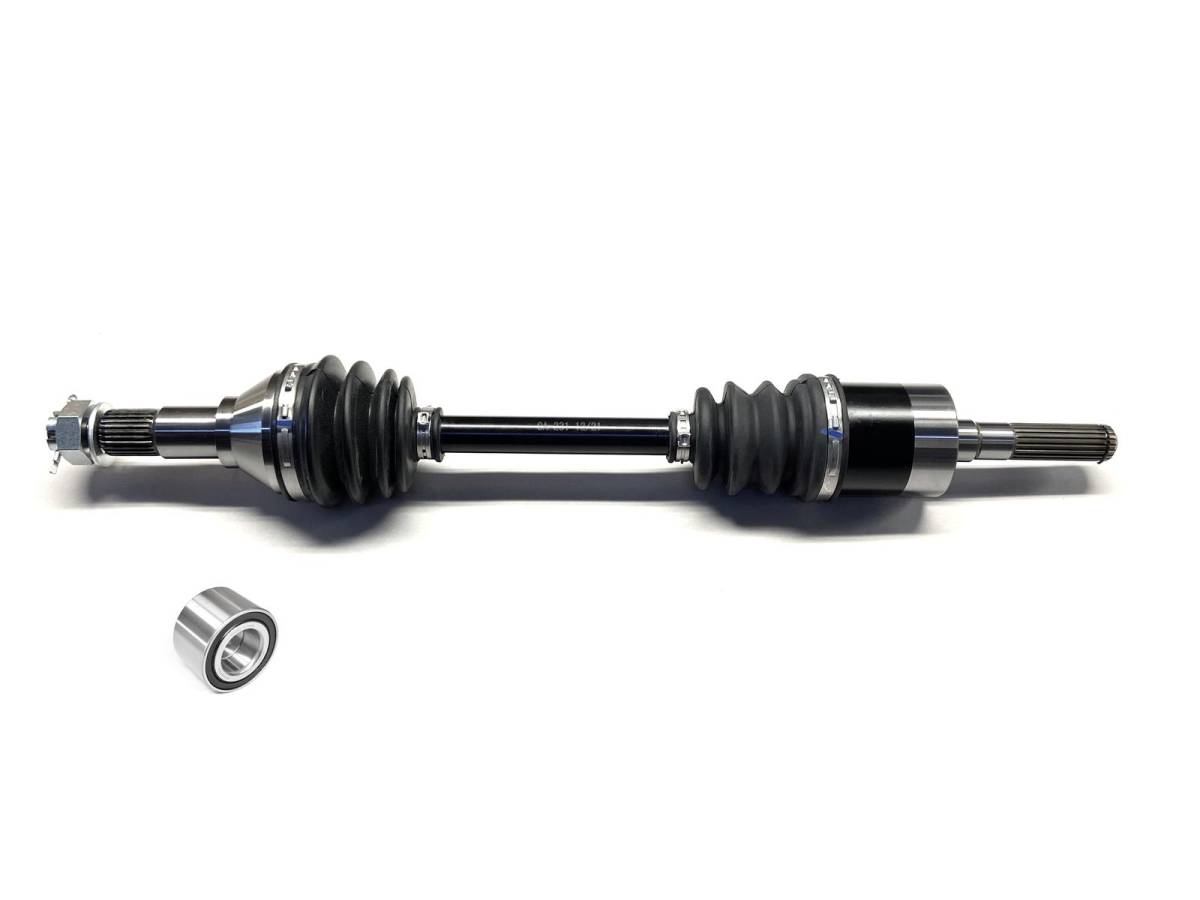

  • 1 axle & 1 wheel bearing

    • Application List

    YearMakeModelSubmodelNotes
    2022Can-AmOutlander 6504X4
    2022Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
    2022Can-AmOutlander 6504x4 DPS
    2022Can-AmOutlander 6504x4 XT DPS
    2021Can-AmOutlander 6504X4
    2021Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
    2021Can-AmOutlander 6504x4 DPS
    2021Can-AmOutlander 6504x4 XT DPS
    2020Can-AmOutlander 6504X4
    2020Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
    2020Can-AmOutlander 6504x4 DPS
    2020Can-AmOutlander 6504x4 XT DPS
    2019Can-AmOutlander 6504X4
    2019Can-AmOutlander 6504x4 DPS
    2019Can-AmOutlander 6504x4 North Edition DPS
    2019Can-AmOutlander 6504x4 XT DPS
    2022Can-AmOutlander 8504X4
    2022Can-AmOutlander 8504x4 DPS
    2022Can-AmOutlander 8504x4 XT DPS
    2022Can-AmOutlander 8504x4 XTP DPS
    2021Can-AmOutlander 8504X4
    2021Can-AmOutlander 8504x4 DPS
    2021Can-AmOutlander 8504x4 North Edition DPS
    2021Can-AmOutlander 8504x4 XT DPS
    2021Can-AmOutlander 8504x4 XTP DPS
    2020Can-AmOutlander 8504X4
    2020Can-AmOutlander 8504x4 DPS
    2020Can-AmOutlander 8504x4 North Edition DPS
    2020Can-AmOutlander 8504x4 XT DPS
    2020Can-AmOutlander 8504x4 XTP DPS
    2019Can-AmOutlander 8504X4
    2019Can-AmOutlander 8504x4 DPS
    2019Can-AmOutlander 8504x4 North Edition DPS
    2019Can-AmOutlander 8504x4 XT-P DPS
    2019Can-AmOutlander 8504x4 XT DPS
    2021Can-AmOutlander 1000R4x4 XT-P DPS
    2021Can-AmOutlander 1000R4x4 XT DPS
    2020Can-AmOutlander 1000R4x4 XT-P DPS
    2020Can-AmOutlander 1000R4x4 XT DPS
    2019Can-AmOutlander 1000R4x4 DPS
    2019Can-AmOutlander 1000R4x4 Mossy Oak Hunting Edition DPS
    2019Can-AmOutlander 1000R4x4 XT-P DPS
    2019Can-AmOutlander 1000R4x4 XT DPS
    2022Can-AmOutlander Max 6504x4 DPS
    2022Can-AmOutlander Max 6504x4 XT DPS
    2022Can-AmOutlander Max 6506x6 DPS
    2021Can-AmOutlander Max 6504x4 DPS
    2021Can-AmOutlander Max 6504x4 XT DPS
    2021Can-AmOutlander Max 6506x6 DPS
    2020Can-AmOutlander Max 6504x4 DPS
    2020Can-AmOutlander Max 6504x4 XT DPS
    2020Can-AmOutlander Max 6506x6 DPS
    2019Can-AmOutlander Max 6504x4 DPS
    2019Can-AmOutlander Max 6504x4 North Edition DPS
    2019Can-AmOutlander Max 6504x4 XT DPS
    2019Can-AmOutlander Max 6506x6 DPS
    2022Can-AmOutlander Max 8504x4 XT DPS
    2022Can-AmOutlander Max 8504x4 XTP DPS
    2021Can-AmOutlander Max 8504x4 North Edition DPS
    2021Can-AmOutlander Max 8504x4 XT DPS
    2021Can-AmOutlander Max 8504x4 XTP DPS
    2020Can-AmOutlander Max 8504x4 North Edition DPS
    2020Can-AmOutlander Max 8504x4 XT DPS
    2020Can-AmOutlander Max 8504x4 XTP DPS
    2019Can-AmOutlander Max 8504x4 North Edition DPS
    2019Can-AmOutlander Max 8504x4 XT DPS
    2019Can-AmOutlander Max 8504x4 XTP DPS
    2022Can-AmOutlander Max 10006x6 XT
    2021Can-AmOutlander Max 10006x6 XT
    2022Can-AmOutlander Max 1000R4x4 LTD DPS
    2022Can-AmOutlander Max 1000R4x4 XT DPS
    2022Can-AmOutlander Max 1000R4x4 XTP DPS
    2021Can-AmOutlander Max 1000R4x4 LTD DPS
    2021Can-AmOutlander Max 1000R4x4 XT DPS
    2021Can-AmOutlander Max 1000R4x4 XTP DPS
    2020Can-AmOutlander Max 1000R4x4 LTD DPS
    2020Can-AmOutlander Max 1000R4x4 XT DPS
    2020Can-AmOutlander Max 1000R4x4 XTP DPS
    2020Can-AmOutlander Max 1000R6x6 XT
    2019Can-AmOutlander Max 1000R4x4 LTD DPS
    2019Can-AmOutlander Max 1000R4x4 XT DPS
    2019Can-AmOutlander Max 1000R4x4 XTP DPS
    2019Can-AmOutlander Max 1000R6x6 XT
    2022Can-AmRenegade 5704X4
    2021Can-AmRenegade 5704X4
    2020Can-AmRenegade 5704X4
    2019Can-AmRenegade 5704X4
    2022Can-AmRenegade 8504X4
    2022Can-AmRenegade 8504x4 XXC DPS
    2021Can-AmRenegade 8504X4
    2021Can-AmRenegade 8504x4 XXC DPS
    2020Can-AmRenegade 8504X4
    2020Can-AmRenegade 8504x4 XXC DPS
    2019Can-AmRenegade 8504X4
    2019Can-AmRenegade 8504x4 XXC DPS
    2022Can-AmRenegade 1000R4x4 XXC DPS
    2021Can-AmRenegade 1000R4x4 XXC DPS
    2020Can-AmRenegade 1000R4x4 XXC DPS
    2019Can-AmRenegade 1000R4X4
    2019Can-AmRenegade 1000R4x4 XXC DPS

    Details

    • CA-231/WB-1516
    • CA-231/WB-1516
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 9.8 lbs.
    • W5.0000” x H5.0000” x L25.0000”
