Rear CV Axle with Wheel Bearing for Arctic Cat 250 & 300 2x4 4x4 2005 ATV

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
AC-306/WB-1496

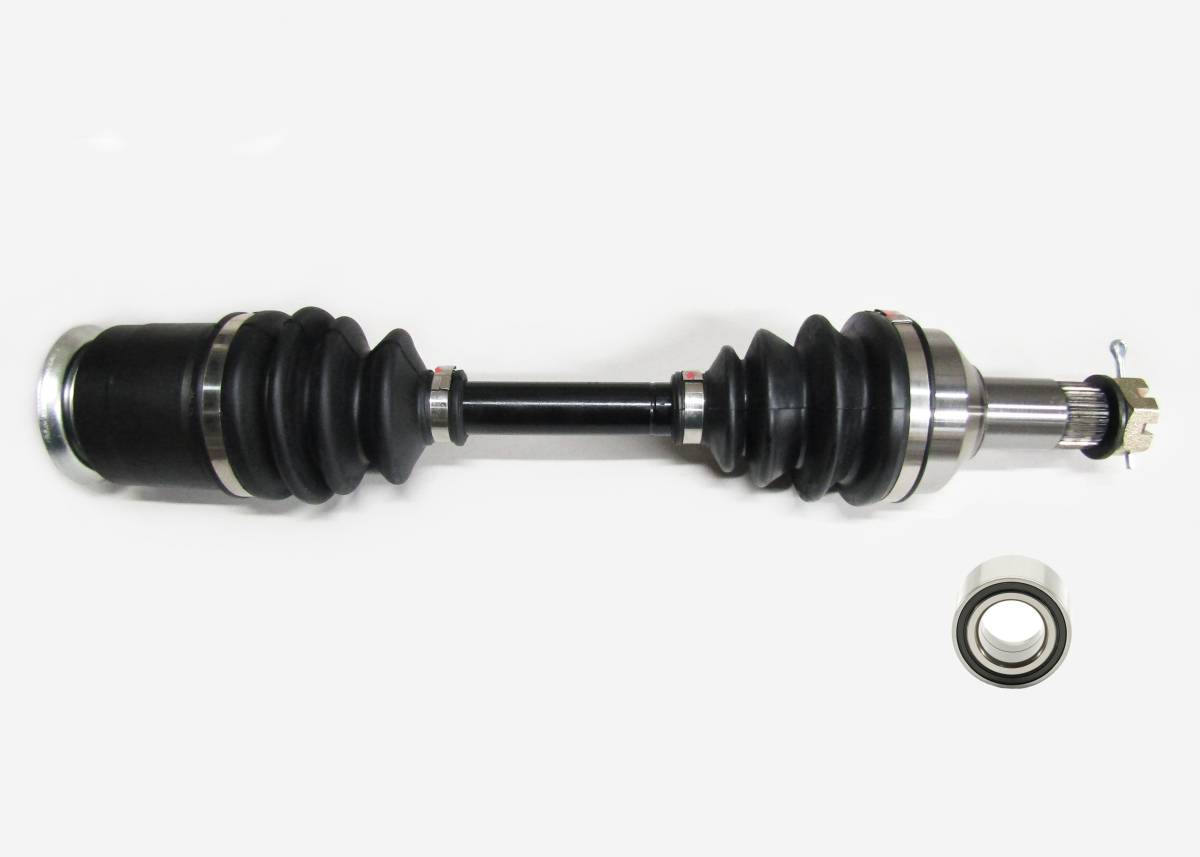

This is a new rear CV axle & wheel bearing for an Arctic Cat ATV.

They fit the following models:

2005 ... 250 2x4 & 4x4

2005 ... 300 4x4

Fits rear left or right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

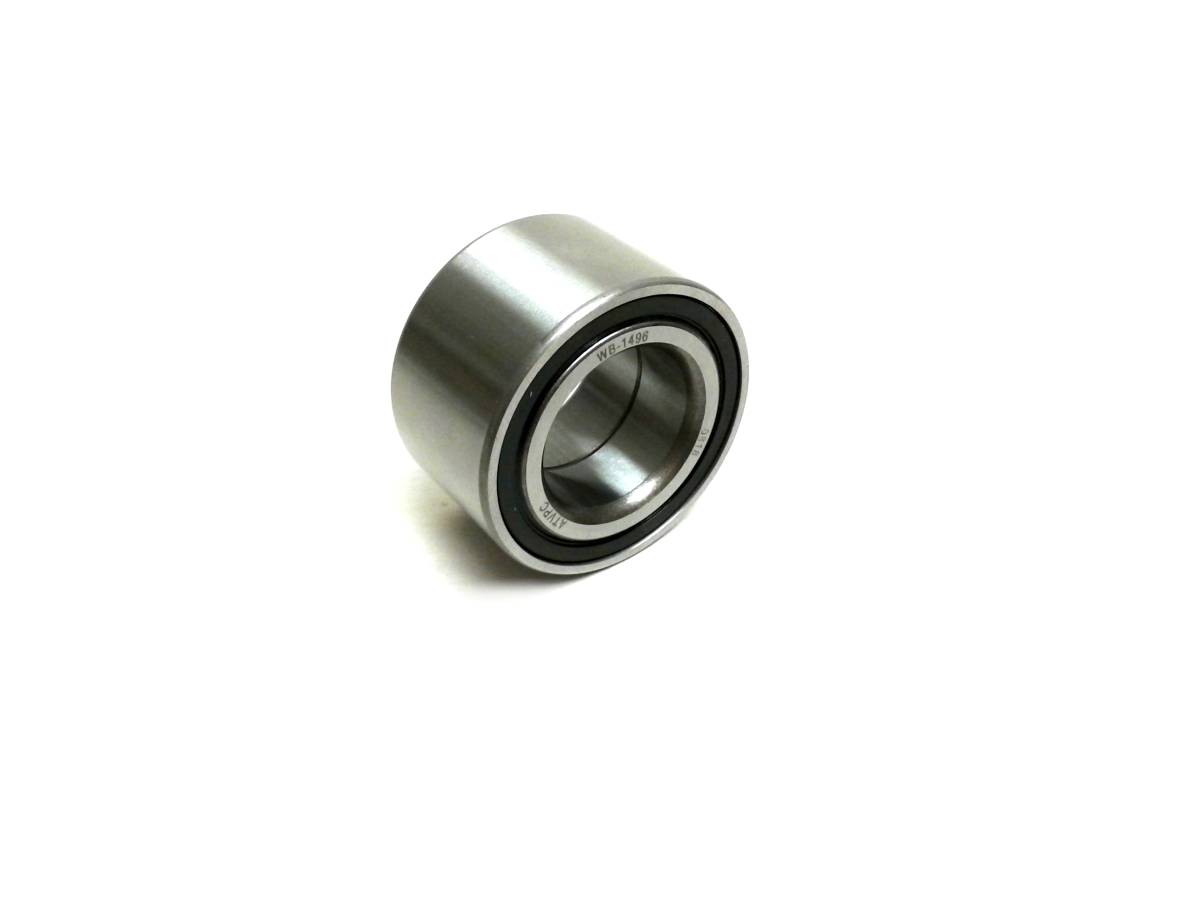

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • inobard CV joint spline count: 22

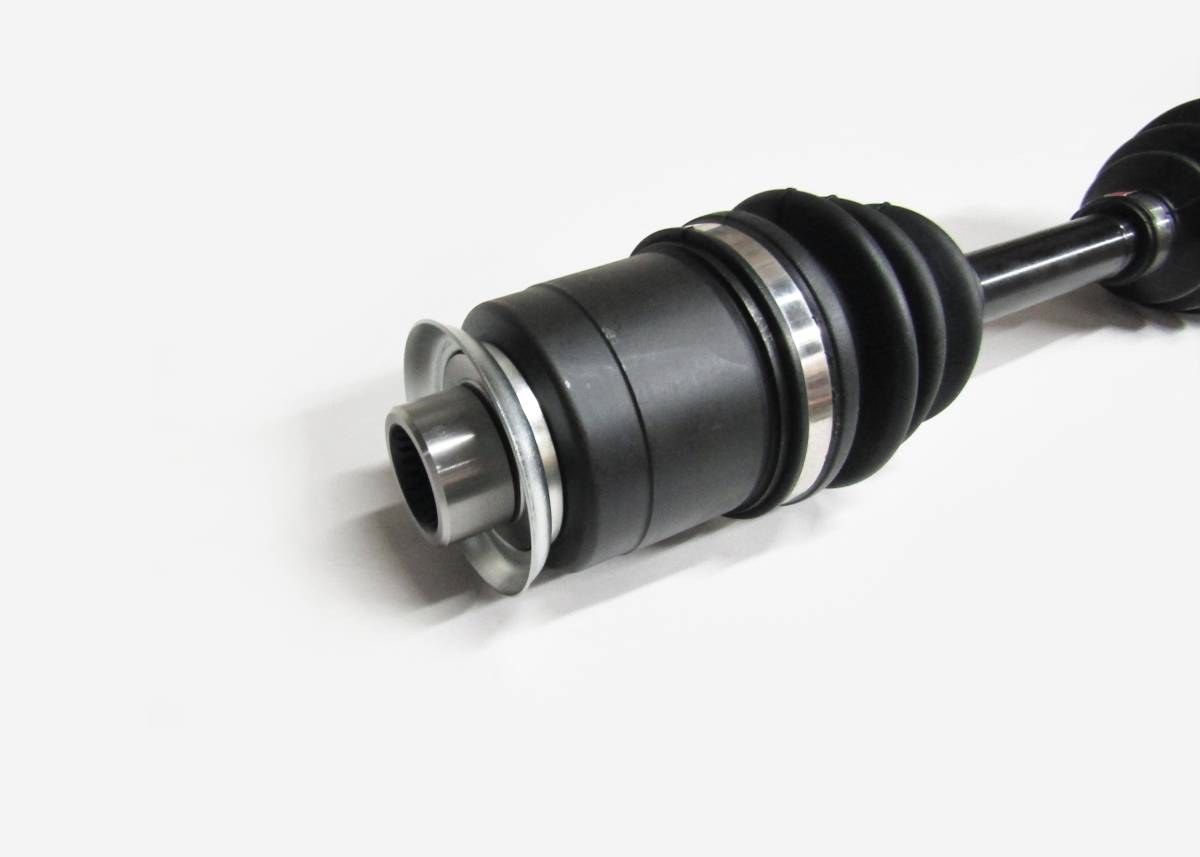

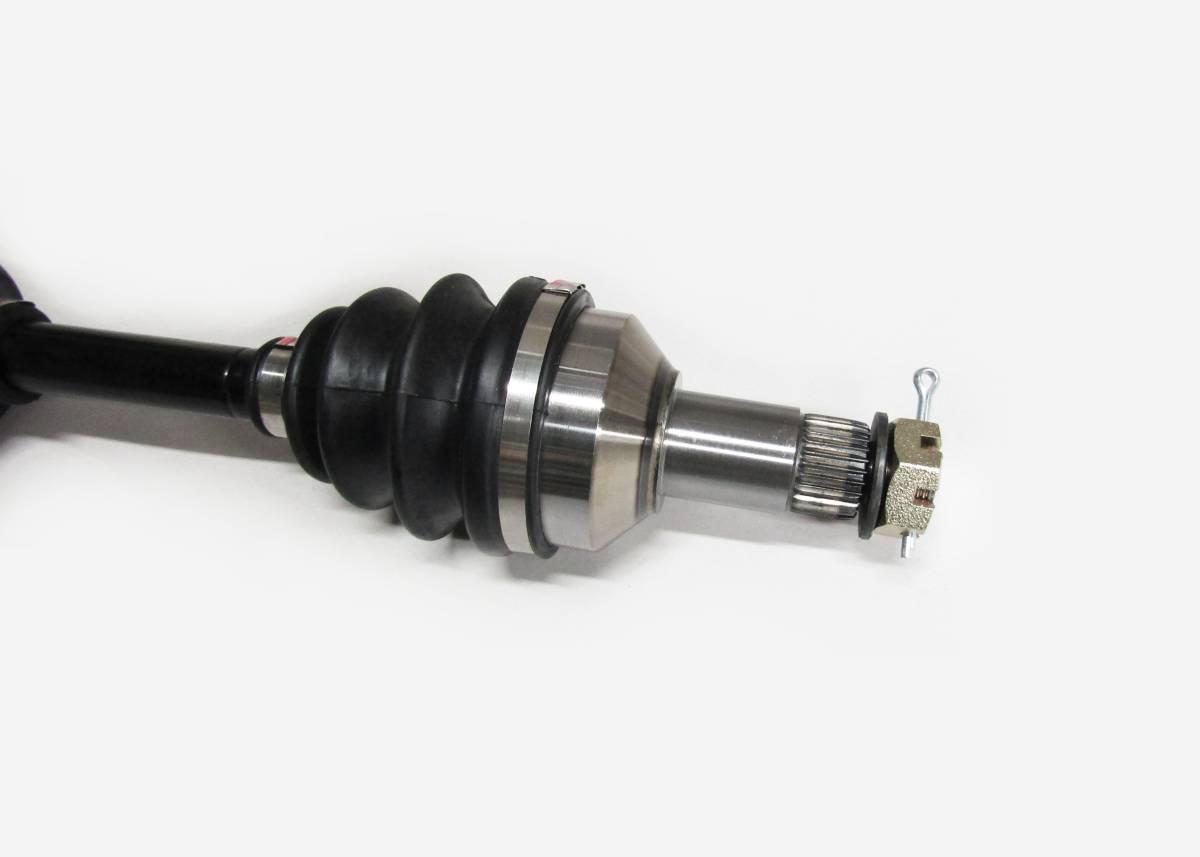

  • outboard CV joint spline count: 27
  • Compressed overall axle length: 429.5 mm
Limited Supply: only 3 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2005Arctic Cat2502x4
2005Arctic Cat2504X4
2005Arctic Cat3004X4

Product Notes

  • Fits rear, left or right on the following Arctic Cat ATV models: 2005 250 2x4/4x4, 2005 300 4x4.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing kit is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed length - 429.5 mm, Inboard spline count - 22, Outboard spline count - 27. Replaces Arctic Cat OEM # (axle) 0502-543, 1502-540, (bearing) 1402-027, 1402-809.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle & 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-306/WB-1496
    • AC-306/WB-1496
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 10.3 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
