Front CV Axle with Bearing for Polaris RZR 900 & XP XP4 900 2011-2014 1332825

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
PO-313/WB-1628

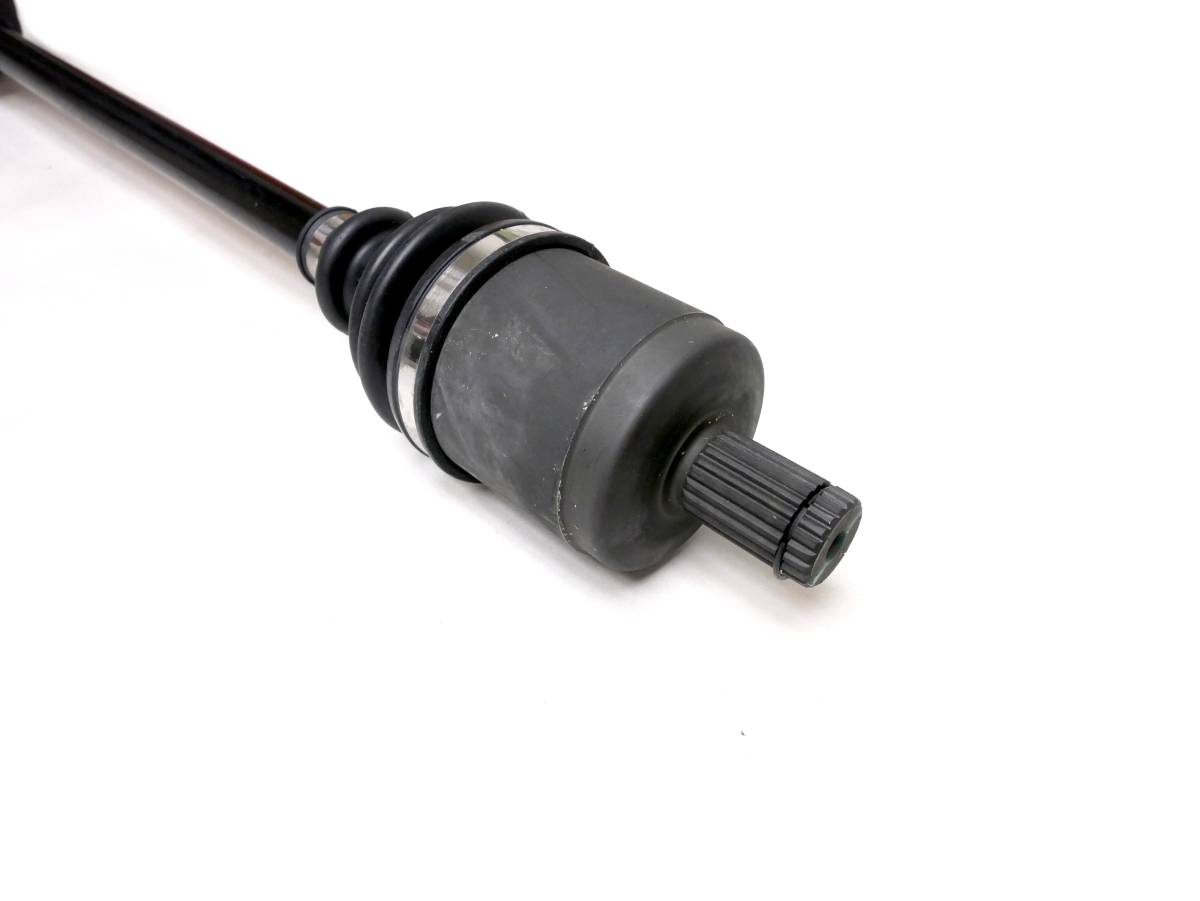

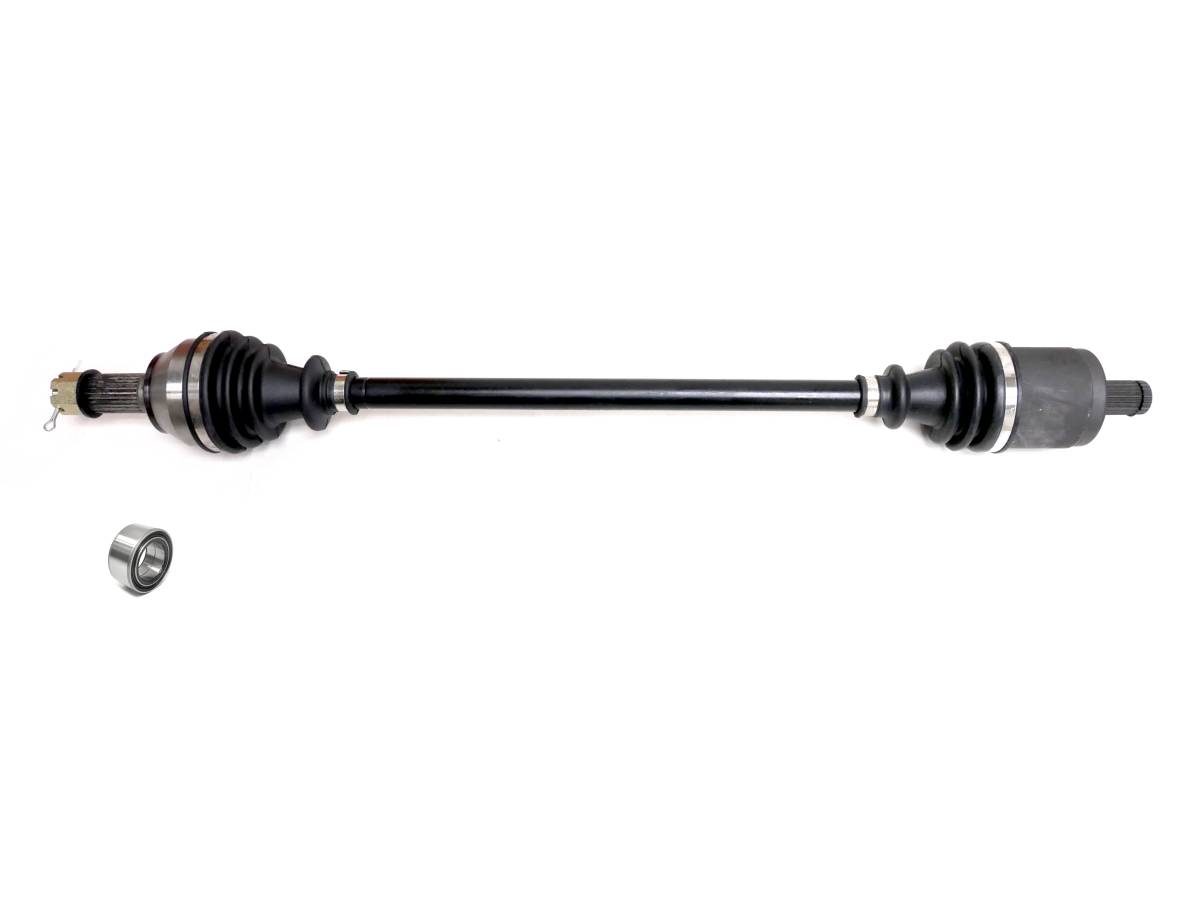

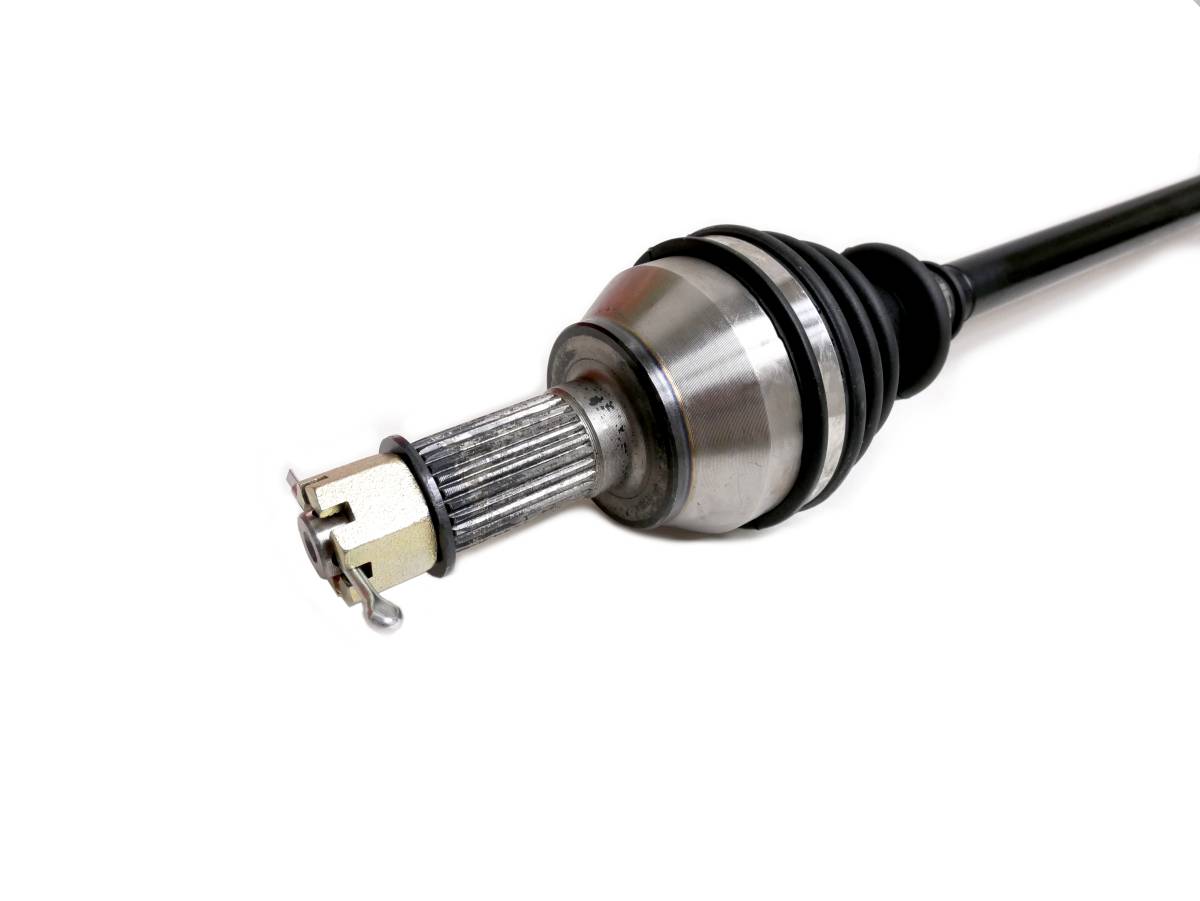

This is a new front CV axle & wheel bearing for a Polaris UTV.

They fit the following 4x4 models:

2011-2013 ... RZR XP 900

2012-2014 ... RZR 4 900 / XP 4 900

(Standard EFI, Jagged X and EPS models)

2014 ... RZR 900

front, left or right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

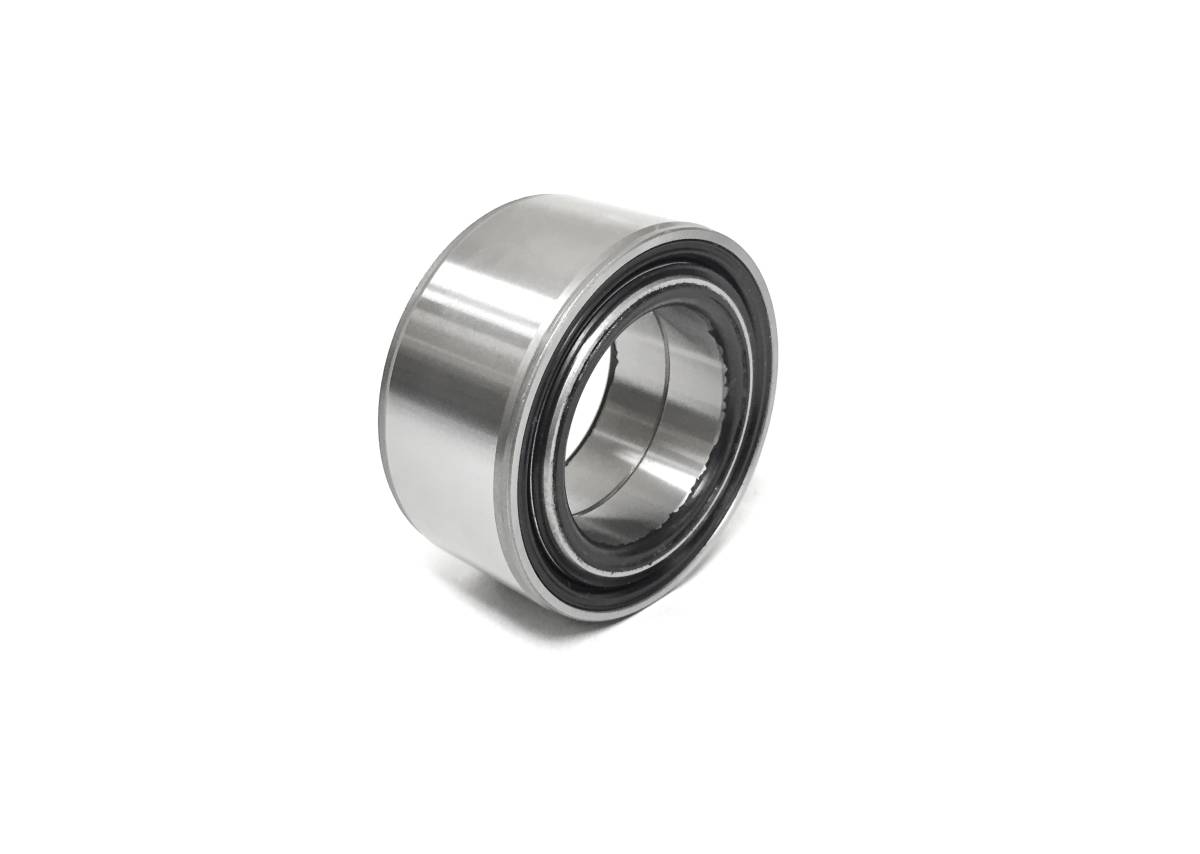

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • inobard CV joint spline count: 22
  • outboard CV joint spline count: 26
  • Compressed overall axle length: 747 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014PolarisRZR 4 900LE EPS
2012PolarisRZR 4 XP 900--
2012PolarisRZR 4 XP 900EPS
2012PolarisRZR 4 XP 900LE EPS
2014PolarisRZR 900--
2014PolarisRZR 900LE EPS
2014PolarisRZR 900Pursuit
2014PolarisRZR 900XC Edition
2013PolarisRZR XP 4 900--
2013PolarisRZR XP 4 900LE EPS
2013PolarisRZR XP 900EFI
2013PolarisRZR XP 900Jagged X Edition HO
2013PolarisRZR XP 900LE
2013PolarisRZR XP 900LE EPS
2013PolarisRZR XP 900Walker Evans Edition EPS
2012PolarisRZR XP 900EFI
2012PolarisRZR XP 900LE EFI
2011PolarisRZR XP 900--
2011PolarisRZR XP 900LE

Product Notes

  • Fits front left or right on the following Polaris models: 2011-2014 RZR 900 & XP 900 (including 4-seater editions).
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 1332825, 3514627, 3514699. Compressed axle length: 747 mm, Inboard spline count: 22, Outboard spline count: 26.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle, 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty
