Front CV Axles & Bearings for Can-Am Maverick XMR 1000 2014-2015, Left & Right, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Left,Right

CA-119/CA-219/WB-1516/WB-1516

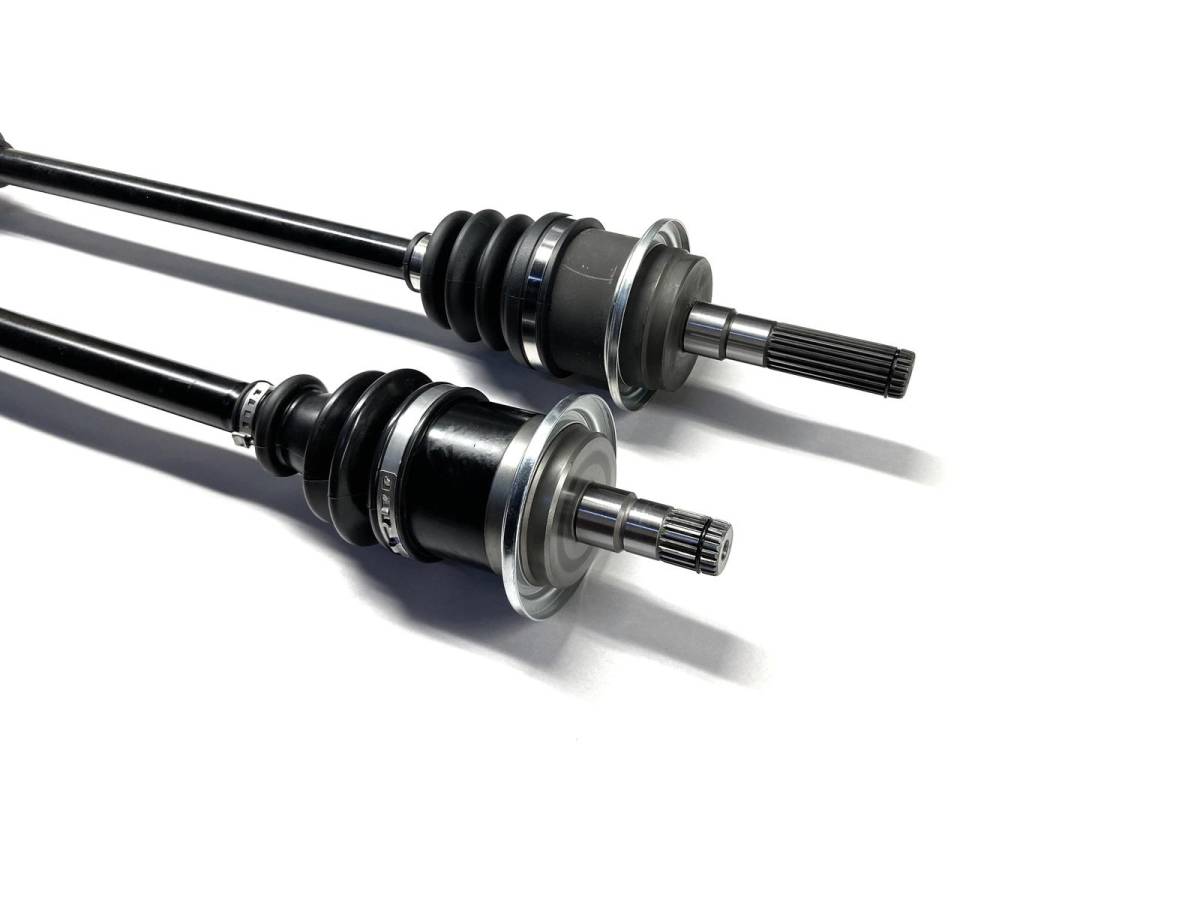

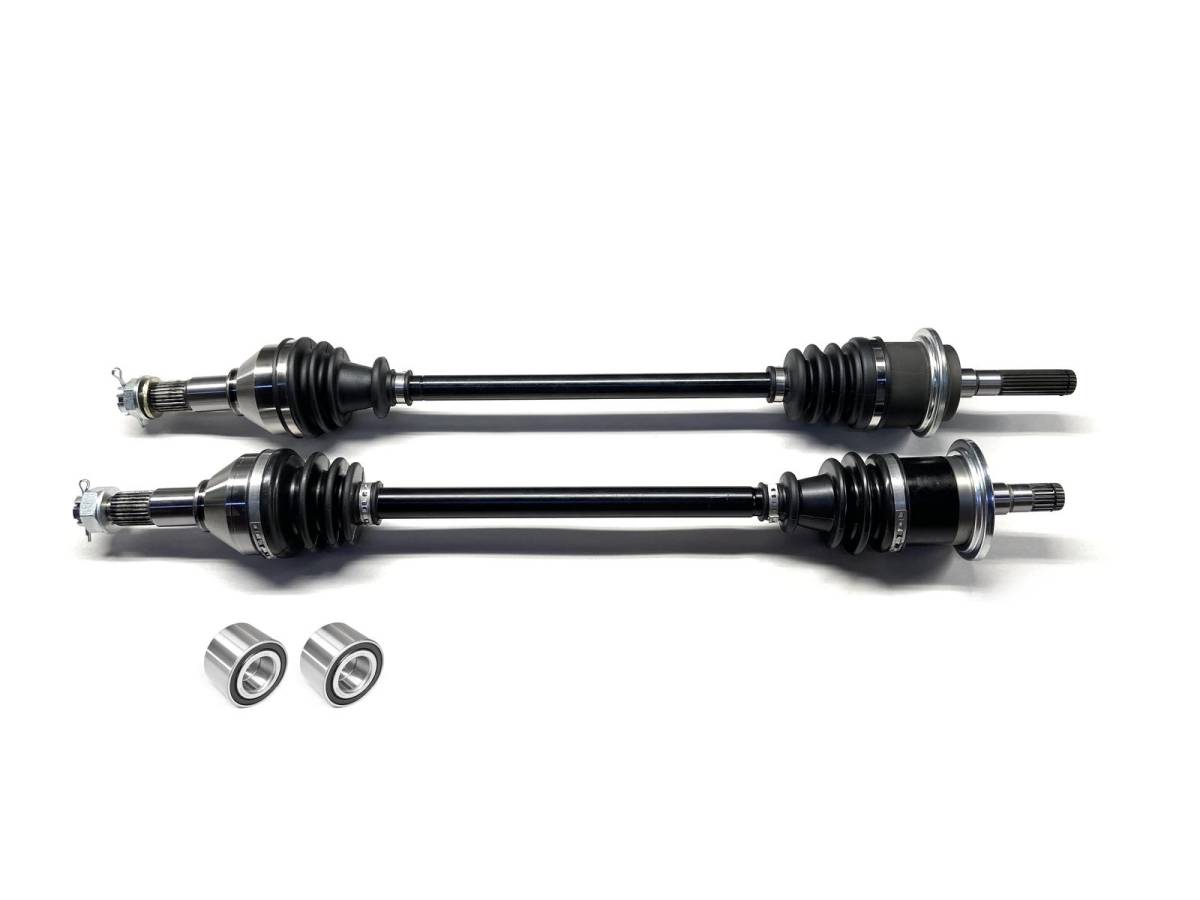

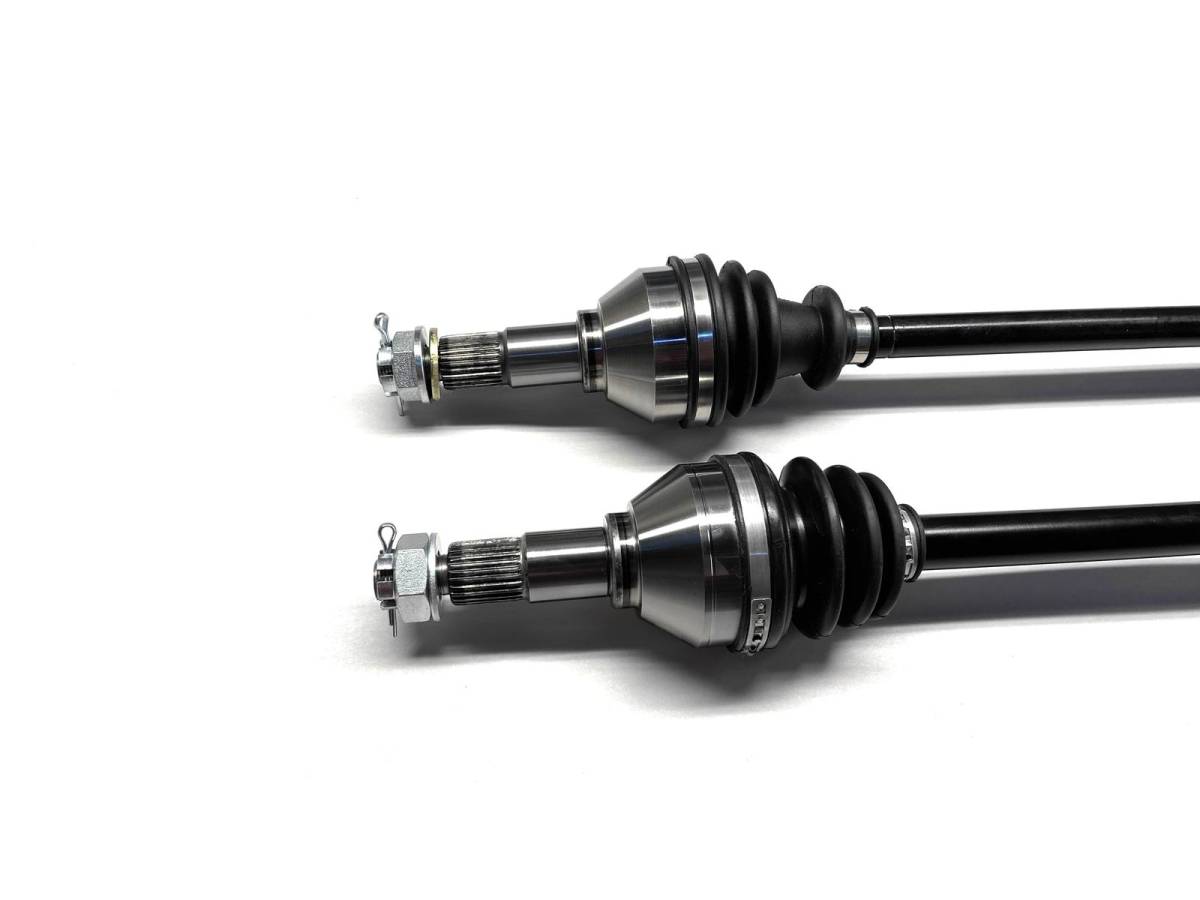

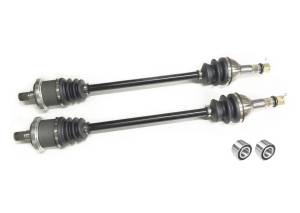

This is a pair of new front CV axles with wheel bearings for a Can-Am UTV.

They fit the following 4x4 applications:

2014-2015 ... Maverick XMR 1000

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 21 (both)
  • outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: left- 730.5 mm, right- 773 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $164.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015Can-AmMaverick 1000R4x4 XMR DPS
2014Can-AmMaverick 1000RXMR

Product Notes

  • Fits front, left and right on the following Can-Am ATV models: 2014-2015 Maverick XMR 1000. Please note these will only fit XMR (Mud Racer) editions.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed length: left- 730.5 mm, right- 773 mm, Inboard spline count - 21 (both), Outboard spline count - 26 (both) * Replaces Can-Am OEM # (left 705401387, 705401663, (right) 705401388, 705401878, (bearings) 293350040, 705400088, 293350118.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 2 axles, 2 wheel bearings
  • Warranty

    Limited 2 year, one-time warranty

    Details

    • CA-119/CA-219/WB-1516/WB-1516
    • CA-119/CA-219/WB-1516/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 28.0 lbs.
    • W10.0000” x H5.0000” x L35.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
