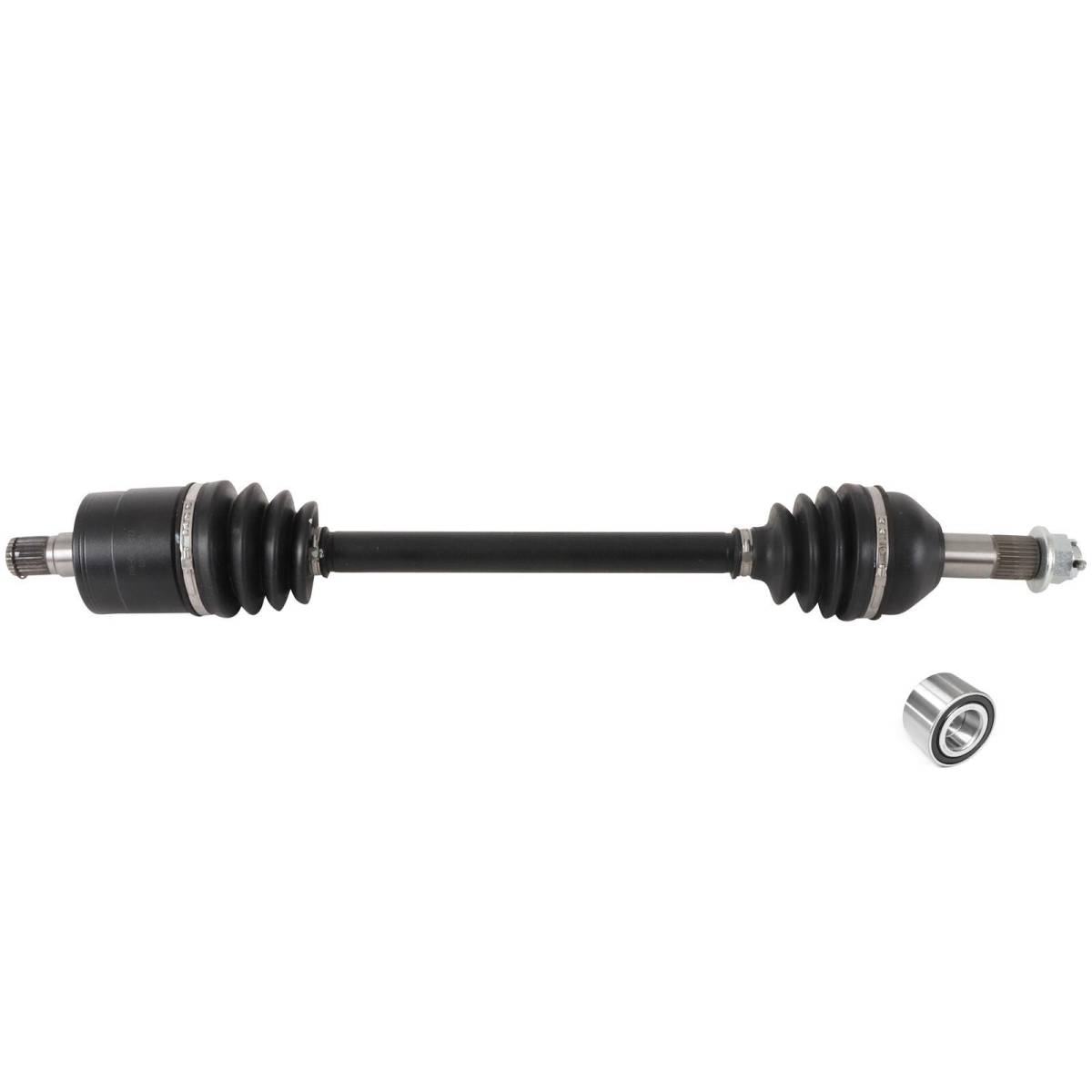

Rear CV Axle with Wheel Bearing for Can-Am Commander 800 & 1000 2016-2020

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-333/WB-1516
This is a new Rear CV axle & wheel bearing for a Can-Am UTV.

They fit the following 4x4 models:

2017-2020 ... Commander 800/Max 800

2017-2020 ... Commander 1000/Max 1000



*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

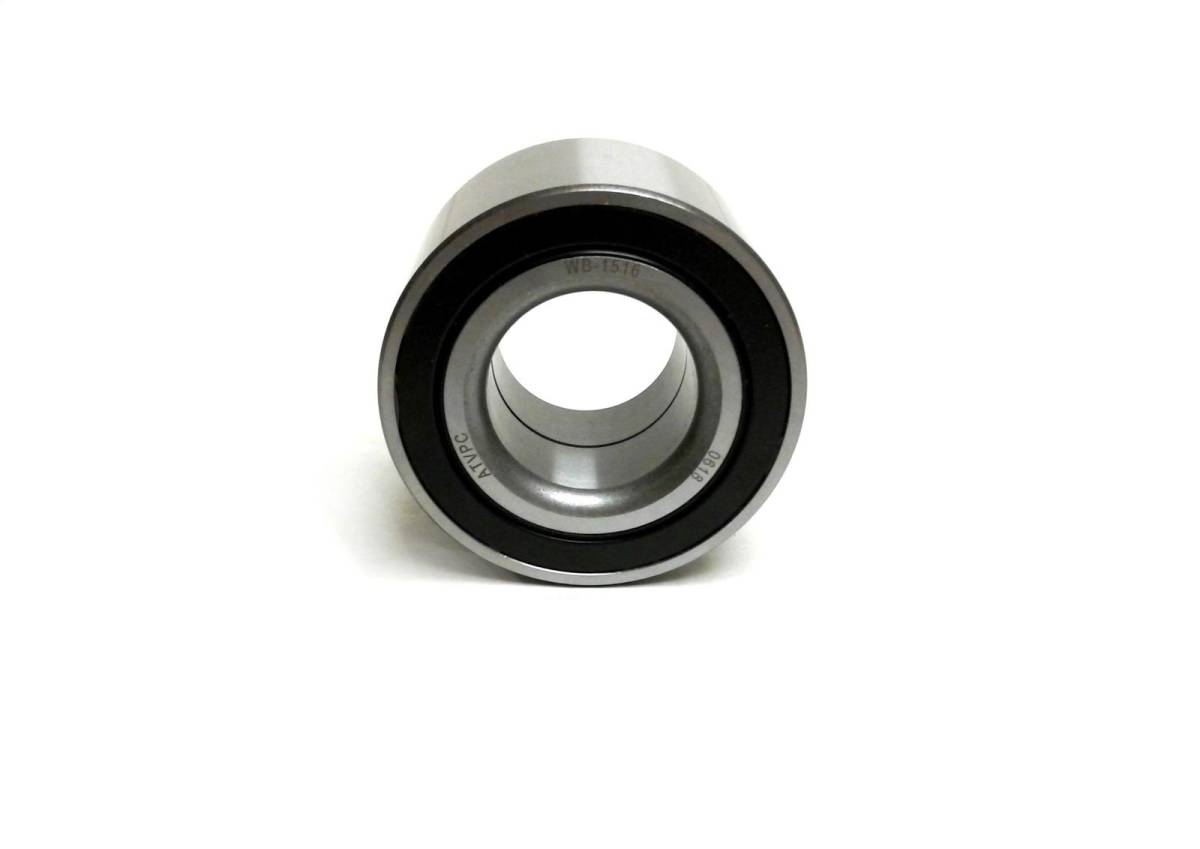

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 29
  • Compressed overall axle length: 680.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $98.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT or RIGHT on the following Can-Am models: 2016-2020 Commander 800 / Max 800 & 2016-2020 Commander 1000 / Max 1000.
  • Features a stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed overall axle length: 680.5 mm, Inboard CV joint spline count: 24, Outboard CV joint spline count: 29 * Replaces Can-Am OE # (axle) 705502355, 705502411, (bearing) 293350118, 293350040, 705400088.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles).

    • What's In The Box

  • 1 axle & 1 wheel bearing

    • Application List

    YearMakeModelSubmodelNotes
    2020Can-AmCommander 800R4X4
    2020Can-AmCommander 800R4x4 DPS
    2020Can-AmCommander 800R4x4 XT DPS
    2019Can-AmCommander 800R4X4
    2019Can-AmCommander 800R4x4 DPS
    2019Can-AmCommander 800R4x4 XT DPS
    2018Can-AmCommander 800R4X4
    2018Can-AmCommander 800R4x4 DPS
    2018Can-AmCommander 800R4x4 XT DPS
    2017Can-AmCommander 800R4X4
    2017Can-AmCommander 800R4x4 DPS
    2017Can-AmCommander 800R4x4 XT DPS
    2016Can-AmCommander 800R4X4
    2016Can-AmCommander 800R4x4 DPS
    2016Can-AmCommander 800R4x4 XT Camo DPS
    2016Can-AmCommander 800R4x4 XT DPS
    2020Can-AmCommander 10004x4 XT-P DPS
    2019Can-AmCommander 10004x4 XT-P DPS
    2018Can-AmCommander 10004x4 XT-P DPS
    2017Can-AmCommander 10004x4 DPS
    2017Can-AmCommander 10004x4 Limited DPS
    2017Can-AmCommander 10004x4 Mossy Oak Hunting Edition DPS
    2017Can-AmCommander 10004x4 XT-P DPS
    2017Can-AmCommander 10004x4 XT DPS
    2016Can-AmCommander 10004x4 DPS
    2016Can-AmCommander 10004x4 Limited DPS
    2016Can-AmCommander 10004x4 Mossy Oak Hunting Edition DPS
    2016Can-AmCommander 10004x4 XT-P DPS
    2016Can-AmCommander 10004x4 XT Camo DPS
    2016Can-AmCommander 10004x4 XT DPS
    2020Can-AmCommander 1000R4x4 DPS
    2020Can-AmCommander 1000R4x4 Limited DPS
    2020Can-AmCommander 1000R4x4 XT DPS
    2019Can-AmCommander 1000R4x4 DPS
    2019Can-AmCommander 1000R4x4 Limited DPS
    2019Can-AmCommander 1000R4x4 XT DPS
    2018Can-AmCommander 1000R4x4 DPS
    2018Can-AmCommander 1000R4x4 Limited DPS
    2018Can-AmCommander 1000R4x4 Mossy Oak Hunting Edition DPS
    2018Can-AmCommander 1000R4x4 XT DPS
    2020Can-AmCommander Max 800R4x4 DPS
    2019Can-AmCommander Max 800R4x4 DPS
    2018Can-AmCommander Max 800R4x4 DPS
    2017Can-AmCommander Max 800R4x4 DPS
    2016Can-AmCommander Max 800R4x4 DPS
    2017Can-AmCommander Max 10004x4 DPS
    2017Can-AmCommander Max 10004x4 Limited DPS
    2017Can-AmCommander Max 10004x4 XT DPS
    2016Can-AmCommander Max 10004x4 DPS
    2016Can-AmCommander Max 10004x4 Limited DPS
    2016Can-AmCommander Max 10004x4 XT Camo DPS
    2016Can-AmCommander Max 10004x4 XT DPS
    2020Can-AmCommander Max 1000R4x4 DPS
    2020Can-AmCommander Max 1000R4x4 Limited DPS
    2020Can-AmCommander Max 1000R4x4 XT DPS
    2019Can-AmCommander Max 1000R4x4 DPS
    2019Can-AmCommander Max 1000R4x4 Limited DPS
    2019Can-AmCommander Max 1000R4x4 XT DPS
    2018Can-AmCommander Max 1000R4x4 DPS
    2018Can-AmCommander Max 1000R4x4 Limited DPS
    2018Can-AmCommander Max 1000R4x4 XT DPS

    Details

    • CA-333/WB-1516
    • CA-333/WB-1516
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 14.2 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
