Front Left CV Axle with Bearing for Can-Am Maverick XMR 1000 2014-2015

Location on vehicle: Front,Left

(0) Reviews: Write first review
CA-119/WB-1516
This is a new front, left CV axle for a Can-Am UTV.

It will fit the following 4x4 applications:

2014-2015 ... Maverick XMR 1000

front, left / Driver's Side

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • inobard CV joint spline count: 21
  • outboard CV joint spline count: 26
  • Compressed overall axle length: 730.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015Can-AmMaverick 1000R4x4 XMR DPS
2014Can-AmMaverick 1000RXMR

Product Notes

  • Fits front left (driver side) on the following Can-Am models: 2014-2015 Maverick XMR 1000. Please note this will only fit XMR (Mud Racer) editions.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing kit is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 705401387, 705401663, (bearing) 293350118, 293350040, 705400088. Compressed axle length - 730.5 mm, Inboard spline count - 21, Outboard spline count - 26.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

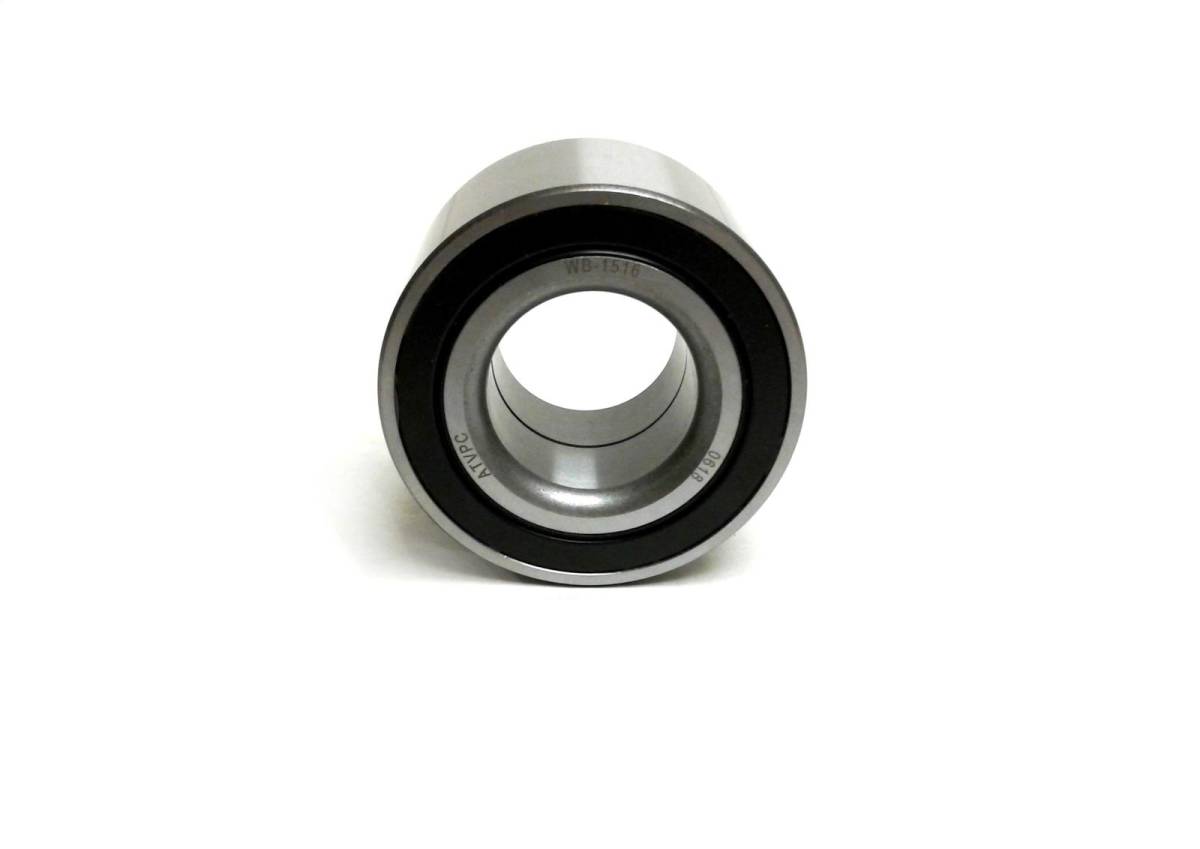

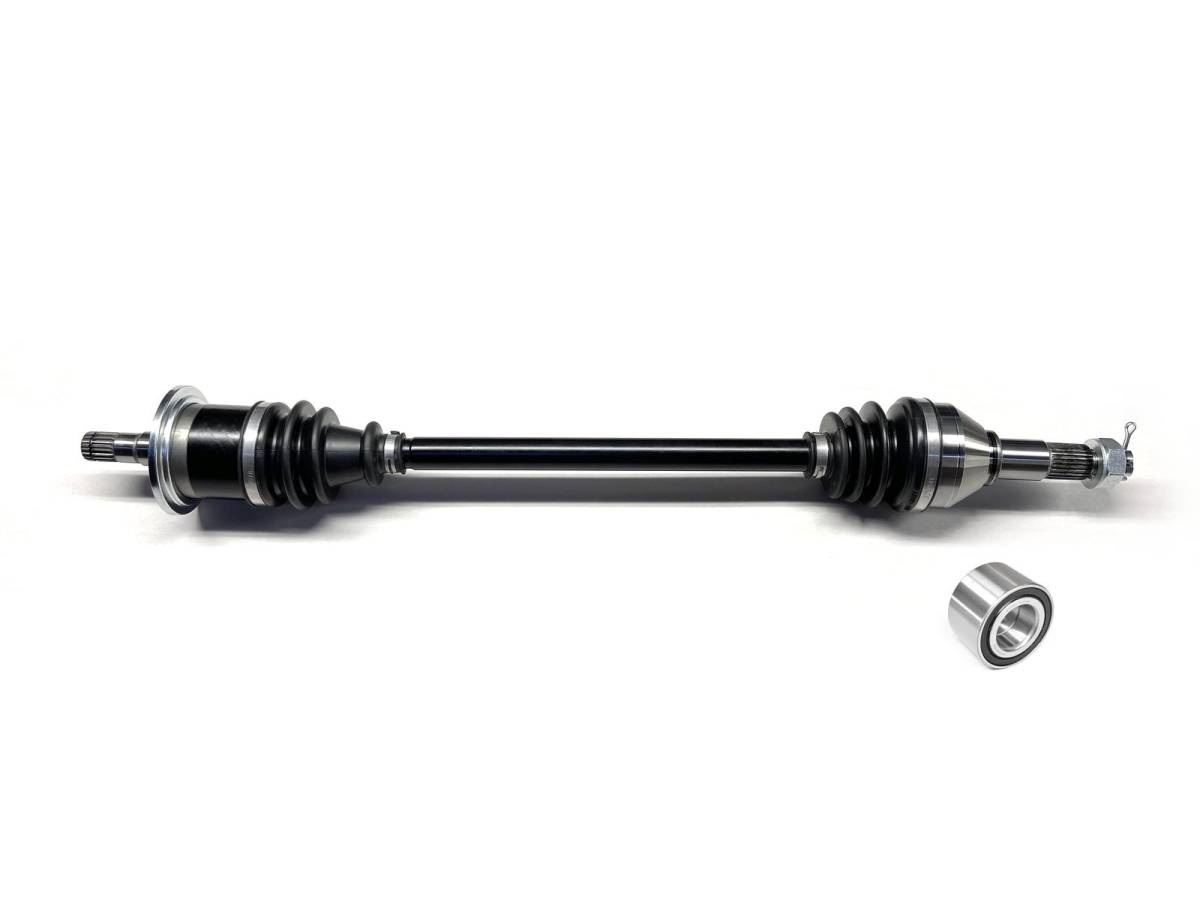

  • 1 axle, 1 wheel bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-119/WB-1516
    • CA-119/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 13.8 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
