Front Axle Pair for Can-Am DPS Maverick Sport 1000 19-23 & Commander 1000 21-23

Location on vehicle: Front,Left,Right

CA-233/CA-234

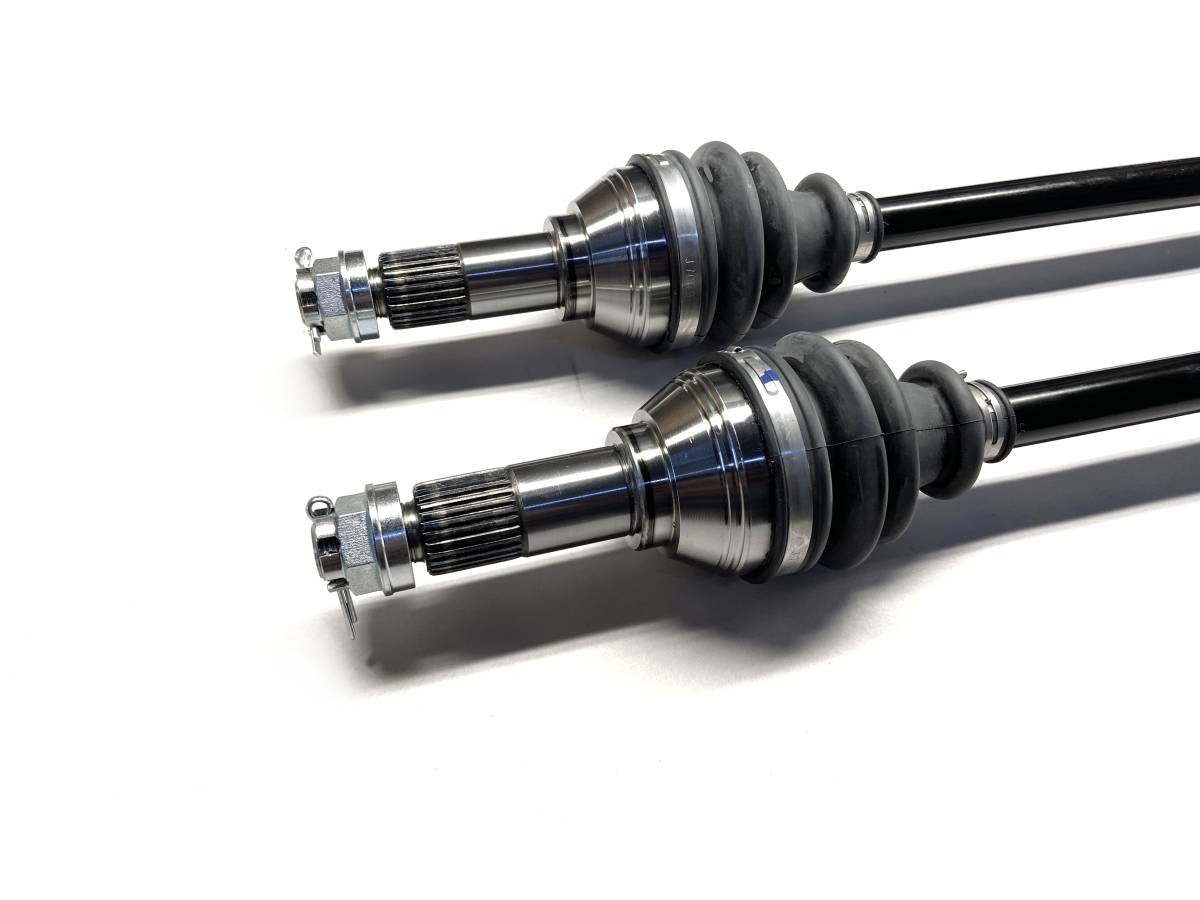

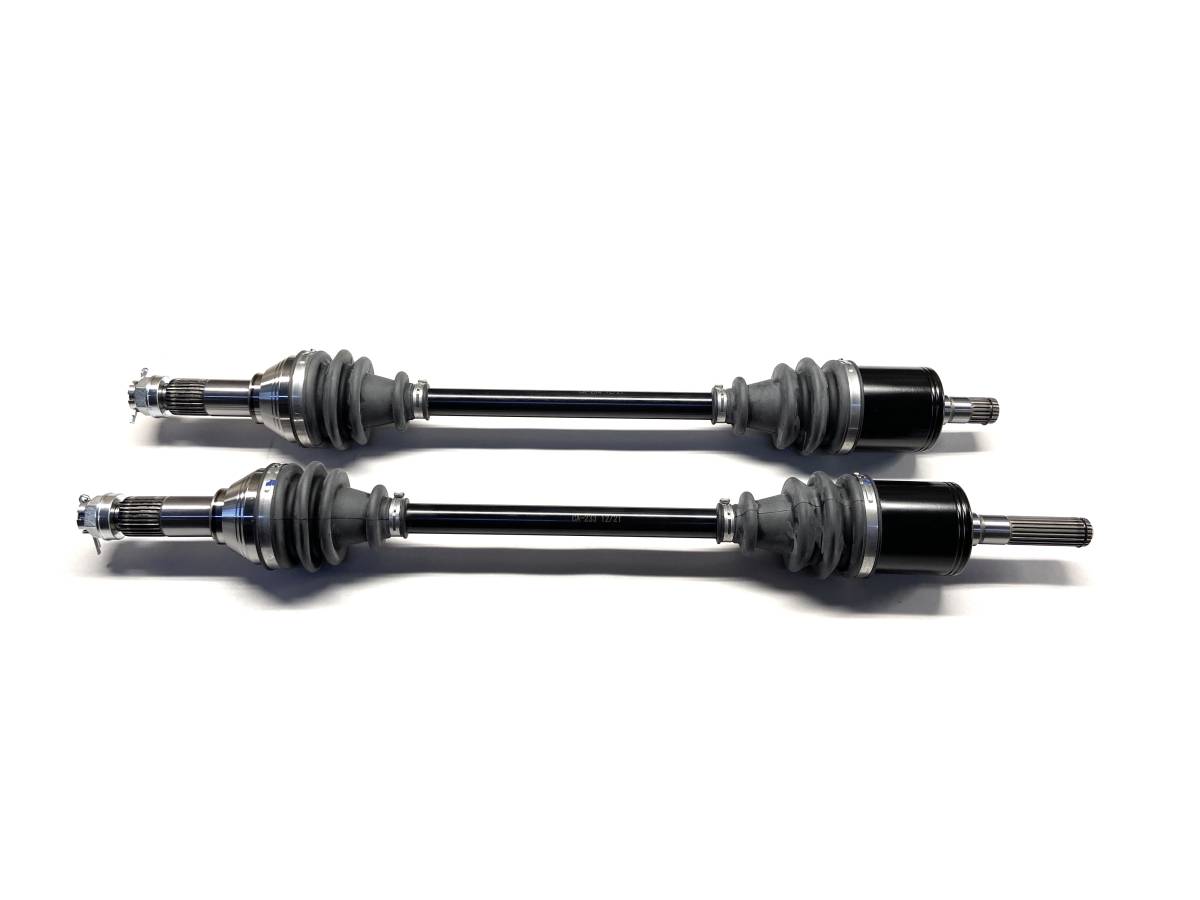

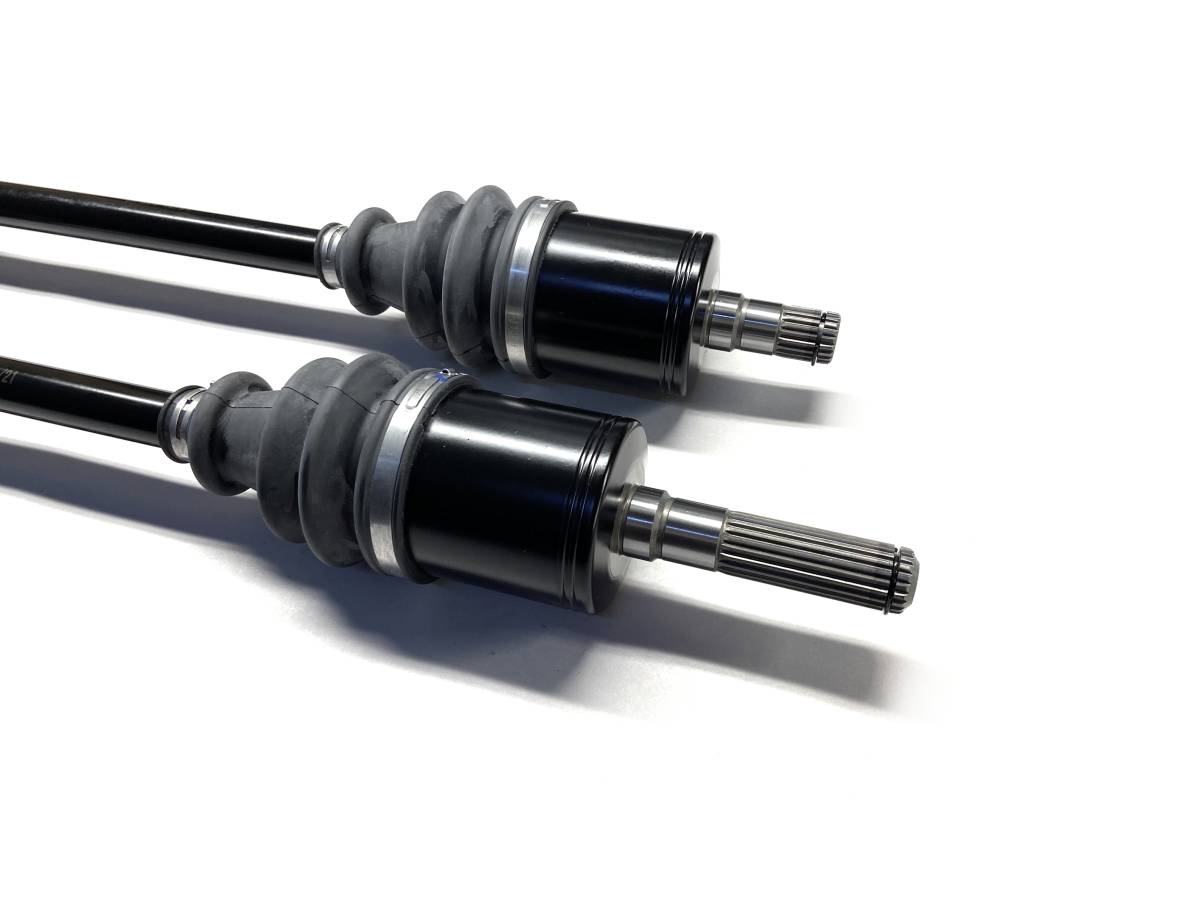

This is a pair of front CV axles for a Can-Am UTV/SXS.

They will fit the following 4x4 models:

2021-2023 Commander 1000 STD/DPS (excluding XT, XTP, XMR)

2021-2023 Commander MAX 1000 STD/DPS (excluding XT, XTP, XMR)

2019-2023 Maverick Sport 1000 STD/DPS (excluding XMR, XXC, XRC)

2019-2023 Maverick Sport MAX 1000 STD/DPS (excluding XMR, XXC, XRC)

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: Left - 703 mm, Right - 662 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Can-Am models: 2021-2023 Commander 1000 STD/DPS & MAX 1000 STD/DPS (excluding XT, XTP, XMR) & 2019-2023 Maverick Sport 1000 STD/DPS & MAX 1000 STD/DPS (excluding XMR, XRC, XXC). Set includes 2 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # (left) 705402718, 705402031, (right) 705402030. Inboard CV joint spline count: 21 (both). Outboard CV joint spline count: 29 (both). Compressed overall axle length: Left - 703 mm, Right - 662 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2021-2023Can-AmCommander 1000R4x4 DPS 2021-2023Can-AmCommander Max 1000R4x4 DPS 2022Can-AmCommander Max 1000R4x4 Limited DPS 2019-2022Can-AmMaverick Sport 1000 2019-2023Can-AmMaverick Sport 1000R4x4 DPS

    Details

    • CA-233/CA-234
    • CA-233/CA-234
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 24.0 lbs.
    • W11.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
