Rear CV Axles & Bearings for Can-Am Maverick 1000 STD XRS 2013-2015, Left & Right, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Rear,Left,Right

CA-307/CA-307/WB-1516/WB-1516

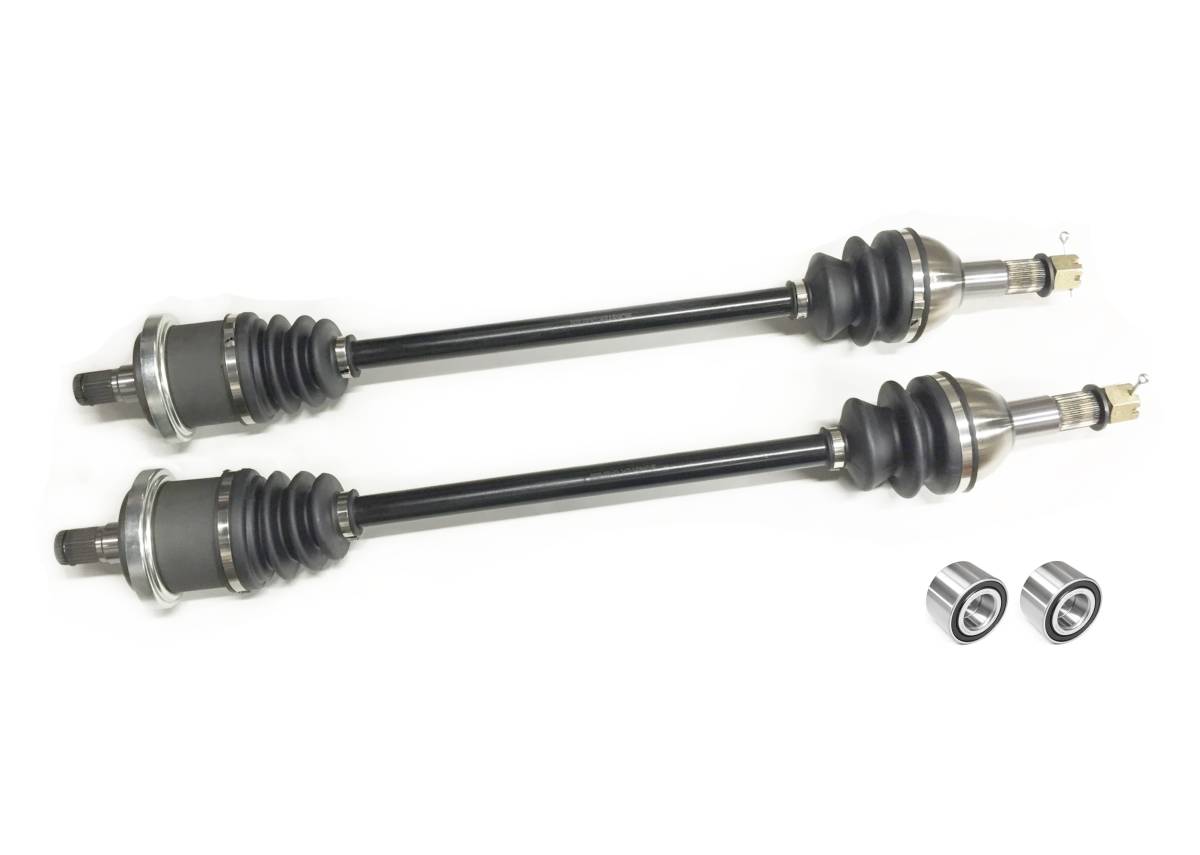

This is a set of new CV axles & wheel bearings for a Can-Am SXS.

They fit rear, left & right on the following Maverick models:

2013-2015 Maverick 1000 STD

2013-2015 Maverick 1000 XRS & XRS-DPS

2014-2015 Maverick MAX 1000 STD, XRS, & XRS-DPS

*Please note these will not fit XMR, XXC, or Turbo models

*Made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 24 (both)
  • outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 758 mm (both)
  • Replaces OEM # (axles) 705501948, 705502356, (bearings) 293350118, 293350040, 705400088
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $184.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015Can-AmMaverick 1000R4X4
2015Can-AmMaverick 1000R4x4 XDS
2015Can-AmMaverick 1000R4x4 XRS DPS
2014Can-AmMaverick 1000R4X4
2014Can-AmMaverick 1000R4x4 XRS
2014Can-AmMaverick 1000R4x4 XRS DPS
2013Can-AmMaverick 1000R4X4
2015Can-AmMaverick Max 1000R4X4
2015Can-AmMaverick Max 1000R4x4 XRS DPS
2014Can-AmMaverick Max 1000R4X4
2014Can-AmMaverick Max 1000R4x4 XRS DPS

Product Notes

  • Fits rear, left & right on the following Can-Am models: 2013-2015 Maverick 1000 STD, 2013-2015 Maverick 1000 XRS & XRS-DPS, & 2014-2015 Maverick MAX 1000 STD, XRS, & XRS-DPS). Please note these will not fit Turbo, XMR, or XXC models.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 705501948, 705502356, (bearings) 293350118, 293350040, 705400088. Compressed length - 758 mm (both), Inboard spline count - 24 (both), Outboard spline count - 26 (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 2 axles, 2 wheel bearings
  • Warranty

    Limited 2 year, one-time warranty

    Details

    • CA-307/CA-307/WB-1516/WB-1516
    • CA-307/CA-307/WB-1516/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 30.6 lbs.
    • W5.0000” x H10.0000” x L33.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
