Rear Axle Pair with Wheel Bearings for Can-Am Maverick 1000 STD XRS 2013-2015

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-307/CA-307/WB-1516/WB-1516

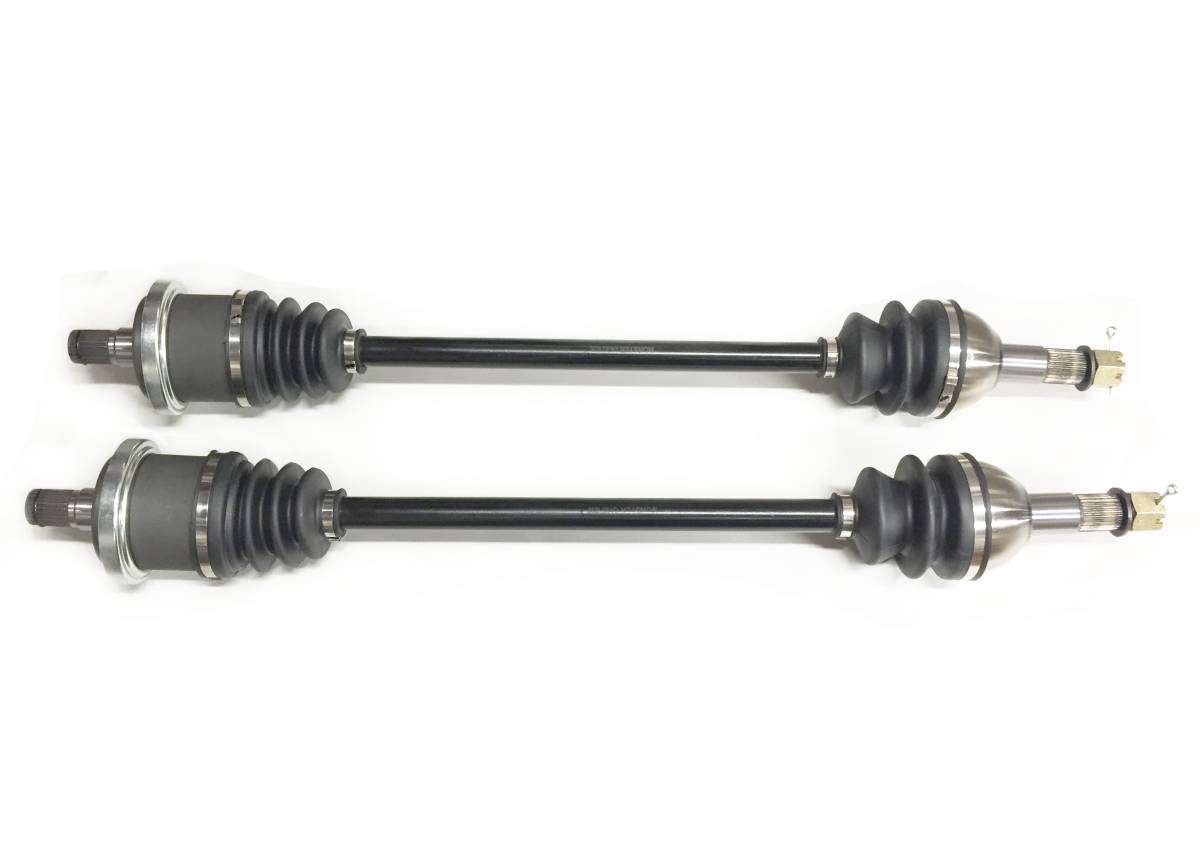

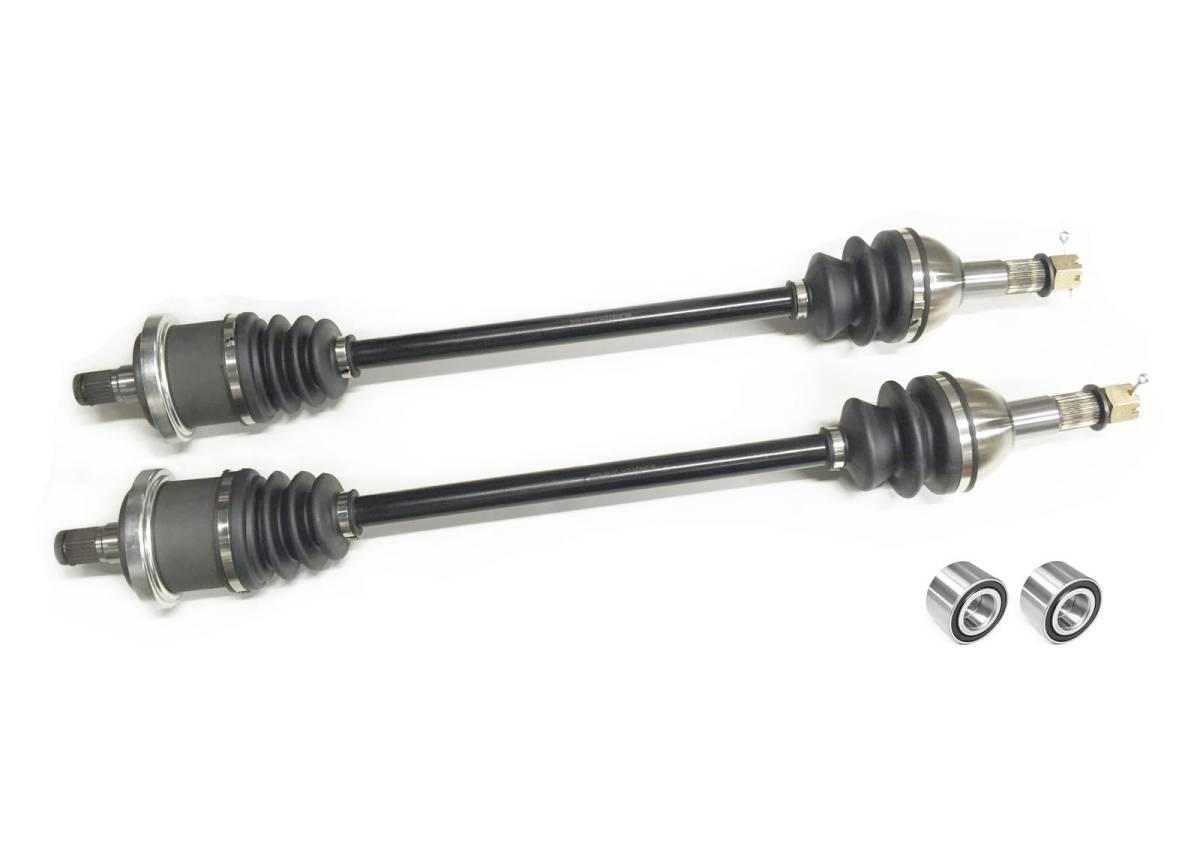

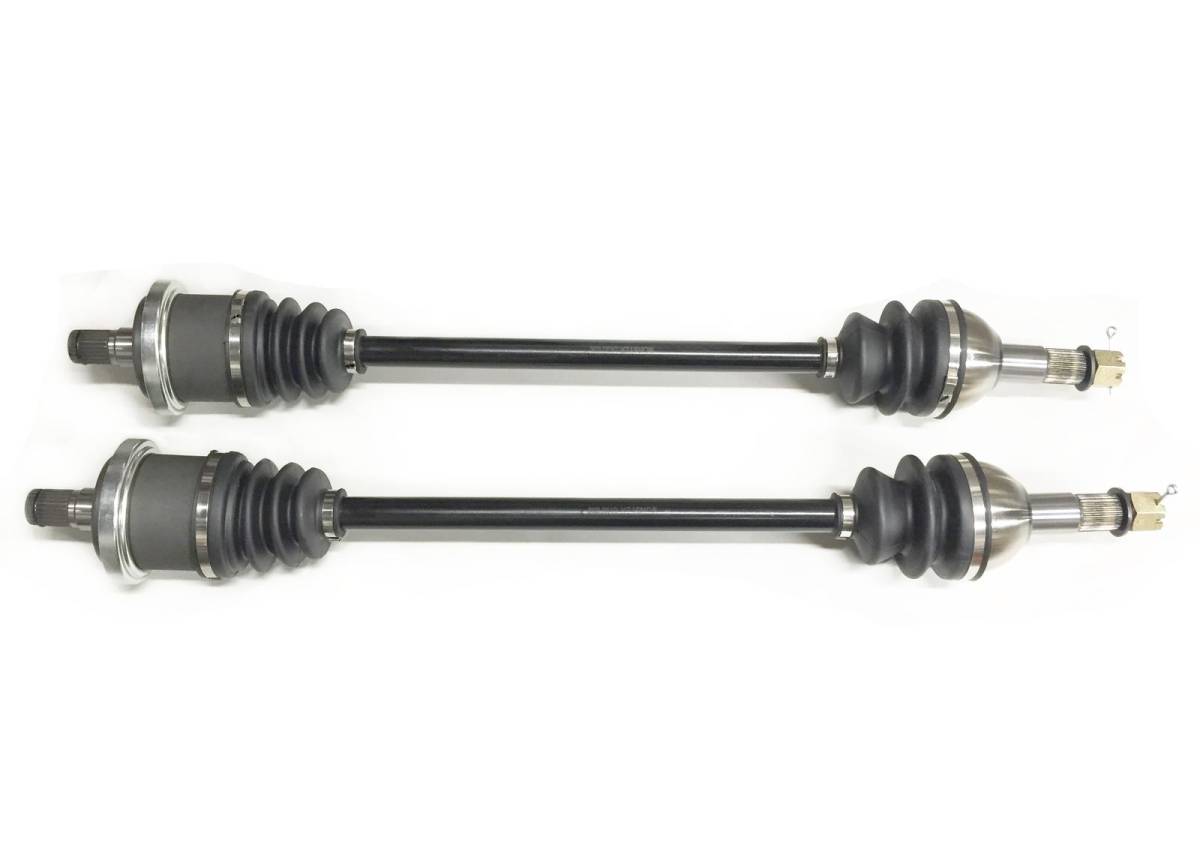

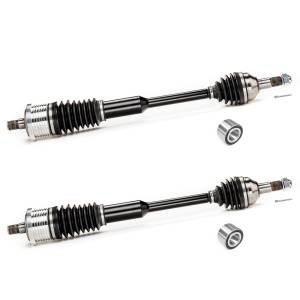

This is a set of new CV axles & wheel bearings for a Can-Am SXS.

They fit REAR, LEFT & RIGHT on the following Maverick models:

2013-2015 Maverick 1000 STD

2013-2015 Maverick 1000 XRS & XRS-DPS

2014-2015 Maverick MAX 1000 STD, XRS, & XRS-DPS

*Please note these will not fit XMR, XXC, or Turbo models

*Made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 758 mm (both)
  • Replaces OEM # (axles) 705501948, 705502356, (bearings) 293350118, 293350040, 705400088
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $184.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Can-Am models: 2013-2015 Maverick 1000 STD, 2013-2015 Maverick 1000 XRS & XRS-DPS, & 2014-2015 Maverick MAX 1000 STD, XRS, & XRS-DPS). Please note these will not fit Turbo, XMR, or XXC models.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Set includes 2 axles & 2 wheel bearings. Replaces OEM # (axles) 705501948, 705502356, (bearings) 293350118, 293350040, 705400088. Compressed Length - 758 mm (both), Inboard Spline Count - 24 (both), Outboard Spline Count - 26 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles & 2 wheel bearings

    • Application List

    YearMakeModelSubmodelNotes
    2015Can-AmMaverick 1000R4X4
    2015Can-AmMaverick 1000R4x4 XDS
    2015Can-AmMaverick 1000R4x4 XRS DPS
    2014Can-AmMaverick 1000R4X4
    2014Can-AmMaverick 1000R4x4 XRS
    2014Can-AmMaverick 1000R4x4 XRS DPS
    2013Can-AmMaverick 1000R4X4
    2015Can-AmMaverick Max 1000R4X4
    2015Can-AmMaverick Max 1000R4x4 XRS DPS
    2014Can-AmMaverick Max 1000R4X4
    2014Can-AmMaverick Max 1000R4x4 XRS DPS

    Details

    • CA-307/CA-307/WB-1516/WB-1516
    • CA-307/CA-307/WB-1516/WB-1516
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 30.6 lbs.
    • W5.0000” x H10.0000” x L33.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
