Front CV Axle & Bearing for Kawasaki Prairie 300 4x4 1999-2002, Left or Right, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Left,Right

KW-304/WB-1496

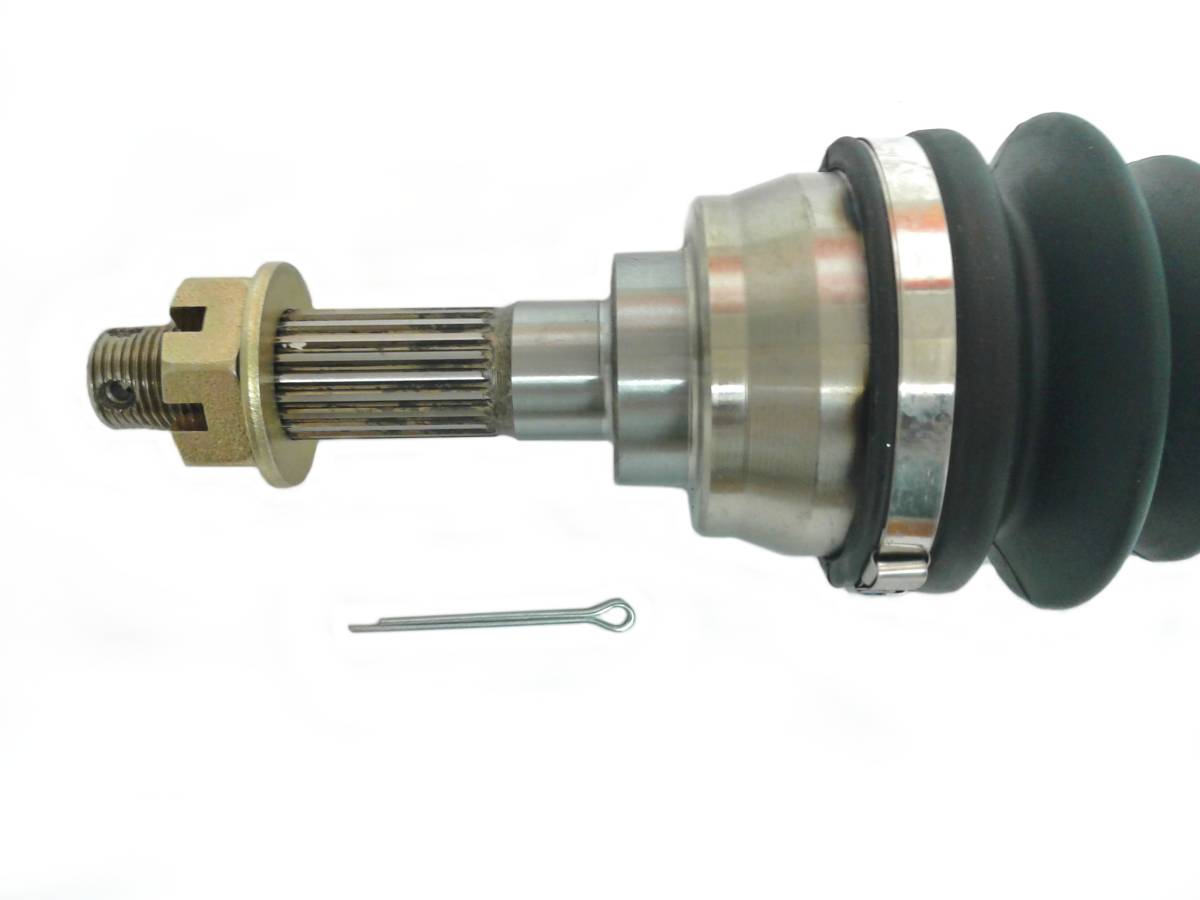

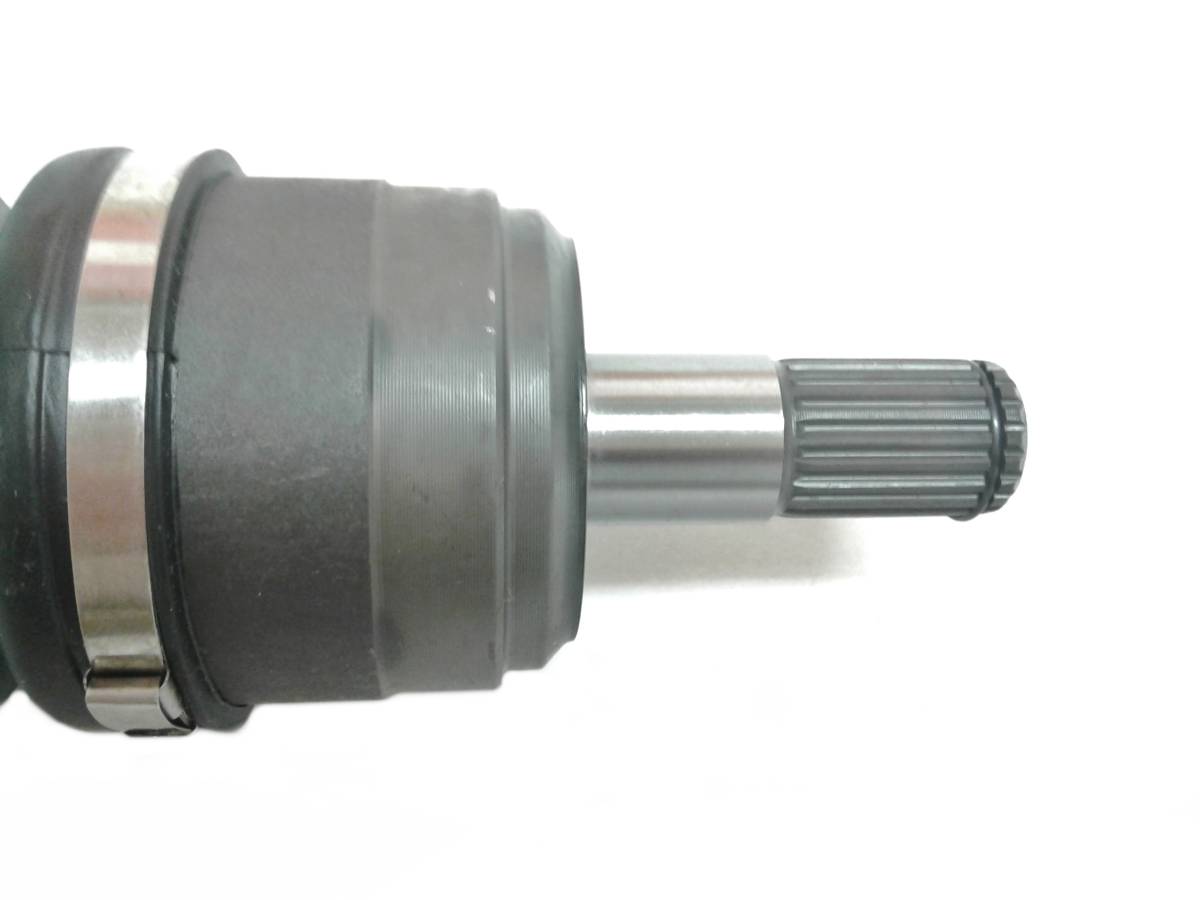

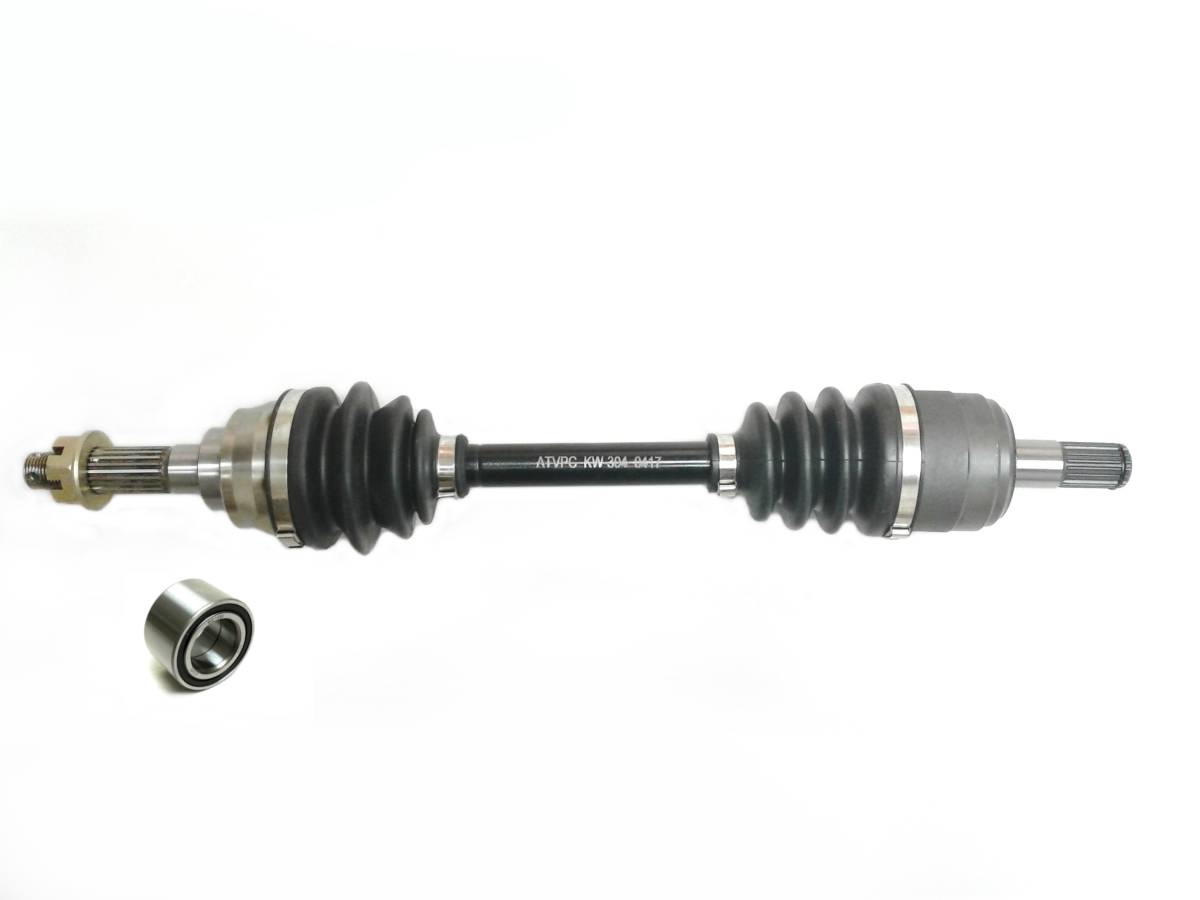

This is a new CV axle and wheel bearing for a Kawasaki ATV.

They fit front, left or right on the following models:

1999-2002 ... Prairie 300 (KVF300)

*made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • 4140 chromoly steel axle bar
  • Uses high-performance moly grease to keep vital components lubricated
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures

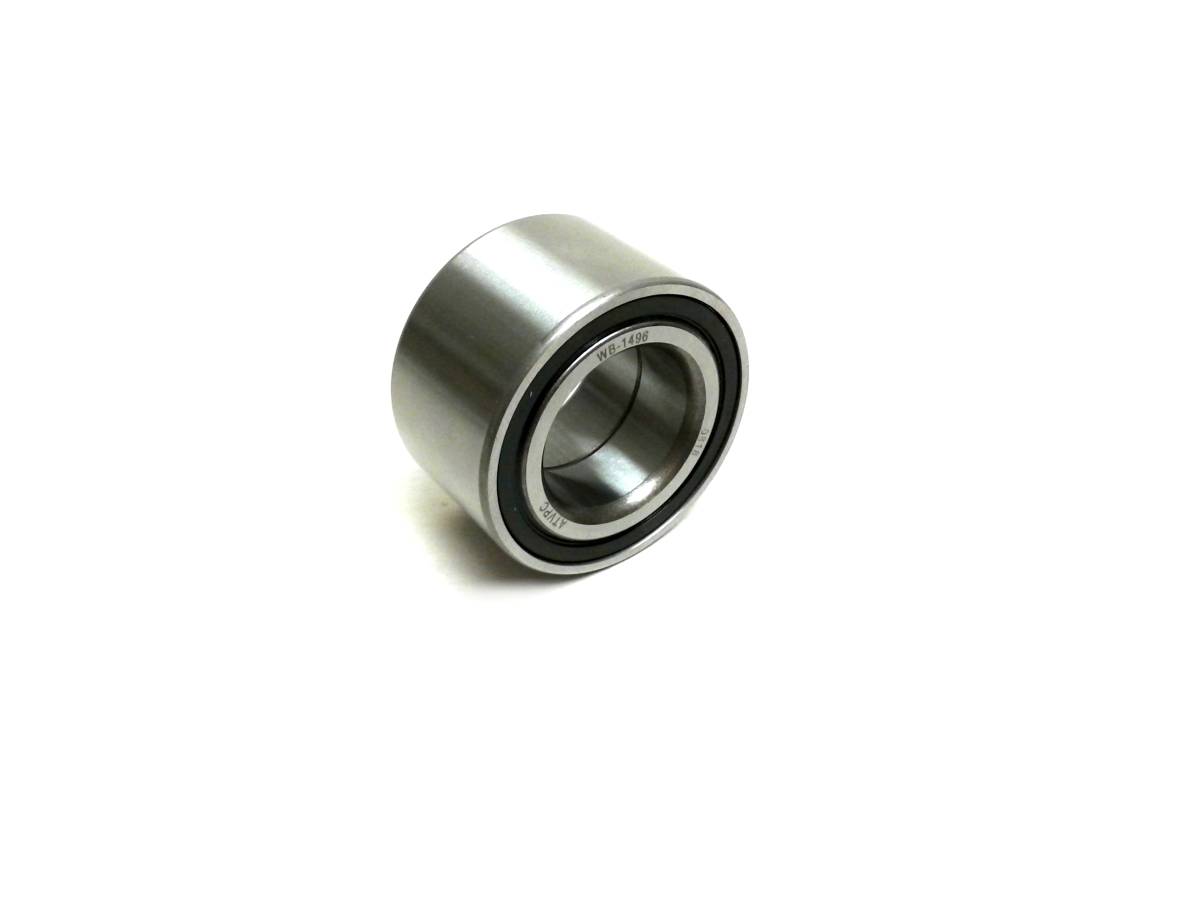

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • inobard CV joint spline count: 20
  • outboard CV joint spline count: 21
  • Compressed overall axle length: 473 mm
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99

Application List

YearMakeModelSubmodelNotes
2002KawasakiPrairie 300KVF300A 4x4
2001KawasakiPrairie 300KVF300A 4x4
2000KawasakiPrairie 300KVF300A 4x4
1999KawasakiPrairie 300KVF300A 4x4

Product Notes

  • Fits front, left or right on the following Kawasaki ATV models: 1999-2002 Prairie 300 (KVF300).
  • Features a 4140 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axle) 59266-1104, 1402-027, 1402-809, (bearing) 92045-0801. Compressed length- 473 mm, Inner spline count- 20, Outer spline count- 21.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 1 axle, 1 wheel bearing
  • Warranty

    Limited 2 year, one-time warranty

    Details

    • KW-304/WB-1496
    • KW-304/WB-1496
    • CUSTOM
    • ATV Parts Connection
    • Temporarily Not Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 8.9 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
