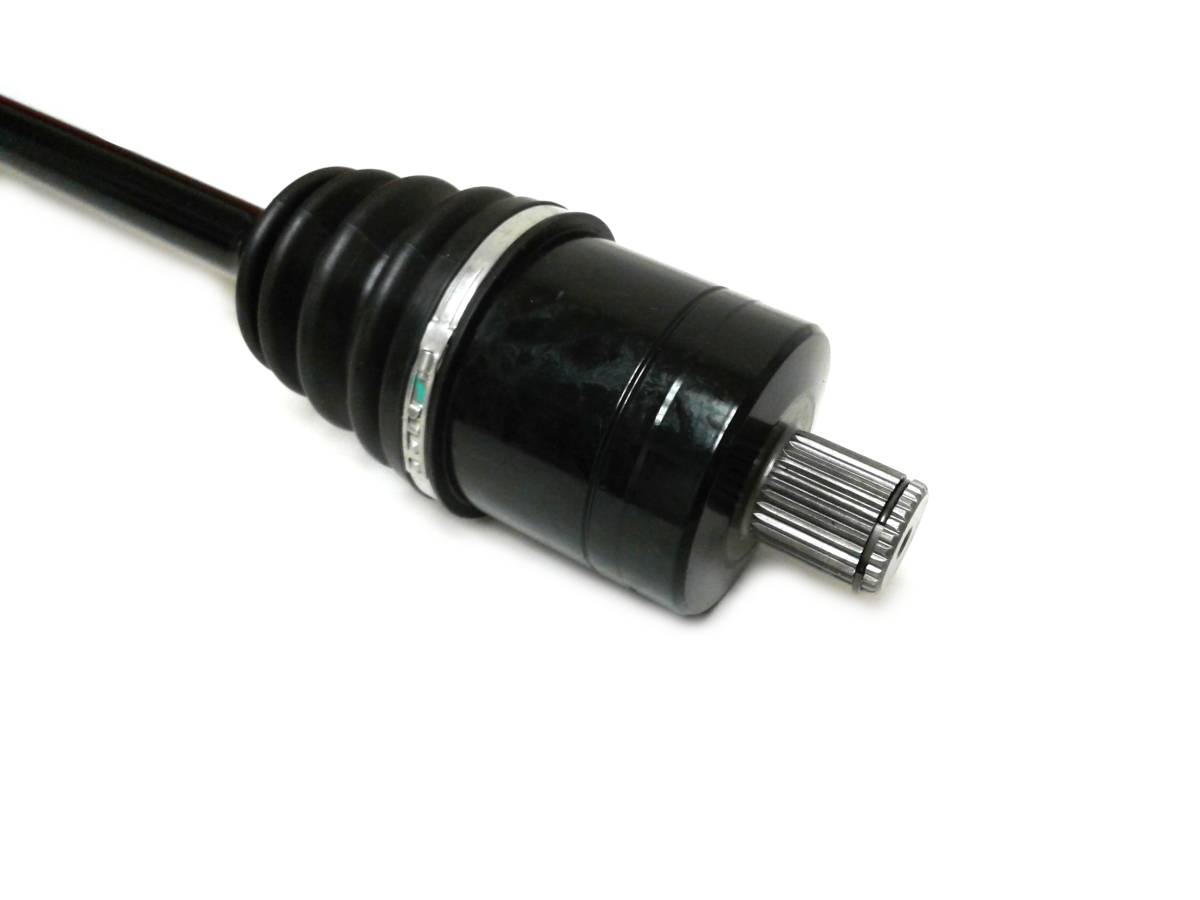

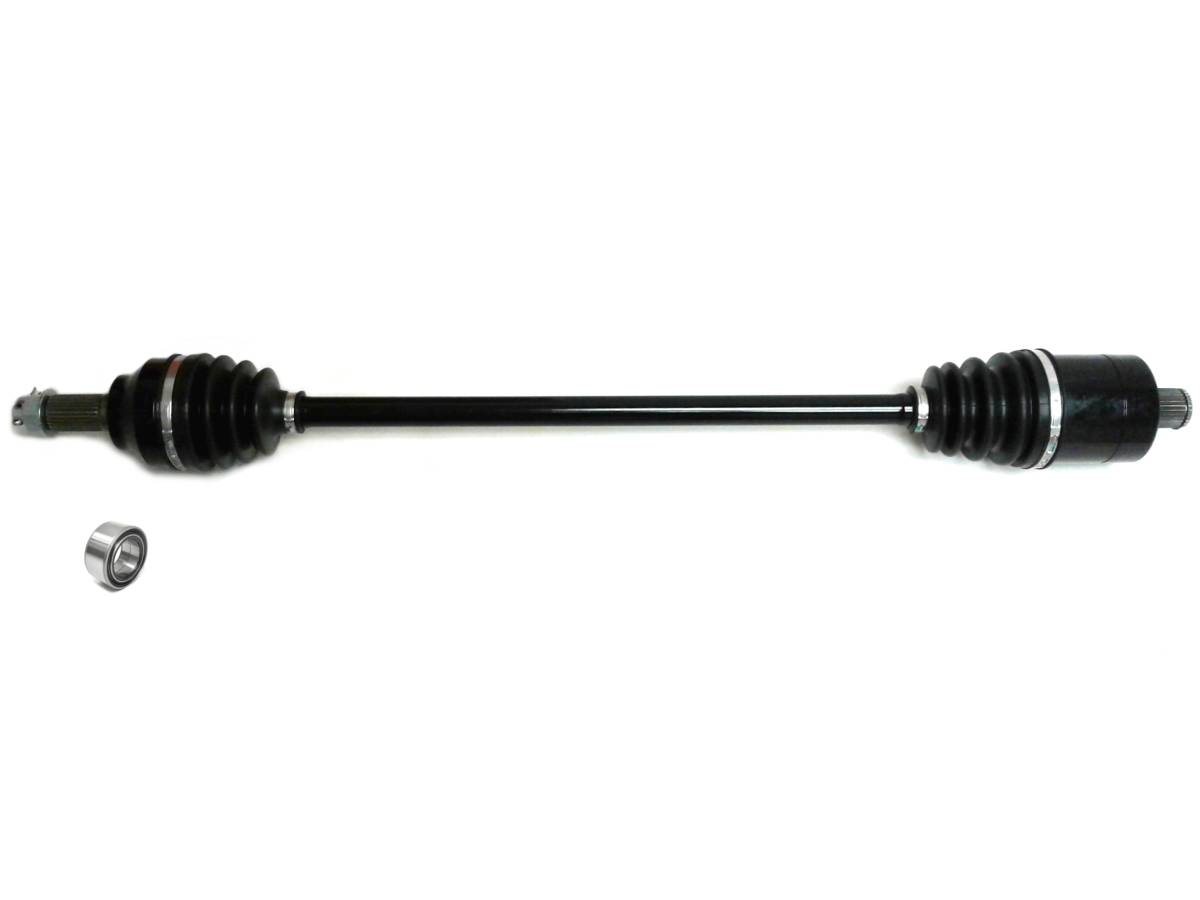

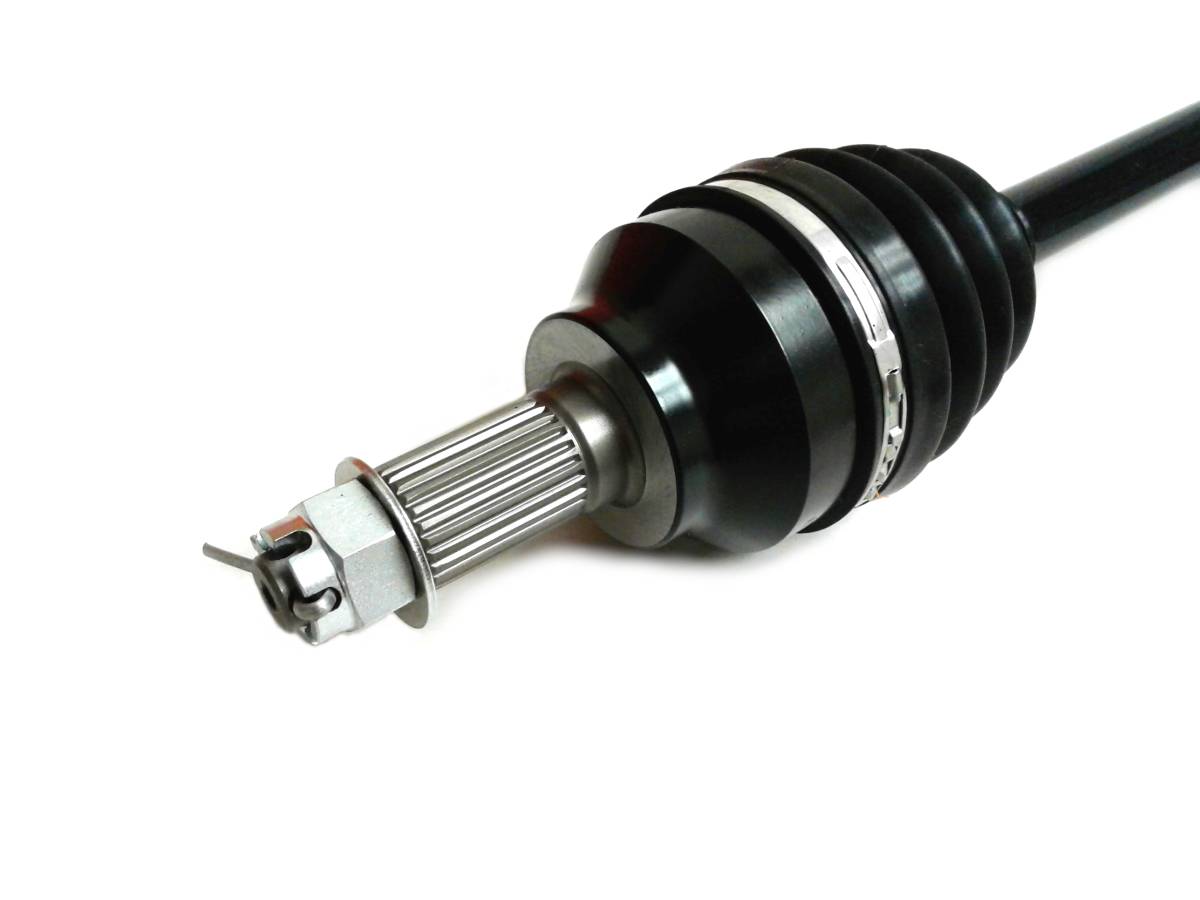

Rear CV Axle & Wheel Bearing for Polaris RZR XP XP4 Turbo S 2018-2021

Location on vehicle: Rear,Left,Right

PO-398/WB-1628
This is a new Rear CV axle for a Polaris RZR S.

It will fit the following 4x4 models:

2018-2021 ... RZR XP Turbo S

2019-2021 ... RZR XP4 Turbo S

Rear Left or Right Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 28
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 842 mm
  • Replaces Polaris OEM # (axle) 1334060, (bearing) 3514627, 3514699
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $109.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2018-2021 RZR XP Turbo S & 2019-2021 RZR XP 4 Turbo S 4x4.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Inboard CV joint spline count: 28, Outboard CV joint spline count: 26, Compressed overall axle length: 842 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

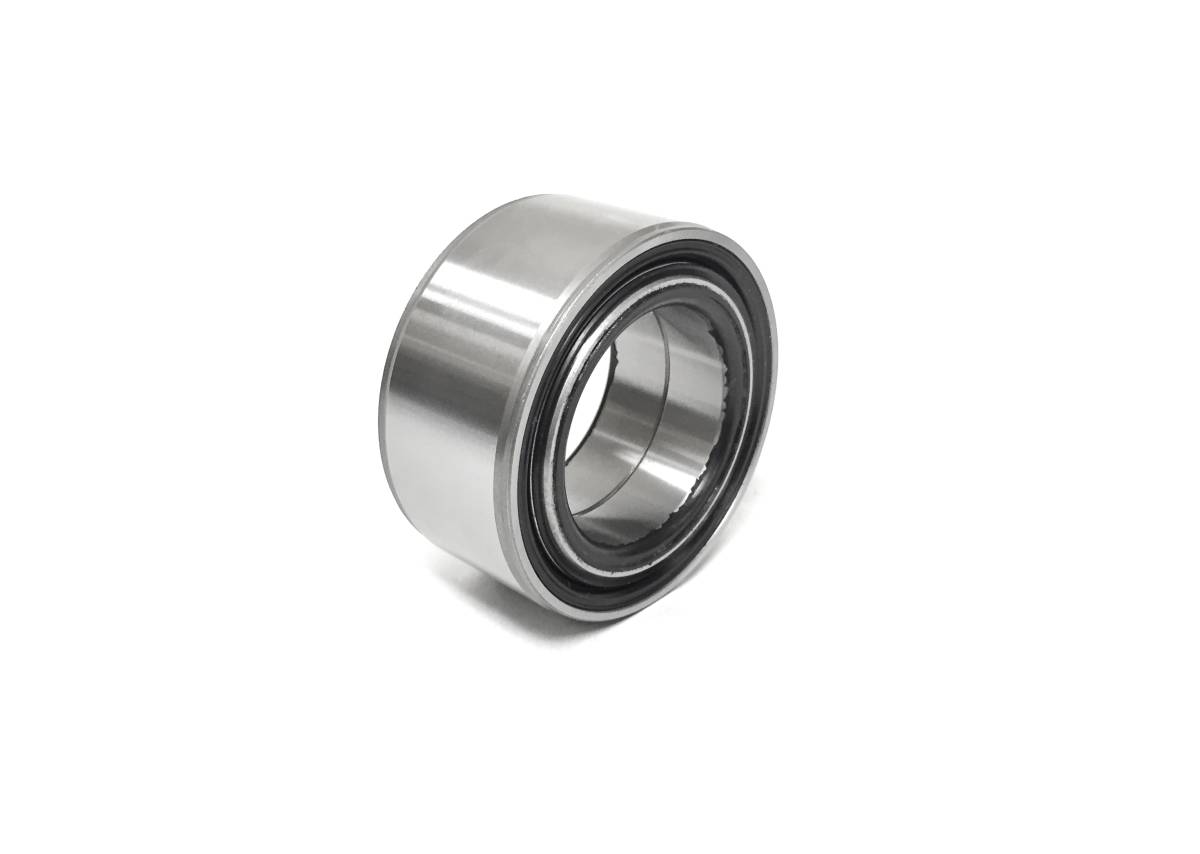

  • 1 axle & 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2021PolarisRZR Turbo S 4--
    2021PolarisRZR Turbo S 4Lifted Lime LE
    2021PolarisRZR Turbo S 4Velocity
    2021PolarisRZR XPTurbo S
    2020PolarisRZR XPTurbo S
    2020PolarisRZR XPTurbo S Velocity
    2019PolarisRZR XPTurbo S
    2018PolarisRZR XPTurbo S
    2019PolarisRZR XP 4Turbo S

    Details

    • PO-398/WB-1628
    • PO-398/WB-1628
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 17.0 lbs.
    • W4.0000” x H4.0000” x L36.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
