Front CV Axle Pair for Can-Am Commander 800 1000 & Max 4x4 2017-2020

Location on vehicle: Front,Left,Right

CA-131/CA-132

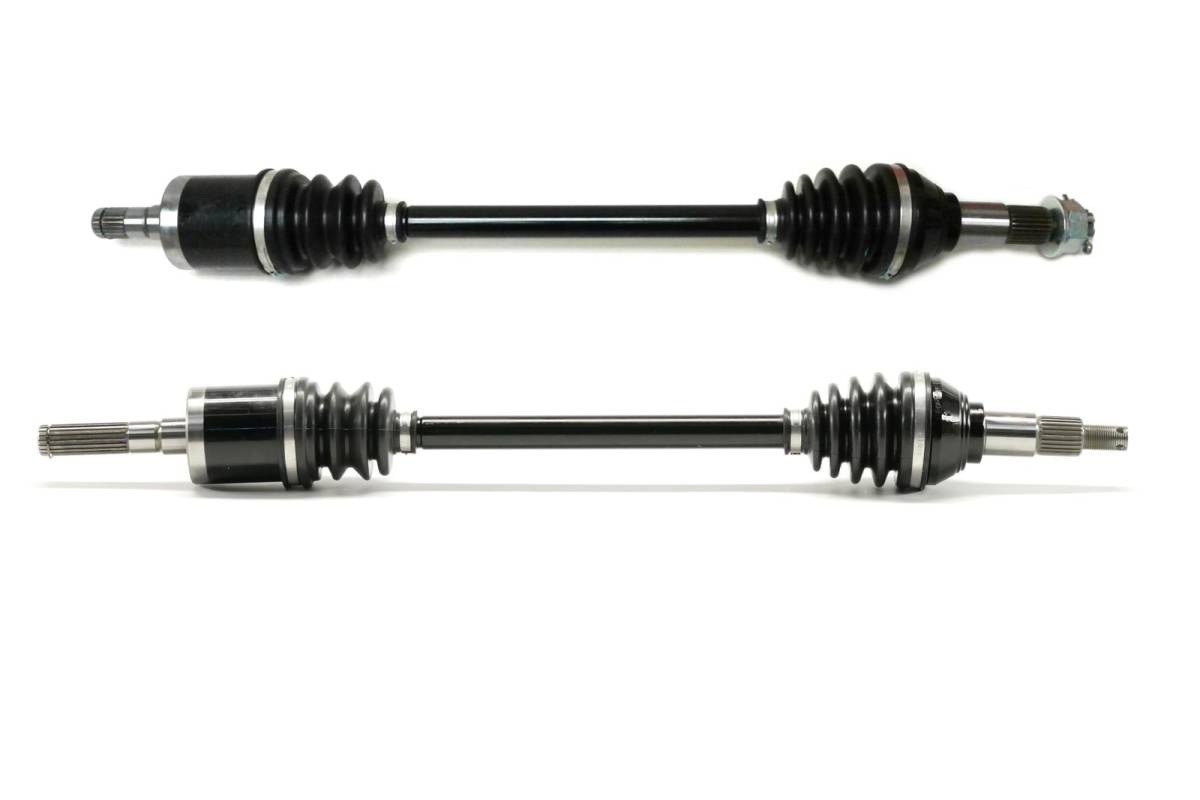

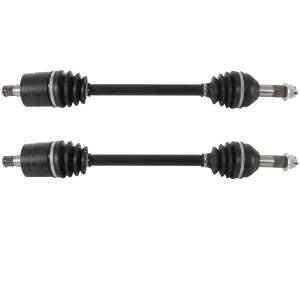

This is a pair of new Front CV axles for a Can-Am UTV.

They fit the following 4x4 applications:

2017-2020 ... Commander 800 / Max 800

2017-2020 ... Commander 1000 / Max 1000

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left - 649.5 mm, Right - 692.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $137.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Can-Am UTV models: 2017-2020 Commander 800/MAX 800 & 2017-2020 Commander 1000/MAX 1000. Set includes 2 axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: Left - 649.5 mm, Right - 692.5 mm, Inboard Spline Count - 21 (both), Outboard Spline Count - 26 (both) * Replaces OE # 705401871, 705401872.
  • Replaces OEM # 705401872, 705400952, 705401871, 705400953.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2017Can-AmCommander 10004x4 DPS
    2017Can-AmCommander 10004x4 Limited DPS
    2017Can-AmCommander 10004x4 Mossy Oak Hunting Edition DPS
    2017Can-AmCommander 10004x4 XT DPS
    2017Can-AmCommander 10004x4 XT-P DPS
    2019Can-AmCommander 1000R4x4 DPS
    2019Can-AmCommander 1000R4x4 Limited DPS
    2019Can-AmCommander 1000R4x4 XT DPS
    2018Can-AmCommander 1000R4x4 DPS
    2018Can-AmCommander 1000R4x4 Limited DPS
    2018Can-AmCommander 1000R4x4 Mossy Oak Hunting Edition DPS
    2018Can-AmCommander 1000R4x4 XT DPS
    2019Can-AmCommander 800R4X4
    2019Can-AmCommander 800R4x4 DPS
    2019Can-AmCommander 800R4x4 XT DPS
    2018Can-AmCommander 800R4X4
    2018Can-AmCommander 800R4x4 DPS
    2018Can-AmCommander 800R4x4 XT DPS
    2017Can-AmCommander 800R4X4
    2017Can-AmCommander 800R4x4 DPS
    2017Can-AmCommander 800R4x4 XT DPS
    2017Can-AmCommander Max 10004x4 DPS
    2017Can-AmCommander Max 10004x4 Limited DPS
    2017Can-AmCommander Max 10004x4 XT DPS
    2019Can-AmCommander Max 1000R4x4 Limited DPS
    2019Can-AmCommander Max 1000R4x4 XT DPS
    2018Can-AmCommander Max 1000R4x4 DPS
    2018Can-AmCommander Max 1000R4x4 Limited DPS
    2018Can-AmCommander Max 1000R4x4 XT DPS
    2019Can-AmCommander Max 800R4x4 DPS
    2018Can-AmCommander Max 800R4x4 DPS
    2017Can-AmCommander Max 800R4x4 DPS

    Details

    • CA-131/CA-132
    • CA-131/CA-132
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 20.6 lbs.
    • W10.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
