Rear Right CV Axle for Can-Am Outlander & Renegade 650 850 & 1000, 705502711

Location on vehicle: Rear,Right

CA-312

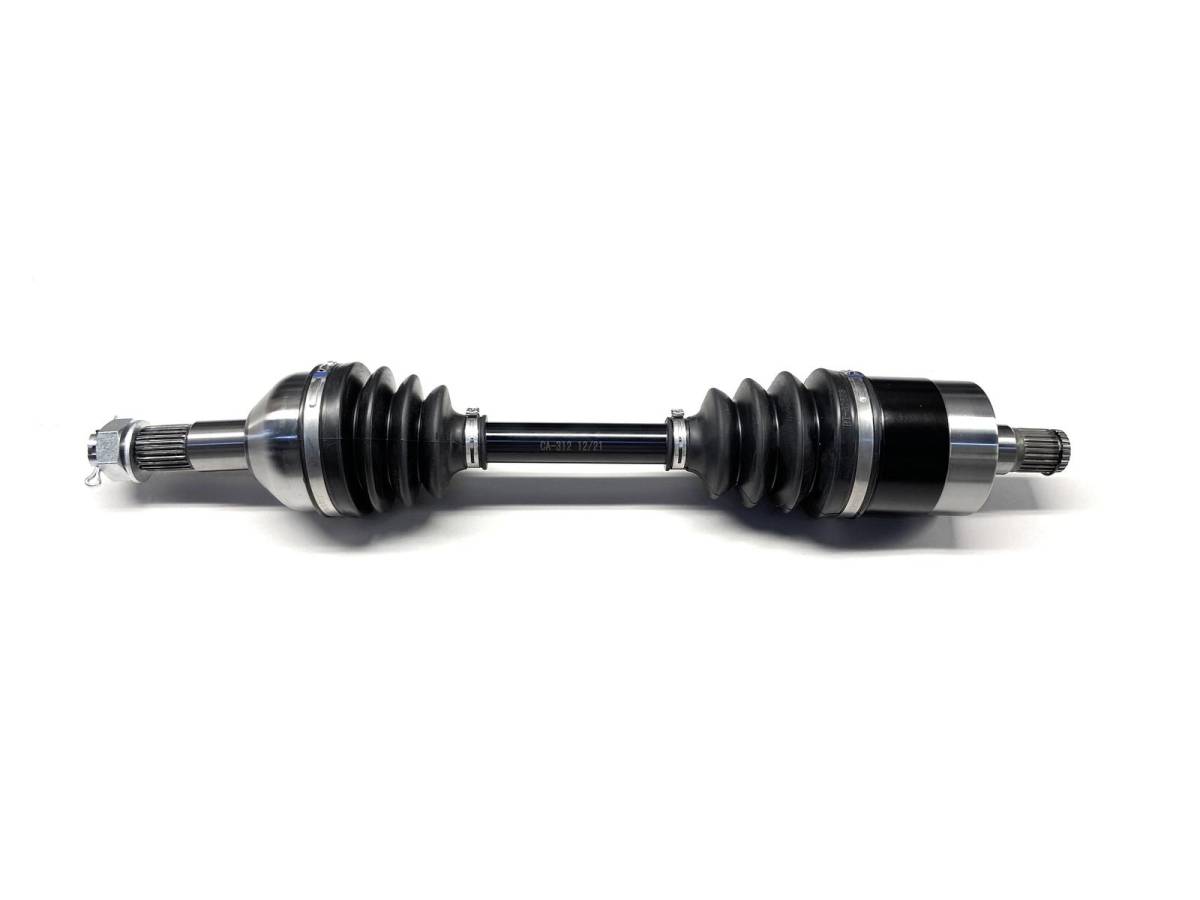

This is a new, fully assembled, CV axle for a Can-Am ATV.

It fits REAR, RIGHT on the following (excluding XMR models):

2019-2023 Outlander 650/MAX 4x4

2019-2023 Outlander 850/MAX

2019-2023 Outlander 1000/MAX 4x4

2019-2022 Renegade 570

2019-2022 Renegade 850

2019-2023 Renegade 1000

(please note this will not fit XMR models)

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

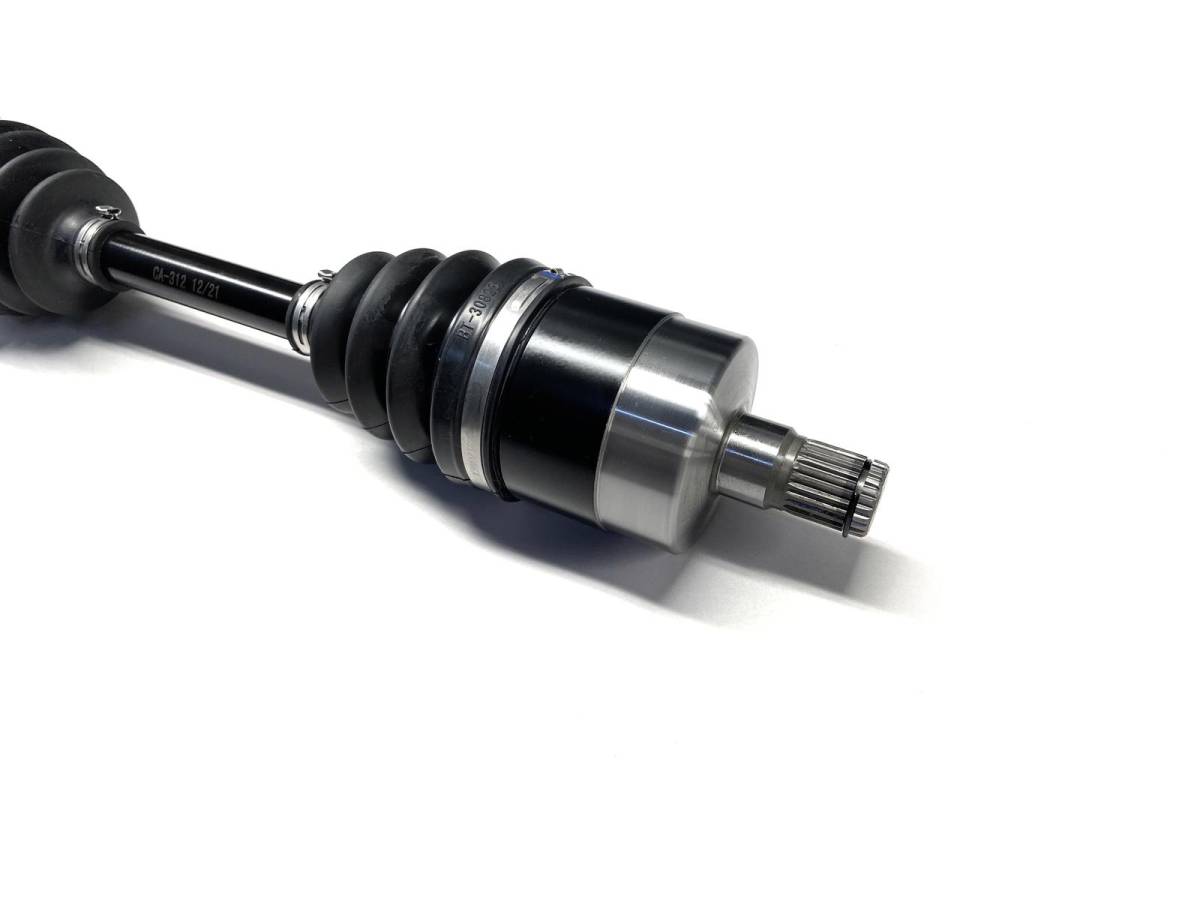

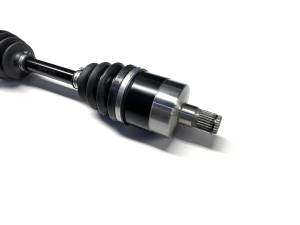

  • Inboard CV joint spline count: 24

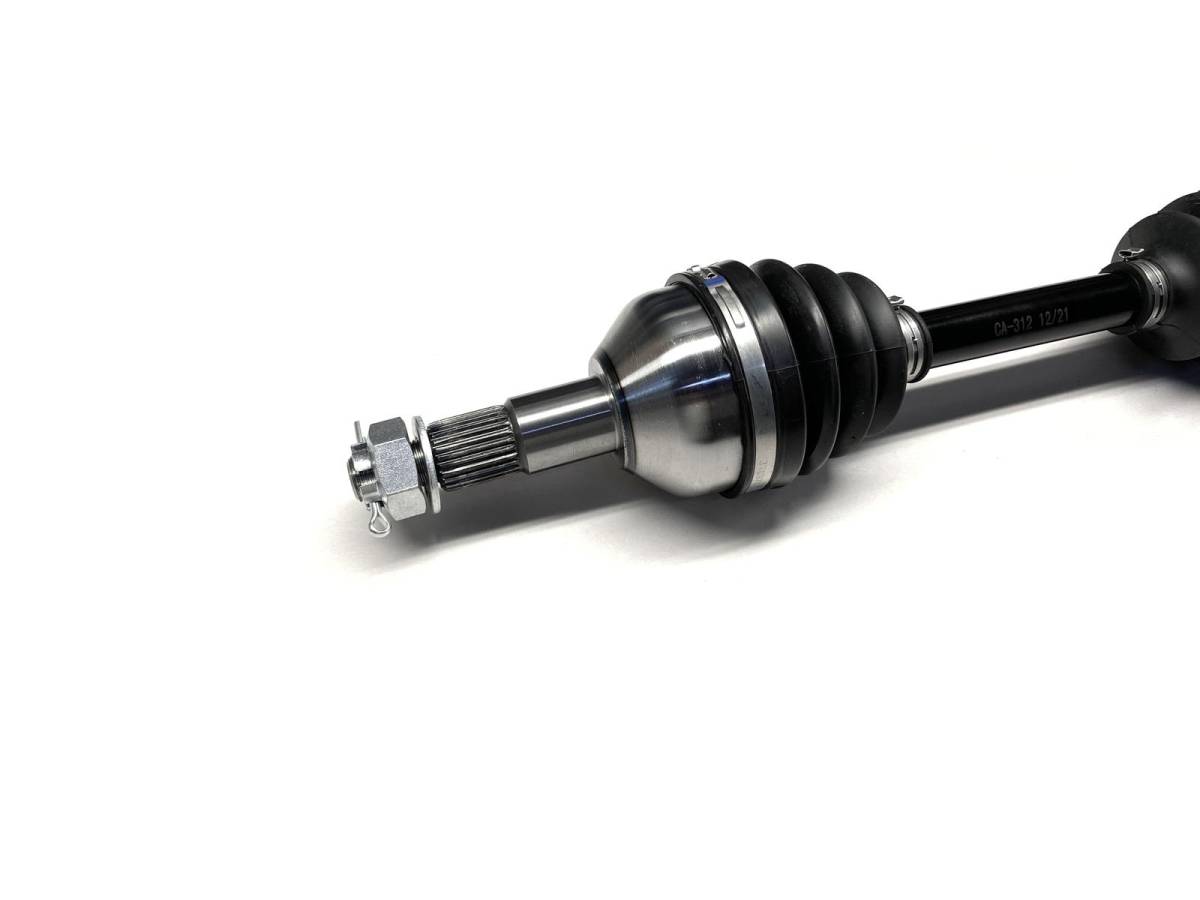

  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 535 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $99.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, RIGHT (passenger side) on the following Can-Am ATVs (excluding any XMR models): 2019-2023 Outlander 650/850/1000 4x4 -including MAX models, 2019-2022 Renegade 570/850, & 2019-2023 Renegade 1000.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inboard CV joint spline count: 24, Outboard CV joint spline count: 26, Compressed overall axle length: 535 mm.
  • Replaces OEM # 705502711.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2022Can-AmOutlander 6504X4
    2022Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
    2022Can-AmOutlander 6504x4 DPS
    2022Can-AmOutlander 6504x4 XT DPS
    2021Can-AmOutlander 6504X4
    2021Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
    2021Can-AmOutlander 6504x4 DPS
    2021Can-AmOutlander 6504x4 XT DPS
    2020Can-AmOutlander 6504X4
    2020Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
    2020Can-AmOutlander 6504x4 DPS
    2020Can-AmOutlander 6504x4 XT DPS
    2019Can-AmOutlander 6504X4
    2019Can-AmOutlander 6504x4 DPS
    2019Can-AmOutlander 6504x4 North Edition DPS
    2019Can-AmOutlander 6504x4 XT DPS
    2023Can-AmOutlander 8504X4
    2023Can-AmOutlander 8504x4 DPS
    2023Can-AmOutlander 8504x4 Hunting Edition DPS
    2023Can-AmOutlander 8504x4 XT DPS
    2023Can-AmOutlander 8504x4 XTP DPS
    2022Can-AmOutlander 8504X4
    2022Can-AmOutlander 8504x4 DPS
    2022Can-AmOutlander 8504x4 XT DPS
    2022Can-AmOutlander 8504x4 XTP DPS
    2021Can-AmOutlander 8504X4
    2021Can-AmOutlander 8504x4 DPS
    2021Can-AmOutlander 8504x4 North Edition DPS
    2021Can-AmOutlander 8504x4 XT DPS
    2021Can-AmOutlander 8504x4 XTP DPS
    2020Can-AmOutlander 8504X4
    2020Can-AmOutlander 8504x4 DPS
    2020Can-AmOutlander 8504x4 North Edition DPS
    2020Can-AmOutlander 8504x4 XT DPS
    2020Can-AmOutlander 8504x4 XTP DPS
    2019Can-AmOutlander 8504X4
    2019Can-AmOutlander 8504x4 DPS
    2019Can-AmOutlander 8504x4 North Edition DPS
    2019Can-AmOutlander 8504x4 XT-P DPS
    2019Can-AmOutlander 8504x4 XT DPS
    2023Can-AmOutlander 1000R4x4 XT-P DPS
    2023Can-AmOutlander 1000R4x4 XT DPS
    2023Can-AmOutlander 1000R4x4 XXC DPS
    2022Can-AmOutlander 1000R4x4 XT-P DPS
    2022Can-AmOutlander 1000R4x4 XT DPS
    2022Can-AmOutlander 1000R4x4 XXC DPS
    2021Can-AmOutlander 1000R4x4 XT-P DPS
    2021Can-AmOutlander 1000R4x4 XT DPS
    2020Can-AmOutlander 1000R4x4 XT-P DPS
    2020Can-AmOutlander 1000R4x4 XT DPS
    2019Can-AmOutlander 1000R4x4 DPS
    2019Can-AmOutlander 1000R4x4 Mossy Oak Hunting Edition DPS
    2019Can-AmOutlander 1000R4x4 XT-P DPS
    2019Can-AmOutlander 1000R4x4 XT DPS
    2023Can-AmOutlander Max 6506x6 DPS
    2022Can-AmOutlander Max 6504x4 DPS
    2022Can-AmOutlander Max 6504x4 XT DPS
    2022Can-AmOutlander Max 6506x6 DPS
    2021Can-AmOutlander Max 6504x4 DPS
    2021Can-AmOutlander Max 6504x4 XT DPS
    2021Can-AmOutlander Max 6506x6 DPS
    2020Can-AmOutlander Max 6504x4 DPS
    2020Can-AmOutlander Max 6504x4 XT DPS
    2020Can-AmOutlander Max 6506x6 DPS
    2019Can-AmOutlander Max 6504x4 DPS
    2019Can-AmOutlander Max 6504x4 North Edition DPS
    2019Can-AmOutlander Max 6504x4 XT DPS
    2019Can-AmOutlander Max 6506x6 DPS
    2023Can-AmOutlander Max 8504x4 DPS
    2023Can-AmOutlander Max 8504x4 XT DPS
    2023Can-AmOutlander Max 8504x4 XTP DPS
    2022Can-AmOutlander Max 8504x4 XT DPS
    2022Can-AmOutlander Max 8504x4 XTP DPS
    2021Can-AmOutlander Max 8504x4 North Edition DPS
    2021Can-AmOutlander Max 8504x4 XT DPS
    2021Can-AmOutlander Max 8504x4 XTP DPS
    2020Can-AmOutlander Max 8504x4 North Edition DPS
    2020Can-AmOutlander Max 8504x4 XT DPS
    2020Can-AmOutlander Max 8504x4 XTP DPS
    2019Can-AmOutlander Max 8504x4 North Edition DPS
    2019Can-AmOutlander Max 8504x4 XT DPS
    2019Can-AmOutlander Max 8504x4 XTP DPS
    2023Can-AmOutlander Max 1000R4x4 LTD DPS
    2023Can-AmOutlander Max 1000R4x4 XT DPS
    2023Can-AmOutlander Max 1000R4x4 XTP DPS
    2022Can-AmOutlander Max 1000R4x4 LTD DPS
    2022Can-AmOutlander Max 1000R4x4 XT DPS
    2022Can-AmOutlander Max 1000R4x4 XTP DPS
    2021Can-AmOutlander Max 1000R4x4 LTD DPS
    2021Can-AmOutlander Max 1000R4x4 XT DPS
    2021Can-AmOutlander Max 1000R4x4 XTP DPS
    2020Can-AmOutlander Max 1000R4x4 LTD DPS
    2020Can-AmOutlander Max 1000R4x4 XT DPS
    2020Can-AmOutlander Max 1000R4x4 XTP DPS
    2019Can-AmOutlander Max 1000R4x4 LTD DPS
    2019Can-AmOutlander Max 1000R4x4 XT DPS
    2019Can-AmOutlander Max 1000R4x4 XTP DPS
    2022Can-AmRenegade 5704X4
    2021Can-AmRenegade 5704X4
    2020Can-AmRenegade 5704X4
    2019Can-AmRenegade 5704X4
    2022Can-AmRenegade 8504X4
    2022Can-AmRenegade 8504x4 XXC DPS
    2021Can-AmRenegade 8504X4
    2021Can-AmRenegade 8504x4 XXC DPS
    2020Can-AmRenegade 8504X4
    2020Can-AmRenegade 8504x4 XXC DPS
    2019Can-AmRenegade 8504X4
    2019Can-AmRenegade 8504x4 XXC DPS
    2023Can-AmRenegade 1000R4x4 XXC DPS
    2022Can-AmRenegade 1000R4x4 XXC DPS
    2021Can-AmRenegade 1000R4x4 XXC DPS
    2020Can-AmRenegade 1000R4x4 XXC DPS
    2019Can-AmRenegade 1000R4X4
    2019Can-AmRenegade 1000R4x4 XXC DPS

    Details

    Shipping Information

    • Item Requires Shipping
    • 13.5 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
