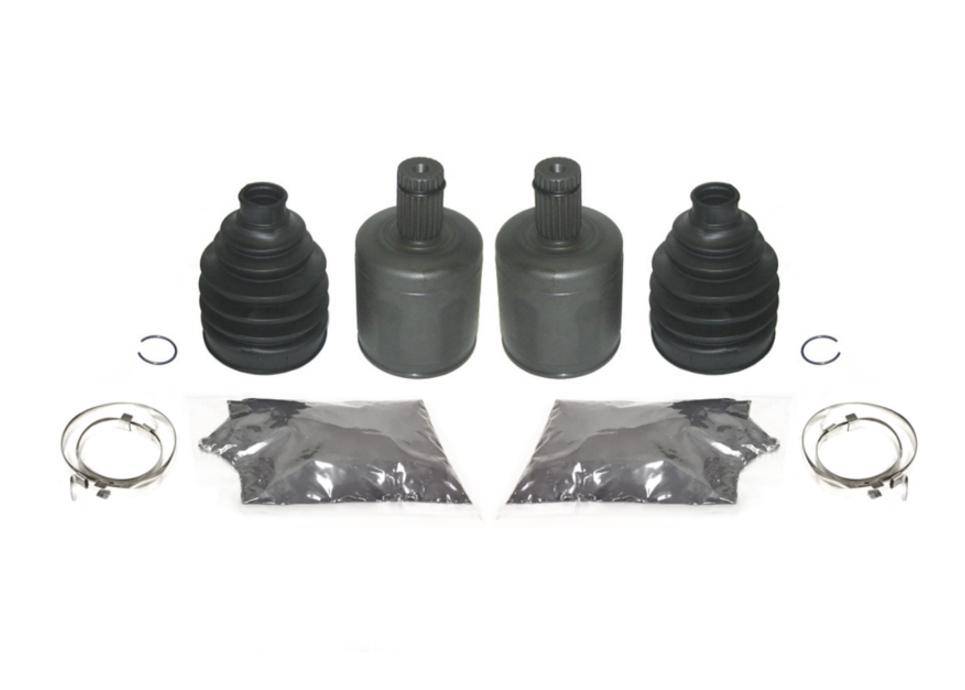

Front Inner CV Joint Kits for Polaris Ranger & Sportsman ATV UTV, 2203330

Placement on halfshaft: Inner - Front,Left,Right

IJ562/IJ562
This is a pair of new Front, Inner CV joint & boot kits for a Polaris ATV/UTV.

They fit the following models:

2009-2010 Ranger 500 4x4, 2010 Ranger 800 4x4/6x6, 2010 Scrambler 500 4x4, 2008 Sportsman X2 700, 2007 Sportsman 700/MV7/800 (built after 07/25/2006), 2008-2010 Sportsman 800/X2 800, 2009 Ranger XP 700, 2008-2010 Sportsman 500/X2 500

Front Left or Right axle, Inboard / Differential Side

*Not intended for use in lifted vehicles

Product features:

  • 2 CV joints - fully assembled with race, cage, and ball bearings
  • 2 neoprene rubber CV boots & grease packets
  • 4 boot clamps
  • Stub Height: 1.50"
  • Number of CV housing splines: 22
  • Inner race spline count: 19
  • Housing diameter: 2.64"
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $59.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the front inner (differential side) position: 2009-2010 Ranger 500 4x4, 2010 Ranger 800 4x4/6x6, 2010 Scrambler 500 4x4, 2008 Sportsman X2 700, 2007 Sportsman 700/MV7/800 (built after 07/25/2006), 2008-2010 Sportsman 800/X2 800, 2009 Ranger XP 700, 2008-2010 Sportsman 500/X2 500.
  • Includes 2 CV joints (fully assembled with race, cage, and ball bearings), 2 neoprene rubber CV boots, 2 grease packets, 4 boot clamps.
  • Stub height: 1.50", Number of CV housing splines: 22, Inner race spline count: 19, Housing diameter: 2.64".
  • Replaces Polaris OEM # 2203330.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 CV Joints, 2 CV Boots, 2 Grease Packs, 4 Clamps
  • Application List

    YearMakeModelSubmodelNotes
    2010PolarisRanger 5004x4 HO EFI
    2009PolarisRanger 5004x4 EFI
    2010PolarisRanger 8006x6 EFI
    2010PolarisRanger Crew 8004x4 EFI
    2010PolarisRanger Crew 8004x4 EFI EPS
    2009PolarisRanger XP 7004x4 Browning EFI
    2009PolarisRanger XP 7004x4 EFI
    2009PolarisRanger XP 7004x4 LE EFI
    2010PolarisRanger XP 8004x4 EFI
    2010PolarisRanger XP 8004x4 EFI EPS
    2010PolarisRanger XP 8004x4 LE EFI
    2010PolarisRanger XP 8004x4 Pursuit Browning EFI
    2010PolarisScrambler 5004X4
    2007PolarisSportsman 4504X4
    2010PolarisSportsman 5004x4 HO
    2010PolarisSportsman 500Touring EFI
    2010PolarisSportsman 500Touring HO
    2009PolarisSportsman 5004x4 HO
    2009PolarisSportsman 5004x4 HO EFI
    2009PolarisSportsman 500Touring EFI
    2008PolarisSportsman 5004x4 HO
    2008PolarisSportsman 5004x4 HO EFI
    2008PolarisSportsman 500Touring EFI
    2007PolarisSportsman 5004x4 Deluxe HO EFI
    2007PolarisSportsman 5004x4 HO EFI
    2007PolarisSportsman 5004x4 NBU HO EFI
    2007PolarisSportsman 700EFI
    2007PolarisSportsman 700MV
    2010PolarisSportsman 800EFI HO
    2009PolarisSportsman 800EFI
    2009PolarisSportsman 800HO EFI
    2009PolarisSportsman 800Touring EFI
    2008PolarisSportsman 800EFI
    2008PolarisSportsman 800EFI Military HO
    2008PolarisSportsman 800Touring EFI
    2007PolarisSportsman 800--
    2007PolarisSportsman 800Deluxe EFI
    2007PolarisSportsman 800EFI
    2009PolarisSportsman X2 500EFI
    2008PolarisSportsman X2 500EFI
    2007PolarisSportsman X2 500Deluxe EFI
    2007PolarisSportsman X2 500EFI
    2008PolarisSportsman X2 700EFI
    2009PolarisSportsman X2 800EFI
    2008PolarisSportsman X2 800EFI
    2007PolarisSportsman X2 800Deluxe EFI
    2007PolarisSportsman X2 800EFI

    Details

    • IJ562/IJ562
    • IJ562/IJ562
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 10.0 lbs.
    • W5.0000” x H10.0000” x L8.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
