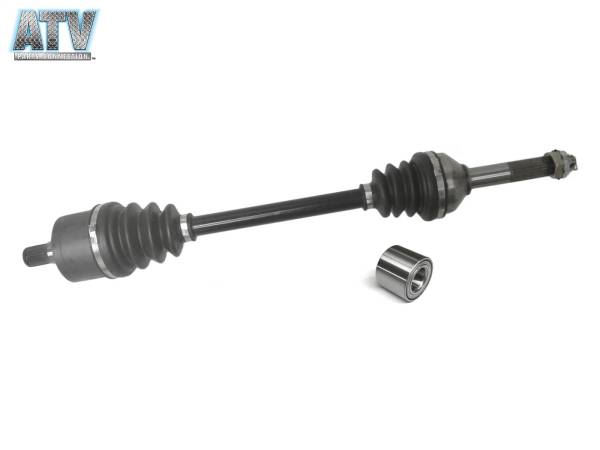

Rear Right CV Axle & Wheel Bearing Kit for Kawasaki Teryx 750 2008-2011

Location on vehicle: Rear,Right

KW-319/WB-1536
This is a new Rear,Right CV axle & wheel bearing for a Kawasaki UTV.

They fit the following 4x4 models:

2008-2011 ... Teryx 750

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 24
  • Compressed overall axle length: 651 mm
  • Replaces Kawasaki OEM # (axle) 59266-0019, (bearing) 92045-0102, 92045-0094, 92045-0107
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $104.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits rear right (passenger side) on the 2008-2011 Kawasaki Teryx 750 4x4.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces Kawasaki OEM # (axle) 59266-0019, (bearing) 92045-0102, 92045-0094, 92045-0107. Compressed Length - 651 mm, Inboard Spline Count - 24, Outboard Spline Count - 24.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV axle, 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2011KawasakiTeryx 750KRF750N 4x4 FI
    2011KawasakiTeryx 750KRF750P 4x4 LE FI
    2011KawasakiTeryx 750KRF750R 4x4 LE FI
    2011KawasakiTeryx 750KRF750S 4x4 Sport FI
    2011KawasakiTeryx 750KRF750T 4x4 Special Graphics Edition FI
    2010KawasakiTeryx 750KRF750 4x4
    2010KawasakiTeryx 750KRF750 4x4 LE
    2010KawasakiTeryx 750KRF750 4x4 Sport
    2010KawasakiTeryx 750KRF750N 4x4 FI
    2010KawasakiTeryx 750KRF750P 4x4 LE FI
    2010KawasakiTeryx 750KRF750R 4x4 LE FI
    2010KawasakiTeryx 750KRF750S 4x4 Sport FI
    2009KawasakiTeryx 750KRF750 4x4
    2009KawasakiTeryx 750KRF750 4x4 LE
    2009KawasakiTeryx 750KRF750 4x4 LE Sport FI
    2009KawasakiTeryx 750KRF750 4x4 Sport
    2009KawasakiTeryx 750KRF750G 4x4 FI
    2009KawasakiTeryx 750KRF750J 4x4 LE FI
    2009KawasakiTeryx 750KRF750K 4x4 LE FI
    2009KawasakiTeryx 750KRF750L 4x4 Sport FI
    2009KawasakiTeryx 750KRF750LA 4x4 Sport Monster Energy FI
    2009KawasakiTeryx 750KRF750M 4x4 NRA FI
    2008KawasakiTeryx 750KRF750 4x4 LE FI
    2008KawasakiTeryx 750KRF750A 4x4
    2008KawasakiTeryx 750KRF750B 4x4
    2008KawasakiTeryx 750KRF750C 4x4 LE
    2008KawasakiTeryx 750KRF750D 4x4 LE
    2008KawasakiTeryx 750KRF750F 4x4 NRA

    Details

    • KW-319/WB-1536
    • KW-319/WB-1536
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 14.5 lbs.
    • W5.0000” x H5.0000” x L24.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
