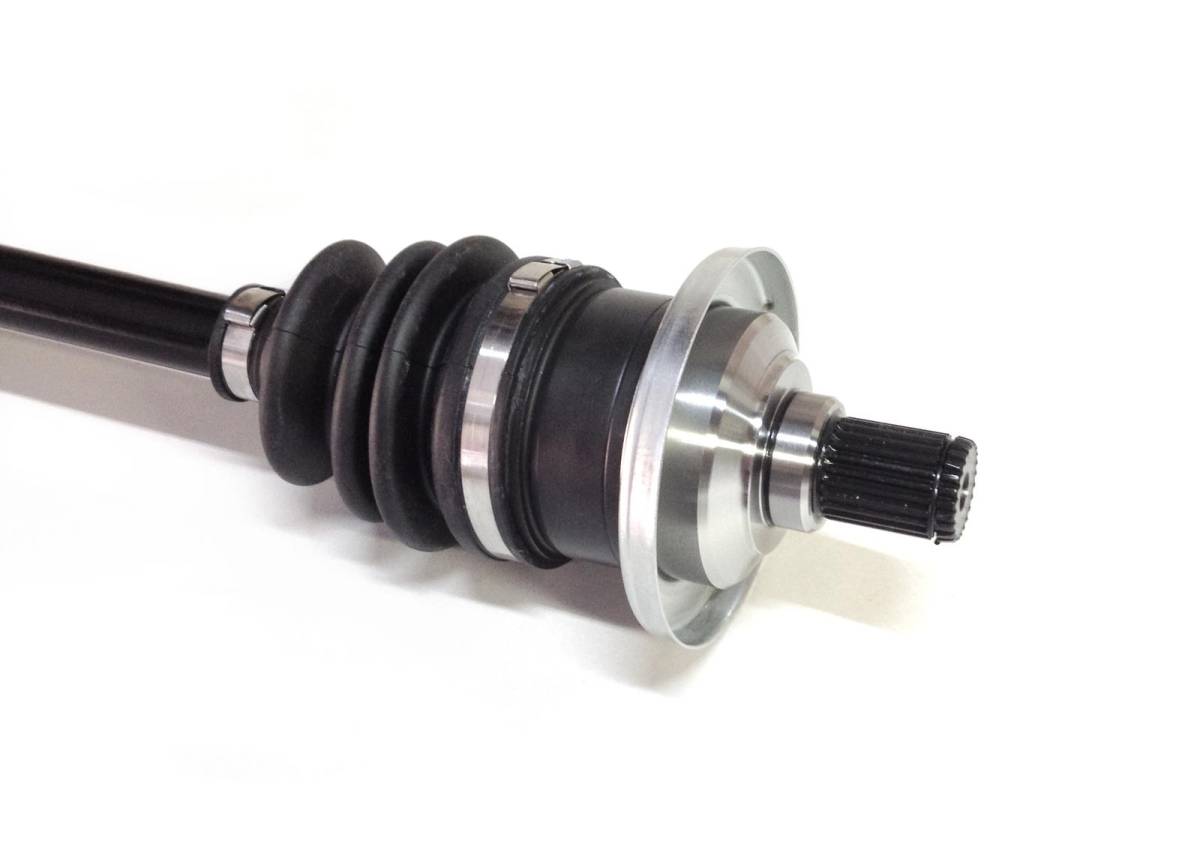

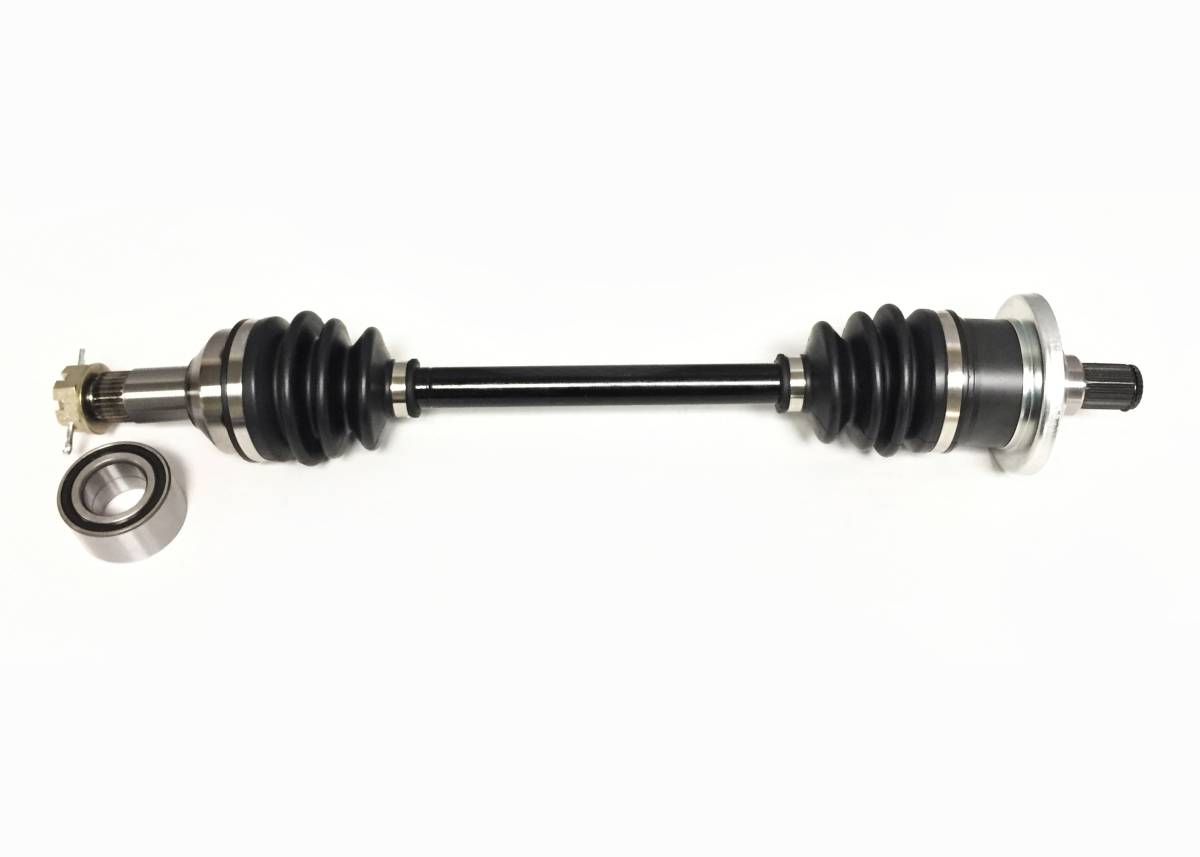

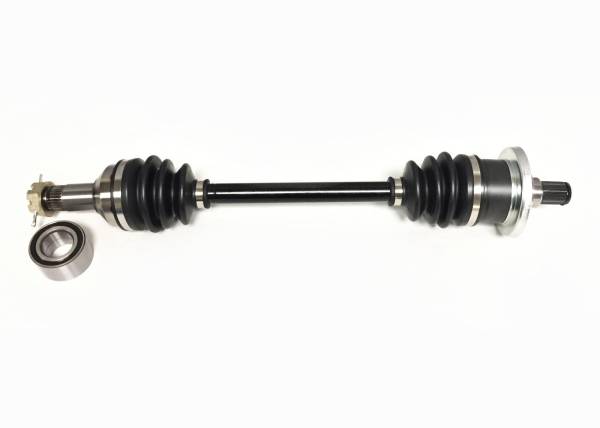

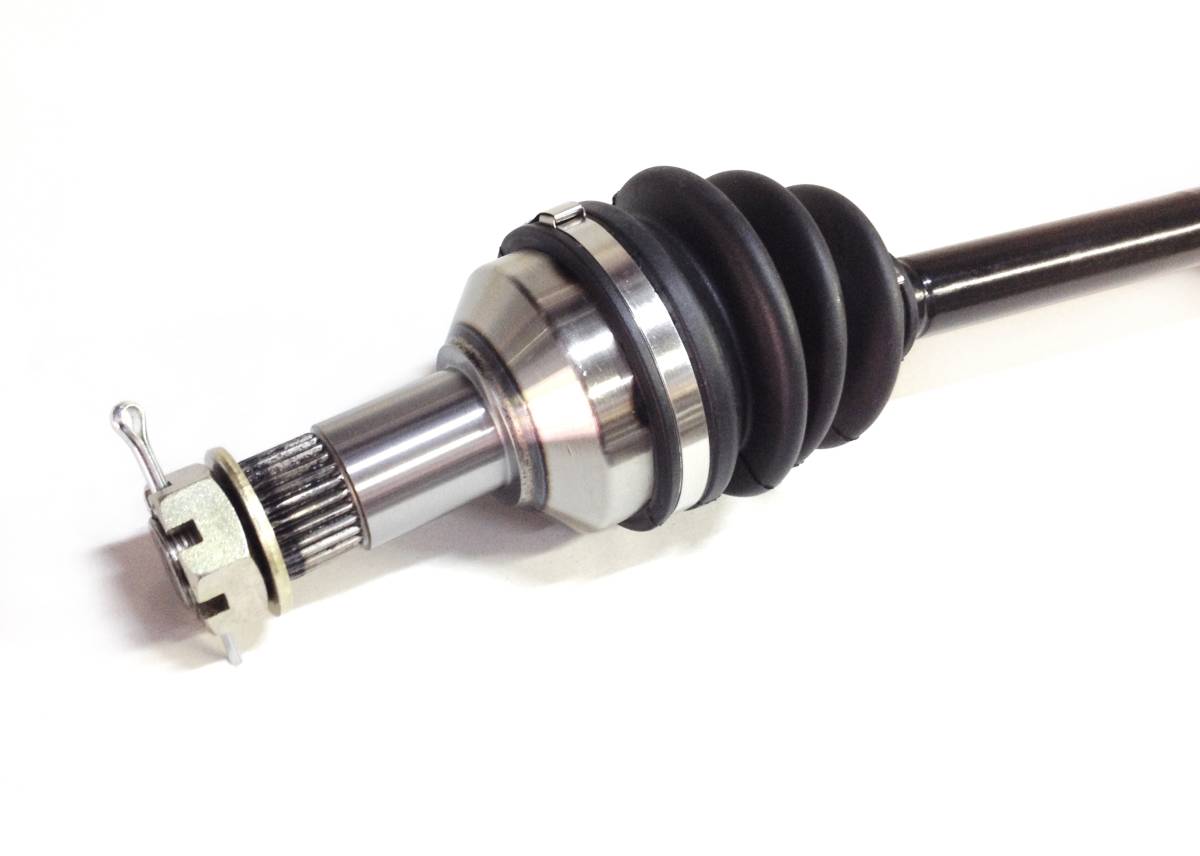

Front Right CV Axle & Wheel Bearing for Arctic Cat 400 450 500 550 650 700 1000

Location on vehicle: Front,Right

AC-245/WB-1496
This is a new Front, Right CV axle & wheel bearing for an Arctic Cat ATV.

They fit the following 4x4 models:

2006-2012 ... 400 (excluding VP models)

2010-2012 ... 450

2006-2014 ... 500

2009-2012 ... 550

2006-2012 ... 650 (excluding Mud Pro)

2006-2014 ... 700 (excluding Mud Pro)

2009-2010 ... 1000

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, chromoly forged steel axle bar
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 548 mm
  • Replaces Arctic Cat OEM # (axle) 1502-874, 0502-812, 1502-344, (bearing) 1402-027 1402-809
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $87.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2011Arctic Cat4004x4 TRV
2010Arctic Cat4004x4 TRV Automatic
2008Arctic Cat4004X4
2008Arctic Cat4004x4 Automatic
2007Arctic Cat4004X4
2007Arctic Cat4004x4 Automatic
2007Arctic Cat4004x4 LE Automatic
2006Arctic Cat4004X4
2006Arctic Cat4004x4 Automatic
2006Arctic Cat4004x4 LE Automatic
2006Arctic Cat4004x4 M4 Automatic
2012Arctic Cat4504X4
2012Arctic Cat4504x4 EFI
2012Arctic Cat4504x4 GT EFI
2012Arctic Cat4504x4 TRV EFI
2012Arctic Cat4504x4 TRV GT EFI
2011Arctic Cat4504x4 EFI
2011Arctic Cat4504x4 H1 EFI
2011Arctic Cat4504x4 LTD EFI
2011Arctic Cat4504x4 TRV EFI
2010Arctic Cat4504x4 H1 Automatic EFI
2014Arctic Cat5004X4
2014Arctic Cat5004x4 TRV
2014Arctic Cat5004x4 XT
2013Arctic Cat5004x4 CR
2013Arctic Cat5004x4 TRV CR
2013Arctic Cat5004x4 XT
2009Arctic Cat5004X4
2009Arctic Cat5004x4 Automatic
2008Arctic Cat5004X4
2008Arctic Cat5004x4 Automatic
2008Arctic Cat5004x4 M4 Automatic
2008Arctic Cat5004x4 TRV Automatic
2007Arctic Cat5004X4
2007Arctic Cat5004x4 Automatic
2006Arctic Cat5004X4
2006Arctic Cat5004x4 Automatic
2006Arctic Cat5004x4 LE Automatic
2006Arctic Cat5004x4 M4 Automatic
2006Arctic Cat5004x4 TBX Automatic
2006Arctic Cat5004x4 TRV Automatic
2014Arctic Cat5504X4
2014Arctic Cat5504x4 Limited
2014Arctic Cat5504x4 TRV Limited
2014Arctic Cat5504x4 TRV XT
2014Arctic Cat5504x4 XT
2013Arctic Cat5504x4 CR
2013Arctic Cat5504x4 Limited
2013Arctic Cat5504x4 TRV Limited
2013Arctic Cat5504x4 TRV XT
2013Arctic Cat5504x4 XT
2012Arctic Cat5504x4 EFI
2012Arctic Cat5504x4 GT EFI
2012Arctic Cat5504x4 LTD EFI
2012Arctic Cat5504x4 TRV Cruiser EFI
2012Arctic Cat5504x4 TRV GT EFI
2011Arctic Cat5504x4 H1 Automatic EFI
2011Arctic Cat5504x4 H1 LTD EFI
2011Arctic Cat5504x4 H1 TRV Automatic EFI
2011Arctic Cat5504x4 H1 TRV Cruiser EFI
2011Arctic Cat5504x4 H1 TRV GT EFI
2010Arctic Cat5504x4 H1 Automatic EFI
2010Arctic Cat5504x4 H1 LE Automatic EFI
2010Arctic Cat5504x4 H1 TRV EFI
2010Arctic Cat5504x4 TRV Automatic
2010Arctic Cat5504x4 TRV GT
2009Arctic Cat5504x4 Automatic
2009Arctic Cat5504x4 LE Automatic
2009Arctic Cat5504x4 M4 Automatic
2009Arctic Cat5504x4 TRV Automatic
2009Arctic Cat5504x4 TRV LE Automatic
2011Arctic Cat550S4x4 H1 EFI
2010Arctic Cat550S4x4 H1 EFI
2010Arctic Cat550S4x4 H1 LTD EFI
2010Arctic Cat550S4x4 H1 TRV GT EFI
2011Arctic Cat6504x4 H1 Automatic
2011Arctic Cat6504x4 H1 MudPro Automatic
2010Arctic Cat6504x4 H1 Automatic
2010Arctic Cat6504x4 H1 MudPro Automatic
2009Arctic Cat6504x4 H1 TRV Automatic
2009Arctic Cat6504x4 TBX Automatic
2008Arctic Cat6504x4 H1 Automatic
2008Arctic Cat6504x4 H1 TRV Automatic
2007Arctic Cat6504x4 H1 Automatic
2007Arctic Cat6504x4 H1 LE Automatic
2007Arctic Cat6504x4 H1 TBX Automatic
2007Arctic Cat6504x4 H1 TRV Automatic
2007Arctic Cat6504x4 H1 TRV LE Automatic
2007Arctic Cat6504x4 H1 TRV Plus Automatic
2007Arctic Cat6504x4 H1 TRV Plus LE Automatic
2006Arctic Cat6504x4 H1 Automatic
2006Arctic Cat6504x4 H1 SE Automatic
2006Arctic Cat6504x4 V2 Automatic
2006Arctic Cat6504x4 V2 LE Automatic
2006Arctic Cat6504x4 V2 Tony Stewart Automatic
2014Arctic Cat7004X4
2014Arctic Cat7004x4 Limited
2014Arctic Cat7004x4 Super Duty Diesel
2014Arctic Cat7004x4 TBX
2014Arctic Cat7004x4 TRV Limited
2014Arctic Cat7004x4 TRV XT
2014Arctic Cat7004x4 XT
2013Arctic Cat7004x4 CR
2013Arctic Cat7004x4 Limited
2013Arctic Cat7004x4 Super Duty Diesel
2013Arctic Cat7004x4 TRV Limited
2013Arctic Cat7004x4 TRV XT
2013Arctic Cat7004x4 XT
2012Arctic Cat7004x4 EFI
2012Arctic Cat7004x4 GT EFI
2012Arctic Cat7004x4 H1 EFI EPS
2012Arctic Cat7004x4 LTD EFI
2012Arctic Cat7004x4 Super Duty Diesel
2012Arctic Cat7004x4 TBX GT EFI
2012Arctic Cat7004x4 TRV Cruiser EFI
2012Arctic Cat7004x4 TRV GT EFI
2011Arctic Cat7004x4 H1 EFI EPS
2011Arctic Cat7004x4 H1 LTD
2011Arctic Cat7004x4 Super Duty Diesel
2011Arctic Cat7004x4 TBX LTD
2011Arctic Cat7004x4 TRV
2011Arctic Cat7004x4 TRV Cruiser
2011Arctic Cat7004x4 TRV GT
2010Arctic Cat7004x4 Automatic EFI
2010Arctic Cat7004x4 H1 Automatic EFI
2010Arctic Cat7004x4 H1 LE Automatic EFI
2010Arctic Cat7004x4 H1 MudPro Automatic EFI
2010Arctic Cat7004x4 H1 TBX Automatic EFI
2010Arctic Cat7004x4 H1 TRV Automatic EFI
2010Arctic Cat7004x4 H1 TRV Cruiser Automatic EFI
2010Arctic Cat7004x4 Super Duty Diesel
2010Arctic Cat7004x4 TRV GT
2009Arctic Cat7004x4 Automatic EFI
2009Arctic Cat7004x4 H1 Automatic EFI
2009Arctic Cat7004x4 H1 LE Automatic EFI
2009Arctic Cat7004x4 H1 MudPro Automatic EFI
2009Arctic Cat7004x4 H1 SE Automatic EFI
2009Arctic Cat7004x4 H1 TRV Automatic EFI
2009Arctic Cat7004x4 TRV Cruiser EFI
2008Arctic Cat7004x4 Automatic Diesel
2008Arctic Cat7004x4 Automatic EFI
2008Arctic Cat7004x4 H1 SE Automatic EFI
2008Arctic Cat7004x4 M4 Automatic EFI
2008Arctic Cat7004x4 TRV Cruiser Automatic EFI
2008Arctic Cat7004x4 TRV LE Automatic EFI
2007Arctic Cat7004x4 Automatic Diesel
2007Arctic Cat7004x4 Automatic EFI
2007Arctic Cat7004x4 LE Automatic EFI
2006Arctic Cat7004x4 SE EFI
2010Arctic Cat10004x4 H2 MudPro Automatic EFI
2010Arctic Cat10004x4 TRV Automatic EFI
2010Arctic Cat10004x4 TRV Cruiser
2009Arctic Cat10004x4 H2 TRV Cruiser EFI
2009Arctic Cat10004x4 TRV

Product Notes

  • Fits front right (passenger side): 2006-2012 400 (excluding VP), 2010-2012 450, 2006-2014 500, 2009-2014 550, 2006-2012 650 (excluding Mud Pro), 2006-2014 700 (excluding Mud Pro), 2009-2010 1000.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

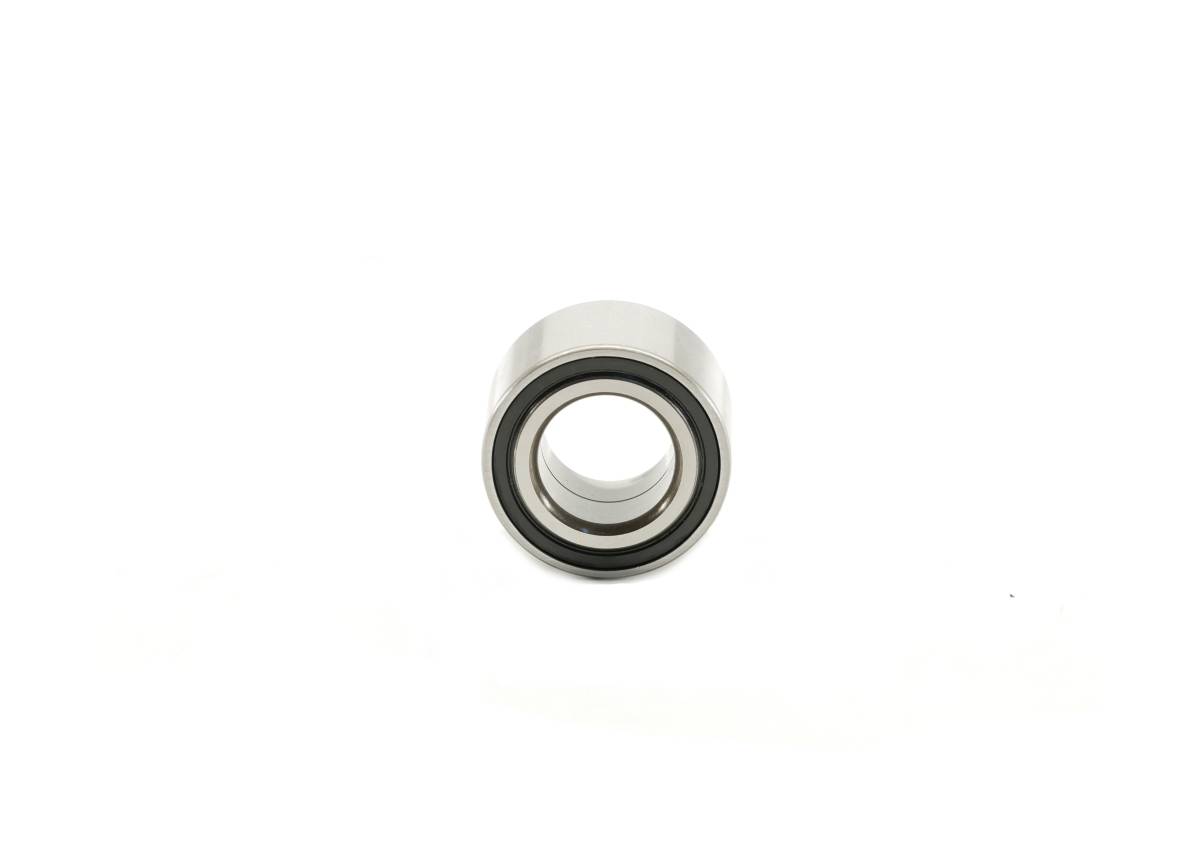

  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Inboard CV joint spline count: 24, Outboard CV joint spline count: 27, Compressed overall axle length: 548 mm. Replaces Arctic Cat OEM # (axle) 1502-874, 0502-812, 1502-344, (bearing) 1402-027 1402-809.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV axle & 1 wheel bearing
  • Warranty

    1 year factory defect limited warranty

    Details

    • AC-245/WB-1496
    • AC-245/WB-1496
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 11.0 lbs.
    • W5.0000” x H5.0000” x L31.0000”
