CV Axle Set for Polaris Sportsman ETX, 450 & 570 4x4 2015-2016

Location on vehicle: Rear,Front,Left,Right

PO-321/PO-321/PO-350/PO-350

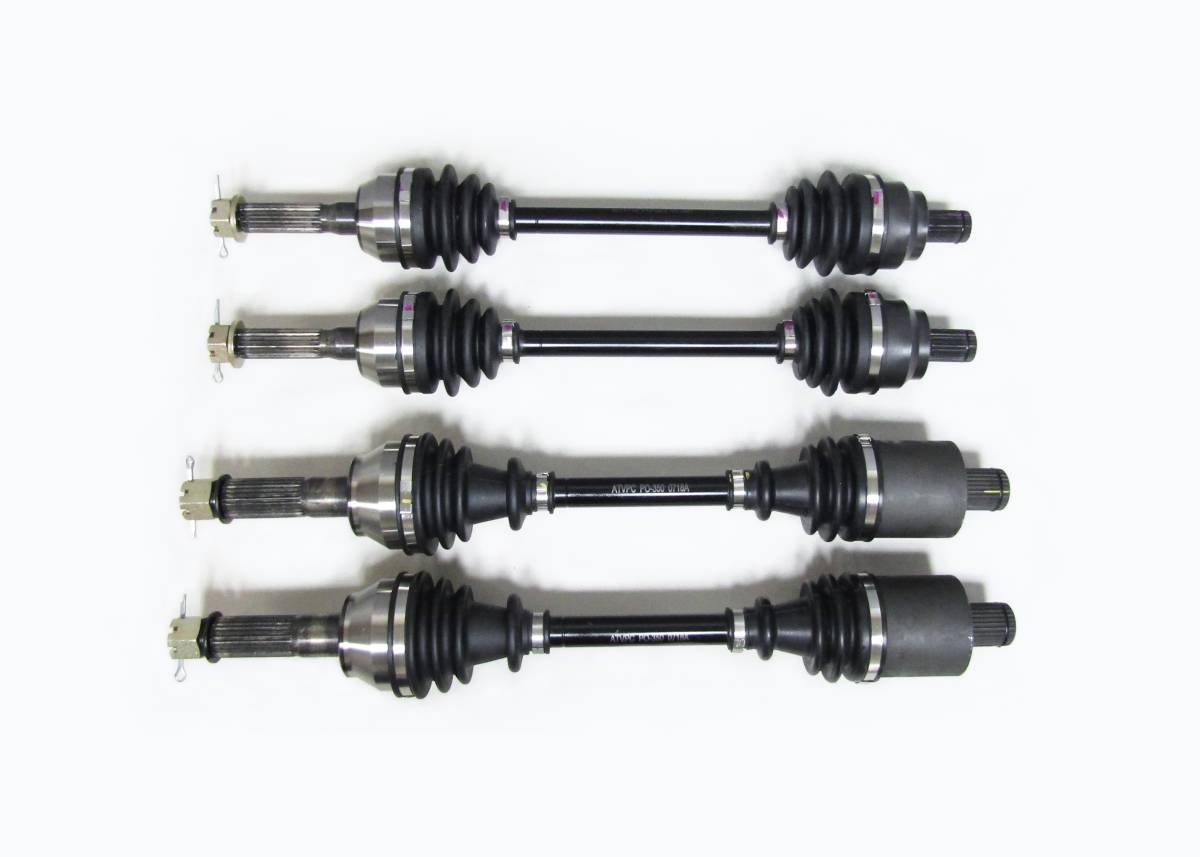

This is a set of new Front & Rear CV axles for a Polaris ATV.

They fit the following 4x4 models:

2015 ... Sportsman ETX

2016 ... Sportsman 450

2015-2016 ... Sportsman 570/X2 570

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts - 22, Rears - 28
  • Outboard CV joint spline count: Fronts - 20, Rears - 26
  • Compressed axle length: Fronts - 543 mm, Rears - 552 mm
Limited Supply: only 6 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $274.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2015 Sportsman ETX 325 4x4, 2016 Sportsman 450, 2013-2014 Sportsman 500 4x4, & 2015-2016 Sportsman 570/X2 570 4x4.
  • Features stronger than OEM chromoly forged steel axle bars * Greased with a moly based grease to provide superior joint lubrication * Fitted with neoprene CV boots for added wear and puncture resistance
  • Compressed axle length: Fronts - 543 mm, Rears - 552 mm, Inboard spline count: Fronts - 22, Rears 28, Outboard spline count: Fronts - 20, Rears - 26.
  • Replaces Polaris OE # (fronts) 1332931, (rears) 1333275, 1333677.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2016PolarisSportsman 450HO
    2016PolarisSportsman 570--
    2016PolarisSportsman 570EPS
    2016PolarisSportsman 570Pursuit Camo
    2016PolarisSportsman 570Pursuit Camo EPS
    2016PolarisSportsman 570Touring
    2016PolarisSportsman 570Touring EPS
    2015PolarisSportsman 570--
    2015PolarisSportsman 570EFI
    2015PolarisSportsman 570EPS
    2015PolarisSportsman 570Pursuit
    2015PolarisSportsman 570Pursuit EPS
    2015PolarisSportsman 570Touring
    2015PolarisSportsman 570Touring EPS
    2015PolarisSportsman ETX--
    2016PolarisSportsman SP 570--
    2016PolarisSportsman SP 5704x4 Hunter Edition
    2016PolarisSportsman SP 570Limited Edition
    2016PolarisSportsman SP 570Touring
    2015PolarisSportsman SP 570--
    2015PolarisSportsman SP 5704x4 Hunter Edition
    2015PolarisSportsman SP 570Black Pearl LE
    2015PolarisSportsman SP 570Touring
    2015PolarisSportsman SP 570Touring EFI
    2015PolarisSportsman SP 570Touring EPS
    2016PolarisSportsman X2 570EPS
    2015PolarisSportsman X2 570EPS

    Details

    • PO-321/PO-321/PO-350/PO-350
    • PO-321/PO-321/PO-350/PO-350
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 39.0 lbs.
    • W10.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
