Front Right CV Axle & Wheel Bearing for Yamaha Grizzly 660 4x4 2003-2008

Location on vehicle: Front,Right

WB-1496/YA-211

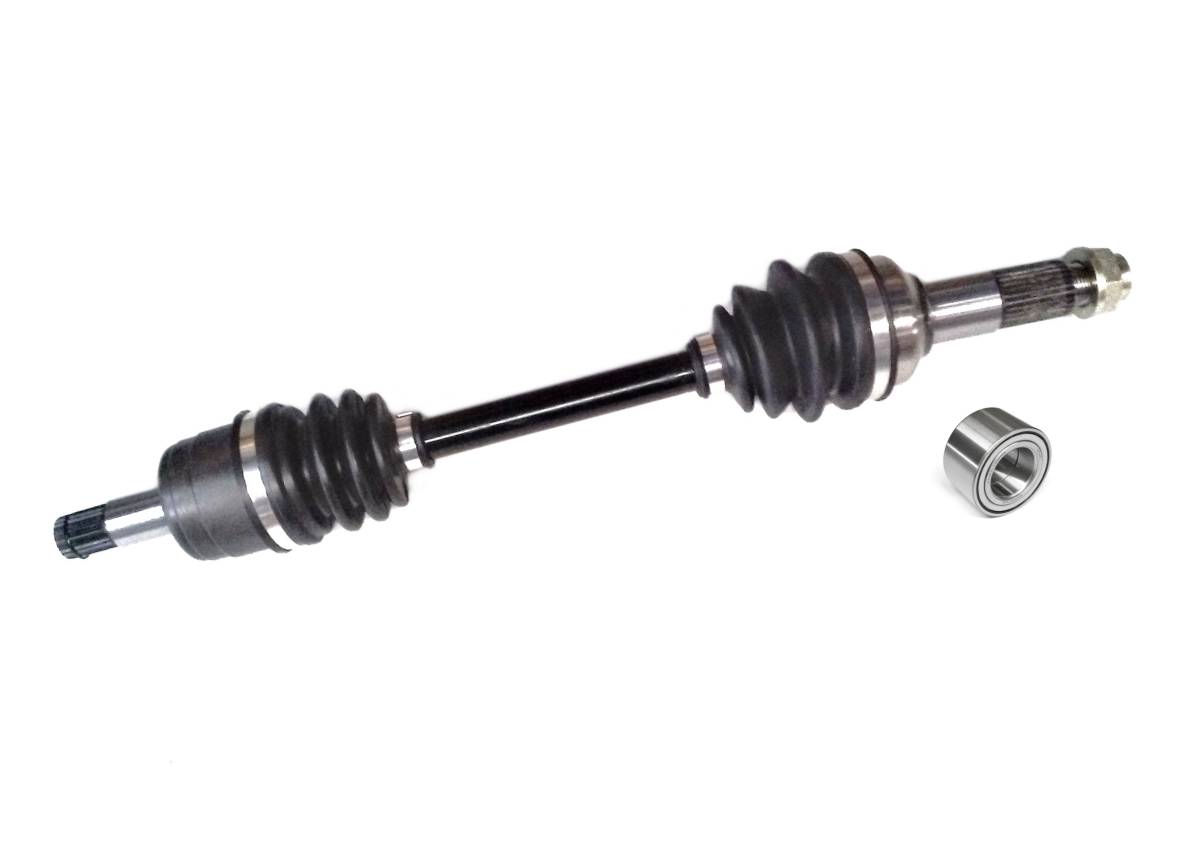

This is a new Front, Right CV axle & wheel bearing for a Yamaha ATV.

They fit the following 4x4 applications:

2003-2008 ... Grizzly 660

Front, Right / Passenger Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

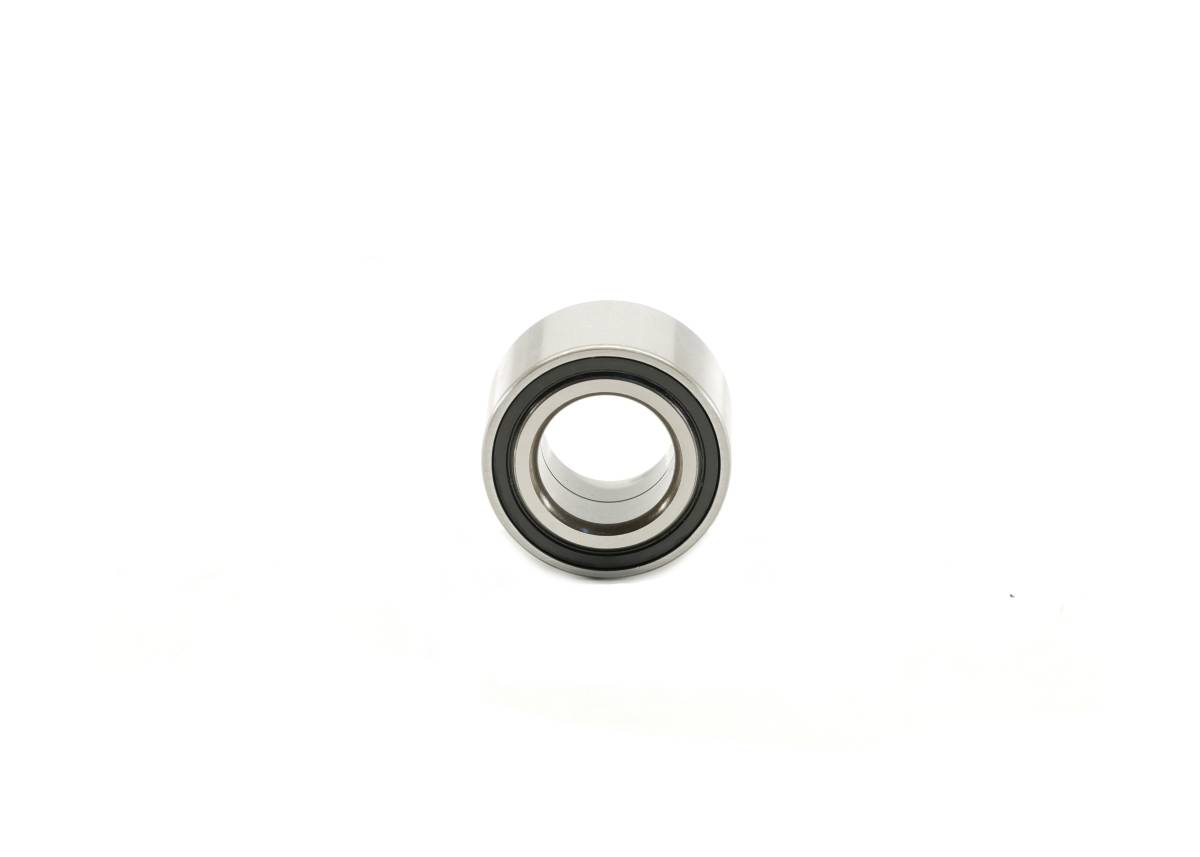

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out

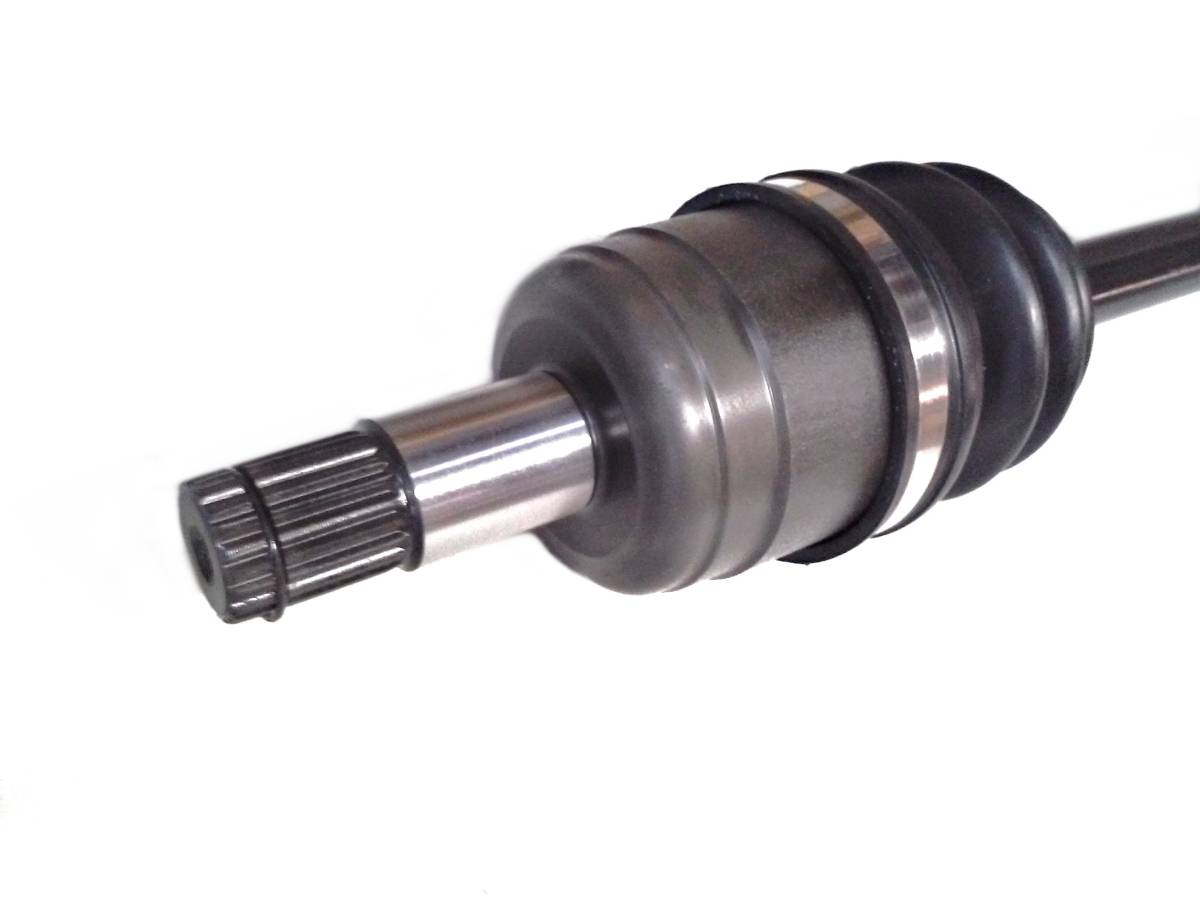

  • Inboard CV joint spline count: 21

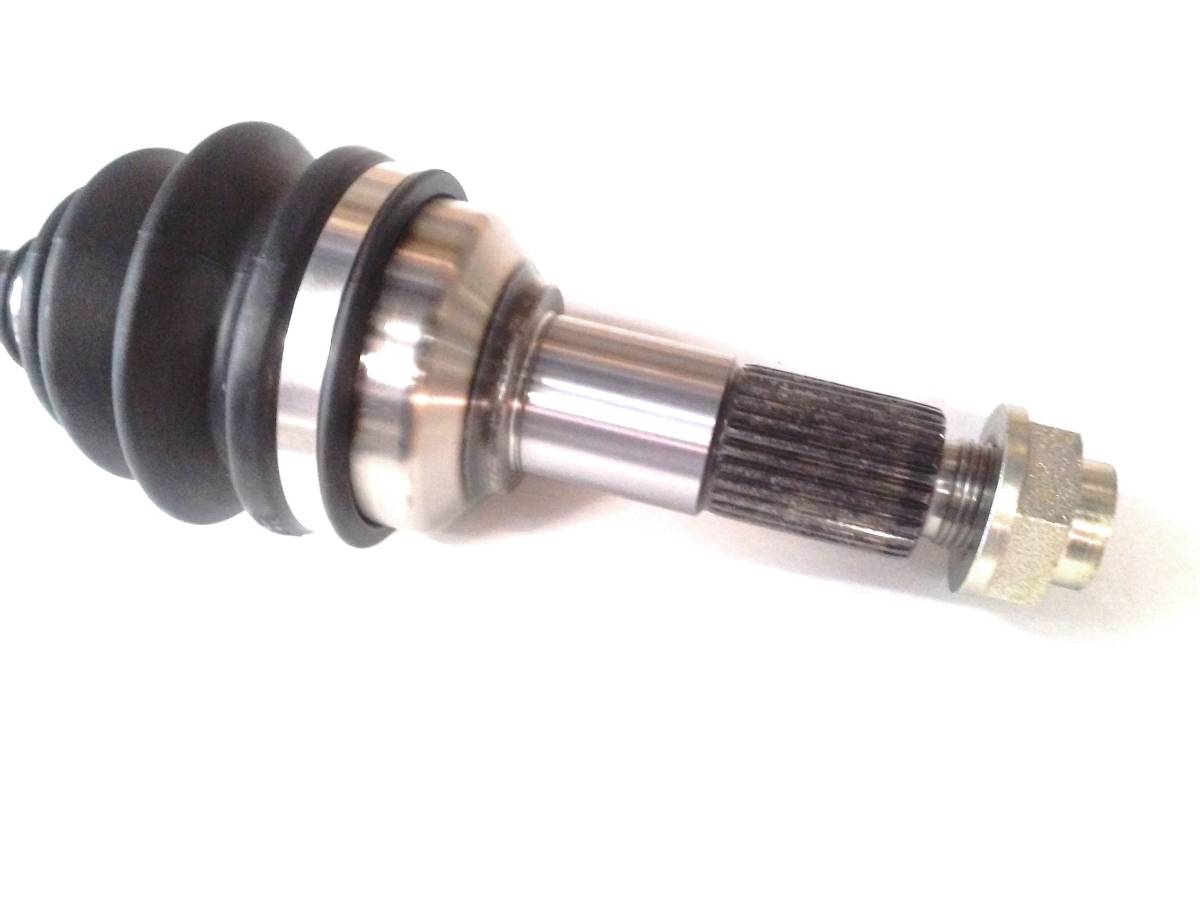

  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 491.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $74.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits all Grizzly 660 4x4 models built from 2003-2008.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Compressed Length - 491.5 mm, Inner Spline Count - 21, Outer Spline Count - 27 * Replaces OE # 5KM-2510F-10-00, 5KM-2510F-11-00, 5KM-2510J-20-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV axle & 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2008YamahaGrizzly 660YFM660FA 4x4
    2008YamahaGrizzly 660YFM660FG 4x4
    2008YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
    2007YamahaGrizzly 660YFM660FG 4x4
    2007YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
    2006YamahaGrizzly 660YFM660FA 4x4
    2006YamahaGrizzly 660YFM660FAH 4x4 Hardwoods Hunter Edition
    2006YamahaGrizzly 660YFM660FAH 4x4 Outdoorsman Edition
    2006YamahaGrizzly 660YFM660FAHD 4x4 Ducks Unlimited Edition
    2006YamahaGrizzly 660YFM660FASE 4x4 Special Edition
    2005YamahaGrizzly 660YFM660FA 4x4
    2005YamahaGrizzly 660YFM660FAH 4x4 Hunter Edition
    2005YamahaGrizzly 660YFM660FAHW 4x4 Wetlands Hunter Edition
    2005YamahaGrizzly 660YFM660FASE 4x4 Special Edition
    2004YamahaGrizzly 660YFM660F 4x4
    2004YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
    2004YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition
    2004YamahaGrizzly 660YFM660FLE 4x4 Limited Edition
    2003YamahaGrizzly 660YFM660F 4x4
    2003YamahaGrizzly 660YFM660F 4x4 Limited Edition
    2003YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
    2003YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition
