Rear CV Axle Pair for Polaris Ranger 500 570 & ETX 1333069

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
PO-375/PO-375

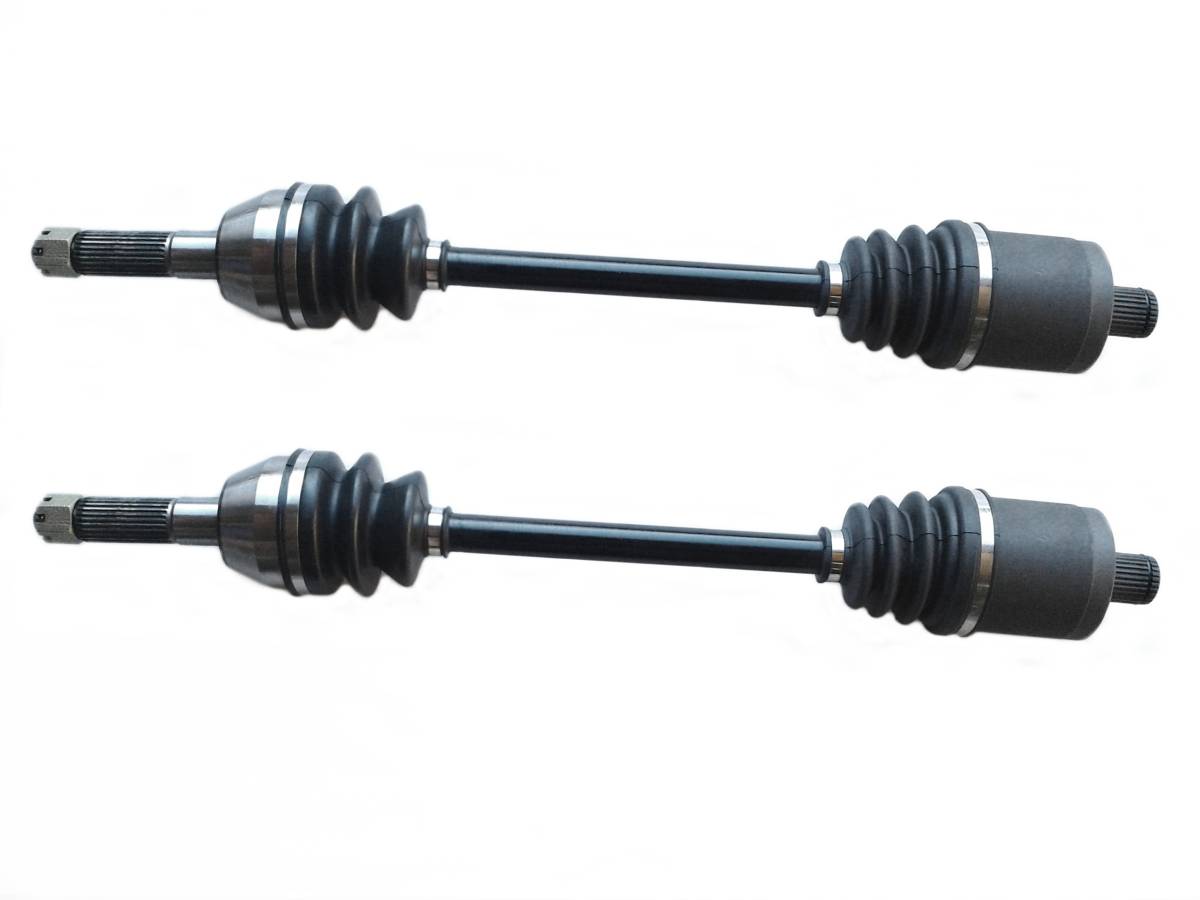

This is a pair of new Rear CV axles for a Polaris UTV.

They fit the following models:

2015-2017 ... Ranger ETX (325cc & 500cc)

2017-2019 ... Ranger 500 2x4/4x4

2014-2019 ... Ranger 570/Crew 570

(only fits 'midsize' models from 2014-2015)

2015 ... GEM M1400 - LEV

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

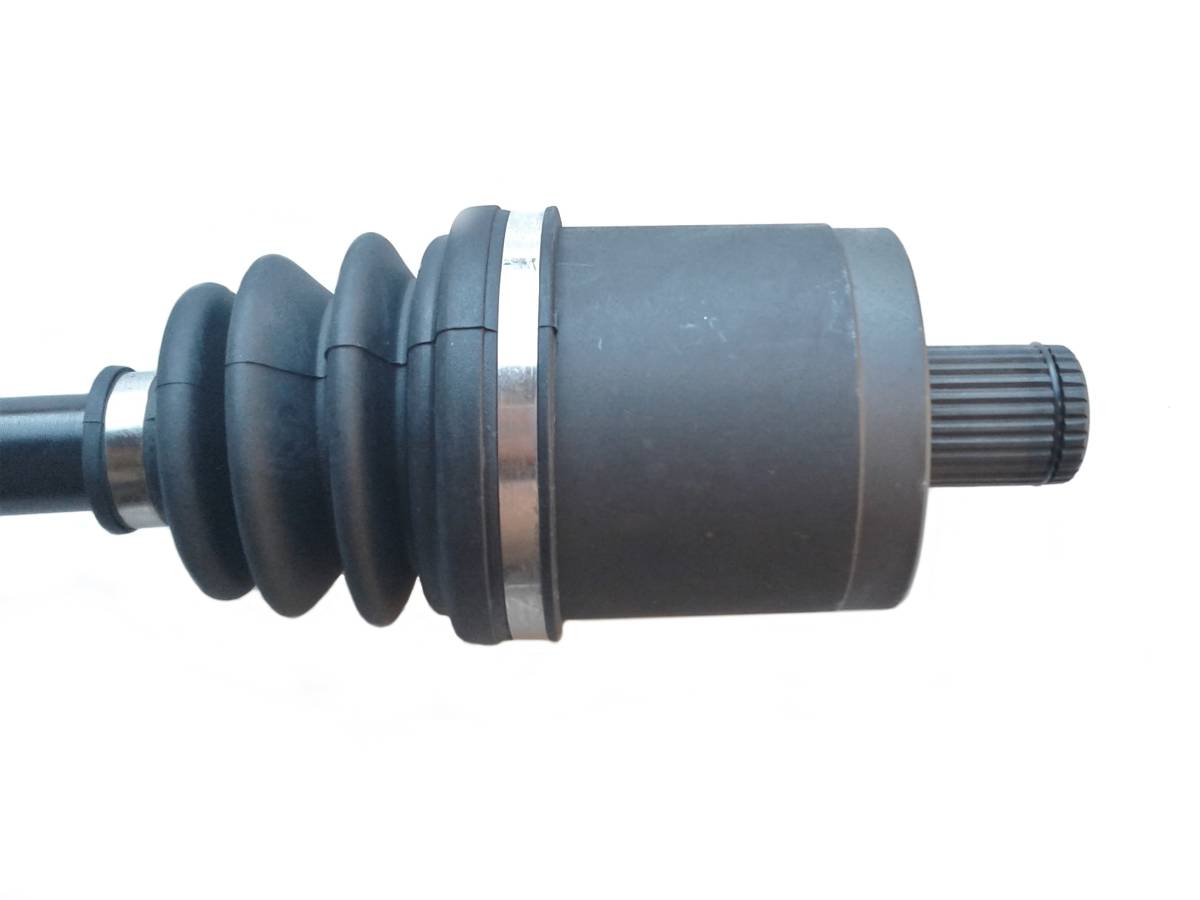

  • Inboard CV joint spline count: 28 (both)

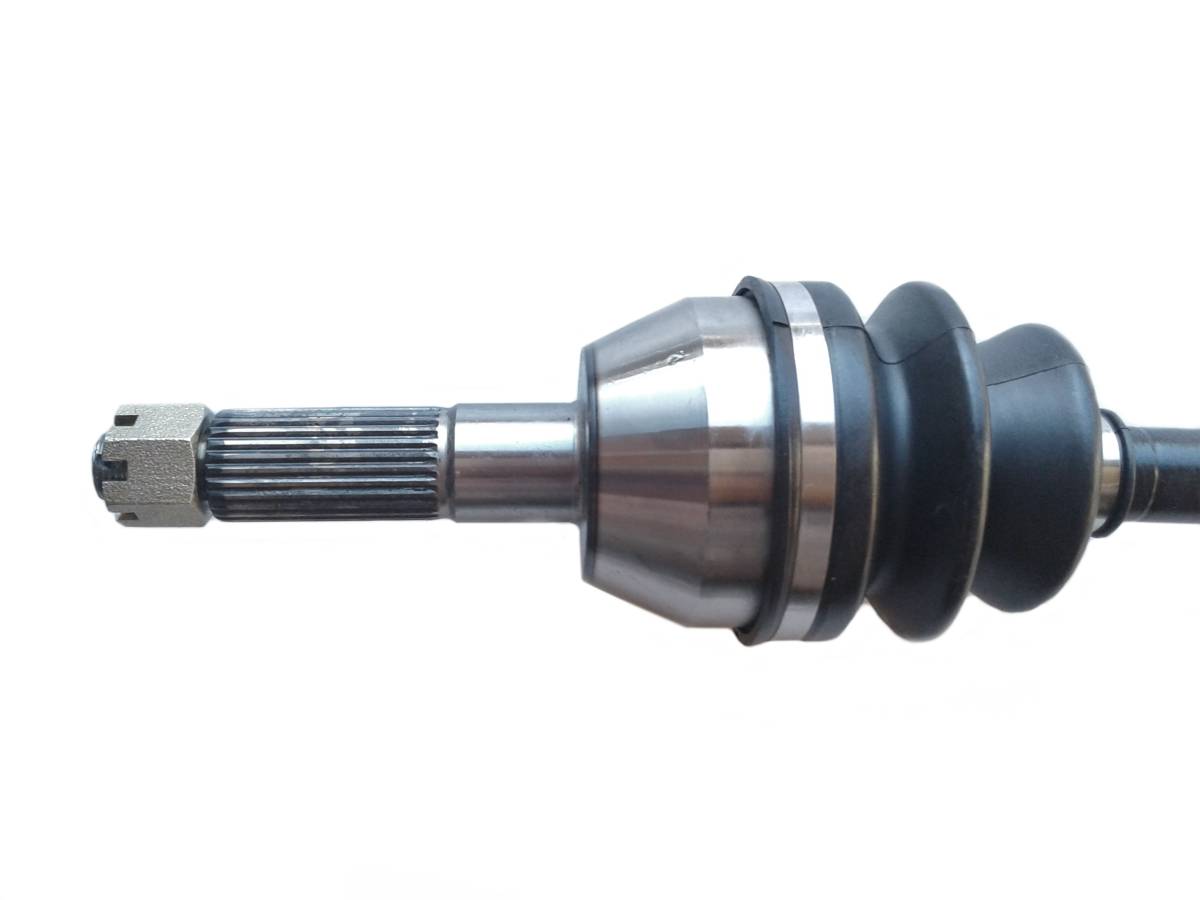

  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 641.5 mm (both)
  • Replaces Polaris OE # 1333069, 1333628
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $134.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 2015-2017 Ranger ETX (325/500cc), 2017-2019 Ranger 500 2x4/4x4, 2014-2019 Ranger 570/Crew 570 (only midsize from 2014-2015), & 2015 GEM M1400 (LEV).
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 641.5 mm (both), Inboard Spline Count - 28 (both), Outboard Spline Count - 26 (both).
  • Replaces Polaris OE # 1333069, 1333628.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2015PolarisM1400--
    2018PolarisRanger 500--
    2017PolarisRanger 5002x4
    2017PolarisRanger 5004X4
    2018PolarisRanger 570--
    2018PolarisRanger 5704x4 Full Size
    2018PolarisRanger 570EPS
    2017PolarisRanger 570--
    2017PolarisRanger 5704x4 Full Size
    2017PolarisRanger 570EPS
    2017PolarisRanger 570Pursuit Camo
    2016PolarisRanger 5704x4 Full Size
    2016PolarisRanger 5704x4 Full Size EPS
    2015PolarisRanger 570EPS
    2015PolarisRanger Crew 570EPS
    2018PolarisRanger Crew 570-44X4
    2018PolarisRanger Crew 570-44x4 EPS
    2017PolarisRanger Crew 570-44X4
    2017PolarisRanger Crew 570-44x4 EPS
    2017PolarisRanger Crew 570-4Pursuit Camo
    2018PolarisRanger Crew 570-64X4
    2017PolarisRanger Crew 570-64X4
    2016PolarisRanger Crew 570-64X4
    2016PolarisRanger Crew 570-64x4 EPS
    2016PolarisRanger ETX--
    2015PolarisRanger ETX--

    Details

    • PO-375/PO-375
    • PO-375/PO-375
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 31.0 lbs.
    • W10.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
