CV Axle Set for Polaris Ranger 400 500 & Midsize 800 4x4 UTV

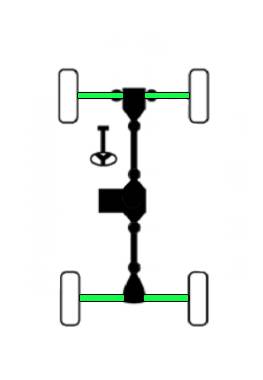

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
PO-314/PO-314/PO-343/PO-343

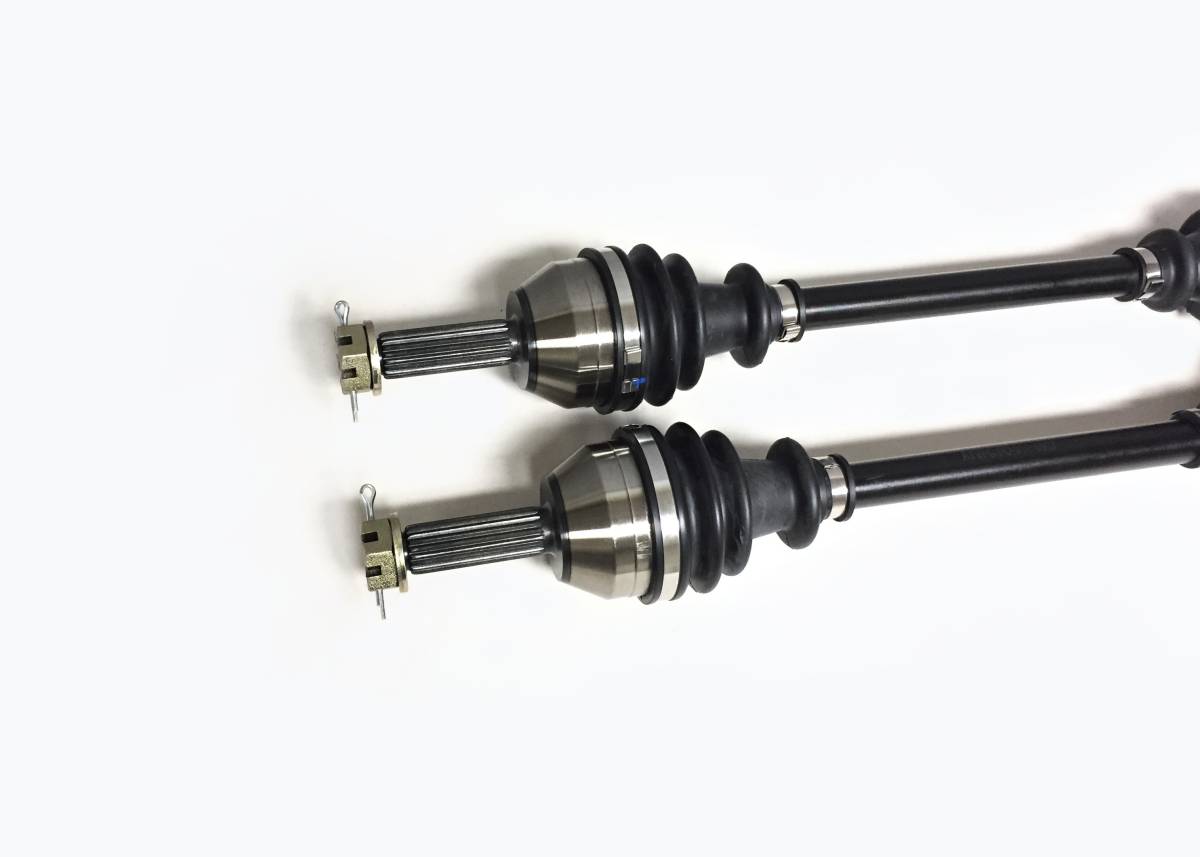

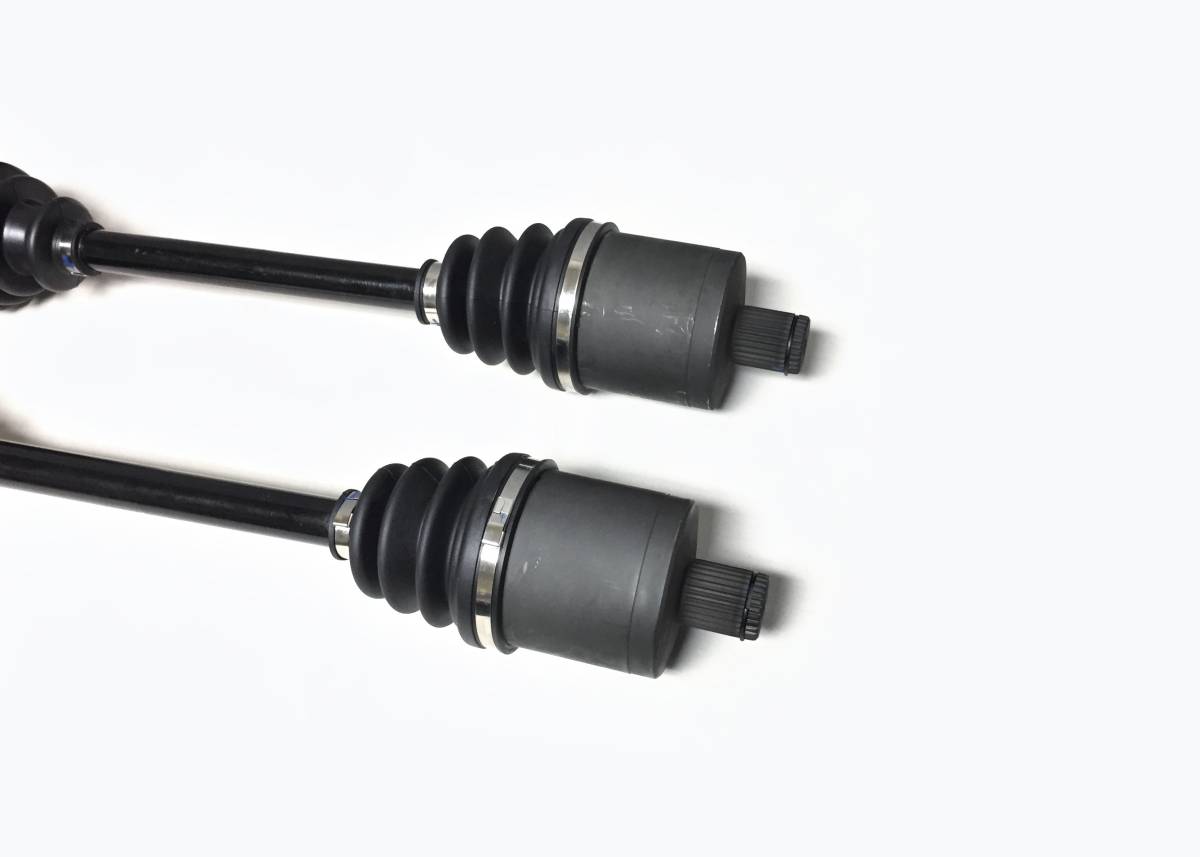

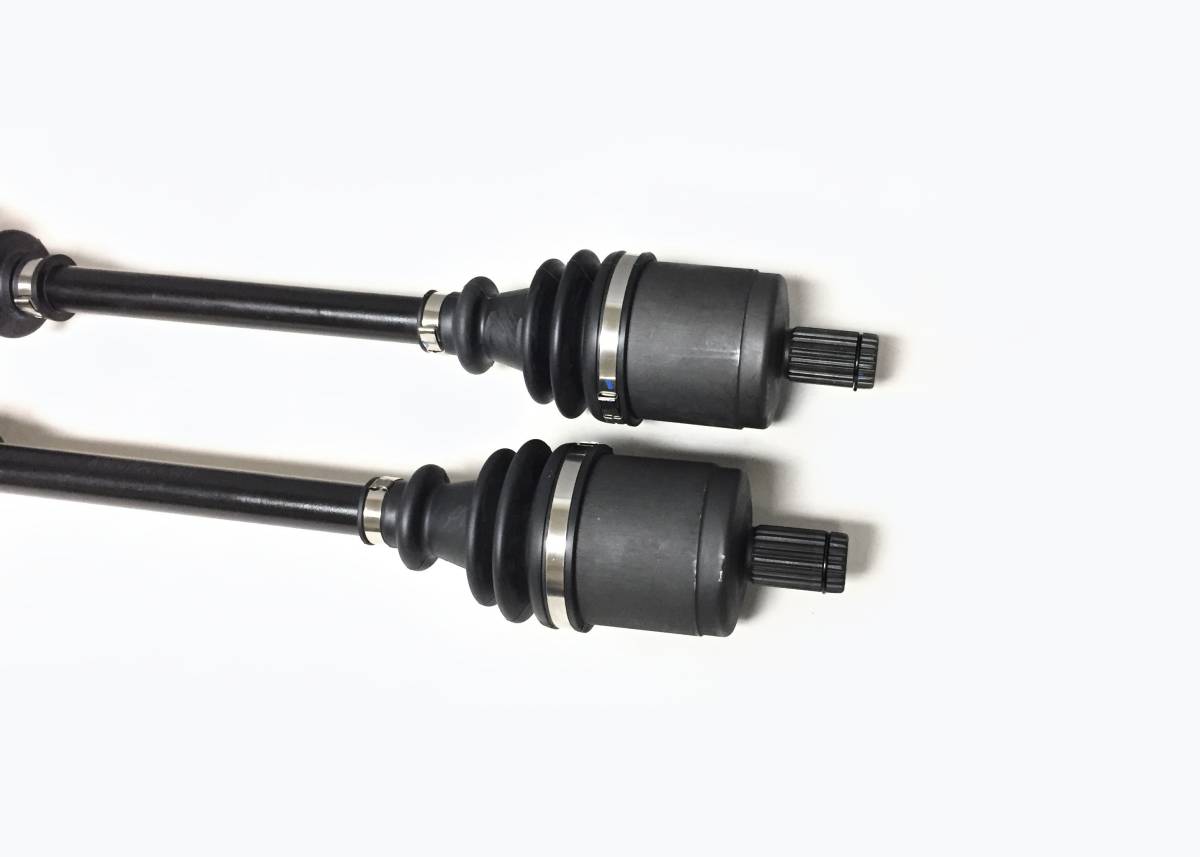

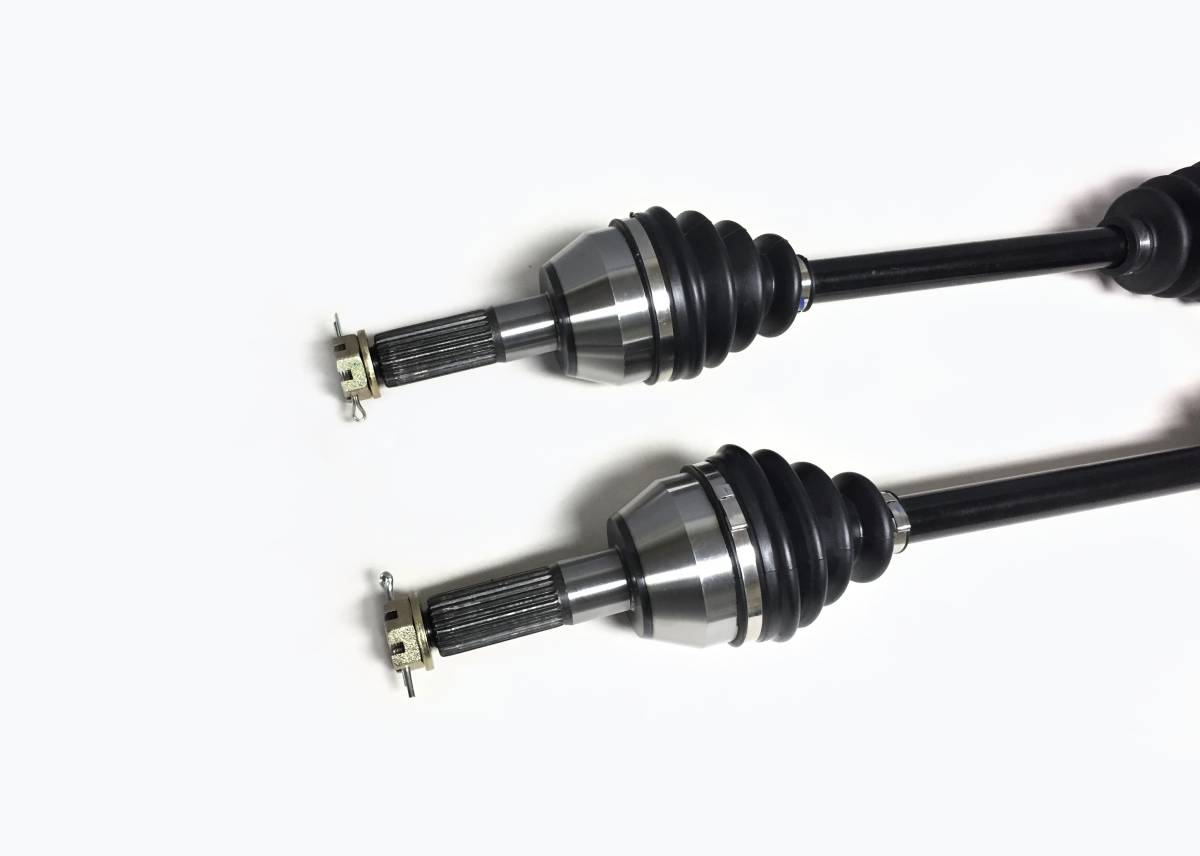

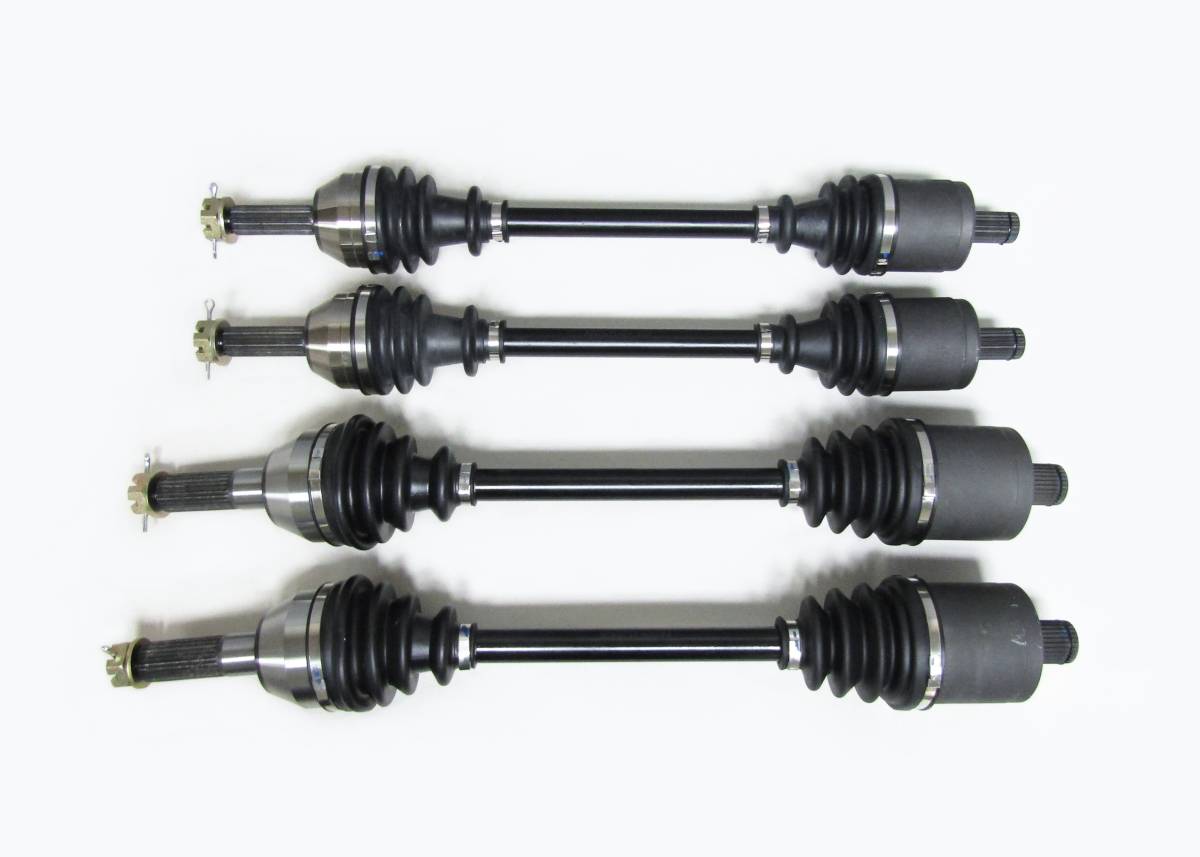

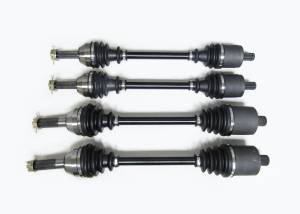

This is a set of new front and rear CV axles for a Polaris UTV.

They fit the following 4x4 models:

2010-2014 ... Ranger 400

2011-2013 ... Ranger 500/Crew 500

2013-2014 ... Ranger Midsize 800

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • inobard CV joint spline count: fronts - 22, rears - 28
  • outboard CV joint spline count: fronts - 20, rears - 26
  • Compressed overall axle length (mm): fronts - 594 mm, rears 670 mm
  • Replaces Polaris OE # 1333134, 1332690, 2203877, 1332692
Limited Supply: only 6 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $299.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014PolarisRanger 4004X4
2013PolarisRanger 400Midsize
2012PolarisRanger 4004X4
2012PolarisRanger 4004x4 Pursuit
2011PolarisRanger 4004X4
2011PolarisRanger 400Pursuit HO
2010PolarisRanger 4004X4
2013PolarisRanger 500LE Midsize EFI
2013PolarisRanger 500Midsize EFI
2012PolarisRanger 5004x4 EFI
2012PolarisRanger 5004x4 LE EFI
2011PolarisRanger 5004x4 EFI
2014PolarisRanger 800Midsize EFI
2014PolarisRanger 800Midsize LE EFI EPS
2014PolarisRanger 800Midsize Pursuit EFI
2013PolarisRanger 800LE Midsize EFI
2013PolarisRanger 800Midsize EFI
2013PolarisRanger Crew 500LE Midsize
2013PolarisRanger Crew 500Midsize
2013PolarisRanger Crew 500Pursuit
2012PolarisRanger Crew 5004X4
2012PolarisRanger Crew 5004x4 LE
2011PolarisRanger Crew 5004X4
2011PolarisRanger Crew 5004x4 Pursuit

Product Notes

  • Fits the following Polaris UTV models: 2010-2014 Ranger 400, 2011-2013 Ranger 500/Crew 500, & 2013-2014 'Mid-Size' Ranger 800.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 1333134, 1332690, 2203877, 1332692. Compressed length: fronts - 594 mm, rears - 670 mm, Inboard spline count: fronts - 22, rears - 28, Outboard spline count: fronts - 20, rears - 26.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-314/PO-314/PO-343/PO-343
    • PO-314/PO-314/PO-343/PO-343
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 52.0 lbs.
    • W10.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
