Front CV Axle Pair for Polaris Full Size Ranger 570 4x4 2017-2021

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
PO-378/PO-378

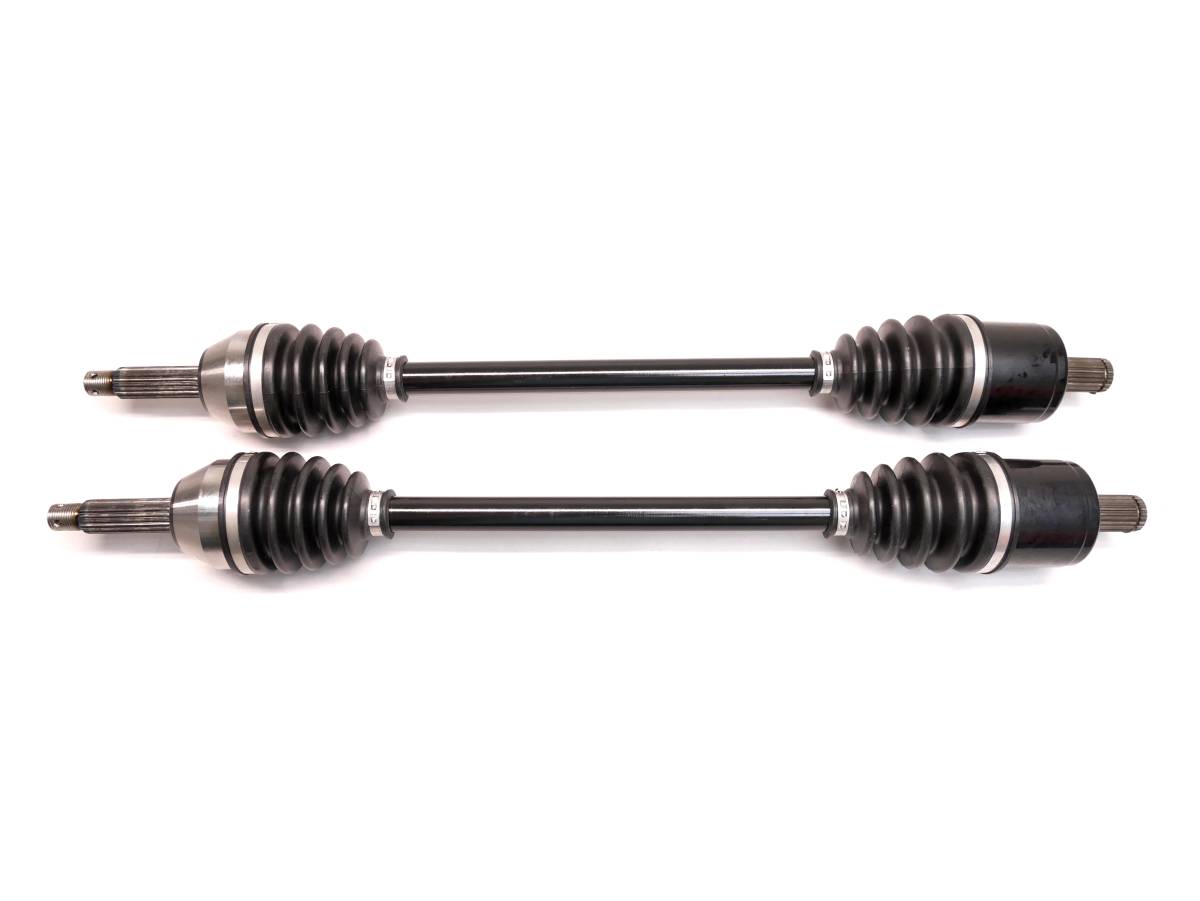

This is a pair of new Front CV axles for a Polaris UTV.

They fit the following 4x4 models:

2017-2021 ... Full Size Ranger 570

2018-2021 ... Full Size Ranger Crew 570

Front Left & Right side

(please note these will only fit 'Full Size' models)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

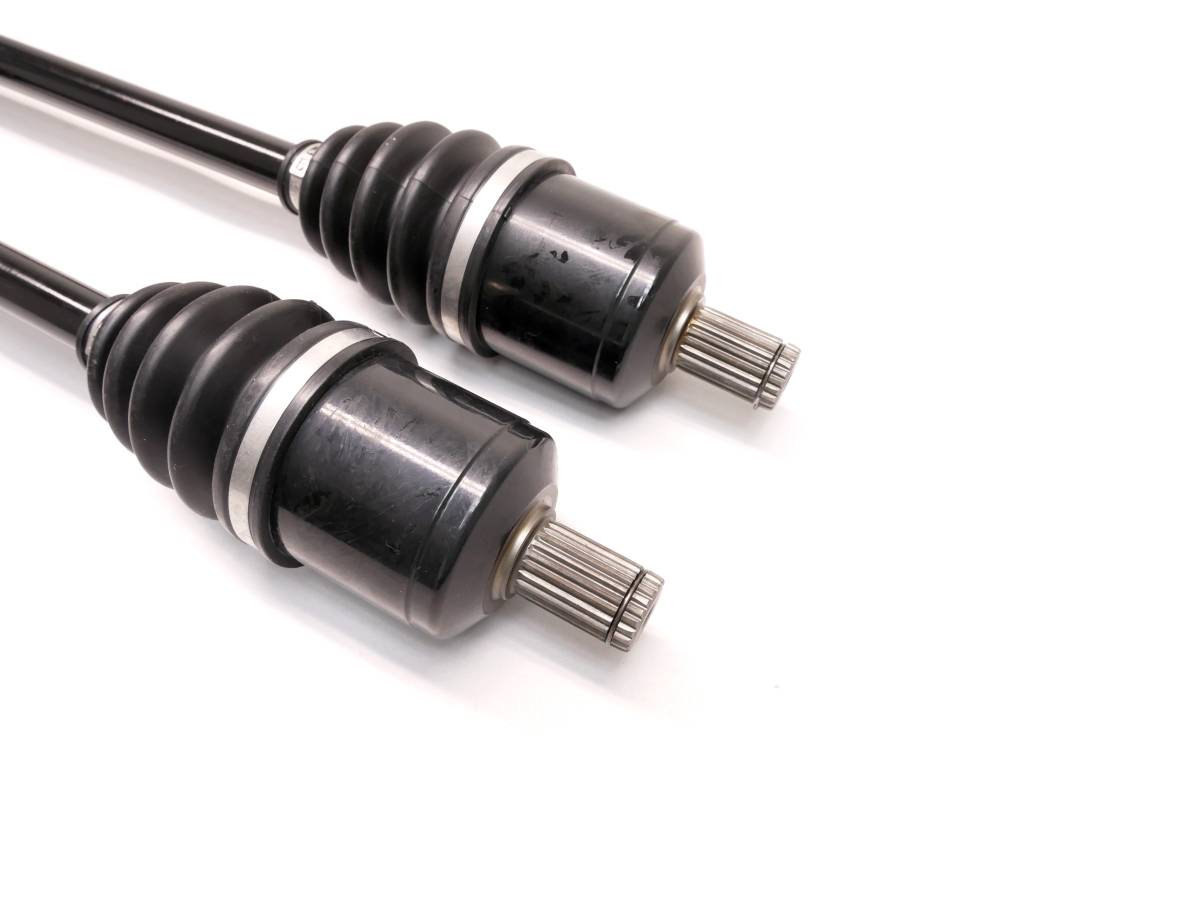

  • Inboard CV joint spline count: 22 (both)

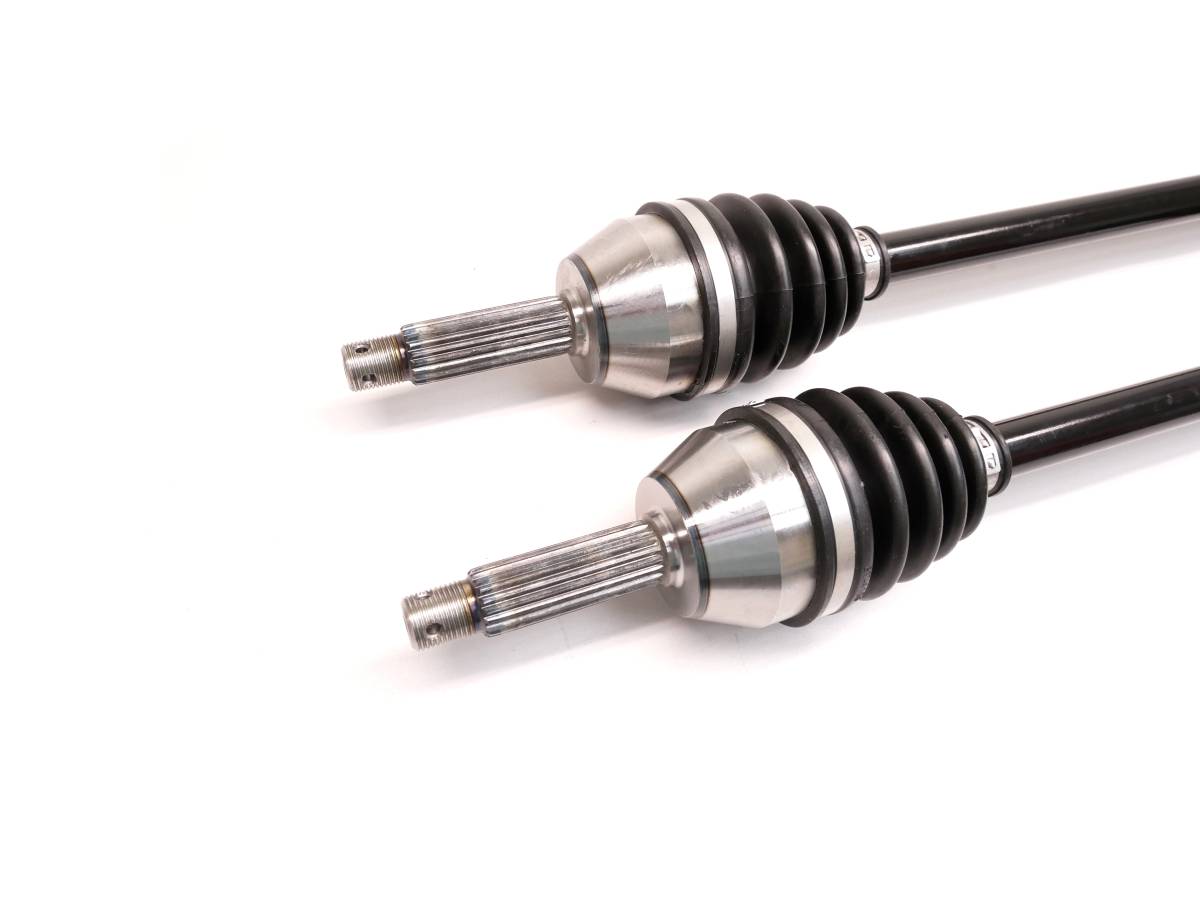

  • Outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: 664 mm (both)
  • Replaces Polaris OE # 1333743
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $144.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2017PolarisRanger 5704x4 Full Size
2018PolarisRanger 5704x4 Full Size
2019PolarisRanger 5704x4 Full Size

Product Notes

  • Fits front, left and right on the following Polaris UTV models: 2017-2021 'Full Size' Ranger 570 4x4, 2018-2021 'Full Size' Ranger Crew 570 4x4.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 1333743. Compressed length - 664 mm (both), Inboard spline count - 22 (both), Outboard spline count - 20 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-378/PO-378
    • PO-378/PO-378
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 23.0 lbs.
    • W10.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
