Additional Images

CV Axle Set for Can-Am 72" Maverick X3 XRS & MAX X3 XRS, 705401829, 705401830

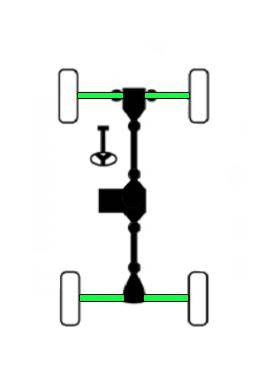

Location on vehicle: Front,Rear,Left,Right

CA-123/CA-223/CA-328/CA-328

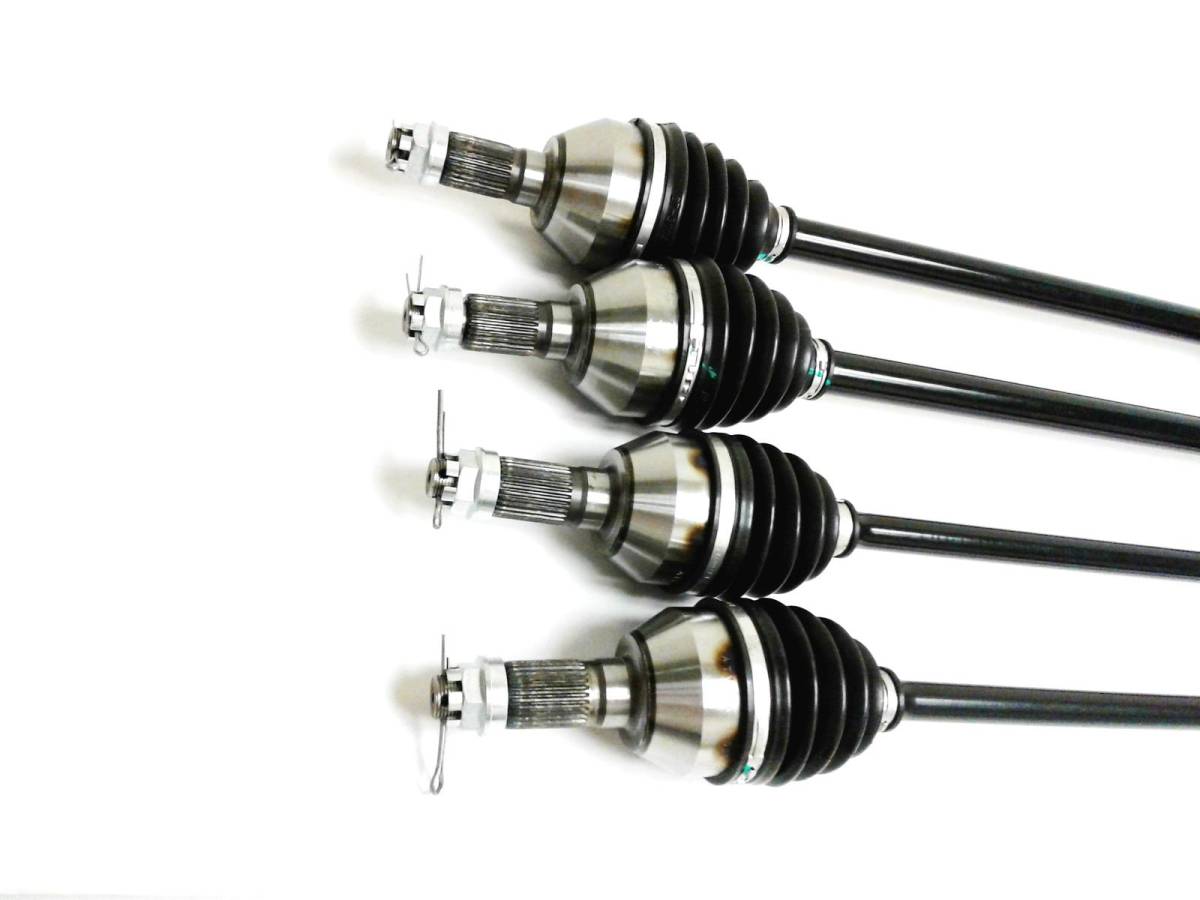

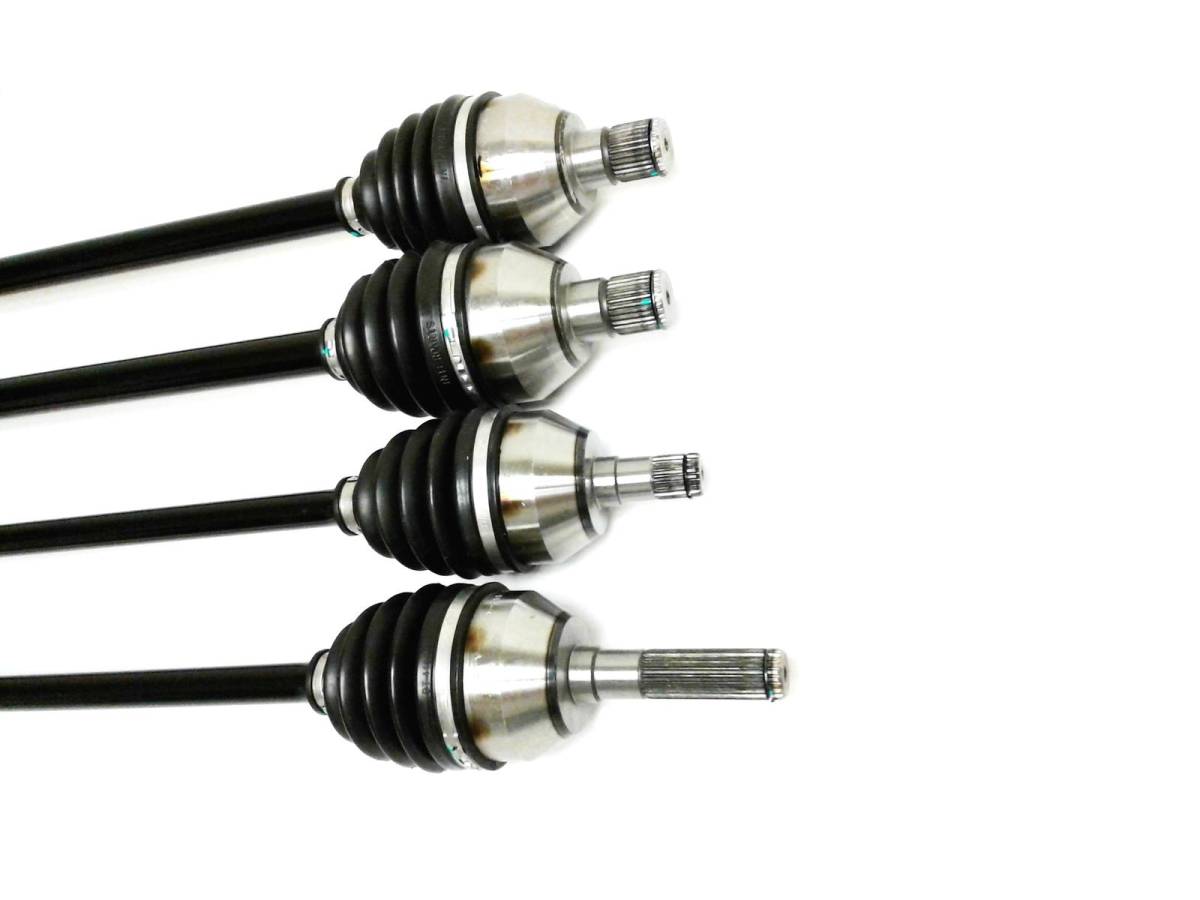

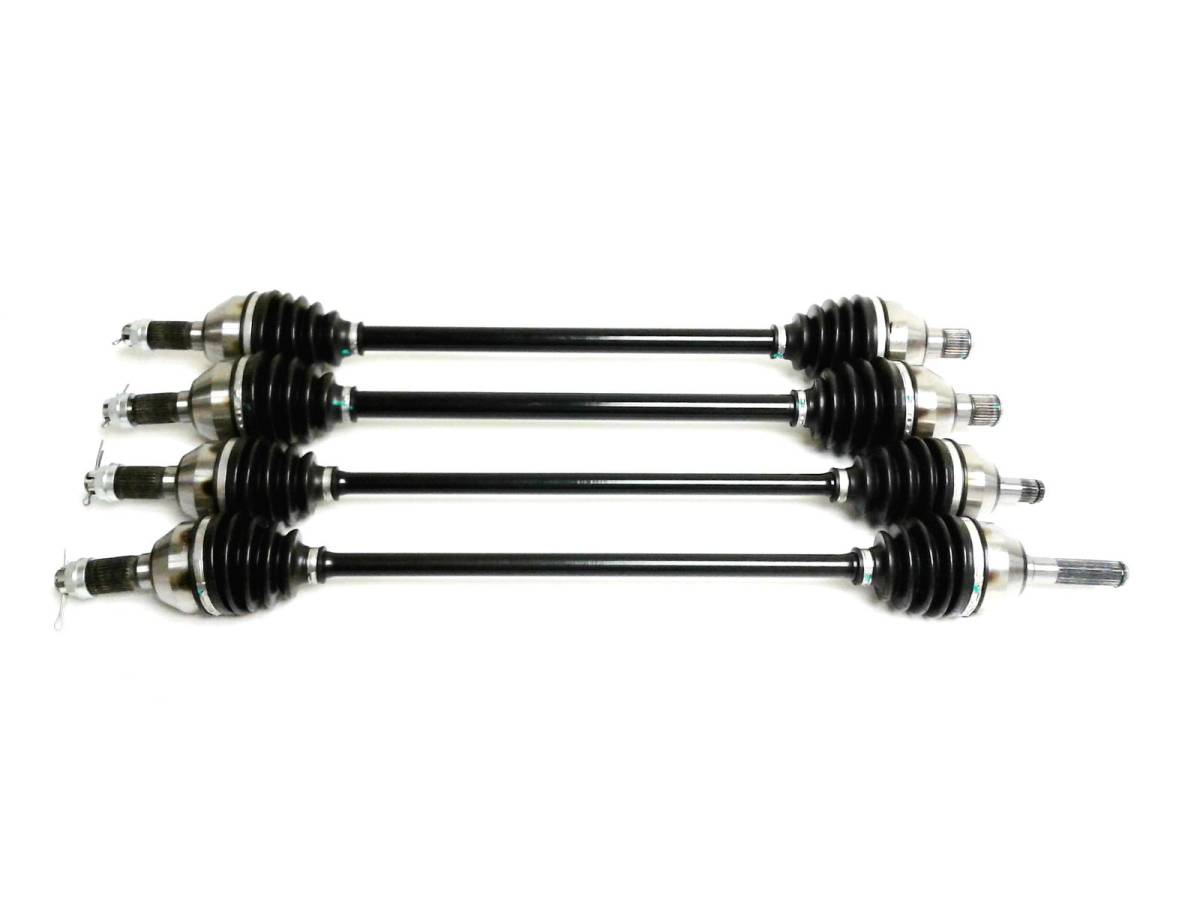

This is a set of new cv axles for a Can-Am 72" Maverick XRS.

They fit the following models:

2017-2018 ... X3 XRS & Turbo R XRS

2017-2018... MAX X3 XRS & Turbo R XRS (models without Smart Lok)

2021 ... X3 Turbo R DS- RS

2021 ... MAX Turbo R- RS

*Axles made as OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Fronts - 21, Rears - 30
  • Outboard CV joint spline count: Fronts - 29, Rears - 29
  • Compressed overall axle length: FL - 876.3, FR - 831.5, RL/RR - 845
  • Replaces OEM # (front left) 705401830, 705402099, & (front right) 705401829, 705402100, (rears) 705502362
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $379.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021Can-AmMaverick X3 Max R4x4 RS Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XRS Turbo DPSmodels without Smart Lok
2017Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
2021Can-AmMaverick X3 R4x4 RS Turbo DPS
2018Can-AmMaverick X3 R4x4 XRS Turbo DPS
2017Can-AmMaverick X3 R4x4 XRS Turbo DPS

Product Notes

  • Fits the following Can-Am Maverick 72" XRS models: 2017-2018 X3 XRS & Turbo R XRS, 2017-2018 MAX X3 XRS & Turbo R XRS (models without Smart Lok), 2021 X3 Turbo R DS- RS, 2021 MAX Turbo R- RS. Please note these are for 72" models only.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # (front left) 705401830, 705402099, & (front right) 705401829, 705402100, (rears) 705502362. Compressed length (mm): FL- 876.3, FR- 831.5, RL/RR- 845, Inboard spline count: fronts- 21, rears- 30, Outboard spline count: fronts- 29, rears- 29.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 4 axles
  • Warranty

    1 year factory defect limited warranty

    Details

    • CA-123/CA-223/CA-328/CA-328
    • CA-123/CA-223/CA-328/CA-328
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 64.0 lbs.
    • W10.0000” x H10.0000” x L39.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
