Front CV Axle Pair for Can-Am Maverick X3 XRS & MAX X3 XRS, 705401829, 705401830

Location on vehicle: Front,Left,Right

CA-123/CA-223

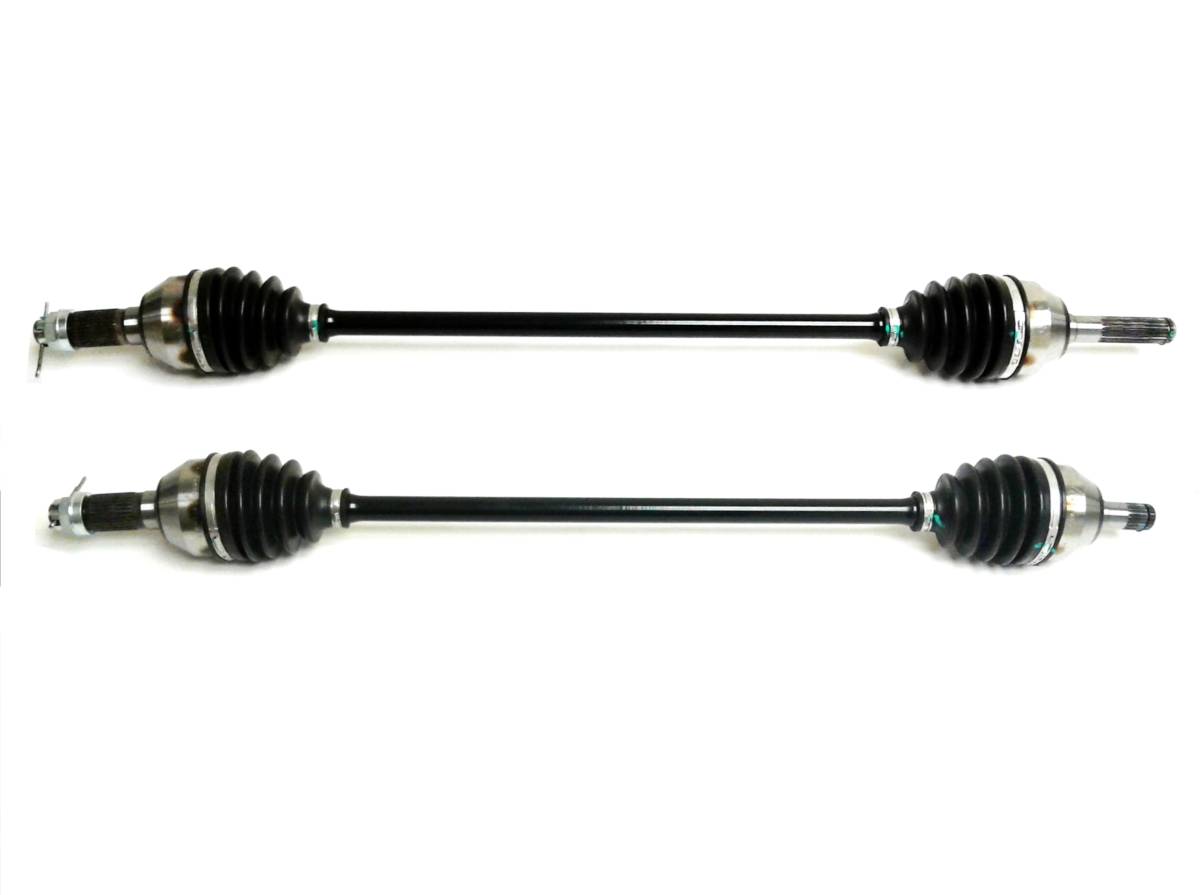

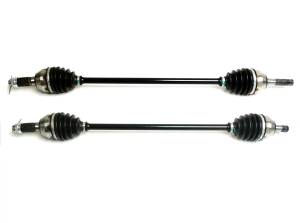

This is a pair of new cv axles for a Can-Am 72" Maverick XRS.

They fit front, left & right on the following models:

2017-2018 X3 XRS & Turbo R XRS

2017-2018 MAX X3 XRS & Turbo R XRS (models without Smart Lok)

2021 X3 Turbo R DS- RS

2021 MAX Turbo R- RS

*Axles made as OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: 21 (both)
  • outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: left - 876 mm, right - 831 mm
  • Replaces OEM # (left) 705401830, 705402099, & (right) 705401829, 705402100
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021Can-AmMaverick X3 Max R4x4 RS Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XRS Turbo DPSmodels without Smart Lok
2017Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
2021Can-AmMaverick X3 R4x4 RS Turbo DPS
2018Can-AmMaverick X3 R4x4 XRS Turbo DPS
2017Can-AmMaverick X3 R4x4 XRS Turbo DPS

Product Notes

  • Fits front, left & right on the following Can-Am Maverick 72" XRS models: 2017-2018 X3 XRS & Turbo R XRS, 2017-2018 MAX X3 XRS & Turbo R XRS (models without Smart Lok), 2021 X3 Turbo R DS- RS, 2021 MAX Turbo R- RS.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # (left) 705401830, 705402099, & (right) 705401829, 705402100. Compressed length: left - 876 mm, right - 831 mm, Inboard spline count: 21 (both), Outboard spline count: 29 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 2 axles
  • Warranty

    1 year factory defect limited warranty

    Details

    • CA-123/CA-223
    • CA-123/CA-223
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 30.0 lbs.
    • W10.0000” x H5.0000” x L39.0000”
    • Free Ground Shipping
