Rear CV Axle Pair for Can-Am Maverick XXC 1000 4x4 2014-2015

Location on vehicle: Rear,Left,Right

CA-308/CA-308

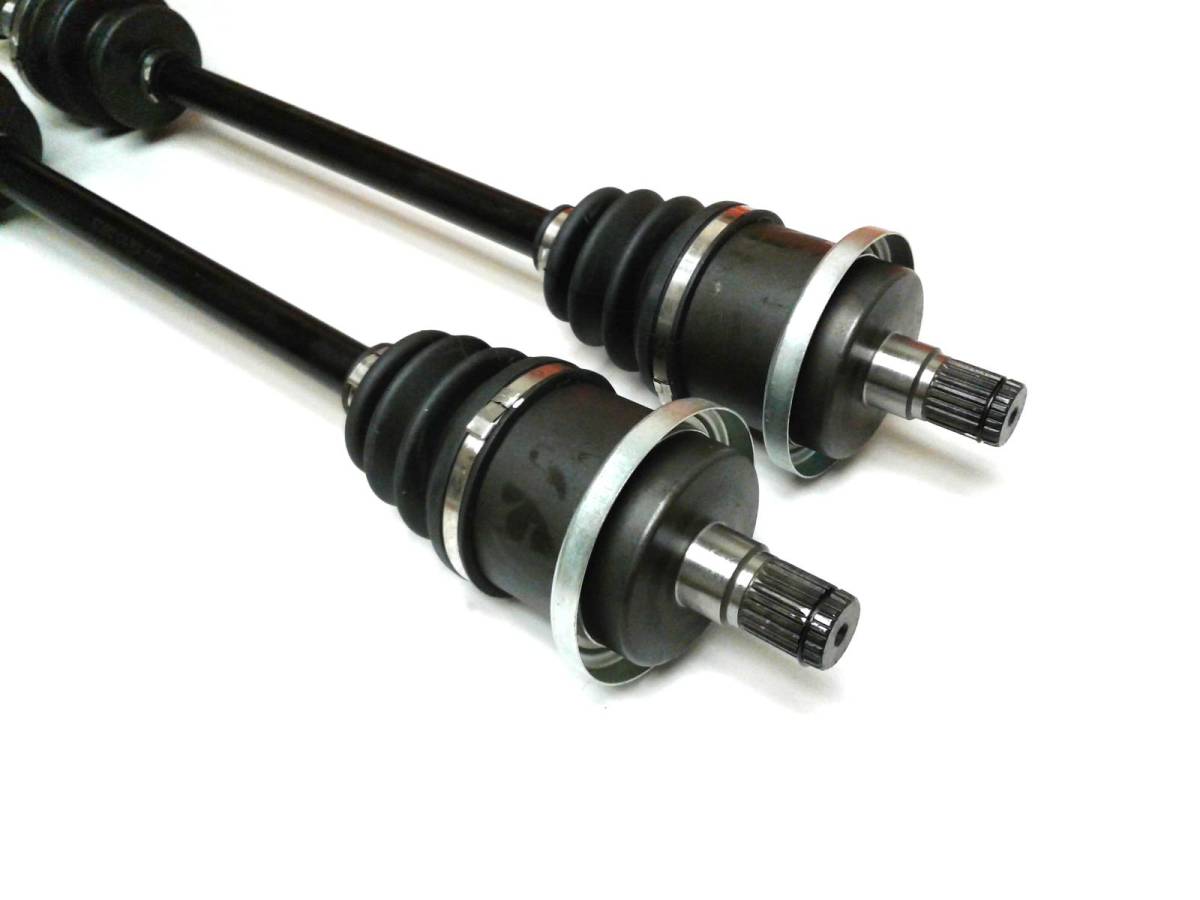

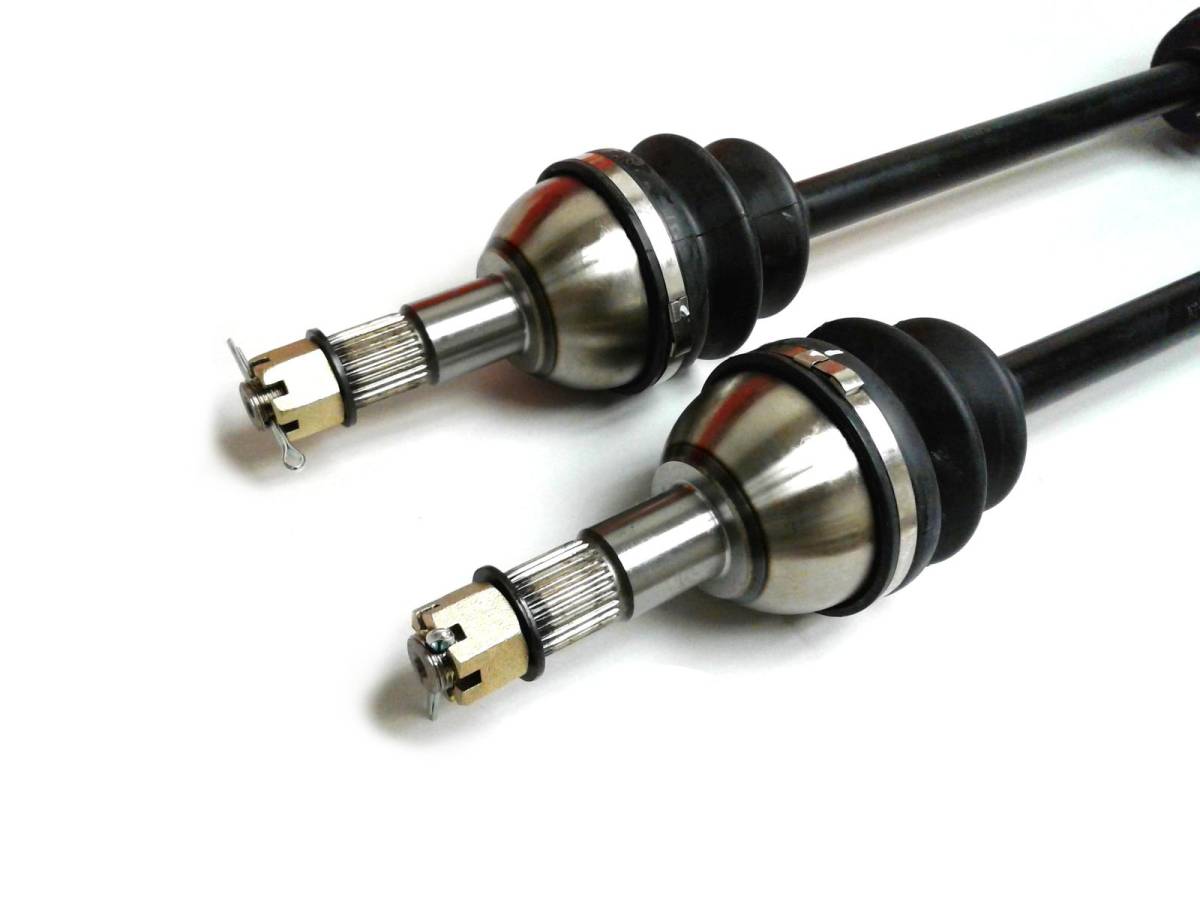

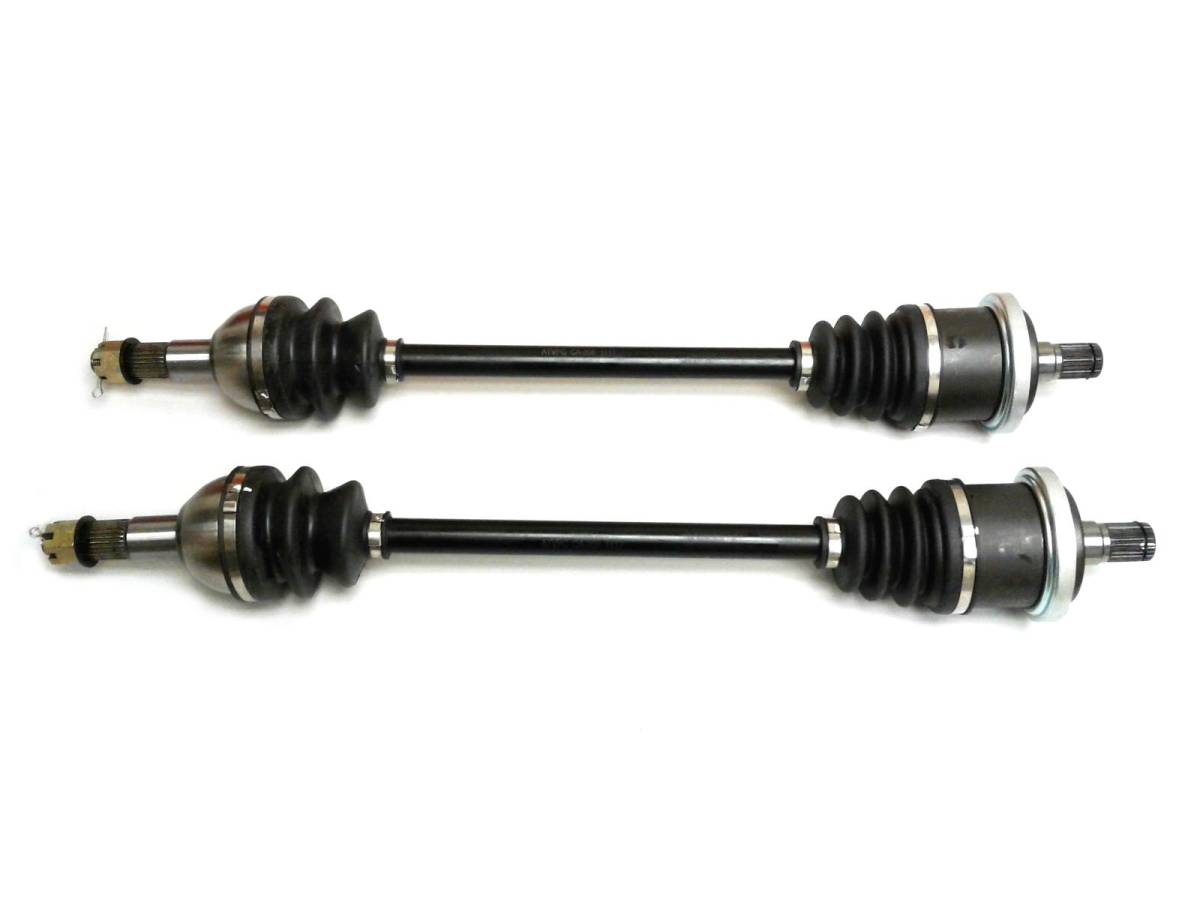

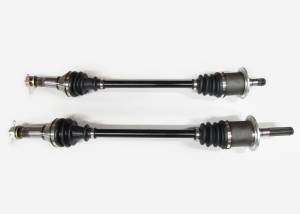

This is a pair of new Rear CV axles for a Can-Am UTV.

They fit the following 4x4 models:

2014-2015 ... Maverick XXC 1000

Rear, Left & Right Side

*Not intended for use on lifted vehicles

Product features:

  • Designed and manufactured to meet or exceed OEM specifications
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed axle length: 694 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $149.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits rear left & right on the 2014-2015 Can-Am Maverick XXC 1000 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed overall axle length: 694 mm (both), Inner CV joint housing splines: 24 (both), Outer CV joint housing splines: 26 (both).
  • Replaces Can-Am OE # 705501794, 705502357.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2015Can-AmMaverick 1000R4x4 XXC DPS
    2014Can-AmMaverick 1000R4x4 XXC DPS

    Details

    • CA-308/CA-308
    • CA-308/CA-308
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 29.0 lbs.
    • W10.0000” x H5.0000” x L31.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
