Front CV Axle Pair for Can-Am Outlander & Renegade 500 650 800 & 1000

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-112/CA-212

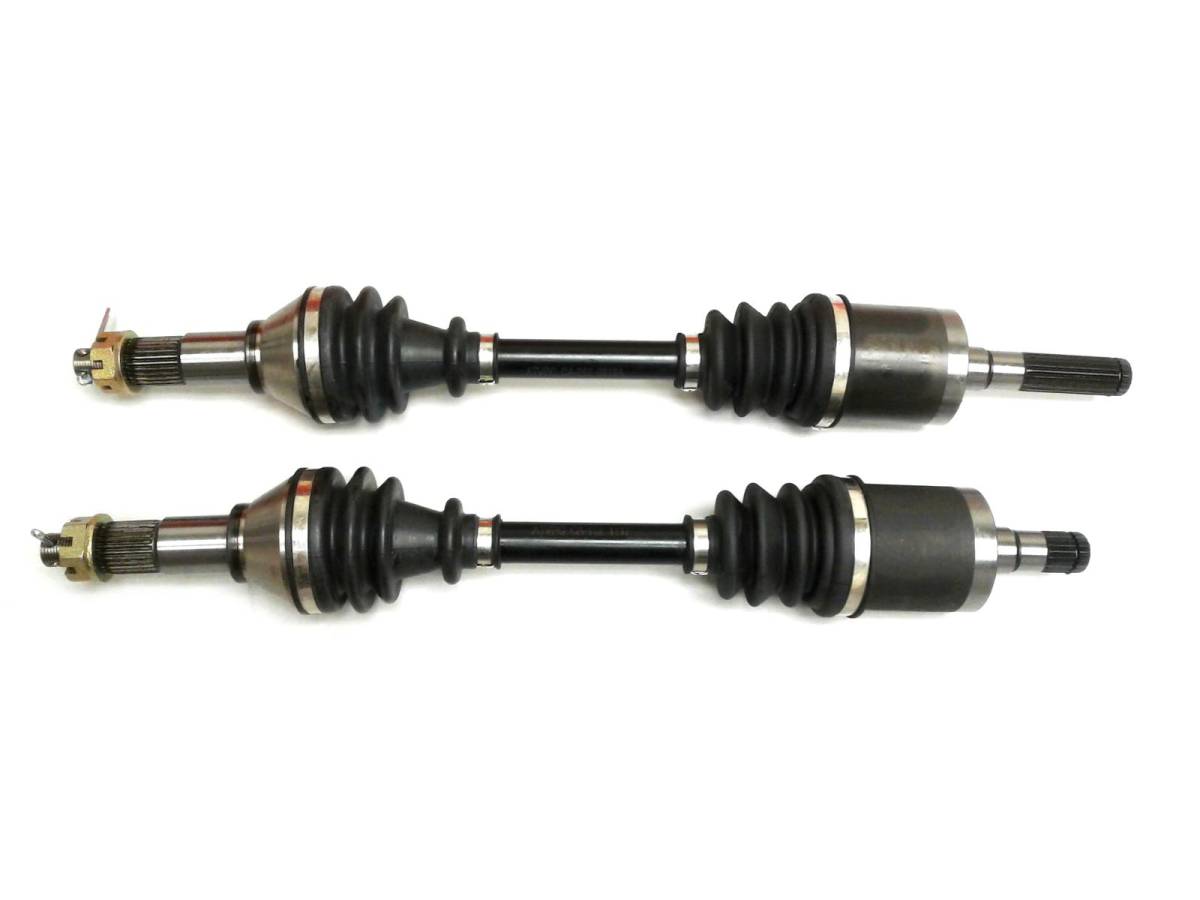

This is a pair of new Front CV axles for a Can-Am ATV.

These axles replace the following OEM:

Left: 705401115, 703500823, 705400756

Right: 705401116, 703500824, 705400757

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

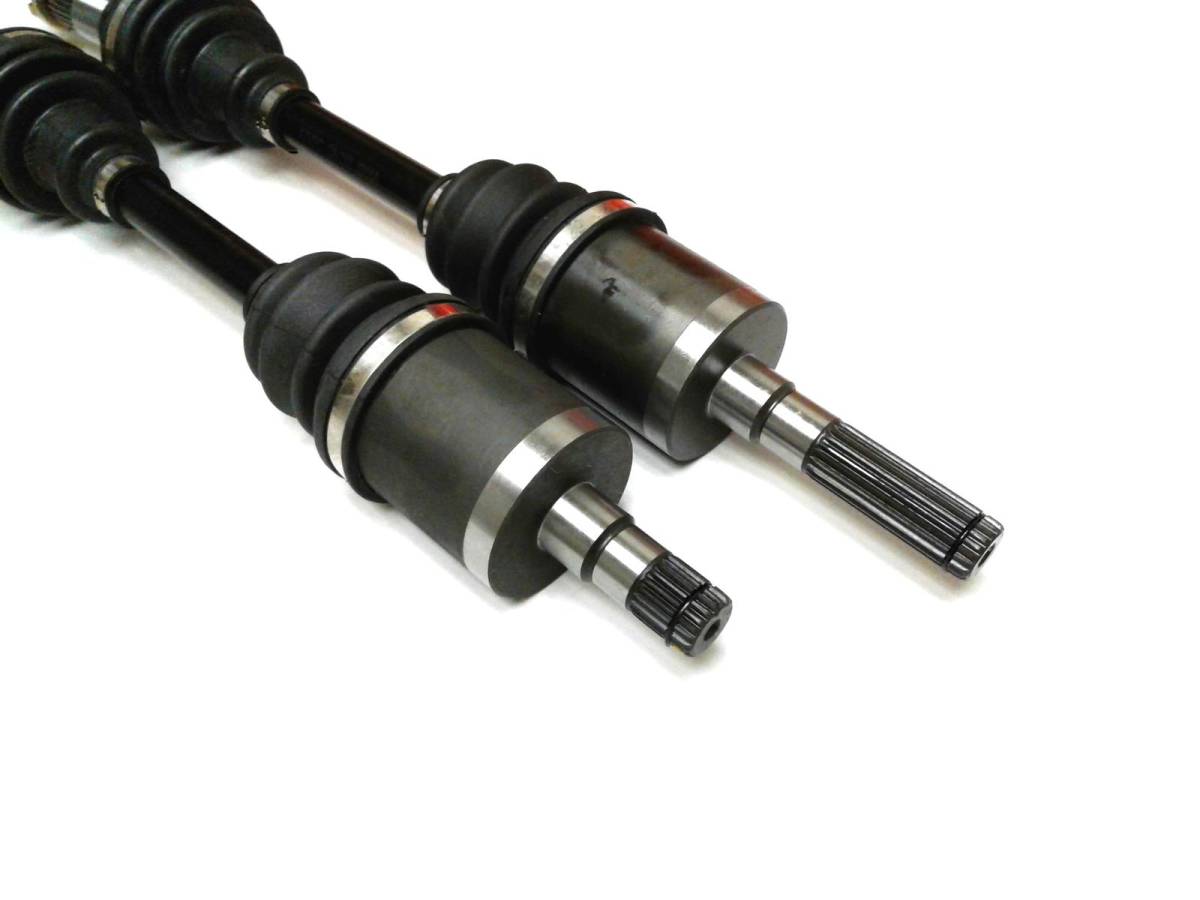

  • Inboard CV joint spline count: 21 (both)

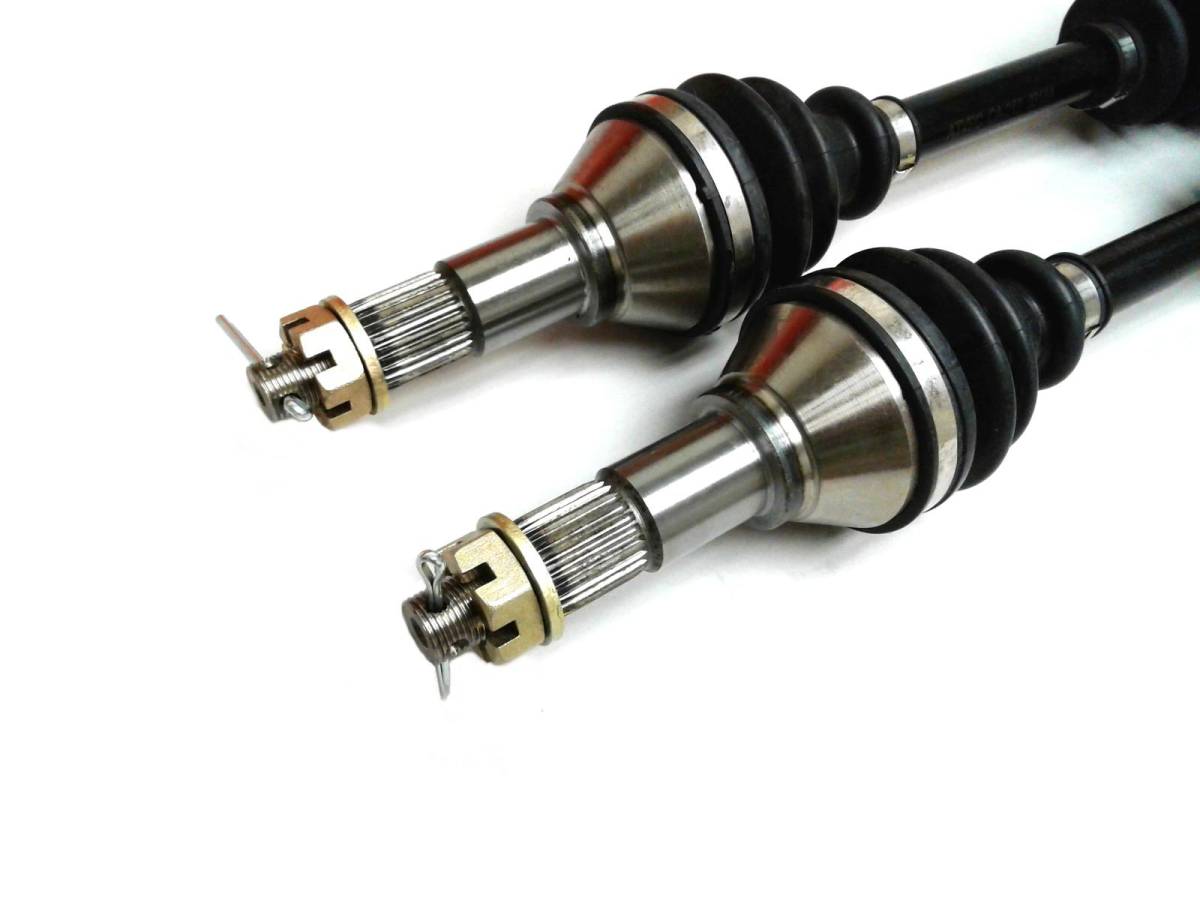

  • Outboard CV joint spline count: 26 (both)
  • Compressed overall length: Left - 507.5, Right - 550 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $124.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Can-Am models: 2013-2014 Outlander 500/Max 500, 2017-2021 Outlander XMR 570 (excluding MAX), 2013-2018 Outlander 650/Max 650 (excluding XMR), 2013-2015 Outlander 800/Max 800 (excluding XMR)..
  • .. 2016-2018 Outlander 850/Max 850 (excluding XMR), 2012-2018 Outlander 1000/Max 1000 (excluding XMR), 2013-2014 Renegade 500, 2012-2015 Renegade 800, 2016-2018 Renegade 850, 2012-2018 Renegade 1000.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Replaces OEM # (left) 705401115, 703500823, 705400756, (right) 705401116, 703500824, 705400757. Inboard spline count: 21 (both). Outboard spline count: 26 (both). Compressed axle length: Left - 507.5, Right - 550 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2014Can-AmOutlander 5004x4 DPS EFI
    2014Can-AmOutlander 5004x4 EFI
    2014Can-AmOutlander 5004x4 XT EFI
    2013Can-AmOutlander 5004x4 DPS EFI
    2013Can-AmOutlander 5004x4 EFI
    2013Can-AmOutlander 5004x4 XT EFI
    2019Can-AmOutlander 5704x4 XMR DPS
    2016Can-AmOutlander 6504X4
    2016Can-AmOutlander 6504x4 DPS
    2016Can-AmOutlander 6504x4 XT Camo DPS
    2016Can-AmOutlander 6504x4 XT DPS
    2016Can-AmOutlander 6506x6 XT
    2016Can-AmOutlander 6506x6 XT Camo DPS
    2015Can-AmOutlander 6504X4
    2015Can-AmOutlander 6504x4 DPS
    2015Can-AmOutlander 6504x4 XT
    2015Can-AmOutlander 6506x6 XT
    2014Can-AmOutlander 6504x4 DPS EFI
    2014Can-AmOutlander 6504x4 EFI
    2014Can-AmOutlander 6504x4 XT EFI
    2013Can-AmOutlander 6504x4 DPS EFI
    2013Can-AmOutlander 6504x4 EFI
    2013Can-AmOutlander 6504x4 XT EFI
    2015Can-AmOutlander 800R4X4
    2015Can-AmOutlander 800R4x4 DPS
    2015Can-AmOutlander 800R4x4 XT
    2015Can-AmOutlander 800R4x4 XTP
    2014Can-AmOutlander 800R4x4 DPS EFI
    2014Can-AmOutlander 800R4x4 EFI
    2014Can-AmOutlander 800R4x4 XTP EFI
    2013Can-AmOutlander 800R4x4 DPS EFI
    2013Can-AmOutlander 800R4x4 EFI
    2013Can-AmOutlander 800R4x4 XT EFI
    2013Can-AmOutlander 800R4x4 XTP EFI
    2012Can-AmOutlander 800R4x4 EFI
    2012Can-AmOutlander 800R4x4 XT EFI
    2016Can-AmOutlander 10006x6 XT
    2016Can-AmOutlander 10006x6 XT Camo DPS
    2015Can-AmOutlander 10004x4 DPS
    2015Can-AmOutlander 10004x4 XT
    2015Can-AmOutlander 10004x4 XTP
    2015Can-AmOutlander 10006x6 XT
    2014Can-AmOutlander 10004x4 DPS EFI
    2014Can-AmOutlander 10004x4 XT EFI
    2014Can-AmOutlander 10004x4 XTP EFI
    2013Can-AmOutlander 10004x4 DPS EFI
    2013Can-AmOutlander 10004x4 XT EFI
    2013Can-AmOutlander 10004x4 XTP EFI
    2012Can-AmOutlander 10004x4 EFI
    2012Can-AmOutlander 10004x4 XT EFI
    2016Can-AmOutlander 1000R4x4 DPS
    2016Can-AmOutlander 1000R4x4 XT-P DPS
    2016Can-AmOutlander 1000R4x4 XT DPS
    2014Can-AmOutlander Max 5004x4 DPS EFI
    2014Can-AmOutlander Max 5004x4 EFI
    2014Can-AmOutlander Max 5004x4 XT EFI
    2013Can-AmOutlander Max 5004x4 DPS EFI
    2013Can-AmOutlander Max 5004x4 EFI
    2013Can-AmOutlander Max 5004x4 XT EFI
    2017Can-AmOutlander Max 6504x4 DPS
    2017Can-AmOutlander Max 6504x4 XT DPS
    2016Can-AmOutlander Max 6504x4 DPS
    2016Can-AmOutlander Max 6504x4 XT DPS
    2015Can-AmOutlander Max 6504X4
    2015Can-AmOutlander Max 6504x4 DPS
    2015Can-AmOutlander Max 6504x4 XT
    2014Can-AmOutlander Max 6504x4 DPS EFI
    2014Can-AmOutlander Max 6504x4 EFI
    2014Can-AmOutlander Max 6504x4 XT EFI
    2013Can-AmOutlander Max 6504x4 DPS EFI
    2013Can-AmOutlander Max 6504x4 EFI
    2013Can-AmOutlander Max 6504x4 XT EFI
    2015Can-AmOutlander Max 800R4x4 DPS
    2015Can-AmOutlander Max 800R4x4 XT
    2015Can-AmOutlander Max 800R4x4 XTP
    2014Can-AmOutlander Max 800R4x4 DPS EFI
    2014Can-AmOutlander Max 800R4x4 XT EFI
    2014Can-AmOutlander Max 800R4x4 XTP EFI
    2013Can-AmOutlander Max 800R4x4 DPS EFI
    2013Can-AmOutlander Max 800R4x4 XT EFI
    2013Can-AmOutlander Max 800R4x4 XTP EFI
    2015Can-AmOutlander Max 10004x4 DPS
    2015Can-AmOutlander Max 10004x4 LTD
    2015Can-AmOutlander Max 10004x4 XT
    2015Can-AmOutlander Max 10004x4 XTP
    2014Can-AmOutlander Max 10004x4 DPS EFI
    2014Can-AmOutlander Max 10004x4 LTD EFI
    2014Can-AmOutlander Max 10004x4 XT EFI
    2014Can-AmOutlander Max 10004x4 XTP EFI
    2013Can-AmOutlander Max 10004x4 DPS EFI
    2013Can-AmOutlander Max 10004x4 LTD EFI
    2013Can-AmOutlander Max 10004x4 XT EFI
    2013Can-AmOutlander Max 10004x4 XTP EFI
    2016Can-AmOutlander Max 1000R4x4 LTD DPS
    2016Can-AmOutlander Max 1000R4x4 XT Camo DPS
    2016Can-AmOutlander Max 1000R4x4 XT DPS
    2016Can-AmOutlander Max 1000R4x4 XTP DPS
    2014Can-AmRenegade 5004x4 EFI
    2013Can-AmRenegade 5004x4 EFI
    2015Can-AmRenegade 800R4X4
    2015Can-AmRenegade 800R4x4 XXC
    2014Can-AmRenegade 800R4x4 EFI
    2014Can-AmRenegade 800R4x4 XXC EFI
    2013Can-AmRenegade 800R4x4 EFI
    2013Can-AmRenegade 800R4x4 XXC EFI
    2012Can-AmRenegade 800R4x4 EFI
    2012Can-AmRenegade 800R4x4 XXC EFI
    2015Can-AmRenegade 10004X4
    2015Can-AmRenegade 10004x4 XXC
    2014Can-AmRenegade 10004x4 EFI
    2014Can-AmRenegade 10004x4 XXC EFI
    2013Can-AmRenegade 10004x4 EFI
    2013Can-AmRenegade 10004x4 XXC EFI
    2012Can-AmRenegade 10004x4 EFI
    2012Can-AmRenegade 10004x4 XXC EFI
    2017Can-AmRenegade 1000R4X4
    2016Can-AmRenegade 1000R4X4

    Details

    • CA-112/CA-212
    • CA-112/CA-212
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 18.0 lbs.
    • W10.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
