Front Axles & Wheel Bearing Kits for Honda Foreman 500 Rubicon 500 Rincon 680

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review

SKU: HO-118/HO-218/WB-1572/WB-1572

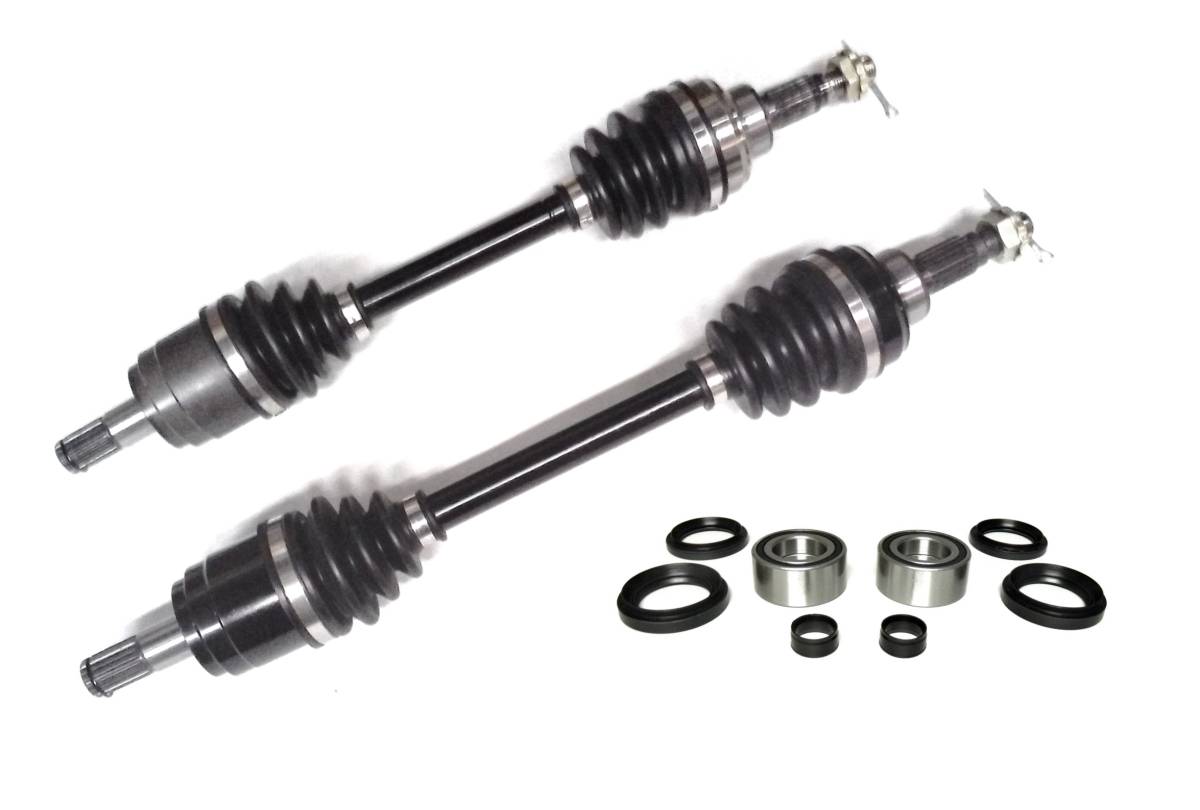

This is a pair of Front, Left & Right CV axles & wheel bearing kits for a Honda ATV.

They will fit the following 4x4 applications:

2007 ... Foreman 500 ES (with EPS)

2008-2009 ... Rubicon 500

2008-2009 ... Foreman 500

2008-2009 ... Rincon 680

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 20 (both)
Outboard CV joint spline count: 21 (both)
Compressed overall axle length: Left 475.5 mm, Right 495.5 mm

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $124.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2009	Honda	Foreman 500	TRX500FE 4x4 ES
2009	Honda	Foreman 500	TRX500FM 4x4 S
2009	Honda	Foreman 500	TRX500FPA 4x4 AT EPS
2009	Honda	Foreman 500	TRX500FPE 4x4 ES EPS
2009	Honda	Foreman 500	TRX500FPM 4x4 EPS
2008	Honda	Foreman 500	TRX500FE 4x4 ES
2008	Honda	Foreman 500	TRX500FM 4x4 S
2008	Honda	Foreman 500	TRX500FPE 4x4 ES EPS
2008	Honda	Foreman 500	TRX500FPM 4x4 EPS
2007	Honda	Foreman 500	TRX500FPE 4x4 ES EPS
2009	Honda	Foreman Rubicon 500	TRX500FA 4x4
2009	Honda	Foreman Rubicon 500	TRX500FGA 4x4 GPScape
2009	Honda	Foreman Rubicon 500	TRX500FPA 4x4 EPS
2008	Honda	Foreman Rubicon 500	TRX500FA 4x4
2008	Honda	Foreman Rubicon 500	TRX500FGA 4x4 GPScape
2009	Honda	Rincon 680	TRX680FA 4x4
2009	Honda	Rincon 680	TRX680FGA 4x4 GPScape
2008	Honda	Rincon 680	TRX680FA 4x4
2008	Honda	Rincon 680	TRX680FGA 4x4 GPScape

Product Notes

Fits 2008-2009 Foreman 500, 2008-2009 Rincon 680, 2008-2009 Rubicon 500 & 2007 Foreman 500 TRX500FPE ES EPS.

Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

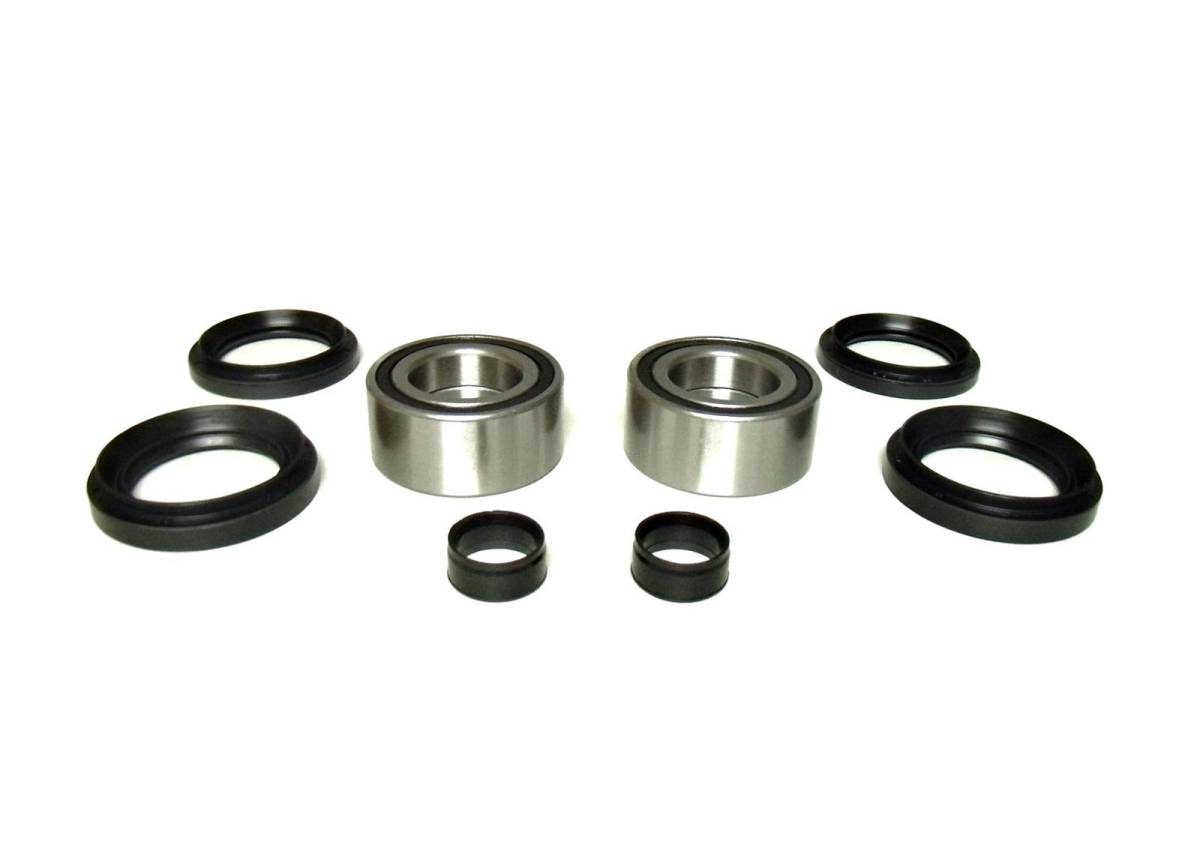

High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.

Replaces Honda OE # 44250-HN8-A42, 44220-HN8-A41, 91051-HA7-651, 91209-HA7-773, 91263-HA7-771, 91209-HN2-003, 91256-HP0-A01, 44350-HN8-A42.. Inner Splines: 20 (both), Outer Splines: 21 (both), Compressed length: Left 475.5 mm, Right 495.5 mm.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
