Rear Axle Pair with Wheel Bearings for Polaris RZR XP XP 4 1000 2014-2015

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
PO-374/PO-374/WB-1628/WB-1628

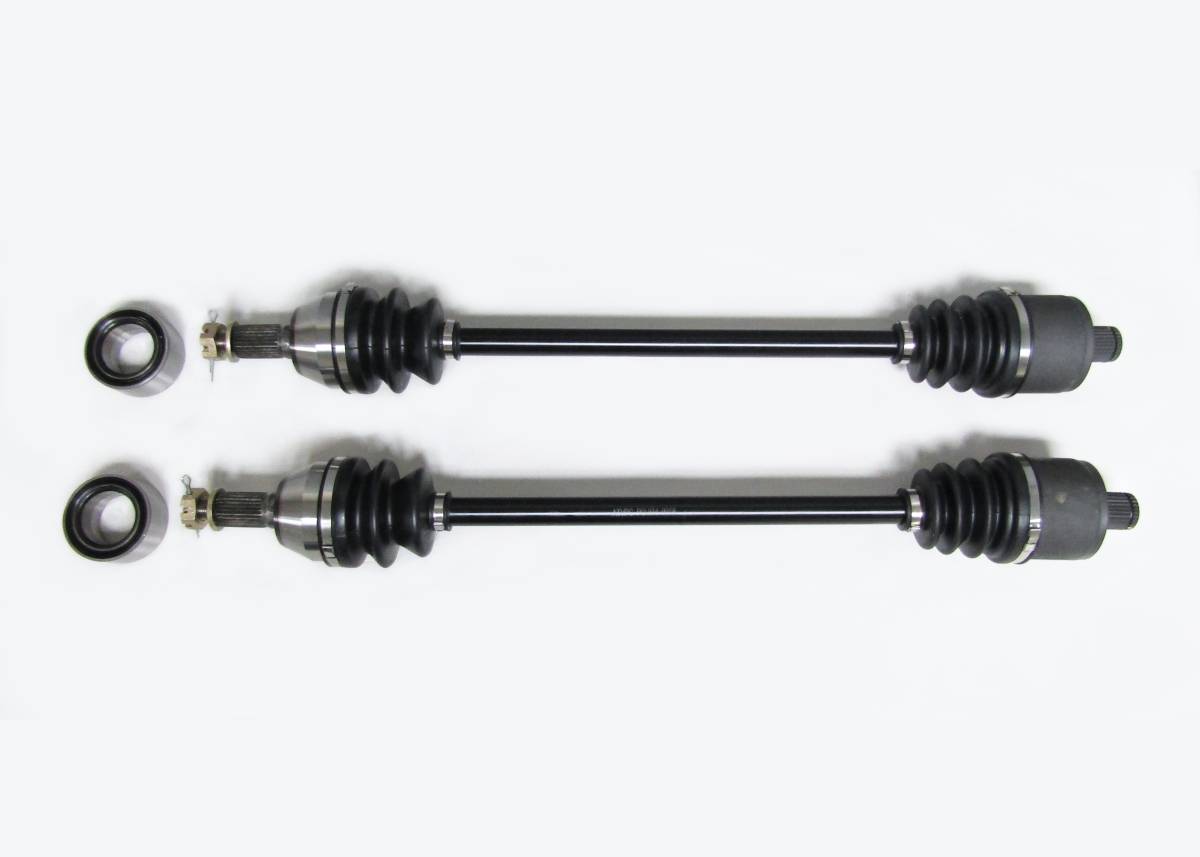

This is a set of new Rear CV axles & wheel bearings for a Polaris UTV.

They fit the following 4x4 models:

2014-2015 ... RZR XP 1000

2014-2015 ... RZR XP 4 1000

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

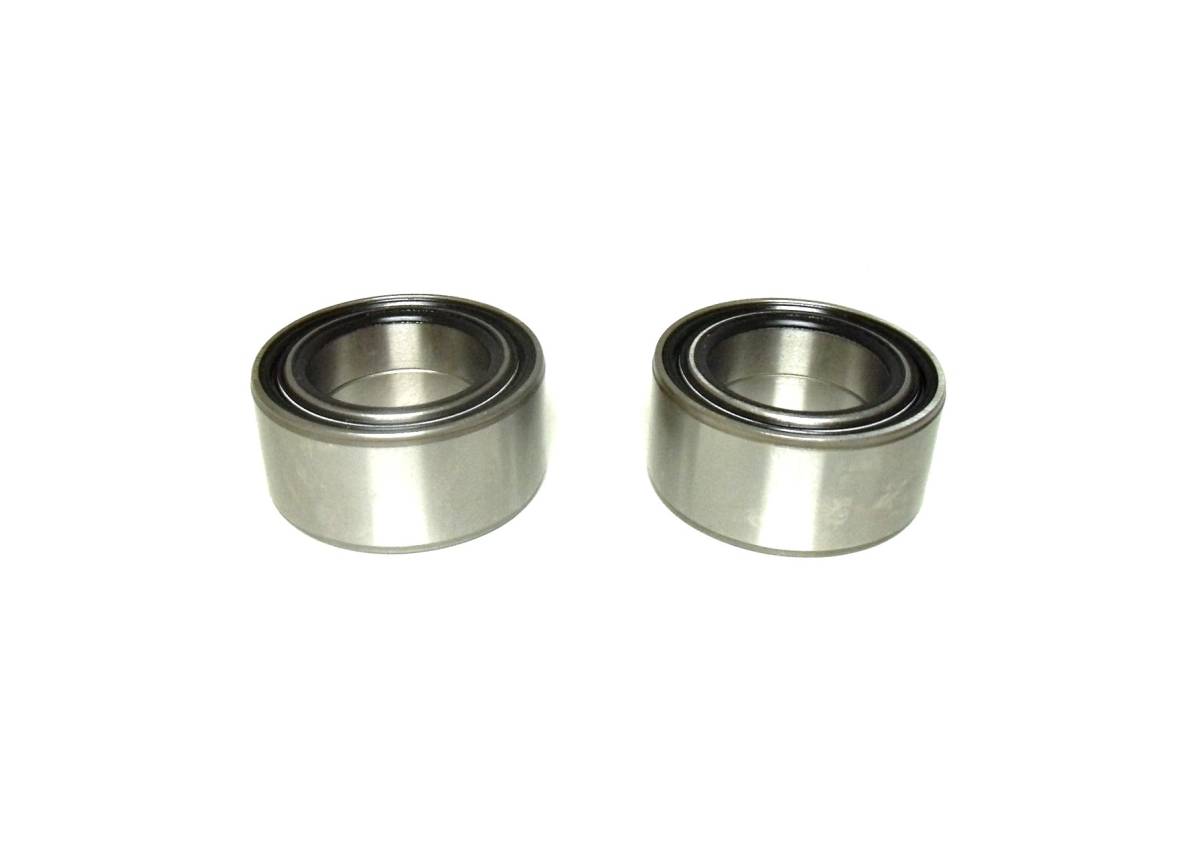

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out

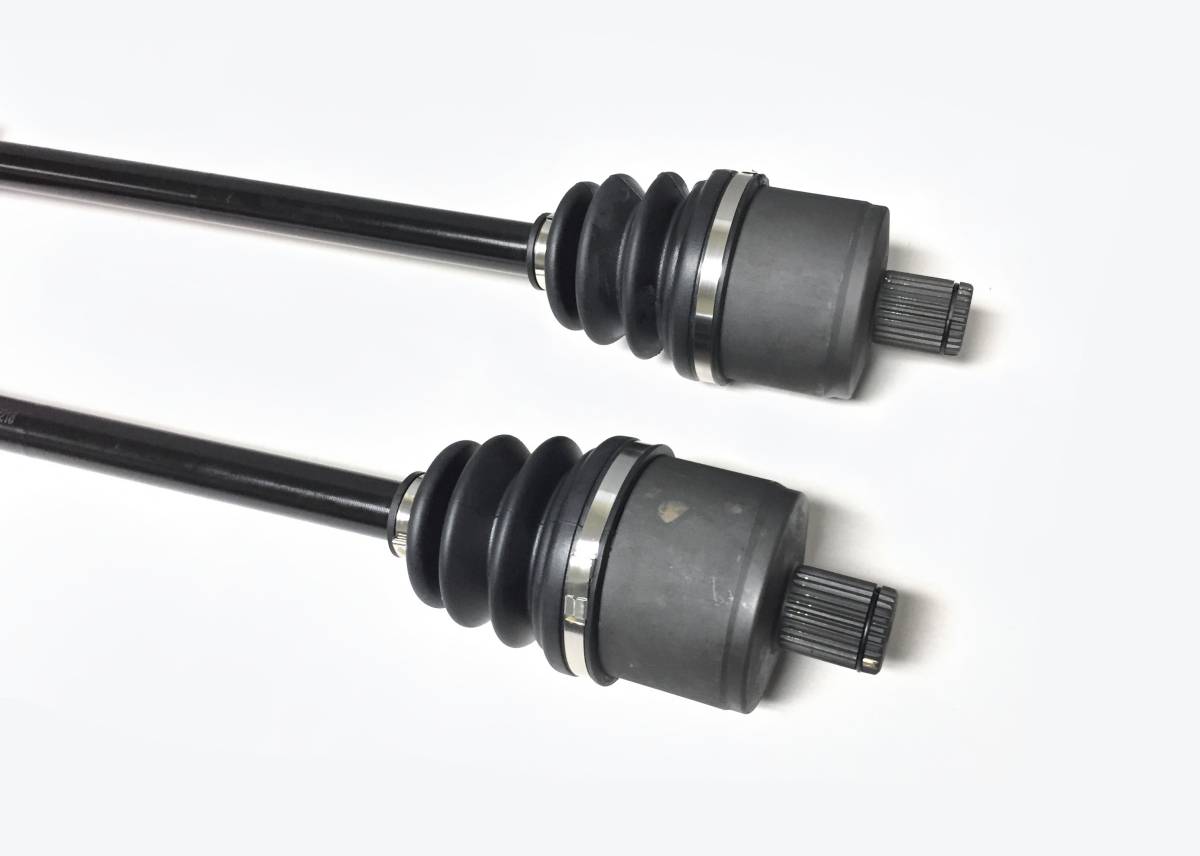

  • Inboard CV joint spline count: 28 (both)

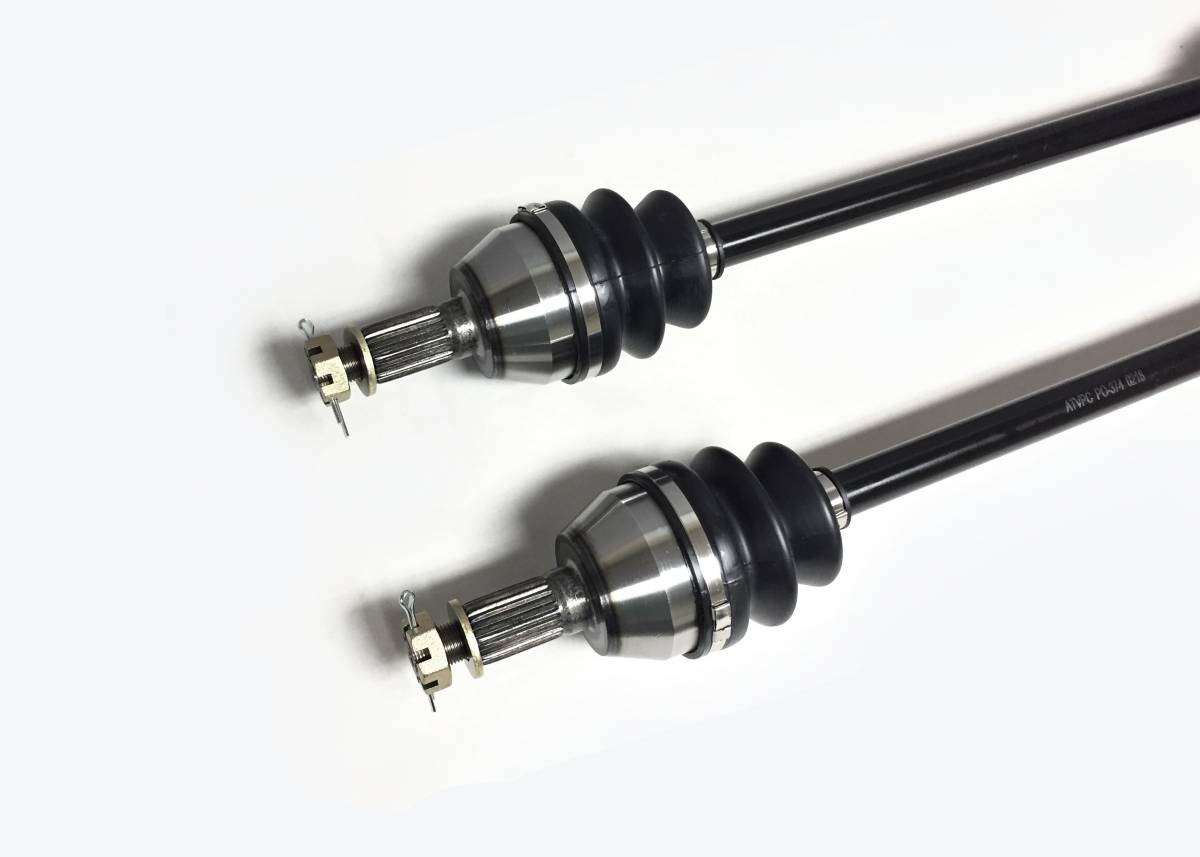

  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 732 mm (both)
  • Replaces Polaris OEM # (axles) 1333124, (bearings) 3514627, 3514699
Limited Supply: only 8 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $209.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015PolarisRZR XP 4 1000EPS
2014PolarisRZR XP 4 1000EPS
2015PolarisRZR XP 1000Desert Edition EPS
2015PolarisRZR XP 1000EPS
2015PolarisRZR XP 1000FOX Edition EPS
2015PolarisRZR XP 1000High Lifter Edition EPS
2014PolarisRZR XP 1000EPS

Product Notes

  • Fits rear, left and right on the following Polaris models: 2014-2015 RZR XP 1000, 2014-2015 RZR XP4 1000.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 1333124, (bearings) 3514627, 3514699. Inboard spline count: 28 (both), Outboard spline count: 26 (both), Compressed axle length: 732 mm (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 CV axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-374/PO-374/WB-1628/WB-1628
    • PO-374/PO-374/WB-1628/WB-1628
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 31.4 lbs.
    • W5.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
