Front Axles & Bearing Kits for Yamaha Big Bear 400 & Grizzly 350 450 IRS 07-11

Location on vehicle: Front,Left,Right

WB-1108/WB-1108/YA-125/YA-225

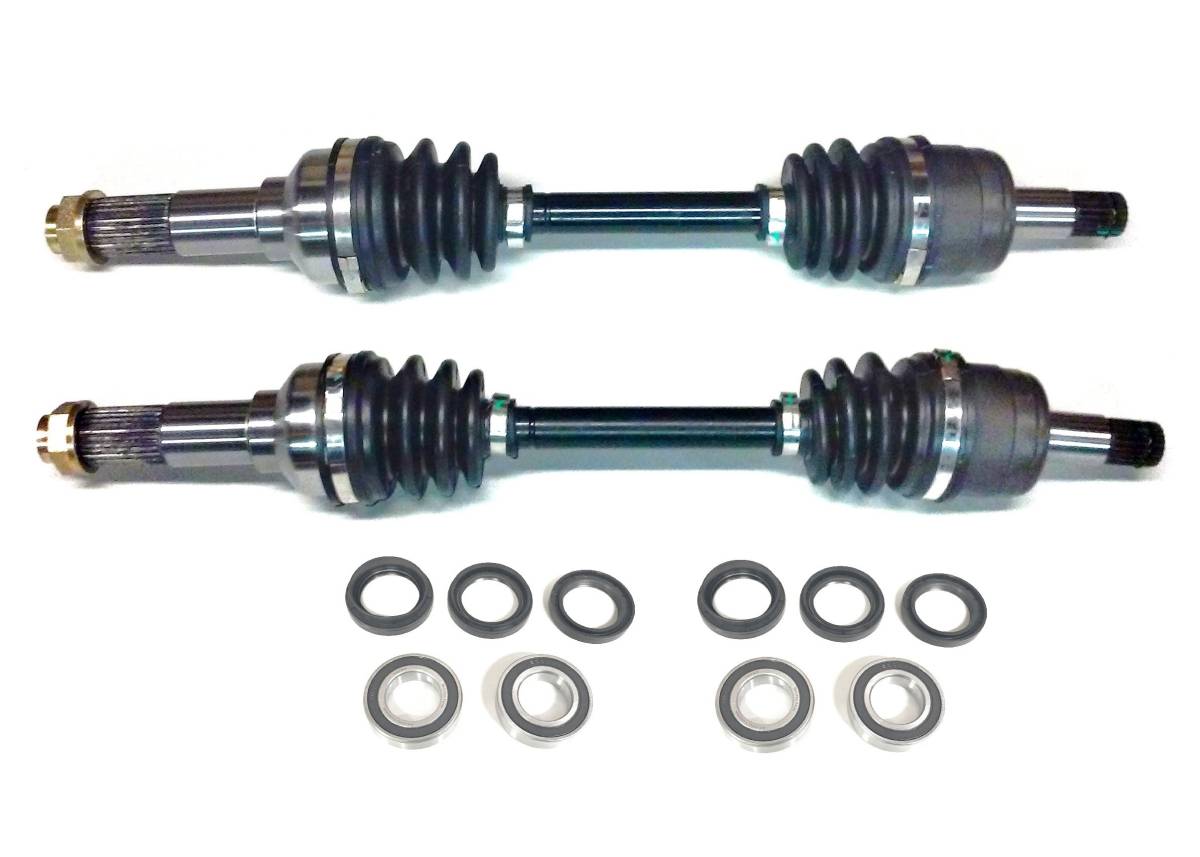

This is a set of new Front CV axles & wheel bearing/seal kits for a Yamaha ATV.

They fit the following 4x4 applications:

2007-2011 ... Big Bear 400

2007-2011 ... Grizzly 350 IRS

2008-2011 ... Grizzly 450

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed Length: Left - 483 mm, Right - 492 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $139.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2007-2011 Big Bear 400, 2007-2011 Grizzly 350 IRS & 2008-2011 Grizzly 450.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed Length: Left - 483 mm, Right - 492 mm, Inboard Spline Count - 21 (both), Outboard Spline Count - 27 (both).
  • Replaces Yamaha OEM # (axles) 4S1-2510F-00-00, 4S2-2511E-00-00, 4S1-2510J-00-00, 4S1-2510F-00-00, 4S1-2511E-00-00, 4S1-2510J-00-00, (bearings) 93306-00612-00, 93102-38383-00, 93102-38417-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

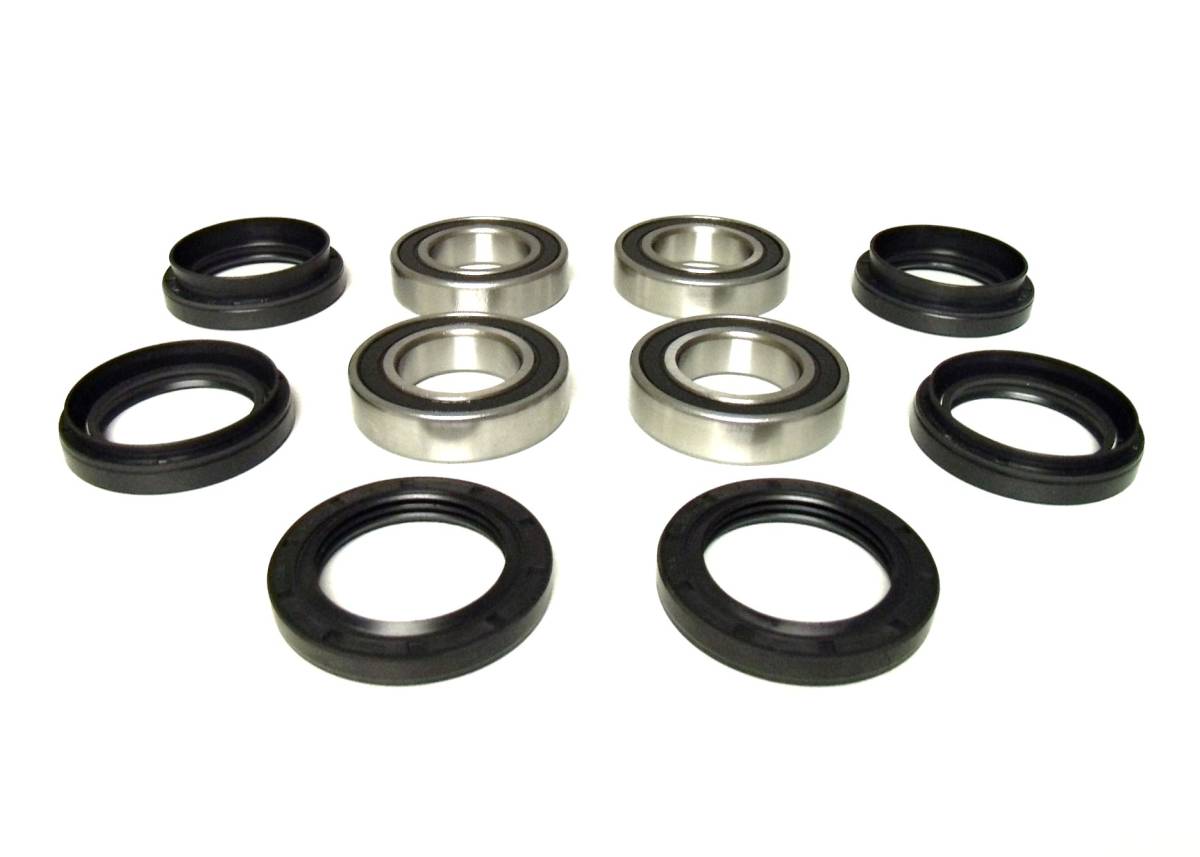

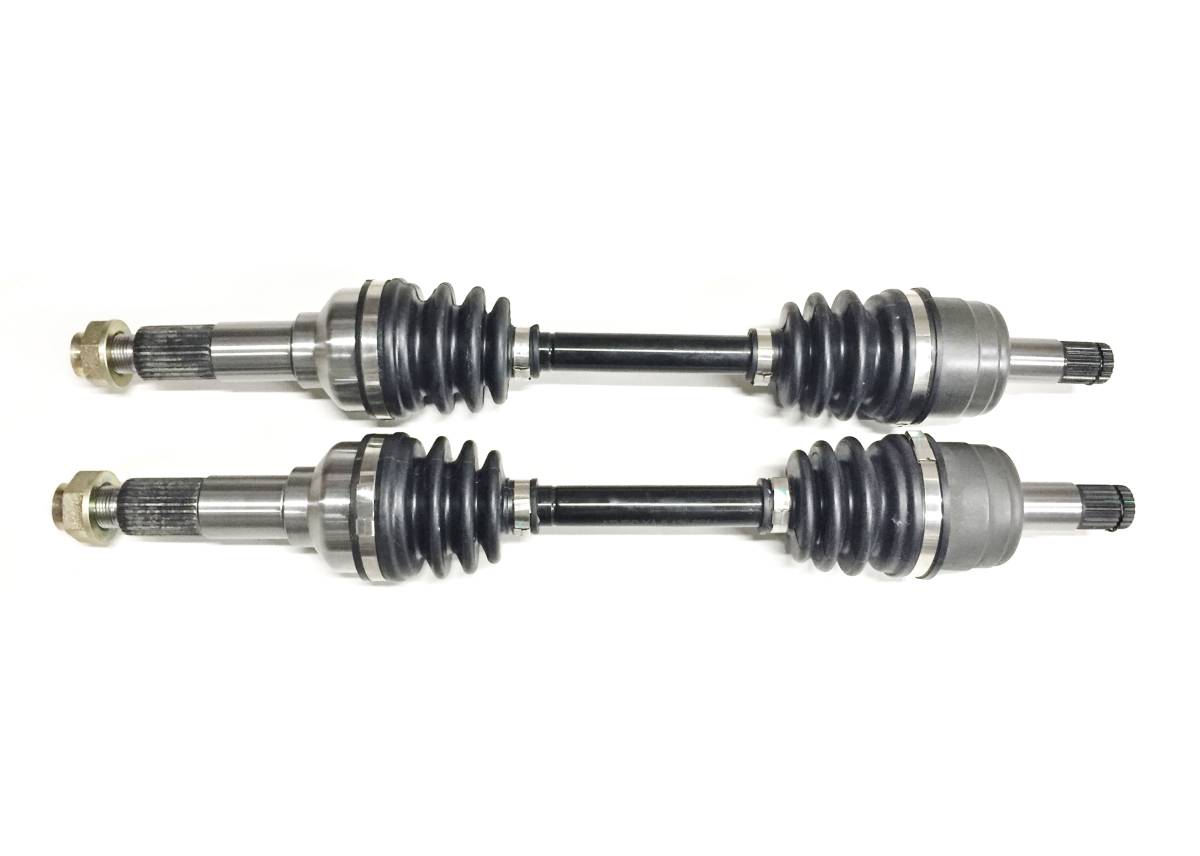

  • 2 CV axles & 2 wheel bearing kits
  • Application List

    YearMakeModelSubmodelNotes
    2007YamahaBig Bear 400YFM400FBH 4x4 Hunter Edition IRS
    2007YamahaBig Bear 400YFM400FBE 4x4 Exploring Edition IRS
    2007YamahaBig Bear 400YFM400FB 4x4 IRS
    2008YamahaBig Bear 400YFM400FB 4x4 IRS
    2009YamahaBig Bear 400YFM400FB 4x4 IRS
    2010YamahaBig Bear 400YFM400FBH 4x4 Hunter Edition IRS
    2010YamahaBig Bear 400YFM400FB 4x4 IRS
    2011YamahaBig Bear 400YFM400FB 4x4 IRS
    2007YamahaGrizzly 450YFM450FGSE 4x4 Special Edition
    2007YamahaGrizzly 450YFM450FGOH 4x4 Outdoorsman Edition
    2007YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2007YamahaGrizzly 450YFM450FG 4x4
    2008YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2008YamahaGrizzly 450YFM450FG 4x4
    2009YamahaGrizzly 450YFM450FGI 4x4 IRS
    2009YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2010YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2010YamahaGrizzly 450YFM450FG 4x4
    2007YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2007YamahaGrizzly 350YFM350FGI 4x4 IRS
    2008YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2008YamahaGrizzly 350YFM350FGI 4x4 IRS
    2009YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2009YamahaGrizzly 350YFM350FGI 4x4 IRS
    2010YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2010YamahaGrizzly 350YFM350FGI 4x4 IRS
    2011YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2011YamahaGrizzly 350YFM350FGI 4x4 IRS

    Details

    • WB-1108/WB-1108/YA-125/YA-225
    • WB-1108/WB-1108/YA-125/YA-225
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 18.0 lbs.
    • W10.0000” x H5.0000” x L26.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
