CV Axle Set for Can-Am Outlander & Renegade 650 850 1000 4x4 ATV

Location on vehicle: Rear,Front,Left,Right

CA-112/CA-212/CA-301/CA-302

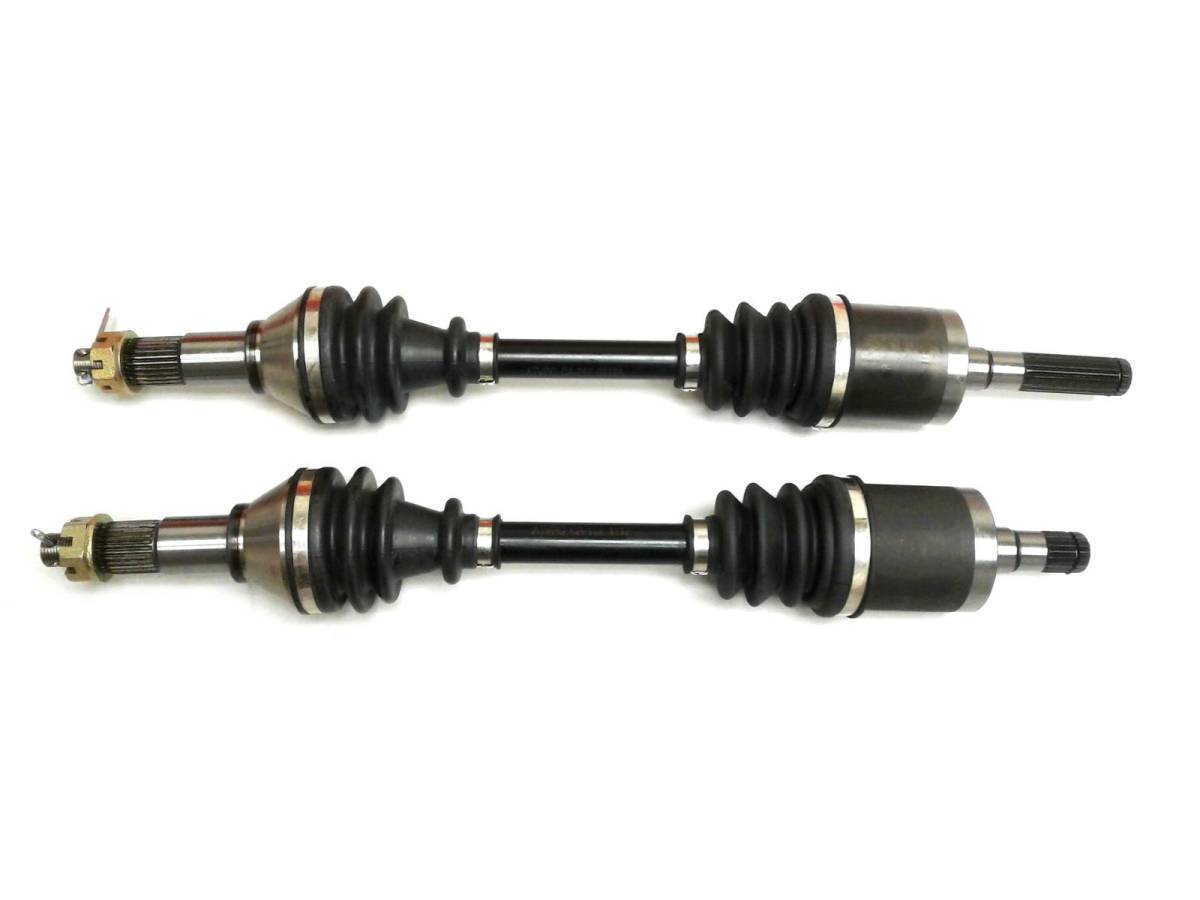

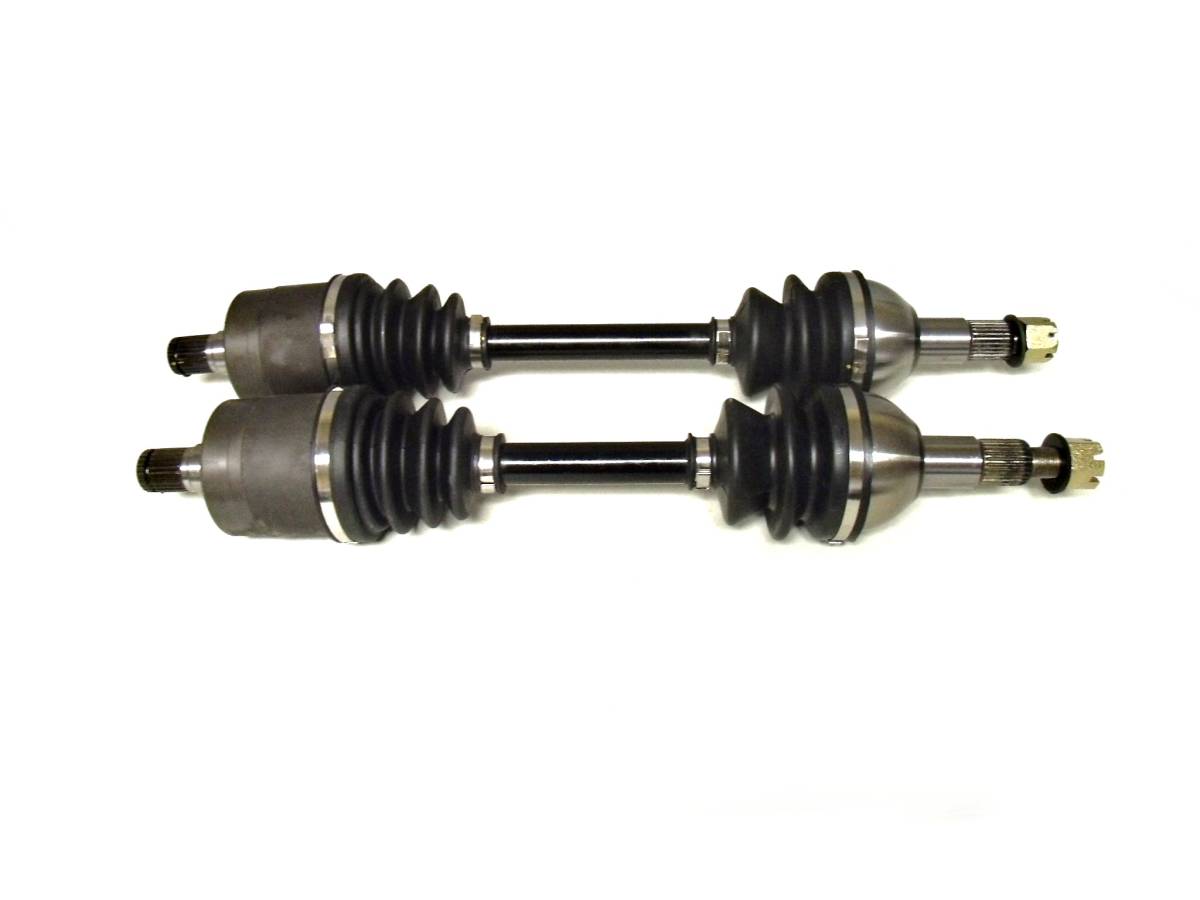

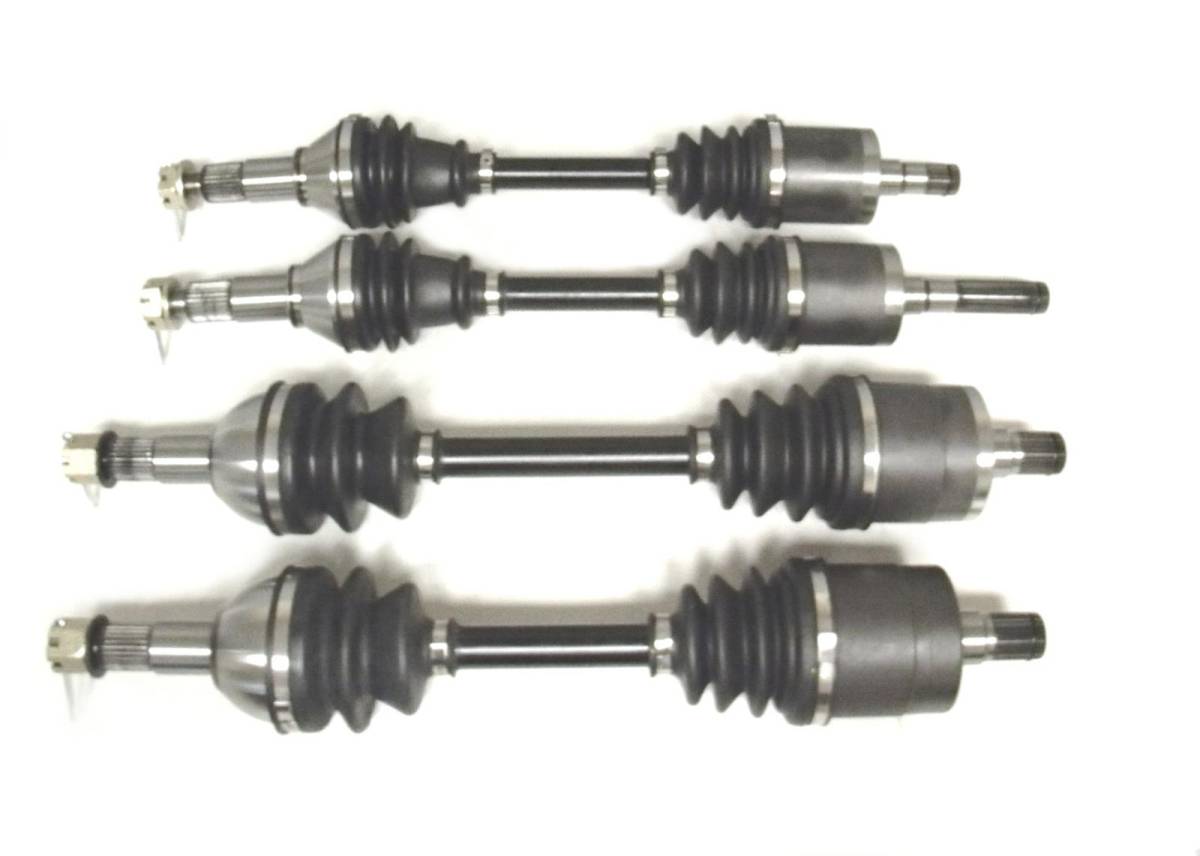

This is for a set of 4 new Front & Rear CV axles for a Can-Am ATV.

These axles will fit the following OEM #

Front Left: 705401115, 705400756, 705401943

Front Right: 705401116, 705400757, 703500824

Rear Left: 705500867 , 705501485, 705502473

Rear Right: 705500868, 705501486, 705502476

(fits all 4x4 models excluding XXC/XMR)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inner CV joint spline count: Fronts - 21, Rears - 24
  • Outer CV joint spline count: Fronts - 26, Rears - 26
  • Compressed overall axle length (mm): FL - 507.5, FR - 550, RL - 554, RR - 513
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $254.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits several Can-Am Outlander & Renegade ATVs. Please see detaills for fitment.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner splines: Fronts: 21 / Rears: 24, Outer Splines - Fronts: 26 / Rears: 26, Compressed length: FL - 507.5, FR - 550, RL - 554, RR - 513
  • Replaces OE # Front Left: 705401115, 705400756, Front Right: 705401116, 705400757, Rear Left: 705500867 , 705501485, Rear Right: 705500868, 705501486.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2018Can-AmOutlander 6504X4
    2018Can-AmOutlander 6504x4 DPS
    2018Can-AmOutlander 6504x4 North Edition DPS
    2018Can-AmOutlander 6504x4 XT DPS
    2018Can-AmOutlander 6506x6 DPS
    2017Can-AmOutlander 6504X4
    2017Can-AmOutlander 6504x4 DPS
    2017Can-AmOutlander 6504x4 XT DPS
    2016Can-AmOutlander 6504X4
    2016Can-AmOutlander 6504x4 DPS
    2016Can-AmOutlander 6504x4 XT Camo DPS
    2016Can-AmOutlander 6504x4 XT DPS
    2015Can-AmOutlander 6504X4
    2015Can-AmOutlander 6504x4 DPS
    2015Can-AmOutlander 6504x4 XT
    2014Can-AmOutlander 6504x4 DPS EFI
    2014Can-AmOutlander 6504x4 EFI
    2014Can-AmOutlander 6504x4 XT EFI
    2013Can-AmOutlander 6504x4 DPS EFI
    2013Can-AmOutlander 6504x4 EFI
    2013Can-AmOutlander 6504x4 XT EFI
    2017Can-AmOutlander 8504x4 DPS
    2017Can-AmOutlander 8504x4 XT-P DPS
    2017Can-AmOutlander 8504x4 XT DPS
    2016Can-AmOutlander 8504x4 DPS
    2016Can-AmOutlander 8504x4 XT-P DPS
    2016Can-AmOutlander 8504x4 XT DPS
    2015Can-AmOutlander 10004x4 DPS
    2015Can-AmOutlander 10004x4 XT
    2015Can-AmOutlander 10004x4 XTP
    2014Can-AmOutlander 10004x4 DPS EFI
    2014Can-AmOutlander 10004x4 XT EFI
    2014Can-AmOutlander 10004x4 XTP EFI
    2013Can-AmOutlander 10004x4 DPS EFI
    2013Can-AmOutlander 10004x4 XT EFI
    2013Can-AmOutlander 10004x4 XTP EFI
    2012Can-AmOutlander 10004x4 EFI
    2012Can-AmOutlander 10004x4 XT EFI
    2018Can-AmOutlander 1000R4x4 DPS
    2018Can-AmOutlander 1000R4x4 Mossy Oak Hunting Edition DPS
    2018Can-AmOutlander 1000R4x4 XT DPS
    2017Can-AmOutlander 1000R4x4 DPS
    2017Can-AmOutlander 1000R4x4 Mossy Oak Hunting Edition DPS
    2017Can-AmOutlander 1000R4x4 XT-P DPS
    2017Can-AmOutlander 1000R4x4 XT DPS
    2016Can-AmOutlander 1000R4x4 DPS
    2016Can-AmOutlander 1000R4x4 XT-P DPS
    2016Can-AmOutlander 1000R4x4 XT DPS
    2018Can-AmOutlander Max 6504x4 DPS
    2018Can-AmOutlander Max 6504x4 North Edition DPS
    2018Can-AmOutlander Max 6504x4 XT DPS
    2017Can-AmOutlander Max 6504x4 DPS
    2017Can-AmOutlander Max 6504x4 XT DPS
    2016Can-AmOutlander Max 6504x4 DPS
    2016Can-AmOutlander Max 6504x4 XT DPS
    2015Can-AmOutlander Max 6504X4
    2015Can-AmOutlander Max 6504x4 DPS
    2015Can-AmOutlander Max 6504x4 XT
    2014Can-AmOutlander Max 6504x4 DPS EFI
    2014Can-AmOutlander Max 6504x4 EFI
    2014Can-AmOutlander Max 6504x4 XT EFI
    2013Can-AmOutlander Max 6504x4 DPS EFI
    2013Can-AmOutlander Max 6504x4 EFI
    2013Can-AmOutlander Max 6504x4 XT EFI
    2017Can-AmOutlander Max 8504x4 XT DPS
    2017Can-AmOutlander Max 8504x4 XTP DPS
    2016Can-AmOutlander Max 8504x4 XT DPS
    2016Can-AmOutlander Max 8504x4 XTP DPS
    2015Can-AmOutlander Max 10004x4 DPS
    2015Can-AmOutlander Max 10004x4 LTD
    2015Can-AmOutlander Max 10004x4 XT
    2015Can-AmOutlander Max 10004x4 XTP
    2014Can-AmOutlander Max 10004x4 DPS EFI
    2014Can-AmOutlander Max 10004x4 LTD EFI
    2014Can-AmOutlander Max 10004x4 XT EFI
    2014Can-AmOutlander Max 10004x4 XTP EFI
    2013Can-AmOutlander Max 10004x4 DPS EFI
    2013Can-AmOutlander Max 10004x4 LTD EFI
    2013Can-AmOutlander Max 10004x4 XT EFI
    2013Can-AmOutlander Max 10004x4 XTP EFI
    2018Can-AmOutlander Max 1000R4x4 LTD DPS
    2018Can-AmOutlander Max 1000R4x4 XT DPS
    2018Can-AmOutlander Max 1000R4x4 XTP DPS
    2017Can-AmOutlander Max 1000R4x4 LTD DPS
    2017Can-AmOutlander Max 1000R4x4 XT DPS
    2017Can-AmOutlander Max 1000R4x4 XTP DPS
    2016Can-AmOutlander Max 1000R4x4 LTD DPS
    2016Can-AmOutlander Max 1000R4x4 XT Camo DPS
    2016Can-AmOutlander Max 1000R4x4 XT DPS
    2016Can-AmOutlander Max 1000R4x4 XTP DPS
    2015Can-AmRenegade 10004X4
    2015Can-AmRenegade 10004x4 XXC
    2014Can-AmRenegade 10004x4 EFI
    2014Can-AmRenegade 10004x4 XXC EFI
    2013Can-AmRenegade 10004x4 EFI
    2013Can-AmRenegade 10004x4 XXC EFI
    2012Can-AmRenegade 10004x4 EFI
    2012Can-AmRenegade 10004x4 XXC EFI
    2016Can-AmRenegade 1000R4X4
    2016Can-AmRenegade 1000R4x4 XXC DPS

    Details

    • CA-112/CA-212/CA-301/CA-302
    • CA-112/CA-212/CA-301/CA-302
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 44.0 lbs.
    • W10.0000” x H10.0000” x L25.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
