Front CV Axle Pair with Bearings for Can-Am ATV 705401115, 705401116

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-112/CA-212/WB-1516/WB-1516

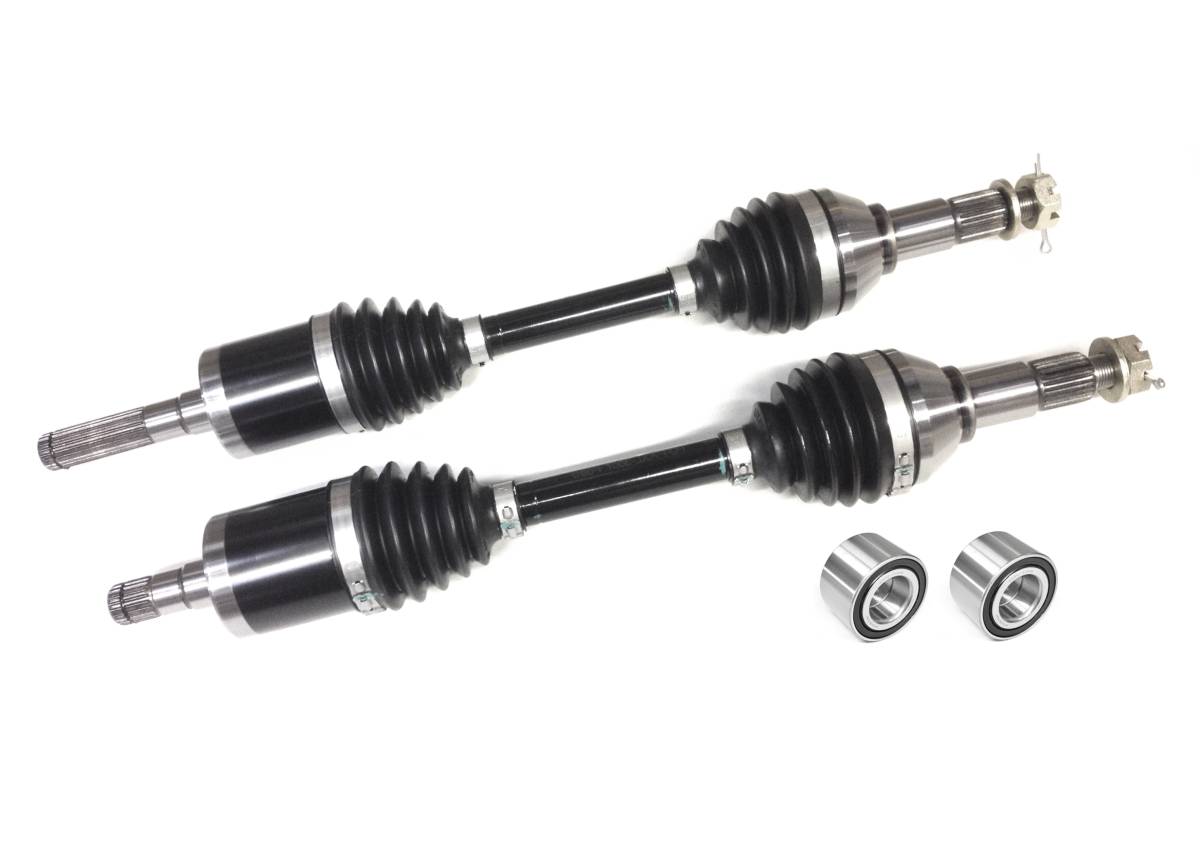

This is a pair of new Front CV axles & wheel bearings for a Can-Am ATV.

They replace the following OEMs:

Left: 705401115, 703500823, 705400756

Right: 705401116, 703500824, 705400757

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall length: Left - 507.5, Right - 550 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $134.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Can-Am models:2013-2014 Outlander 500/Max 500, 2017-2021 Outlander XMR 570 (excluding MAX), 2013-2018 Outlander 650/Max 650 (excluding XMR), 2013-2015 Outlander 800/Max 800 (excluding XMR)..
  • .. 2016-2018 Outlander 850/Max 850 (excluding XMR), 2012-2018 Outlander 1000/Max 1000 (excluding XMR), 2013-2014 Renegade 500, 2012-2015 Renegade 800, 2016-2018 Renegade 850, 2012-2018 Renegade 1000.
  • Features stronger than OEM chromoly hardened steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (left) 705401115, 703500823, 705400756, (right) 705401116, 703500824, 705400757, (bearings) 293350040, 293250246, 705400088. Inboard spline count: 21 (both). Outboard spline count: 26 (both). Compressed length: Left - 507.5, Right - 550 mm
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

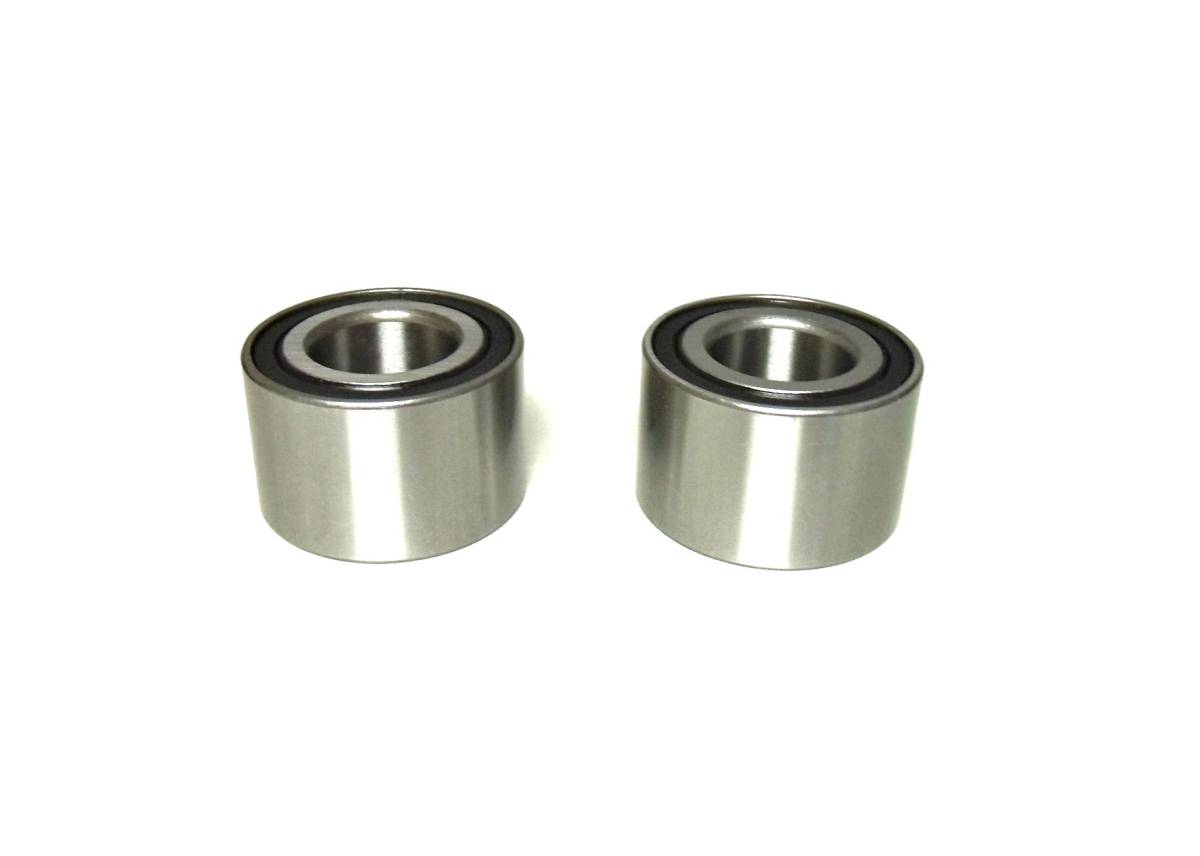

  • 2 axles & 2 wheel bearings

    • Application List

    YearMakeModelSubmodelNotes
    2014Can-AmOutlander 5004x4 DPS EFI
    2014Can-AmOutlander 5004x4 EFI
    2014Can-AmOutlander 5004x4 XT EFI
    2013Can-AmOutlander 5004x4 DPS EFI
    2013Can-AmOutlander 5004x4 EFI
    2013Can-AmOutlander 5004x4 XT EFI
    2019Can-AmOutlander 5704x4 XMR DPS
    2016Can-AmOutlander 6504X4
    2016Can-AmOutlander 6504x4 DPS
    2016Can-AmOutlander 6504x4 XT Camo DPS
    2016Can-AmOutlander 6504x4 XT DPS
    2016Can-AmOutlander 6506x6 XT
    2016Can-AmOutlander 6506x6 XT Camo DPS
    2015Can-AmOutlander 6504X4
    2015Can-AmOutlander 6504x4 DPS
    2015Can-AmOutlander 6504x4 XT
    2015Can-AmOutlander 6506x6 XT
    2014Can-AmOutlander 6504x4 DPS EFI
    2014Can-AmOutlander 6504x4 EFI
    2014Can-AmOutlander 6504x4 XT EFI
    2013Can-AmOutlander 6504x4 DPS EFI
    2013Can-AmOutlander 6504x4 EFI
    2013Can-AmOutlander 6504x4 XT EFI
    2015Can-AmOutlander 800R4X4
    2015Can-AmOutlander 800R4x4 DPS
    2015Can-AmOutlander 800R4x4 XT
    2015Can-AmOutlander 800R4x4 XTP
    2014Can-AmOutlander 800R4x4 DPS EFI
    2014Can-AmOutlander 800R4x4 EFI
    2014Can-AmOutlander 800R4x4 XTP EFI
    2013Can-AmOutlander 800R4x4 DPS EFI
    2013Can-AmOutlander 800R4x4 EFI
    2013Can-AmOutlander 800R4x4 XT EFI
    2013Can-AmOutlander 800R4x4 XTP EFI
    2012Can-AmOutlander 800R4x4 EFI
    2012Can-AmOutlander 800R4x4 XT EFI
    2016Can-AmOutlander 10006x6 XT
    2016Can-AmOutlander 10006x6 XT Camo DPS
    2015Can-AmOutlander 10004x4 DPS
    2015Can-AmOutlander 10004x4 XT
    2015Can-AmOutlander 10004x4 XTP
    2015Can-AmOutlander 10006x6 XT
    2014Can-AmOutlander 10004x4 DPS EFI
    2014Can-AmOutlander 10004x4 XT EFI
    2014Can-AmOutlander 10004x4 XTP EFI
    2013Can-AmOutlander 10004x4 DPS EFI
    2013Can-AmOutlander 10004x4 XT EFI
    2013Can-AmOutlander 10004x4 XTP EFI
    2012Can-AmOutlander 10004x4 EFI
    2012Can-AmOutlander 10004x4 XT EFI
    2016Can-AmOutlander 1000R4x4 DPS
    2016Can-AmOutlander 1000R4x4 XT-P DPS
    2016Can-AmOutlander 1000R4x4 XT DPS
    2014Can-AmOutlander Max 5004x4 DPS EFI
    2014Can-AmOutlander Max 5004x4 EFI
    2014Can-AmOutlander Max 5004x4 XT EFI
    2013Can-AmOutlander Max 5004x4 DPS EFI
    2013Can-AmOutlander Max 5004x4 EFI
    2013Can-AmOutlander Max 5004x4 XT EFI
    2017Can-AmOutlander Max 6504x4 DPS
    2017Can-AmOutlander Max 6504x4 XT DPS
    2016Can-AmOutlander Max 6504x4 DPS
    2016Can-AmOutlander Max 6504x4 XT DPS
    2015Can-AmOutlander Max 6504X4
    2015Can-AmOutlander Max 6504x4 DPS
    2015Can-AmOutlander Max 6504x4 XT
    2014Can-AmOutlander Max 6504x4 DPS EFI
    2014Can-AmOutlander Max 6504x4 EFI
    2014Can-AmOutlander Max 6504x4 XT EFI
    2013Can-AmOutlander Max 6504x4 DPS EFI
    2013Can-AmOutlander Max 6504x4 EFI
    2013Can-AmOutlander Max 6504x4 XT EFI
    2015Can-AmOutlander Max 800R4x4 DPS
    2015Can-AmOutlander Max 800R4x4 XT
    2015Can-AmOutlander Max 800R4x4 XTP
    2014Can-AmOutlander Max 800R4x4 DPS EFI
    2014Can-AmOutlander Max 800R4x4 XT EFI
    2014Can-AmOutlander Max 800R4x4 XTP EFI
    2013Can-AmOutlander Max 800R4x4 DPS EFI
    2013Can-AmOutlander Max 800R4x4 XT EFI
    2013Can-AmOutlander Max 800R4x4 XTP EFI
    2015Can-AmOutlander Max 10004x4 DPS
    2015Can-AmOutlander Max 10004x4 LTD
    2015Can-AmOutlander Max 10004x4 XT
    2015Can-AmOutlander Max 10004x4 XTP
    2014Can-AmOutlander Max 10004x4 DPS EFI
    2014Can-AmOutlander Max 10004x4 LTD EFI
    2014Can-AmOutlander Max 10004x4 XT EFI
    2014Can-AmOutlander Max 10004x4 XTP EFI
    2013Can-AmOutlander Max 10004x4 DPS EFI
    2013Can-AmOutlander Max 10004x4 LTD EFI
    2013Can-AmOutlander Max 10004x4 XT EFI
    2013Can-AmOutlander Max 10004x4 XTP EFI
    2016Can-AmOutlander Max 1000R4x4 LTD DPS
    2016Can-AmOutlander Max 1000R4x4 XT Camo DPS
    2016Can-AmOutlander Max 1000R4x4 XT DPS
    2016Can-AmOutlander Max 1000R4x4 XTP DPS
    2014Can-AmRenegade 5004x4 EFI
    2013Can-AmRenegade 5004x4 EFI
    2015Can-AmRenegade 800R4X4
    2015Can-AmRenegade 800R4x4 XXC
    2014Can-AmRenegade 800R4x4 EFI
    2014Can-AmRenegade 800R4x4 XXC EFI
    2013Can-AmRenegade 800R4x4 EFI
    2013Can-AmRenegade 800R4x4 XXC EFI
    2012Can-AmRenegade 800R4x4 EFI
    2012Can-AmRenegade 800R4x4 XXC EFI
    2015Can-AmRenegade 10004X4
    2015Can-AmRenegade 10004x4 XXC
    2014Can-AmRenegade 10004x4 EFI
    2014Can-AmRenegade 10004x4 XXC EFI
    2013Can-AmRenegade 10004x4 EFI
    2013Can-AmRenegade 10004x4 XXC EFI
    2012Can-AmRenegade 10004x4 EFI
    2012Can-AmRenegade 10004x4 XXC EFI
    2017Can-AmRenegade 1000R4X4
    2016Can-AmRenegade 1000R4X4
