Front Axle Pair for Can-Am Outlander 450 500 570 Renegade 500 570 2015-2021

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-122/CA-222

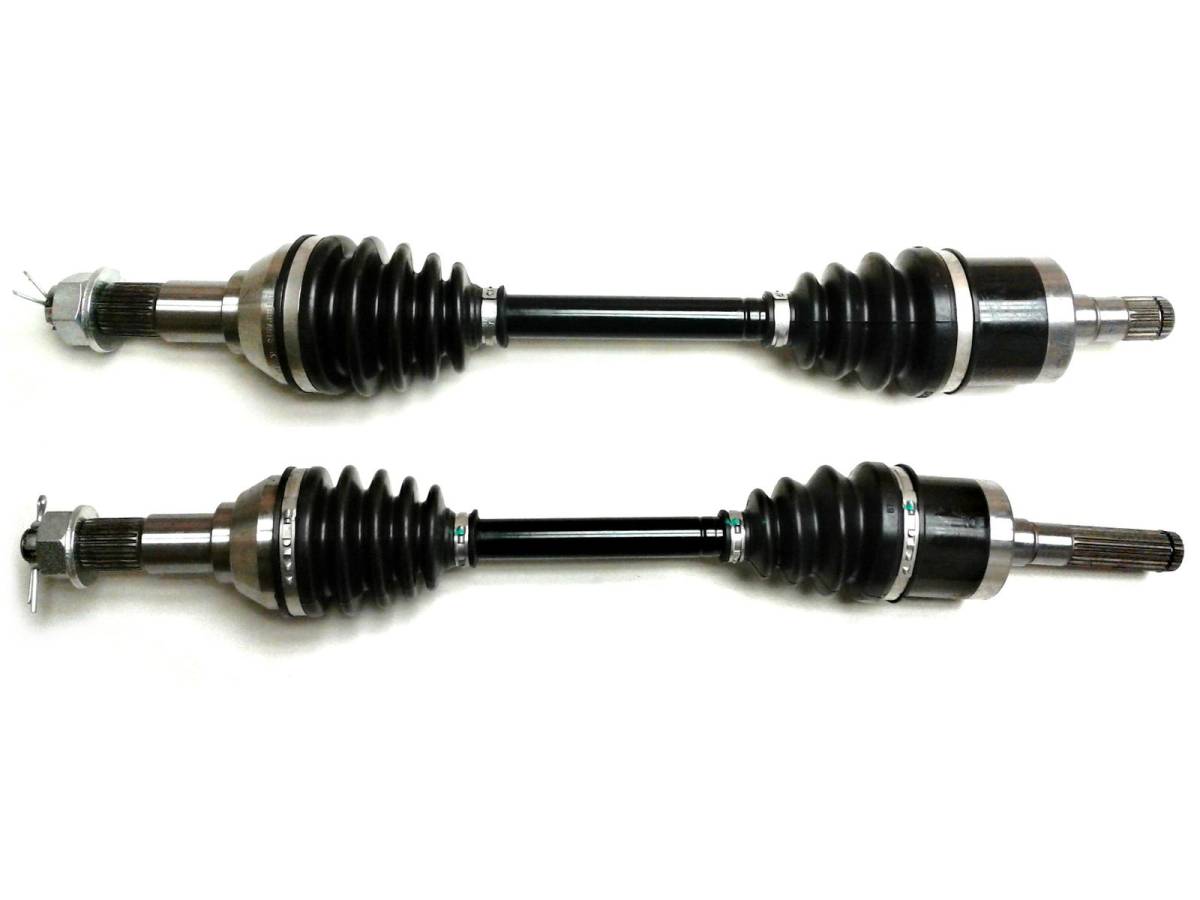

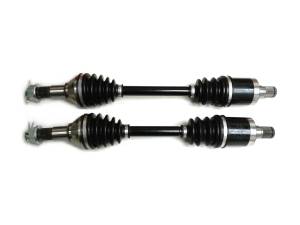

This pair of new Front CV axles fit the following Can-Am models:

2015-2023 Outlander 450/Max 450, 2015 Outlander 500/Max 500, 2016-2023 Outlander 570/Max 570 (exc XMR), 2015 Renegade 500, 2016-2018 Renegade 570 (exc XMR)

(Excluding XMR, Pro, or G2 Models)

Front Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left - 520 mm, Right 562 mm
  • Replaces Can-Am OEM # 705401429, 705401945, 705401428, 705401946
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $119.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Can-Am models: 2015-2023 Outlander 450/MAX 450, 2015 Outlander 500/MAX 500, 2016-2023 Outlander 570/MAX 570 (excluding XMR), 2015 Renegade 500, 2016-2018 Renegade 570 (excluding XMR). Set includes 2 axles.
  • Features stronger than OEM chromoly hardened steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed axle length Left: 520, Right: 562. Inboard Spline count: 21 (both), Outboard: 26 (both).
  • Replaces Can-Am OEM # 705401429, 705401945, 705401428, 705401946.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2023Can-AmOutlander 4504X4
    2023Can-AmOutlander 4504x4 DPS
    2023Can-AmOutlander 4504x4 Mossy Oak Hunting Edition DPS
    2022Can-AmOutlander 4504X4
    2022Can-AmOutlander 4504x4 DPS
    2022Can-AmOutlander 4504x4 Mossy Oak Hunting Edition DPS
    2021Can-AmOutlander 4504X4
    2021Can-AmOutlander 4504x4 DPS
    2021Can-AmOutlander 4504x4 Mossy Oak Hunting Edition DPS
    2020Can-AmOutlander 4504X4
    2020Can-AmOutlander 4504x4 DPS
    2020Can-AmOutlander 4504x4 Mossy Oak Hunting Edition DPS
    2019Can-AmOutlander 4504X4
    2019Can-AmOutlander 4504x4 DPS
    2019Can-AmOutlander 4504x4 Mossy Oak Hunting Edition DPS
    2018Can-AmOutlander 4504X4
    2018Can-AmOutlander 4504x4 DPS
    2018Can-AmOutlander 4504x4 Mossy Oak Hunting Edition DPS
    2017Can-AmOutlander 4504X4
    2017Can-AmOutlander 4504x4 DPS
    2015Can-AmOutlander 5004x4 DPS
    2015Can-AmOutlander 5004x4 XT
    2023Can-AmOutlander 5704X4
    2023Can-AmOutlander 5704x4 DPS
    2023Can-AmOutlander 5704x4 Mossy Oak Hunting Edition DPS
    2023Can-AmOutlander 5704x4 XT DPS
    2022Can-AmOutlander 5704X4
    2022Can-AmOutlander 5704x4 DPS
    2022Can-AmOutlander 5704x4 Mossy Oak Hunting Edition DPS
    2022Can-AmOutlander 5704x4 XT DPS
    2021Can-AmOutlander 5704X4
    2021Can-AmOutlander 5704x4 DPS
    2021Can-AmOutlander 5704x4 Mossy Oak Hunting Edition DPS
    2021Can-AmOutlander 5704x4 XT DPS
    2020Can-AmOutlander 5704X4
    2020Can-AmOutlander 5704x4 DPS
    2020Can-AmOutlander 5704x4 Mossy Oak Hunting Edition DPS
    2020Can-AmOutlander 5704x4 XT DPS
    2019Can-AmOutlander 5704X4
    2019Can-AmOutlander 5704x4 DPS
    2019Can-AmOutlander 5704x4 Mossy Oak Hunting Edition DPS
    2019Can-AmOutlander 5704x4 XT DPS
    2018Can-AmOutlander 5704X4
    2018Can-AmOutlander 5704x4 DPS
    2018Can-AmOutlander 5704x4 Mossy Oak Hunting Edition DPS
    2018Can-AmOutlander 5704x4 XT DPS
    2017Can-AmOutlander 5704X4
    2017Can-AmOutlander 5704x4 DPS
    2017Can-AmOutlander 5704x4 Mossy Oak Hunting Edition DPS
    2017Can-AmOutlander 5704x4 XT DPS
    2016Can-AmOutlander 5704x4 DPS
    2016Can-AmOutlander 5704x4 XT Camo DPS
    2016Can-AmOutlander 5704x4 XT DPS
    2016Can-AmOutlander L 4504X4
    2016Can-AmOutlander L 4504x4 Camo DPS
    2016Can-AmOutlander L 4504x4 DPS
    2015Can-AmOutlander L 4504X4
    2015Can-AmOutlander L 4504x4 DPS
    2015Can-AmOutlander L 5004X4
    2015Can-AmOutlander L 5004x4 DPS
    2016Can-AmOutlander L 5704X4
    2016Can-AmOutlander L 5704X4 Mossy Oak Hunting Edition
    2016Can-AmOutlander L 5704x4 Camo DPS
    2016Can-AmOutlander L 5704x4 DPS
    2016Can-AmOutlander L 5704x4 LE DPS
    2016Can-AmOutlander L 5704x4 XMR DPS
    2016Can-AmOutlander L MAX 4504X4
    2016Can-AmOutlander L MAX 4504x4 DPS
    2015Can-AmOutlander L MAX 4504X4
    2015Can-AmOutlander L MAX 4504x4 DPS
    2023Can-AmOutlander Max 4504X4
    2023Can-AmOutlander Max 4504x4 DPS
    2023Can-AmOutlander Max 4506x6 DPS
    2022Can-AmOutlander Max 4504X4
    2022Can-AmOutlander Max 4504x4 DPS
    2022Can-AmOutlander Max 4506x6 DPS
    2021Can-AmOutlander Max 4504X4
    2021Can-AmOutlander Max 4504x4 DPS
    2021Can-AmOutlander Max 4506x6 DPS
    2020Can-AmOutlander Max 4504X4
    2020Can-AmOutlander Max 4504x4 DPS
    2020Can-AmOutlander Max 4506x6 DPS
    2019Can-AmOutlander Max 4504X4
    2019Can-AmOutlander Max 4504x4 DPS
    2019Can-AmOutlander Max 4506x6 DPS
    2018Can-AmOutlander Max 4504X4
    2018Can-AmOutlander Max 4504x4 DPS
    2017Can-AmOutlander Max 4504X4
    2017Can-AmOutlander Max 4504x4 DPS
    2023Can-AmOutlander Max 5704X4
    2023Can-AmOutlander Max 5704x4 DPS
    2023Can-AmOutlander Max 5704x4 XT DPS
    2022Can-AmOutlander Max 5704X4
    2022Can-AmOutlander Max 5704x4 DPS
    2022Can-AmOutlander Max 5704x4 XT DPS
    2021Can-AmOutlander Max 5704X4
    2021Can-AmOutlander Max 5704x4 DPS
    2021Can-AmOutlander Max 5704x4 XT DPS
    2020Can-AmOutlander Max 5704X4
    2020Can-AmOutlander Max 5704x4 DPS
    2020Can-AmOutlander Max 5704x4 XT DPS
    2019Can-AmOutlander Max 5704X4
    2019Can-AmOutlander Max 5704x4 DPS
    2018Can-AmOutlander Max 5704X4
    2018Can-AmOutlander Max 5704x4 DPS
    2017Can-AmOutlander Max 5704X4
    2017Can-AmOutlander Max 5704x4 DPS
    2018Can-AmRenegade 5704X4
    2017Can-AmRenegade 5704X4
    2016Can-AmRenegade 5704X4

    Details

    • CA-122/CA-222
    • CA-122/CA-222
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 18.0 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
