Front Right Axle & Wheel Bearing for Can-Am ATV, Outlander & Renegade

Location on vehicle: Front,Right

CA-212/WB-1516

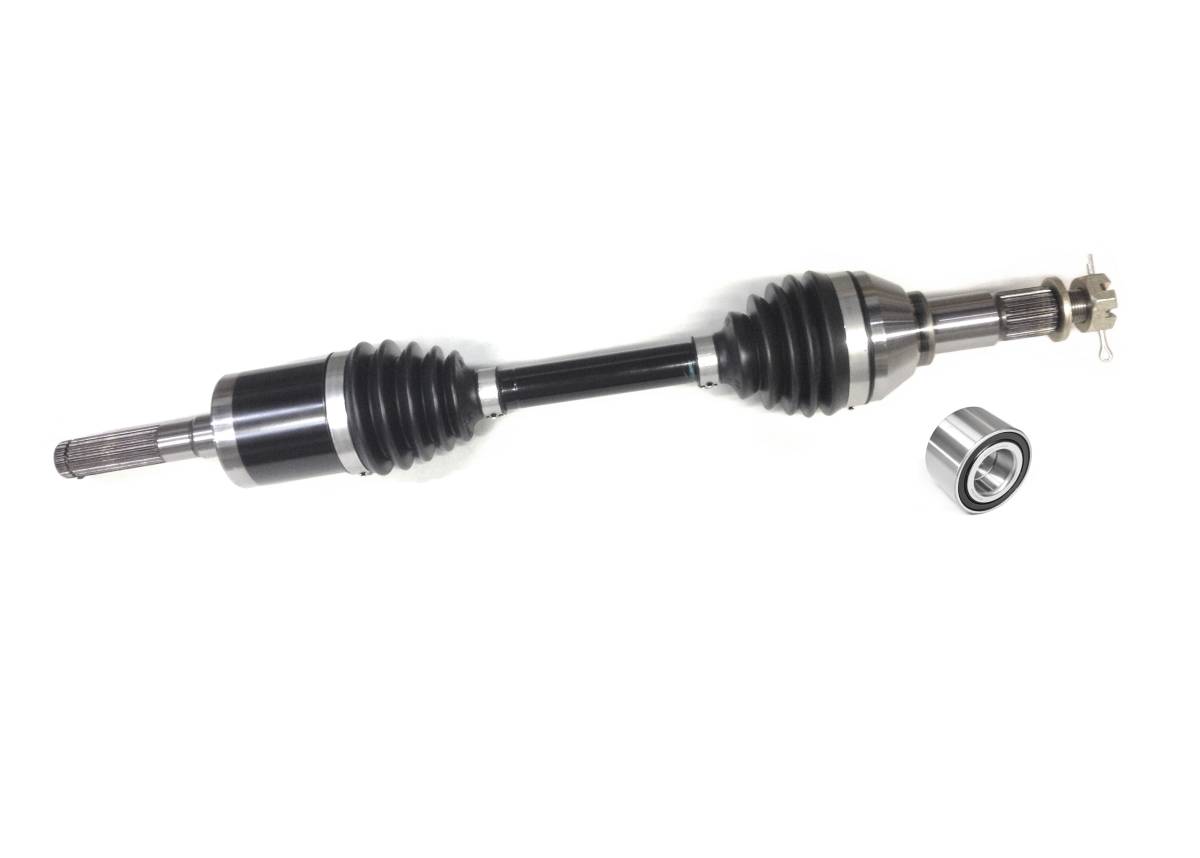

This is a new Front, Right CV axle & wheel bearing for a Can-Am ATV.

They will fit the following 4x4 applications:

2012-2017 ... Renegade 1000

2013-2014 ... Renegade 500

2013-2014 ... Outlander 500 / Max 500

2013-2017 ... Outlander Max 650

2012-2015 ... Outlander 800R

2013-2015 ... Outlander Max 800R

2015-2016 ... Outlander 1000

2013-2016 ... Outlander Max 1000

2012-2015 ... Renegade 800R

2012-2016 ... Outlander 1000

(please note this will not fit XMR models)

2013-2016 ... Outlander 650

(please note this will not fit XMR models)

Front, Right / Passenger Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 26
  • Compressed overall length: 550 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $94.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014Can-AmOutlander 5004x4 DPS EFI
2014Can-AmOutlander 5004x4 EFI
2014Can-AmOutlander 5004x4 XT EFI
2013Can-AmOutlander 5004x4 DPS EFI
2013Can-AmOutlander 5004x4 EFI
2013Can-AmOutlander 5004x4 XT EFI
2019Can-AmOutlander 5704x4 XMR DPS
2016Can-AmOutlander 6504X4
2016Can-AmOutlander 6504x4 DPS
2016Can-AmOutlander 6504x4 XT Camo DPS
2016Can-AmOutlander 6504x4 XT DPS
2016Can-AmOutlander 6506x6 XT
2016Can-AmOutlander 6506x6 XT Camo DPS
2015Can-AmOutlander 6504X4
2015Can-AmOutlander 6504x4 DPS
2015Can-AmOutlander 6504x4 XT
2015Can-AmOutlander 6506x6 XT
2014Can-AmOutlander 6504x4 DPS EFI
2014Can-AmOutlander 6504x4 EFI
2014Can-AmOutlander 6504x4 XT EFI
2013Can-AmOutlander 6504x4 DPS EFI
2013Can-AmOutlander 6504x4 EFI
2013Can-AmOutlander 6504x4 XT EFI
2015Can-AmOutlander 800R4X4
2015Can-AmOutlander 800R4x4 DPS
2015Can-AmOutlander 800R4x4 XT
2015Can-AmOutlander 800R4x4 XTP
2014Can-AmOutlander 800R4x4 DPS EFI
2014Can-AmOutlander 800R4x4 EFI
2014Can-AmOutlander 800R4x4 XTP EFI
2013Can-AmOutlander 800R4x4 DPS EFI
2013Can-AmOutlander 800R4x4 EFI
2013Can-AmOutlander 800R4x4 XT EFI
2013Can-AmOutlander 800R4x4 XTP EFI
2012Can-AmOutlander 800R4x4 EFI
2012Can-AmOutlander 800R4x4 XT EFI
2016Can-AmOutlander 10006x6 XT
2016Can-AmOutlander 10006x6 XT Camo DPS
2015Can-AmOutlander 10004x4 DPS
2015Can-AmOutlander 10004x4 XT
2015Can-AmOutlander 10004x4 XTP
2015Can-AmOutlander 10006x6 XT
2014Can-AmOutlander 10004x4 DPS EFI
2014Can-AmOutlander 10004x4 XT EFI
2014Can-AmOutlander 10004x4 XTP EFI
2013Can-AmOutlander 10004x4 DPS EFI
2013Can-AmOutlander 10004x4 XT EFI
2013Can-AmOutlander 10004x4 XTP EFI
2012Can-AmOutlander 10004x4 EFI
2012Can-AmOutlander 10004x4 XT EFI
2016Can-AmOutlander 1000R4x4 DPS
2016Can-AmOutlander 1000R4x4 XT-P DPS
2016Can-AmOutlander 1000R4x4 XT DPS
2014Can-AmOutlander Max 5004x4 DPS EFI
2014Can-AmOutlander Max 5004x4 EFI
2014Can-AmOutlander Max 5004x4 XT EFI
2013Can-AmOutlander Max 5004x4 DPS EFI
2013Can-AmOutlander Max 5004x4 EFI
2013Can-AmOutlander Max 5004x4 XT EFI
2017Can-AmOutlander Max 6504x4 DPS
2017Can-AmOutlander Max 6504x4 XT DPS
2016Can-AmOutlander Max 6504x4 DPS
2016Can-AmOutlander Max 6504x4 XT DPS
2015Can-AmOutlander Max 6504X4
2015Can-AmOutlander Max 6504x4 DPS
2015Can-AmOutlander Max 6504x4 XT
2014Can-AmOutlander Max 6504x4 DPS EFI
2014Can-AmOutlander Max 6504x4 EFI
2014Can-AmOutlander Max 6504x4 XT EFI
2013Can-AmOutlander Max 6504x4 DPS EFI
2013Can-AmOutlander Max 6504x4 EFI
2013Can-AmOutlander Max 6504x4 XT EFI
2015Can-AmOutlander Max 800R4x4 DPS
2015Can-AmOutlander Max 800R4x4 XT
2015Can-AmOutlander Max 800R4x4 XTP
2014Can-AmOutlander Max 800R4x4 DPS EFI
2014Can-AmOutlander Max 800R4x4 XT EFI
2014Can-AmOutlander Max 800R4x4 XTP EFI
2013Can-AmOutlander Max 800R4x4 DPS EFI
2013Can-AmOutlander Max 800R4x4 XT EFI
2013Can-AmOutlander Max 800R4x4 XTP EFI
2015Can-AmOutlander Max 10004x4 DPS
2015Can-AmOutlander Max 10004x4 LTD
2015Can-AmOutlander Max 10004x4 XT
2015Can-AmOutlander Max 10004x4 XTP
2014Can-AmOutlander Max 10004x4 DPS EFI
2014Can-AmOutlander Max 10004x4 LTD EFI
2014Can-AmOutlander Max 10004x4 XT EFI
2014Can-AmOutlander Max 10004x4 XTP EFI
2013Can-AmOutlander Max 10004x4 DPS EFI
2013Can-AmOutlander Max 10004x4 LTD EFI
2013Can-AmOutlander Max 10004x4 XT EFI
2013Can-AmOutlander Max 10004x4 XTP EFI
2016Can-AmOutlander Max 1000R4x4 LTD DPS
2016Can-AmOutlander Max 1000R4x4 XT Camo DPS
2016Can-AmOutlander Max 1000R4x4 XT DPS
2016Can-AmOutlander Max 1000R4x4 XTP DPS
2014Can-AmRenegade 5004x4 EFI
2013Can-AmRenegade 5004x4 EFI
2015Can-AmRenegade 800R4X4
2015Can-AmRenegade 800R4x4 XXC
2014Can-AmRenegade 800R4x4 EFI
2014Can-AmRenegade 800R4x4 XXC EFI
2013Can-AmRenegade 800R4x4 EFI
2013Can-AmRenegade 800R4x4 XXC EFI
2012Can-AmRenegade 800R4x4 EFI
2012Can-AmRenegade 800R4x4 XXC EFI
2015Can-AmRenegade 10004X4
2015Can-AmRenegade 10004x4 XXC
2014Can-AmRenegade 10004x4 EFI
2014Can-AmRenegade 10004x4 XXC EFI
2013Can-AmRenegade 10004x4 EFI
2013Can-AmRenegade 10004x4 XXC EFI
2012Can-AmRenegade 10004x4 EFI
2012Can-AmRenegade 10004x4 XXC EFI
2017Can-AmRenegade 1000R4X4
2016Can-AmRenegade 1000R4X4

Product Notes

  • Fits: Outlander 500/Max 500: 2013-2014, 570: 2017-2018, 650: 2013-2018, 800: 2013-2015, 850: 2016-2018. 1000: 2012-2018 & Renegade 500: 2013-2015, 800: 2012-2015, 850: 2016-2018, 1000: 2012-2018 (please note these do not fit XMR models).
  • Features a stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

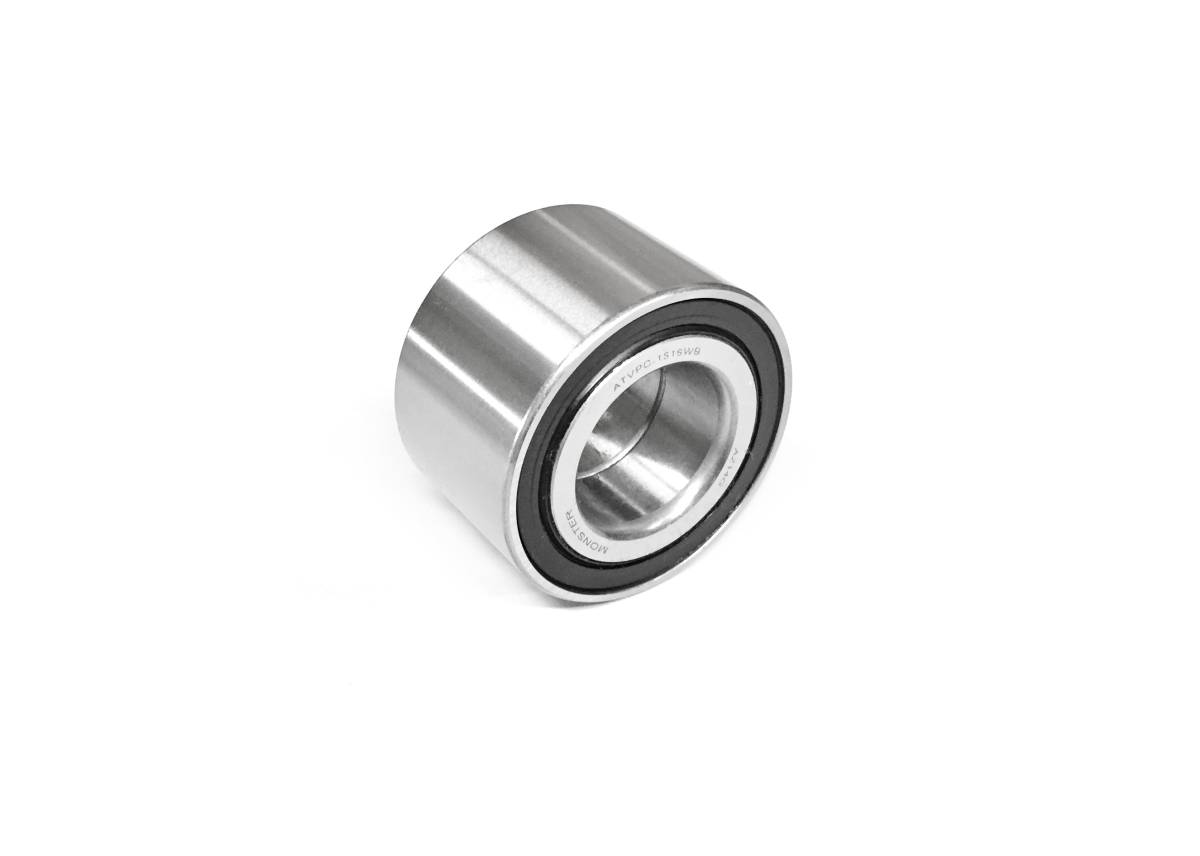

  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces OEM # 705401116, 703500824, 705400757, 293350040, 293250246, 705400088. Inner Splines: 21, Outer Splines: 26, Compressed length: 550 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle & 1 wheel bearing
  • Warranty

    1 year factory defect limited warranty

    Details

    • CA-212/WB-1516
    • CA-212/WB-1516
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 10.0 lbs.
    • W5.0000” x H5.0000” x L26.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
