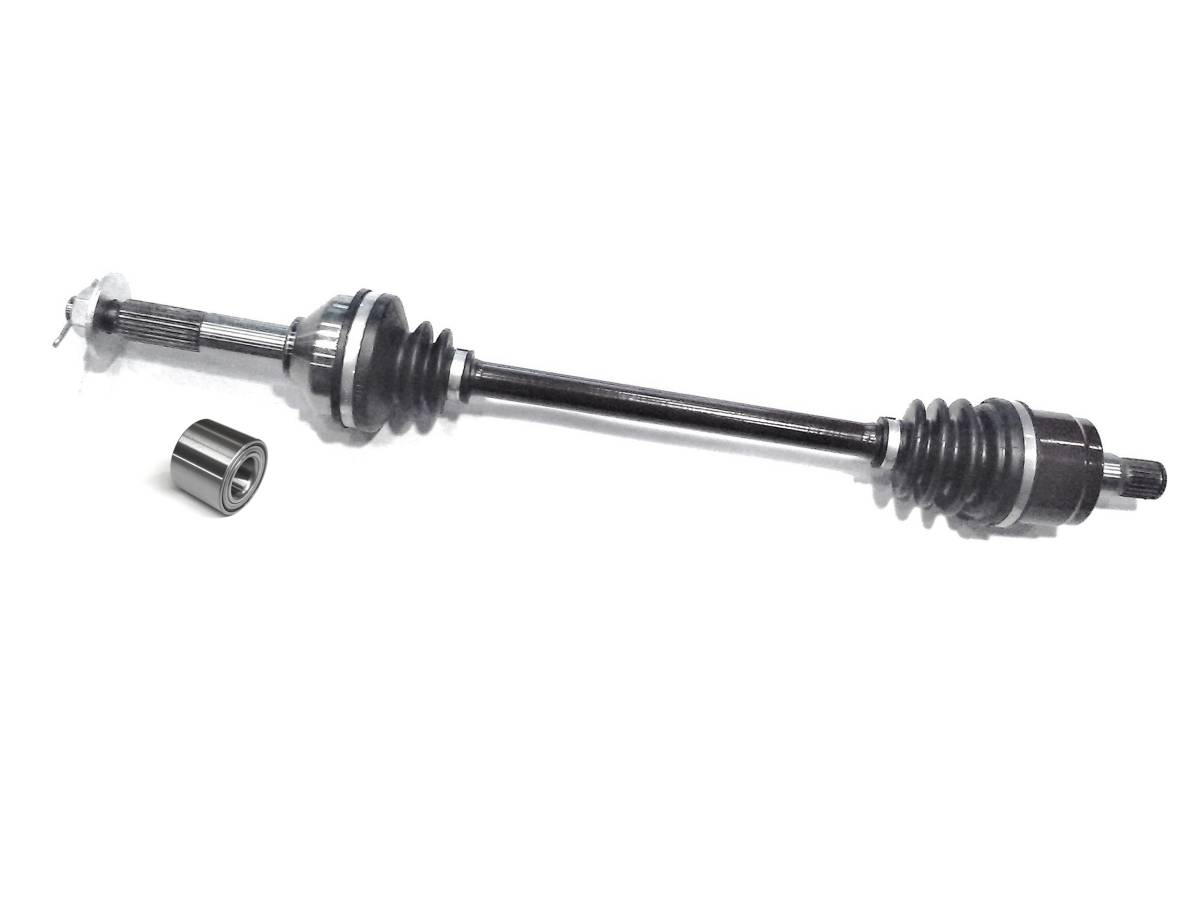

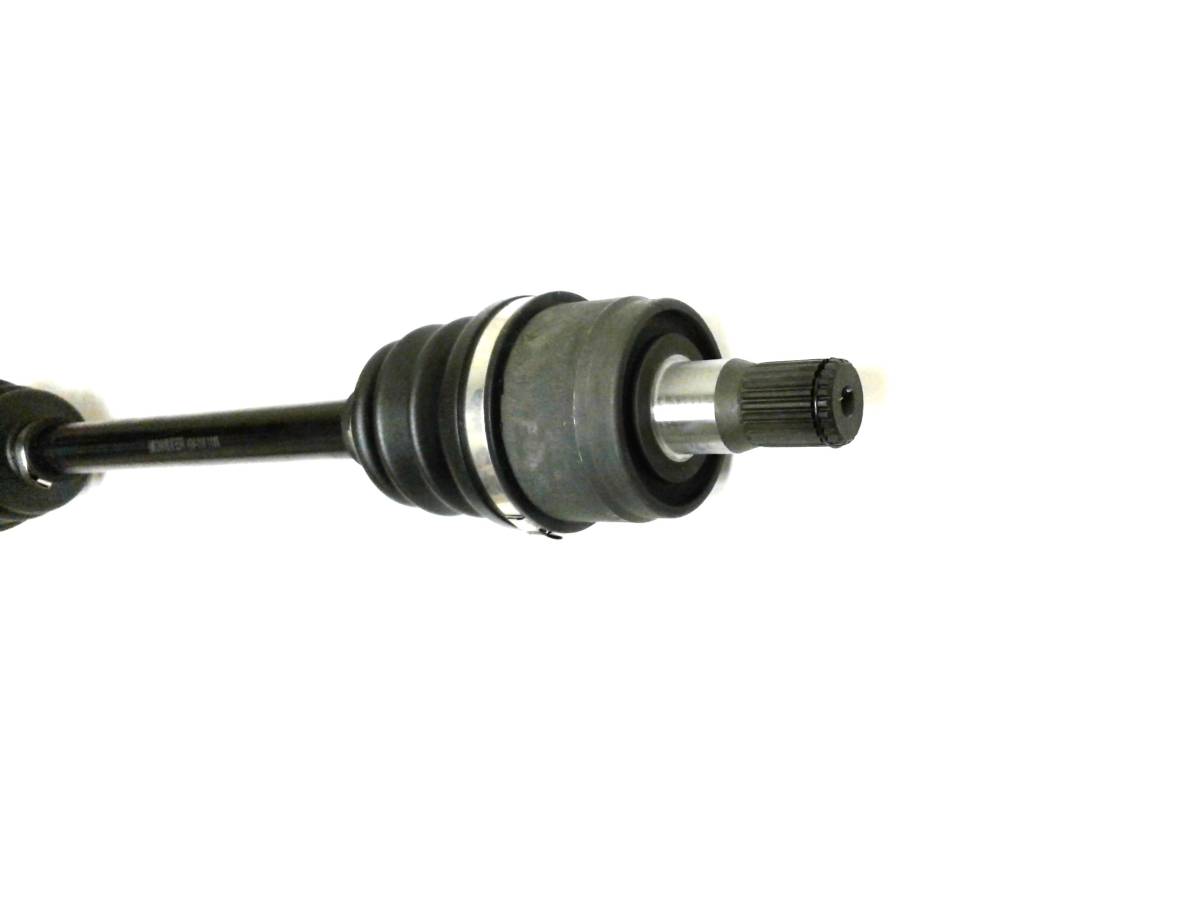

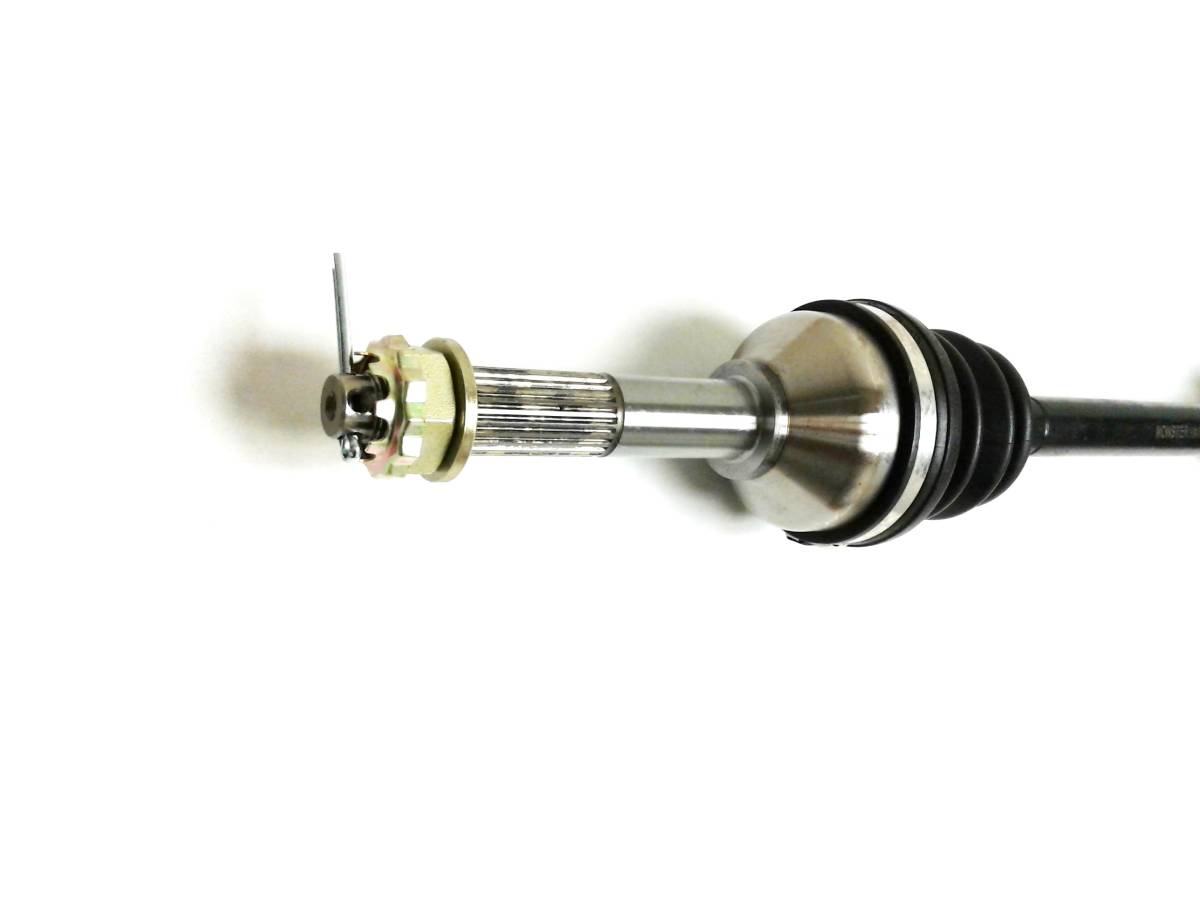

Rear CV Axle & Wheel Bearing for Kawasaki Teryx 750 4x4 2012-2013 UTV

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
KW-316/WB-1536
This is a new rear CV axle & wheel bearing for a Kawasaki UTV.

They fit the following 4x4 applications:

2012-2013 ... Teryx 750

(please note these will not fit 4-seater models)

rear, left or right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

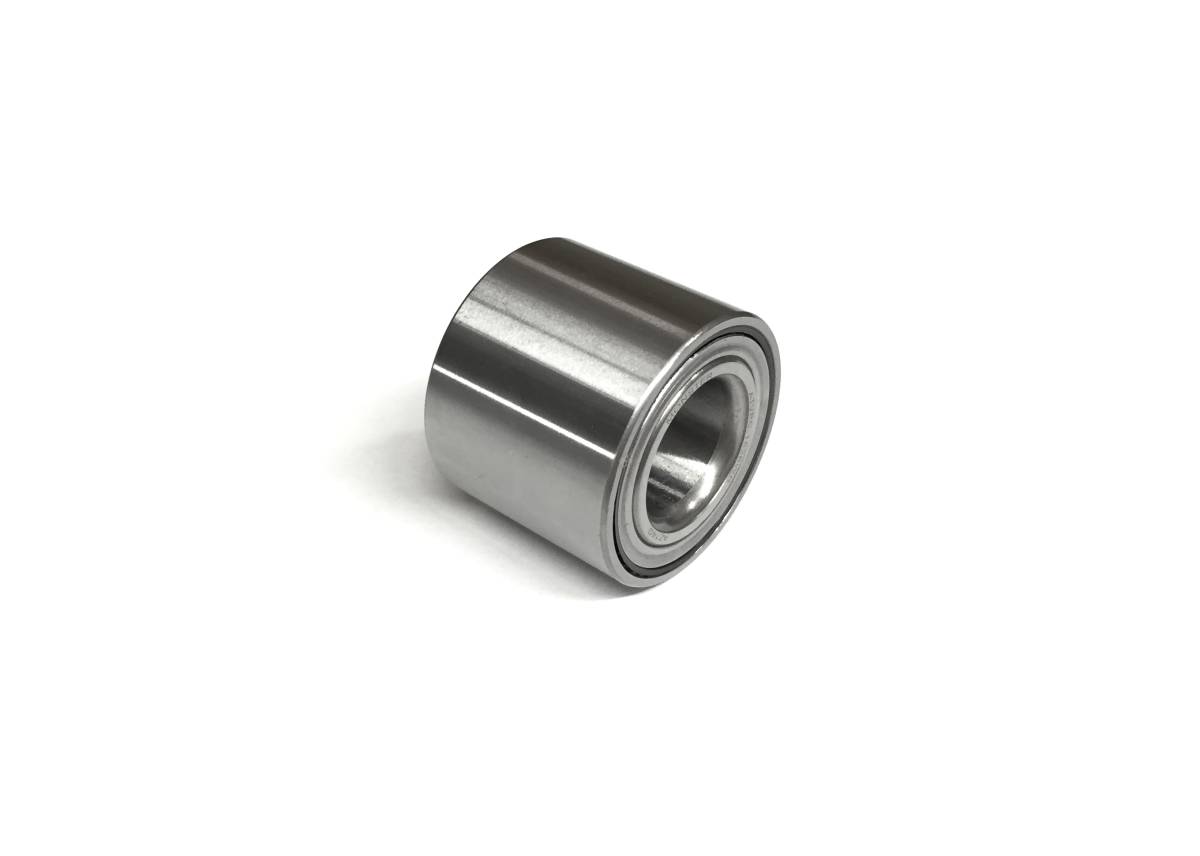

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • inobard CV joint spline count: 24
  • outboard CV joint spline count: 24
  • Compressed overall axle length: 651 mm
  • Replaces Kawasaki OEM # 59266-0702, 92045-0102
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $87.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013KawasakiTeryx 750KRF750N 4x4 FI
2013KawasakiTeryx 750KRF750P 4x4 LE FI
2013KawasakiTeryx 750KRF750R 4x4 LE FI
2013KawasakiTeryx 750KRF750S 4x4 Sport FI
2012KawasakiTeryx 750KRF750N 4x4 FI
2012KawasakiTeryx 750KRF750P 4x4 LE FI
2012KawasakiTeryx 750KRF750R 4x4 LE FI
2012KawasakiTeryx 750KRF750S 4x4 Sport FI
2012KawasakiTeryx 750KRF750V 4x4 Special Graphics Edition FI

Product Notes

  • Fits rear, left or right on the following Kawasaki UTV models: 2012-2013 Teryx 750 (including FI, LE & Sport).
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 59266-0702, 92045-0102. Inner splines: 24, Outer splines: 24, Compressed length: 651 mm.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 CV axle

    • Warranty

    1 year factory defect limited warranty
