Front CV Axle & Wheel Bearing for Polaris Ranger 1332606 1332856

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
PO-311/WB-1628

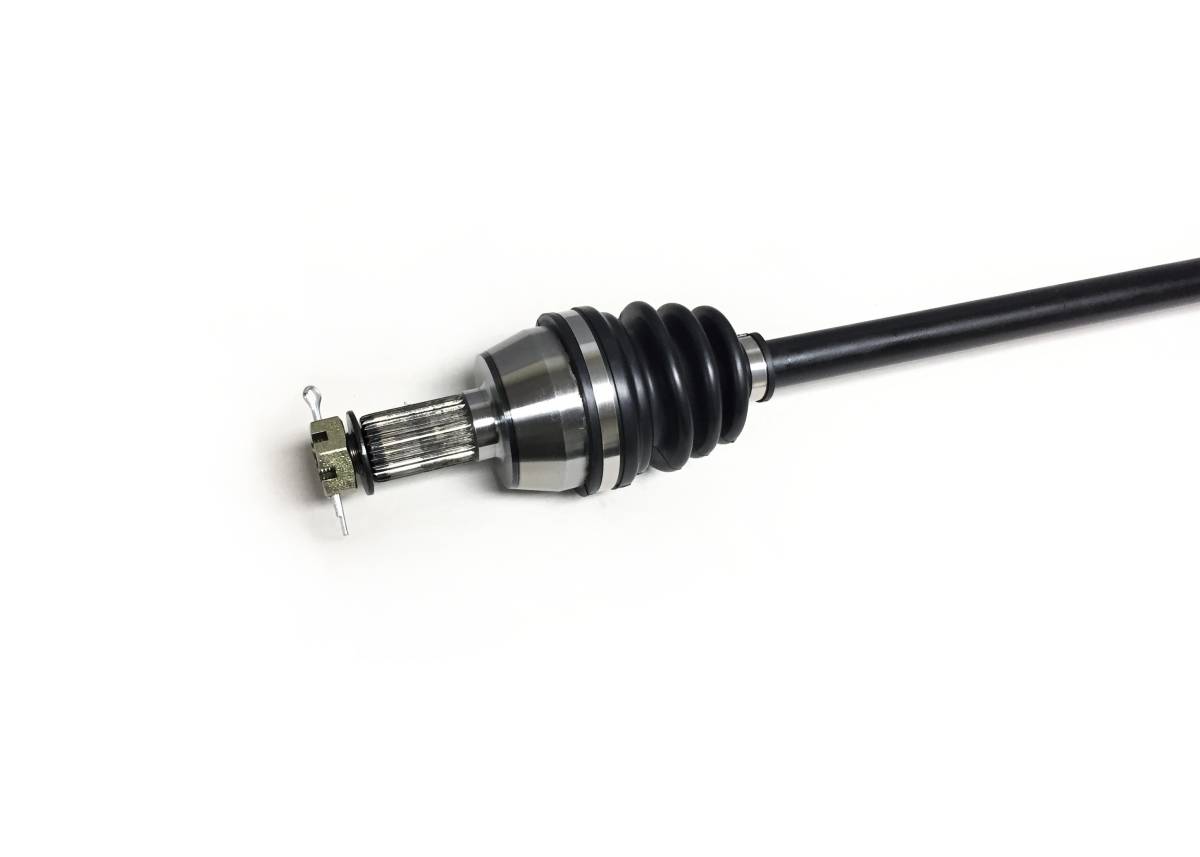

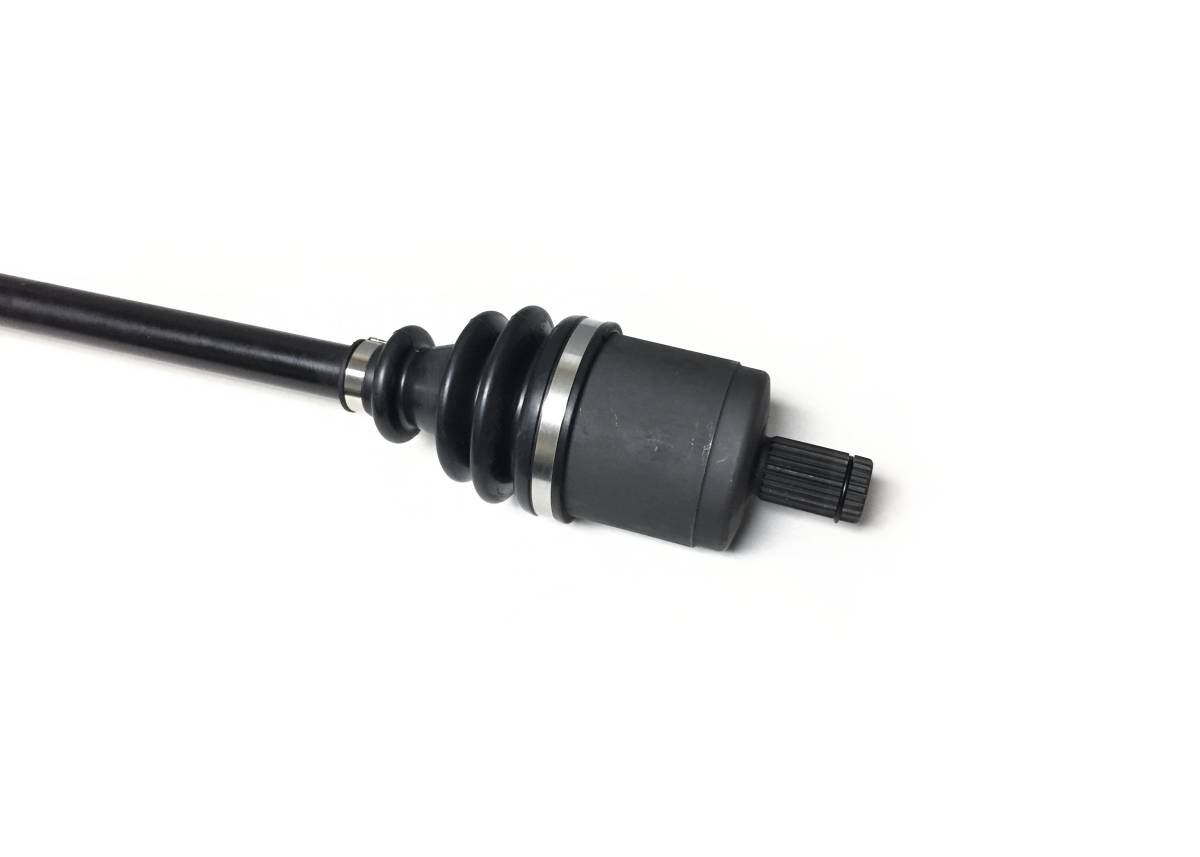

This is a new Front CV axle & wheel bearing for a Polaris UTV.

They fit the following applications:

2009-2010 ... Ranger 500 4x4

2009 ... Ranger 700 EFI 4x4

2010-2017 ... Ranger 800 4x4 & 6x6

(excluding 2013-2014 "Midsize' models)

2010-2011 ... Military Ranger

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

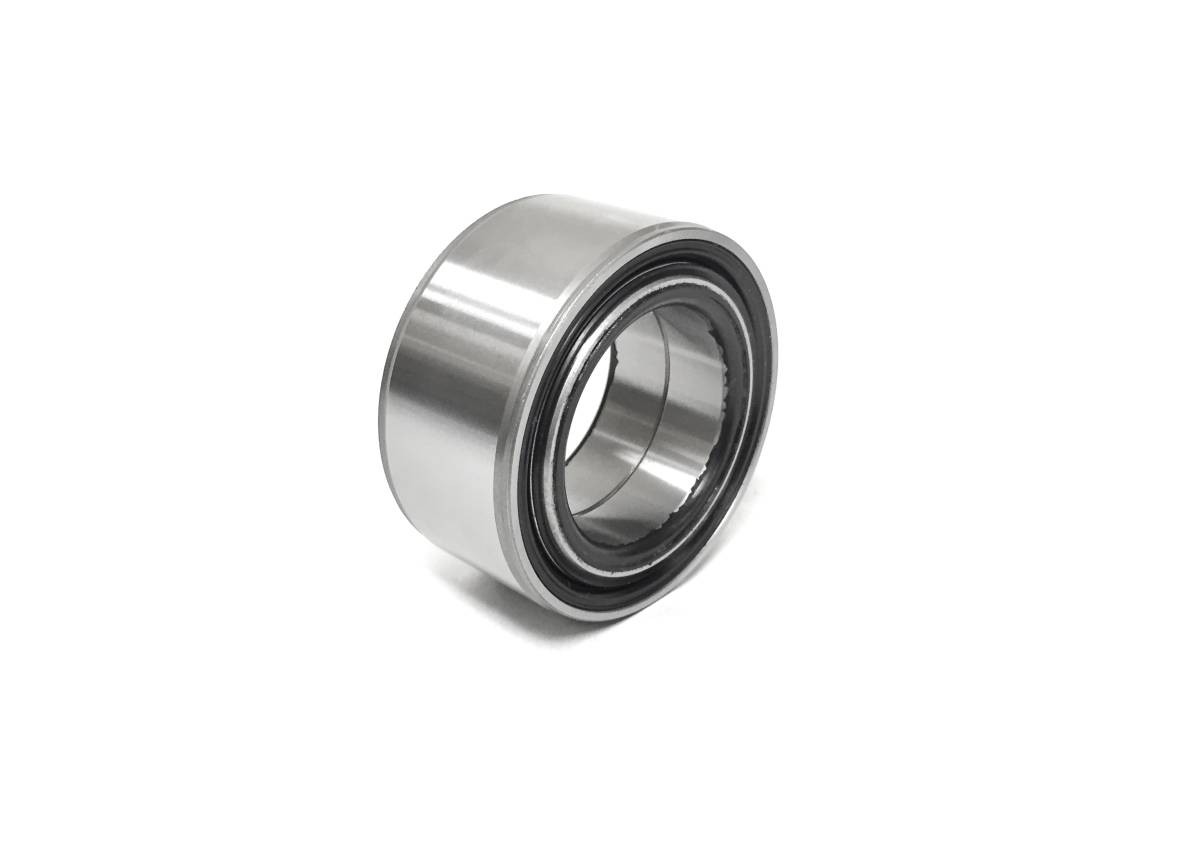

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 664 mm
Limited Supply: only 4 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $94.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2010PolarisRanger 5004x4 HO EFI
2009PolarisRanger 5004x4 EFI
2017PolarisRanger 8006x6
2016PolarisRanger 8006x6
2015PolarisRanger 8006x6
2014PolarisRanger 8006x6 EFI
2014PolarisRanger 800EFI
2014PolarisRanger 800LE EFI EPS
2014PolarisRanger 800Pursuit EFI
2013PolarisRanger 8006x6
2013PolarisRanger 800EFI
2013PolarisRanger 800EFI EPS
2013PolarisRanger 800LE EFI
2013PolarisRanger 800LE EFI EPS
2012PolarisRanger 8006x6
2011PolarisRanger 8006x6 EFI
2010PolarisRanger 8006x6 EFI
2014PolarisRanger Crew 800--
2013PolarisRanger Crew 800--
2013PolarisRanger Crew 800LE EPS
2012PolarisRanger Crew 8004x4 EFI
2012PolarisRanger Crew 8004x4 EFI EPS
2012PolarisRanger Crew 8004x4 LE EFI EPS
2012PolarisRanger Crew 8004x4 Pursuit EFI
2011PolarisRanger Crew 8004x4 EFI
2011PolarisRanger Crew 8004x4 EFI EPS
2011PolarisRanger Crew 8004x4 LE EFI
2011PolarisRanger Crew 8004x4 Pursuit EFI
2010PolarisRanger Crew 8004x4 EFI
2010PolarisRanger Crew 8004x4 EFI EPS
2009PolarisRanger XP 7004x4 Browning EFI
2009PolarisRanger XP 7004x4 EFI
2009PolarisRanger XP 7004x4 LE EFI
2013PolarisRanger XP 8004x4 Pursuit
2012PolarisRanger XP 8004X4
2012PolarisRanger XP 8004x4 Browning EPS
2012PolarisRanger XP 8004x4 EFI
2012PolarisRanger XP 8004x4 EPS
2012PolarisRanger XP 8004x4 LE
2012PolarisRanger XP 8004x4 LE EPS
2011PolarisRanger XP 8004x4 Browning EFI
2011PolarisRanger XP 8004x4 EFI
2011PolarisRanger XP 8004x4 EFI EPS
2011PolarisRanger XP 8004x4 Pursuit EFI
2010PolarisRanger XP 8004x4 EFI
2010PolarisRanger XP 8004x4 EFI EPS
2010PolarisRanger XP 8004x4 LE EFI
2010PolarisRanger XP 8004x4 Pursuit Browning EFI

Product Notes

  • Fits: 2009-2010 Ranger 500 4x4, 2009 Ranger XP 700 4x4, 2010-2017 Ranger 800 4x4 & 6x6 (excluding 13-14 Midsize models), 2010-2011 Military Ranger.
  • Axle features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.High speed bearing manufactured for long life * Double lip seal made to keep grease in and dirt out.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces OE # 1332606, 1332856, 3514627, 3514699. Inner Splines: 22, Outer Splines: 26, Compressed length: 664 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

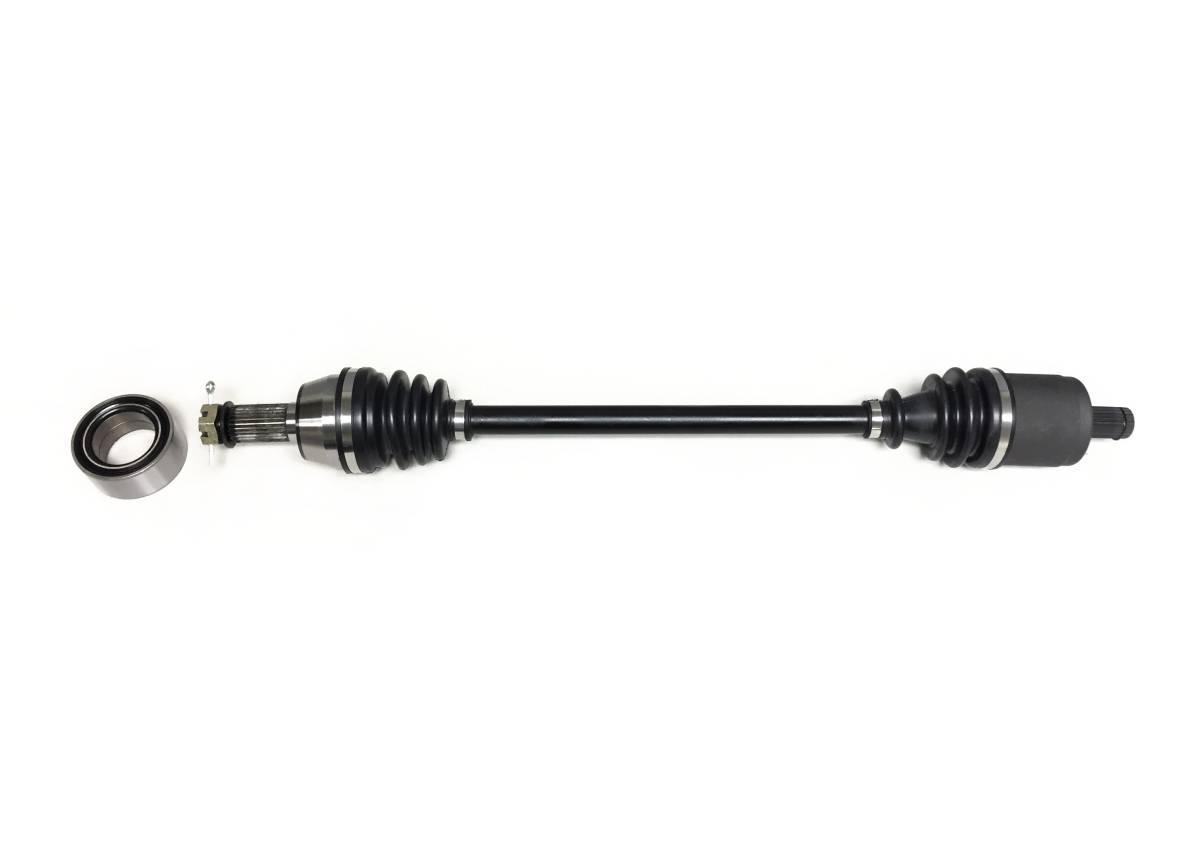

  • 1 CV Axle & 1 Wheel Bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-311/WB-1628
    • PO-311/WB-1628
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 13.0 lbs.
    • W5.0000” x H31.0000” x L5.0000”
