CV Axle Set for Can-Am Maverick 1000 Turbo XDS Max 2015-2017

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CA-117/CA-217/CA-322/CA-322

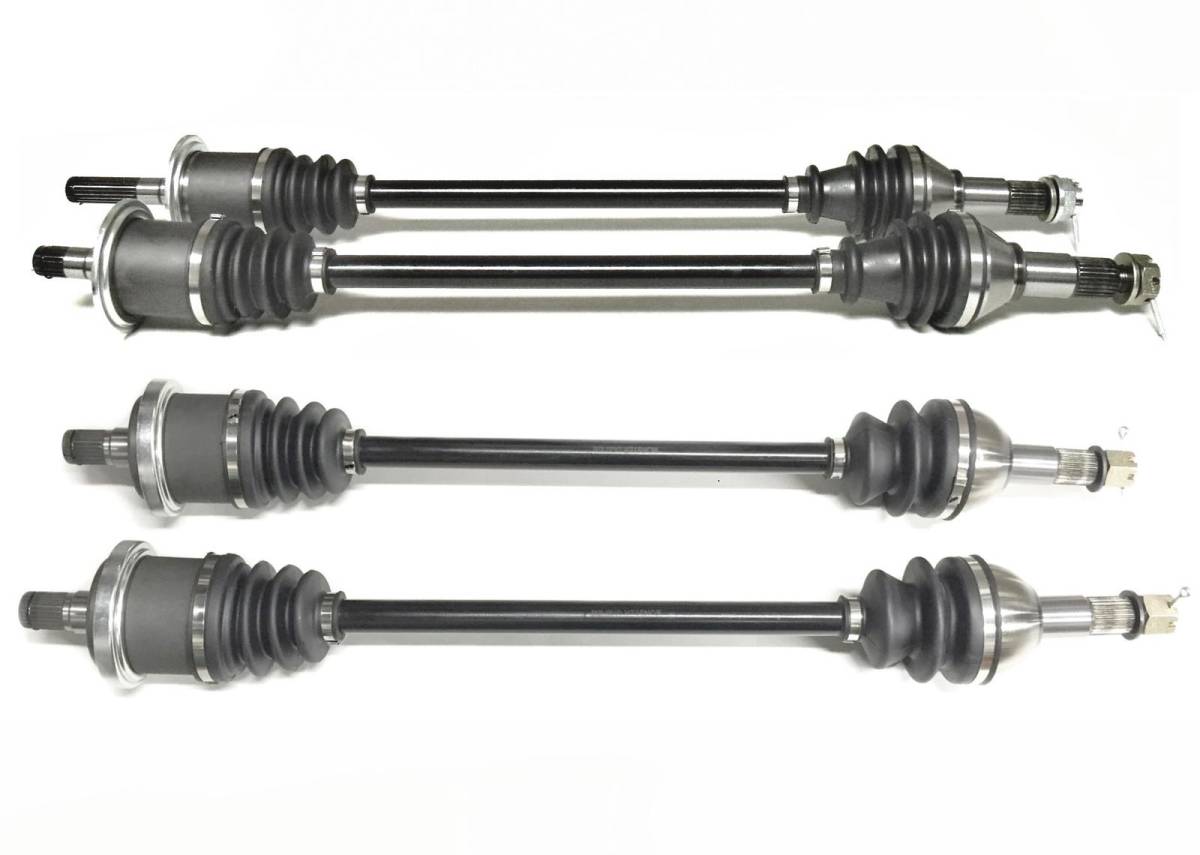

This is a set of 4 new CV axles for a Can-Am Turbo Maverick.

2015-2017 ... Maverick 1000 Turbo XDS

2015-2017 ... Maverick Max 1000 Turbo

Front & Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts-21, Rears-24
  • Outboard CV joint spline count: Fronts-26, Rears-29
  • Compressed overall axle length: Front Left: 725.5 mm, Front Right: 768 mm, Rears 740 mm

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $329.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the following Can-Am models: 2015-2017 Maverick 1000 Turbo EFI (XRS/XDS) & 2015-2017 Maverick MAX 1000 Turbo. Set includes 4 axles.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length (mm) - FL- 725.5, FR- 768, RL/RR- 740, Inboard Spline Count - Fronts- 21, Rears- 24, Outboard Spline Count - Fronts- 26, Rears- 29.
  • Replaces OEM # Fronts- 705401235, 705401873, 705401236, 705401874, Rears- 705502412, 705502235, 705502363.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Application List

    YearMakeModelSubmodelNotes
    2017Can-AmMaverick 1000R4x4 Turbo DPS
    2016Can-AmMaverick 1000R4x4 Turbo DPS
    2016Can-AmMaverick 1000R4x4 XDS Turbo DPS
    2016Can-AmMaverick 1000R4x4 XRS Turbo DPS
    2015Can-AmMaverick 1000R4x4 XDS Turbo
    2017Can-AmMaverick Max 1000R4x4 Turbo DPS
    2017Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
    2016Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
    2015Can-AmMaverick Max 1000R4x4 XDS Turbo

    Details

    • CA-117/CA-217/CA-322/CA-322
    • CA-117/CA-217/CA-322/CA-322
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 53.0 lbs.
    • W10.0000” x H33.0000” x L10.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
