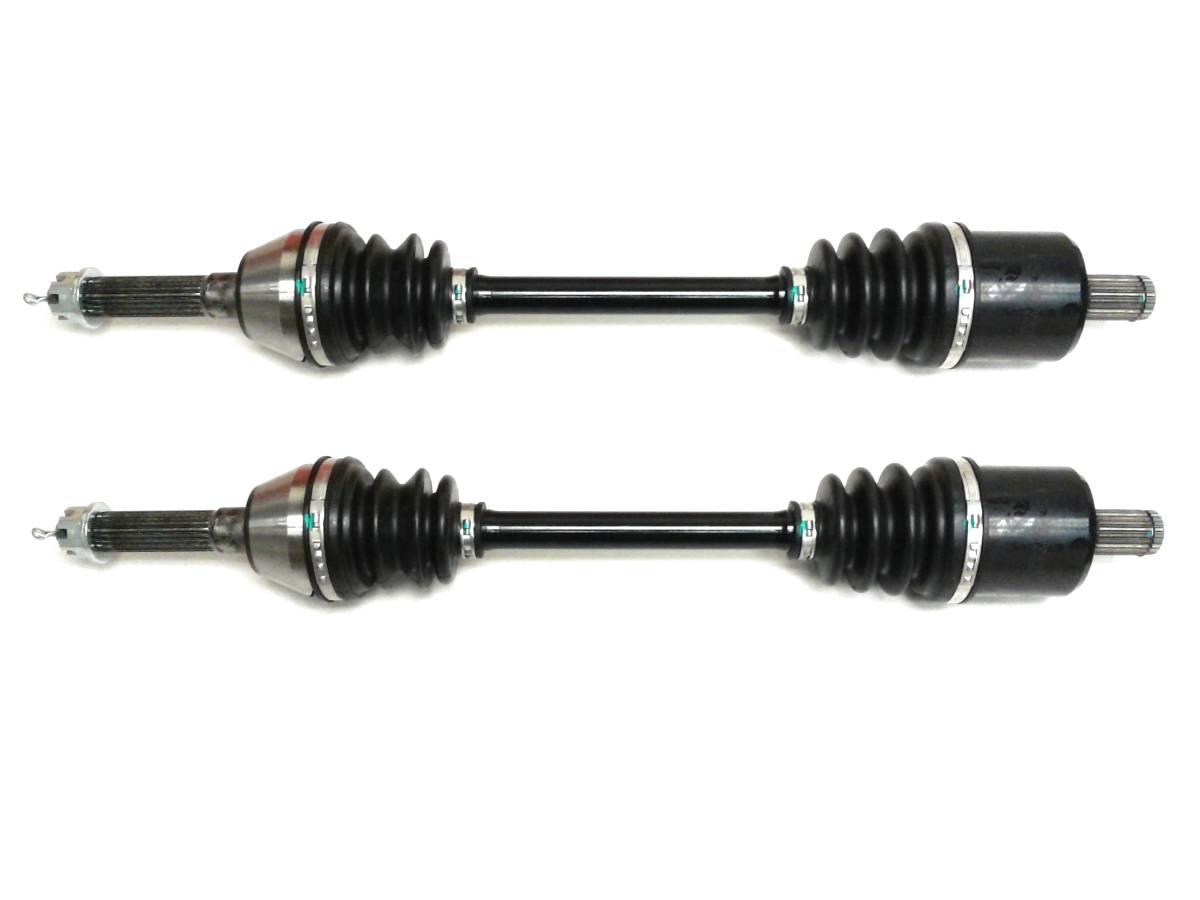

Front CV Axle Pair for Polaris ACE 325 500 570 900 1333246

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review

SKU: PO-379/PO-379

This is a pair of Front CV axles for a Polaris ATV.

They will fit the following 4x4 applications:

2015-2016 ... ACE 325

2017-2019 ... ACE 500

2015-2018 ... ACE 570

2016 ... ACE 900

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM, chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Joints fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 22 (both)
Outboard CV joint spline count: 20 (both)
Compressed overall axle length: 549 mm (both)

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $149.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel	Notes
2016	Polaris	ACE	--	325 cc models
2019	Polaris	ACE 500	--
2018	Polaris	ACE 500	--
2019	Polaris	ACE 570	EPS	does not fit submodel A19DAE57A4 (OEM #1333675)
2018	Polaris	ACE 570	EPS	does not fit submodel A18DAE57B2 (OEM #1333675)
2017	Polaris	ACE 570	--	does NOT fit SP submodels
2016	Polaris	ACE 570	--
2016	Polaris	ACE 570	SP
2016	Polaris	ACE 900	SP
2015	Polaris	Sportsman ACE	--	325 cc models

Product Notes

Fits 2015-2016 ACE 325, 2017-2019 ACE 500, 2015-2018 ACE 570, & 2016 ACE 900.

Axle features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.

Compressed Length - 549 mm (both), Inboard Spline Count - 22 (both), Outboard Spline Count - 20 (both).

Replaces OE # 1333246.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
